RA42L-BCHDSA (1977)
Toyota Celica
(7708-7908)RA42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1453006 |
RA42..3FC..LT FB,L-BROWN |
1 | ||
| 71071-1450001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK |
1 | ||
| 71071-1453001 |
RA42..3FC..LT FB,BLACK |
1 | ||
| 71071-1453004 |
RA42..3FC..LT FB,BLUE |
1 | ||
| 71071-1450004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE |
1 | ||
| 71071-1451001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK |
1 | ||
| 71071-1451004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE |
1 | ||
| 71071-1451006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN |
1 | ||
| 71071-1453004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE |
1 | ||
| 71071-1462006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71071-1450006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN |
1 | ||
| 71071-1453006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN |
1 | ||
| 71071-1465006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN |
1 | ||
| 71071-1451101 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71071-1453001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK |
1 | ||
| 71071-1465002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE |
1 | ||
| 71071-1450101 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71071-1450104 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71071-1451104 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71071-1465004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE |
1 | ||
| 71071-1450201 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71071-1450106 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71071-1462001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71071-1453101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71071-1451106 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71071-1465104 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71071-1453104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71071-1453106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71071-1451208 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY,IVORY |
1 | ||
| 71071-1464106 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN,BROWN |
1 | ||
| 71071-1462101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71071-1450204 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71071-1462104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71071-1465106 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71071-1462106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71071-1462102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71071-1465102 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71071-1B09004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71071-1B09001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71071-1450206 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71071-1467006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71071-1B09006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1453004 |
RA42..3FC..LT FB,BLUE |
1 | ||
| 71072-1450006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN |
1 | ||
| 71072-1453006 |
RA42..3FC..LT FB,L-BROWN |
1 | ||
| 71072-1450001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK |
1 | ||
| 71072-1453006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN |
1 | ||
| 71072-1451006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN |
1 | ||
| 71072-1465004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE |
1 | ||
| 71072-1451004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE |
1 | ||
| 71072-1453001 |
RA42..3FC..LT FB,BLACK |
1 | ||
| 71072-1453004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE |
1 | ||
| 71072-1451001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK |
1 | ||
| 71072-1453001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK |
1 | ||
| 71072-1465002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE |
1 | ||
| 71072-1450101 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71072-1463006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71072-1450106 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71072-1450004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE |
1 | ||
| 71072-1453106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71072-1451208 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY,IVORY |
1 | ||
| 71072-1451104 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71072-1450104 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71072-1451106 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71072-1450204 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71072-1453104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71072-1463001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71072-1463102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71072-1465104 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71072-1465006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN |
1 | ||
| 71072-1465106 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71072-1465102 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71072-1450206 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71072-1463101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71072-1451101 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71072-1463104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71072-1450201 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71072-1B09001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71072-1464106 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN,BROWN |
1 | ||
| 71072-1463106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71072-1B09004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71072-1467006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71072-1453101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71072-1B09006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1445001 |
RA42..3FC..LT FB,BLACK,BLACK |
1 | ||
| 71073-1445004 |
RA42..3FC..LT FB,BLUE,BLUE |
1 | ||
| 71073-1445006 |
RA42..3FC..LT FB,L-BROWN,BROWN |
1 | ||
| 71073-1454001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71073-1454006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71073-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71073-1445006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1445001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1464006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1467004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71073-1464001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1455008 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY,IVORY |
1 | ||
| 71073-1445004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1467006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71073-1464101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1454014 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71073-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71073-1464102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71073-1454004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71073-1467002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71073-1476004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1466006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN,BROWN |
1 | ||
| 71073-1469006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71073-1454006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71073-1464104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71073-1476001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1476006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1464106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1454001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1445001 |
RA42..3FC..LT FB,BLACK,BLACK |
1 | ||
| 71073-1445004 |
RA42..3FC..LT FB,BLUE,BLUE |
1 | ||
| 71073-1454006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71073-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71073-1445006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71073-1445006 |
RA42..3FC..LT FB,L-BROWN,BROWN |
1 | ||
| 71073-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71073-1454001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71073-1445004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1454001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71073-1467002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71073-1467004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71073-1445001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1454006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71073-1464104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1454014 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71073-1476001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1464006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1464101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1469006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71073-1466006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN,BROWN |
1 | ||
| 71073-1454004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71073-1464001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1464102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71073-1455008 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY,IVORY |
1 | ||
| 71073-1464106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1476006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1476004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1467006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||

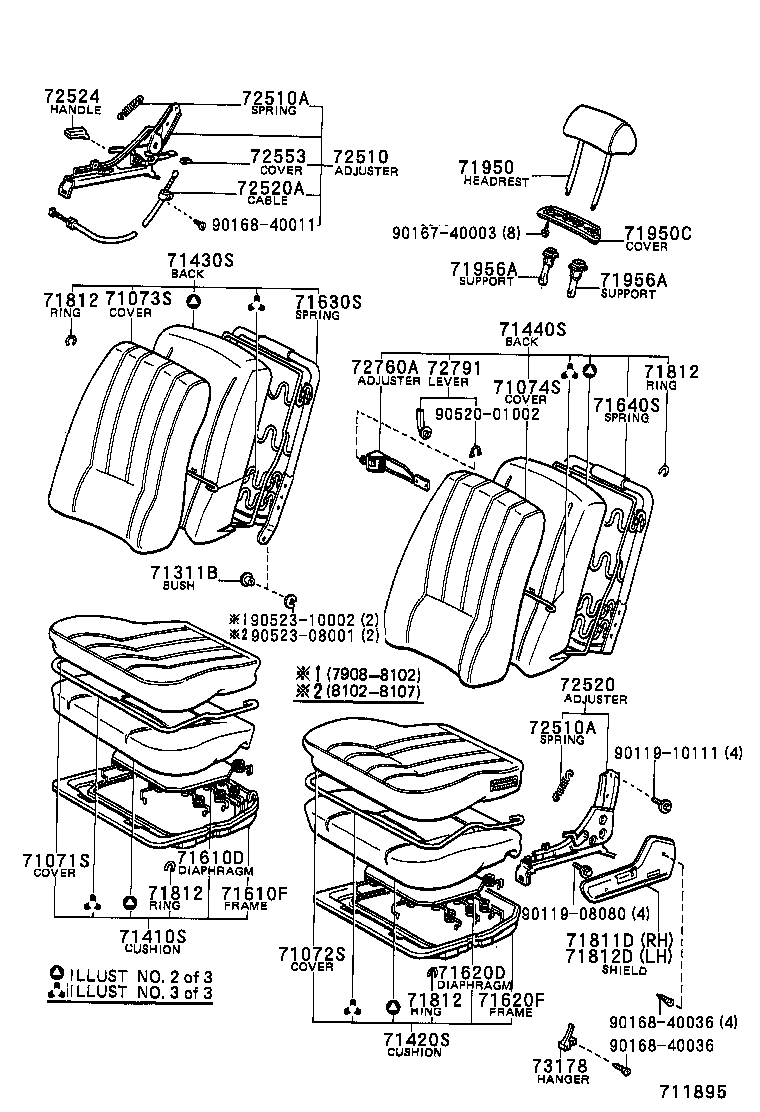

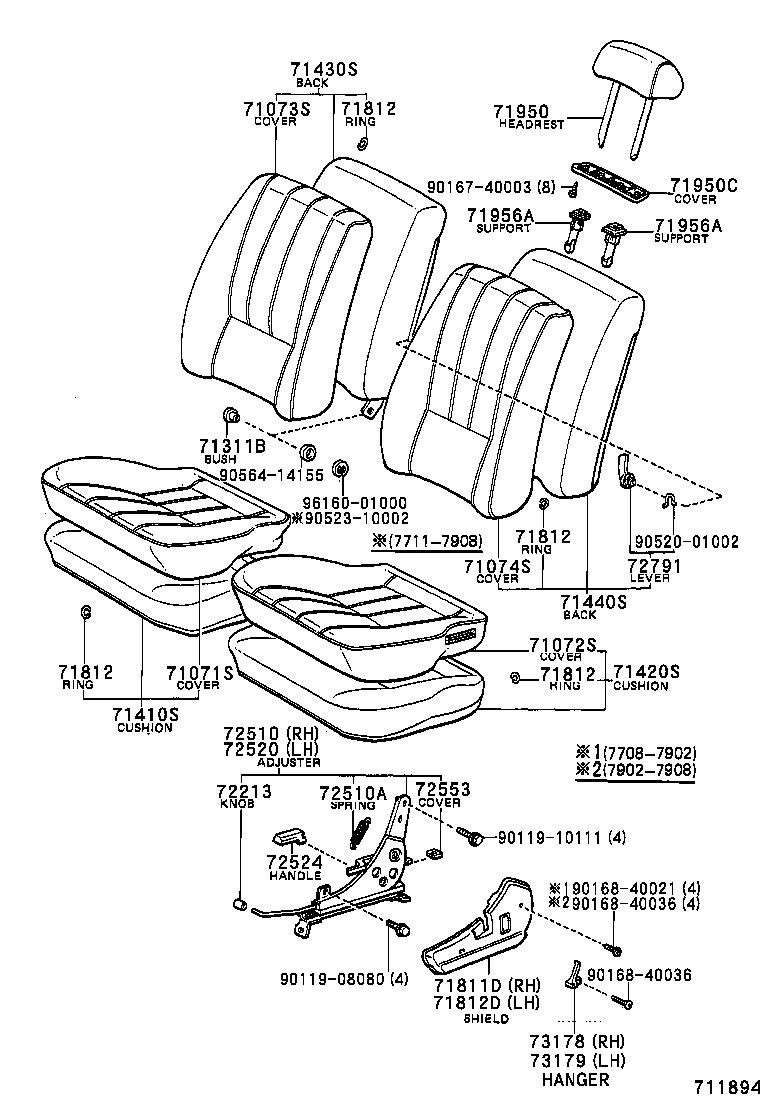

| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12099 |
RA42..3FC..LT |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1455006 |
RA42..3FC..LT FB,L-BROWN |
1 | ||
| 71410-1455004 |
RA42..3FC..LT FB,BLUE |
1 | ||
| 71410-1455001 |
RA42..3FC..LT FB,BLACK |
1 | ||
| 71410-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE |
1 | ||
| 71410-1451001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK |
1 | ||
| 71410-1466004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE |
1 | ||
| 71410-1451006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN |
1 | ||
| 71410-1466002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE |
1 | ||
| 71410-1452006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN |
1 | ||
| 71410-1466006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN |
1 | ||
| 71410-1452004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE |
1 | ||
| 71410-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK |
1 | ||
| 71410-1451101 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71410-1452001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK |
1 | ||
| 71410-1461001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71410-1452101 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71410-1451004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE |
1 | ||
| 71410-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN |
1 | ||
| 71410-1461006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71410-1451204 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71410-1455101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71410-1451104 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71410-1452106 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71410-1466102 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71410-1451201 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71410-1461101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71410-1451206 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71410-1461102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71410-1455104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71410-1461104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71410-1466106 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71410-1465106 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN |
1 | ||
| 71410-1451106 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71410-1466104 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71410-1452104 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71410-1461106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71410-1468006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71410-1B08001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71410-1455106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71410-1B08004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71410-1B08006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1455001 |
RA42..3FC..LT FB,BLACK |
1 | ||
| 71420-1452004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE |
1 | ||
| 71420-1452001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK |
1 | ||
| 71420-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK |
1 | ||
| 71420-1455004 |
RA42..3FC..LT FB,BLUE |
1 | ||
| 71420-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE |
1 | ||
| 71420-1467004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE |
1 | ||
| 71420-1467002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE |
1 | ||
| 71420-1453001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK |
1 | ||
| 71420-1461006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71420-1467006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN |
1 | ||
| 71420-1455006 |
RA42..3FC..LT FB,L-BROWN |
1 | ||
| 71420-1453004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE |
1 | ||
| 71420-1452006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN |
1 | ||
| 71420-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN |
1 | ||
| 71420-1452104 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71420-1455101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71420-1452106 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71420-1453006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN |
1 | ||
| 71420-1453104 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71420-1461001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71420-1455106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71420-1453106 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71420-1452204 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71420-1467104 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71420-1461102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71420-1452201 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71420-1461104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71420-1452101 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71420-1461101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71420-1467106 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71420-1453101 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71420-1455104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71420-1469006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71420-1452206 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71420-1B09004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71420-1461106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71420-1B09001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71420-1467102 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71420-1466106 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN |
1 | ||
| 71420-1B09006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1466004 |
RA42..3FC..LT FB,BLUE,BLUE |
1 | ||
| 71430-1457004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71430-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71430-1466001 |
RA42..3FC..LT FB,BLACK,BLACK |
1 | ||
| 71430-1457006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71430-1466006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71430-1466006 |
RA42..3FC..LT FB,L-BROWN,BROWN |
1 | ||
| 71430-1457001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71430-1472006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71430-1466001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71430-1472102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71430-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71430-1477002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71430-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71430-1472001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71430-1472101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71430-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71430-1487001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71430-1477006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71430-1477004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71430-1487004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71430-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71430-1466004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71430-1472104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71430-1474006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN |
1 | ||
| 71430-1487006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71430-1480006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71430-1472106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1468004 |
RA42..3FC..LT FB,BLUE,BLUE |
1 | ||
| 71440-1468001 |
RA42..3FC..LT FB,BLACK,BLACK |
1 | ||
| 71440-1457004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71440-1457001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71440-1468004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71440-1468006 |
RA42..3FC..LT FB,L-BROWN,BROWN |
1 | ||
| 71440-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71440-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71440-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71440-1473001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71440-1477002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71440-1468001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71440-1468006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71440-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71440-1473102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71440-1473006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71440-1477004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71440-1473106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71440-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71440-1487004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71440-1455014 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71440-1473104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71440-1487001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71440-1457006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71440-1481006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71440-1477006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71440-1487006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71440-1475006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN |
1 | ||
| 71440-1473101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71821-1402004 |
RA42..3FC..LT BLUE,BLUE |
1 | ||
| 71821-1402101 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 71811-1403002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 71811-1403001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 71821-1402106 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| 71821-1402001 |
RA42..3FC..LT BLACK,BLACK |
1 | ||
| 71821-1402104 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 71811-1403004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 71821-1402006 |
RA42..3FC..LT L-BROWN,BROWN |
1 | ||
| 71821-1402102 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 71811-1403006 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71822-1402001 |
RA42..3FC..LT BLACK,BLACK |
1 | ||
| 71822-1402104 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 71822-1402101 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 71812-1404002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 71822-1402106 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| 71822-1402006 |
RA42..3FC..LT L-BROWN,BROWN |
1 | ||
| 71822-1402102 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 71812-1404006 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| 71822-1402004 |
RA42..3FC..LT BLUE,BLUE |
1 | ||
| 71812-1404004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 71812-1404001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1422006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
2 | ||
| 71910-1428006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
2 | ||
| 71910-1422001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
2 | ||
| 71910-1428004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
2 | ||
| 71910-1417004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
2 | ||
| 71910-1410008 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY |
2 | ||
| 71910-1430001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
2 | ||
| 71910-1417006 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
2 | ||
| 71910-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER |
2 | ||
| 71910-1428002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
2 | ||
| 71910-1430006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
2 | ||
| 71910-1417001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
2 | ||
| 71910-1430002 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
2 | ||
| 71910-1430004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
2 | ||
| 71950C - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-1402006 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
2 | ||
| 71922-1402001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
2 | ||
| 71922-1402004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BLACK,BLACK |
2 | ||
| 71956-3002005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BEIGE,BEIGE |
2 | ||
| 71956-3002001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BLACK,BLACK |
2 | ||
| 71990-3002005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BEIGE,BEIGE |
2 | ||
| 71990-3002004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BLUE,BLUE |
2 | ||
| 71956-3002004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BLUE,BLUE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BLACK,BLACK |
2 | ||
| 71956-3002005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BEIGE,BEIGE |
2 | ||
| 71956-3002001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BLACK,BLACK |
2 | ||
| 71990-3002005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BEIGE,BEIGE |
2 | ||
| 71990-3002004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BLUE,BLUE |
2 | ||
| 71956-3002004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BLUE,BLUE |
2 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-14010 |
RA42..3FC..LT |
2 | ||
| 72213-14011 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-14040 |
RA42..3FC..LT |
1 | ||
| 72010-14072 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72010-14041 |
RA42..3FC..LT |
1 | ||
| 72010-14071 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-14050 |
RA42..3FC..LT |
1 | ||
| 72020-14060 |
RA42..3FC..LT |
1 | ||
| 72020-14061 |
RA42..3FC..LT |
1 | ||
| 72020-14081 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72020-14051 |
RA42..3FC..LT |
1 | ||
| 72020-14091 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72020-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72020-14090 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1401004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH,BLUE,BLUE |
1 | ||
| 72525-1401006 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH,L-BROWN,BROWN |
1 | ||
| 72526-1401001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH,BLACK,BLACK |
1 | ||
| 72525-1401004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH,BLUE,BLUE |
1 | ||
| 72525-1401001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH,BLACK,BLACK |
1 | ||
| 72526-1401006 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH,L-BROWN,BROWN |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72553-12020 |
RA42..3FC..LT |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-1401001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 72791-1401004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 72791-1401005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BEIGE,BEIGE |
1 | ||
| 73178 - HANGER, FRONT SEAT LAP BELT, RH | ||||
| 73181-1401001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 73181-1401004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 73181-1401006 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| 73179 - HANGER, FRONT SEAT LAP BELT, LH | ||||
| 73182-1402006 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| 73182-1402004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 73182-1402001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90167-40003 | ||||
| 90168-40021 | ||||
| 90168-40036 | ||||
| 90520-01002 | ||||
| 90523-10002 | ||||
| 90564-14155 | ||||
| 96160-01000 | ||||
(7908- )RA4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1453006 |
RA42..3FC..LT FB,L-BROWN |
1 | ||
| 71071-1450001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK |
1 | ||
| 71071-1453001 |
RA42..3FC..LT FB,BLACK |
1 | ||
| 71071-1453004 |
RA42..3FC..LT FB,BLUE |
1 | ||
| 71071-1450004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE |
1 | ||
| 71071-1451001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK |
1 | ||
| 71071-1451004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE |
1 | ||
| 71071-1451006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN |
1 | ||
| 71071-1453004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE |
1 | ||
| 71071-1462006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71071-1450006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN |
1 | ||
| 71071-1453006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN |
1 | ||
| 71071-1465006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN |
1 | ||
| 71071-1451101 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71071-1453001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK |
1 | ||
| 71071-1465002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE |
1 | ||
| 71071-1450101 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71071-1450104 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71071-1451104 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71071-1465004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE |
1 | ||
| 71071-1450201 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71071-1450106 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71071-1462001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71071-1453101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71071-1451106 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71071-1465104 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71071-1453104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71071-1453106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71071-1451208 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY,IVORY |
1 | ||
| 71071-1464106 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN,BROWN |
1 | ||
| 71071-1462101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71071-1450204 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71071-1462104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71071-1465106 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71071-1462106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71071-1462102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71071-1465102 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71071-1B09004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71071-1B09001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71071-1450206 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71071-1467006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71071-1B09006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1450004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE |
1 | ||
| 71072-1453004 |
RA42..3FC..LT FB,BLUE |
1 | ||
| 71072-1450006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN |
1 | ||
| 71072-1453006 |
RA42..3FC..LT FB,L-BROWN |
1 | ||
| 71072-1450001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK |
1 | ||
| 71072-1453006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN |
1 | ||
| 71072-1451006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN |
1 | ||
| 71072-1465004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE |
1 | ||
| 71072-1451004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE |
1 | ||
| 71072-1453001 |
RA42..3FC..LT FB,BLACK |
1 | ||
| 71072-1453004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE |
1 | ||
| 71072-1451001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK |
1 | ||
| 71072-1453001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK |
1 | ||
| 71072-1465002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE |
1 | ||
| 71072-1450101 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71072-1463006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71072-1450106 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71072-1453106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71072-1451208 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY,IVORY |
1 | ||
| 71072-1451104 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71072-1450104 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71072-1451106 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71072-1450204 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71072-1453104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71072-1463001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71072-1463102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71072-1465104 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71072-1465006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN |
1 | ||
| 71072-1465106 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71072-1465102 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71072-1450206 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71072-1463101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71072-1451101 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71072-1463104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71072-1450201 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71072-1B09001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71072-1464106 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN,BROWN |
1 | ||
| 71072-1463106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71072-1B09004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71072-1467006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71072-1453101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71072-1B09006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1445001 |
RA42..3FC..LT FB,BLACK,BLACK |
1 | ||
| 71073-1445004 |
RA42..3FC..LT FB,BLUE,BLUE |
1 | ||
| 71073-1445006 |
RA42..3FC..LT FB,L-BROWN,BROWN |
1 | ||
| 71073-1454001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71073-1454006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71073-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71073-1445006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1445001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1464006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1467004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71073-1464001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1455008 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY,IVORY |
1 | ||
| 71073-1445004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1467006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71073-1464101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1454014 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71073-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71073-1464102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71073-1454004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71073-1467002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71073-1476004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1466006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN,BROWN |
1 | ||
| 71073-1469006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71073-1454006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71073-1464104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71073-1476001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1476006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1464106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1454001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1445001 |
RA42..3FC..LT FB,BLACK,BLACK |
1 | ||
| 71073-1445004 |
RA42..3FC..LT FB,BLUE,BLUE |
1 | ||
| 71073-1454006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71073-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71073-1445006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71073-1445006 |
RA42..3FC..LT FB,L-BROWN,BROWN |
1 | ||
| 71073-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71073-1454001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71073-1445004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1454001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71073-1467002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71073-1467004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71073-1445001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1454006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71073-1464104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1454014 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71073-1476001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1464006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1464101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1469006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71073-1466006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN,BROWN |
1 | ||
| 71073-1454004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71073-1464001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71073-1464102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71073-1455008 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY,IVORY |
1 | ||
| 71073-1464106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1476006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71073-1476004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71073-1467006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12099 |
RA42..3FC..LT |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1455006 |
RA42..3FC..LT FB,L-BROWN |
1 | ||
| 71410-1455004 |
RA42..3FC..LT FB,BLUE |
1 | ||
| 71410-1455001 |
RA42..3FC..LT FB,BLACK |
1 | ||
| 71410-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE |
1 | ||
| 71410-1451001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK |
1 | ||
| 71410-1466004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE |
1 | ||
| 71410-1451006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN |
1 | ||
| 71410-1466002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE |
1 | ||
| 71410-1452006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN |
1 | ||
| 71410-1466006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN |
1 | ||
| 71410-1452004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE |
1 | ||
| 71410-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK |
1 | ||
| 71410-1451101 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71410-1452001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK |
1 | ||
| 71410-1461001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71410-1452101 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71410-1451004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE |
1 | ||
| 71410-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN |
1 | ||
| 71410-1461006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71410-1451204 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71410-1455101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71410-1451104 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71410-1452106 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71410-1466102 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71410-1451201 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71410-1461101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71410-1451206 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71410-1461102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71410-1455104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71410-1461104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71410-1466106 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71410-1465106 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN |
1 | ||
| 71410-1451106 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71410-1466104 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71410-1452104 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71410-1461106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71410-1468006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71410-1B08001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71410-1455106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71410-1B08004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71410-1B08006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1455001 |
RA42..3FC..LT FB,BLACK |
1 | ||
| 71420-1452004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE |
1 | ||
| 71420-1452001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK |
1 | ||
| 71420-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK |
1 | ||
| 71420-1455004 |
RA42..3FC..LT FB,BLUE |
1 | ||
| 71420-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE |
1 | ||
| 71420-1467004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE |
1 | ||
| 71420-1467002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE |
1 | ||
| 71420-1453001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK |
1 | ||
| 71420-1461006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71420-1467006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN |
1 | ||
| 71420-1455006 |
RA42..3FC..LT FB,L-BROWN |
1 | ||
| 71420-1453004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE |
1 | ||
| 71420-1452006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN |
1 | ||
| 71420-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN |
1 | ||
| 71420-1452104 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71420-1455101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71420-1452106 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71420-1453006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN |
1 | ||
| 71420-1453104 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71420-1461001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71420-1455106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71420-1453106 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71420-1452204 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71420-1467104 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71420-1461102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71420-1452201 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71420-1461104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71420-1452101 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71420-1461101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71420-1467106 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71420-1453101 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71420-1455104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71420-1469006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71420-1452206 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71420-1B09004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71420-1461106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71420-1B09001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71420-1467102 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71420-1466106 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN |
1 | ||
| 71420-1B09006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1466004 |
RA42..3FC..LT FB,BLUE,BLUE |
1 | ||
| 71430-1457004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71430-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71430-1466001 |
RA42..3FC..LT FB,BLACK,BLACK |
1 | ||
| 71430-1457006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71430-1466006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71430-1466006 |
RA42..3FC..LT FB,L-BROWN,BROWN |
1 | ||
| 71430-1457001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71430-1472006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71430-1466001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71430-1472102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71430-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71430-1477002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71430-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71430-1472001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71430-1472101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71430-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71430-1487001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71430-1477006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71430-1477004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71430-1487004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71430-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71430-1466004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71430-1472104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71430-1474006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN |
1 | ||
| 71430-1487006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71430-1480006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71430-1472106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1468004 |
RA42..3FC..LT FB,BLUE,BLUE |
1 | ||
| 71440-1468001 |
RA42..3FC..LT FB,BLACK,BLACK |
1 | ||
| 71440-1457004 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLUE,BLUE |
1 | ||
| 71440-1457001 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,BLACK,BLACK |
1 | ||
| 71440-1468004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71440-1468006 |
RA42..3FC..LT FB,L-BROWN,BROWN |
1 | ||
| 71440-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71440-1455004 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71440-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71440-1473001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71440-1477002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
1 | ||
| 71440-1468001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71440-1468006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71440-1455001 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLACK,BLACK |
1 | ||
| 71440-1473102 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
1 | ||
| 71440-1473006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71440-1477004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
1 | ||
| 71440-1473106 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71440-1455006 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,L-BROWN,BROWN |
1 | ||
| 71440-1487004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71440-1455014 |
MA46,RA42..(3FC,5F)..(LT,SPR) PF,BLUE,BLUE |
1 | ||
| 71440-1473104 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
1 | ||
| 71440-1487001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71440-1457006 |
MA46,RA42..(3FC,5F)..(LT,SPR) K-TY,L-BROWN,BROWN |
1 | ||
| 71440-1481006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71440-1477006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
1 | ||
| 71440-1487006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
1 | ||
| 71440-1475006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,L-BROWN |
1 | ||
| 71440-1473101 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71821-1402101 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 71821-1402004 |
RA42..3FC..LT BLUE,BLUE |
1 | ||
| 71811-1403002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 71811-1403001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 71821-1402106 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| 71821-1402001 |
RA42..3FC..LT BLACK,BLACK |
1 | ||
| 71821-1402104 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 71811-1403004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 71821-1402006 |
RA42..3FC..LT L-BROWN,BROWN |
1 | ||
| 71821-1402102 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 71811-1403006 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71822-1402001 |
RA42..3FC..LT BLACK,BLACK |
1 | ||
| 71822-1402104 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 71822-1402101 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 71812-1404002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 71822-1402106 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| 71822-1402006 |
RA42..3FC..LT L-BROWN,BROWN |
1 | ||
| 71822-1402102 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 71812-1404006 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| 71822-1402004 |
RA42..3FC..LT BLUE,BLUE |
1 | ||
| 71812-1404004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 71812-1404001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1422006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
2 | ||
| 71910-1428006 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,L-BROWN,BROWN |
2 | ||
| 71910-1422001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
2 | ||
| 71910-1428004 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,BLUE,BLUE |
2 | ||
| 71910-1417004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
2 | ||
| 71910-1410008 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY |
2 | ||
| 71910-1430001 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLACK,BLACK |
2 | ||
| 71910-1417006 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
2 | ||
| 71910-14270 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER |
2 | ||
| 71910-1428002 |
MA46,RA42..(3FC,5F)..(LT,SPR) SSV,DARK WINE,RED/MAROON |
2 | ||
| 71910-1430006 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,L-BROWN,BROWN |
2 | ||
| 71910-1417001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
2 | ||
| 71910-1430002 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,DARK WINE,RED/MAROON |
2 | ||
| 71910-1430004 |
MA46,RA42..(3FC,5F)..(LT,SPR) FB,BLUE,BLUE |
2 | ||
| 71950C - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-1402006 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
2 | ||
| 71922-1402001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
2 | ||
| 71922-1402004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BLACK,BLACK |
2 | ||
| 71956-3002005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BEIGE,BEIGE |
2 | ||
| 71956-3002001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BLACK,BLACK |
2 | ||
| 71990-3002005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BEIGE,BEIGE |
2 | ||
| 71990-3002004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BLUE,BLUE |
2 | ||
| 71956-3002004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BLUE,BLUE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71990-3002001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BLACK,BLACK |
2 | ||
| 71956-3002005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BEIGE,BEIGE |
2 | ||
| 71956-3002001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BLACK,BLACK |
2 | ||
| 71990-3002005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BEIGE,BEIGE |
2 | ||
| 71990-3002004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W(LOCK),W/ADJUSTER,BLUE,BLUE |
2 | ||
| 71956-3002004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O(LOCK),W/O ADJUSTER,BLUE,BLUE |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-14040 |
RA42..3FC..LT |
1 | ||
| 72010-14072 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72010-14041 |
RA42..3FC..LT |
1 | ||
| 72010-14071 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-14050 |
RA42..3FC..LT |
1 | ||
| 72020-14060 |
RA42..3FC..LT |
1 | ||
| 72020-14061 |
RA42..3FC..LT |
1 | ||
| 72020-14081 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72020-14051 |
RA42..3FC..LT |
1 | ||
| 72020-14091 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72020-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72020-14090 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1401004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH,BLUE,BLUE |
1 | ||
| 72525-1401006 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH,L-BROWN,BROWN |
1 | ||
| 72526-1401001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH,BLACK,BLACK |
1 | ||
| 72525-1401004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH,BLUE,BLUE |
1 | ||
| 72525-1401001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH,BLACK,BLACK |
1 | ||
| 72526-1401006 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH,L-BROWN,BROWN |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 72553-12020 |
RA42..3FC..LT |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-1401001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 72791-1401004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 72791-1401005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BEIGE,BEIGE |
1 | ||
| 73178 - HANGER, FRONT SEAT LAP BELT, RH | ||||
| 73181-1401001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 73181-1401004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 73181-1401006 |
MA46,RA42..(3FC,5F)..(LT,SPR) L-BROWN,BROWN |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90167-40003 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 90523-10002 | ||||
(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-11005 | ||||
(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20011 | ||||
| 90580-20091 | ||||
| 90580-20099 | ||||
| 90580-20107 | ||||
| 90580-20126 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
