RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

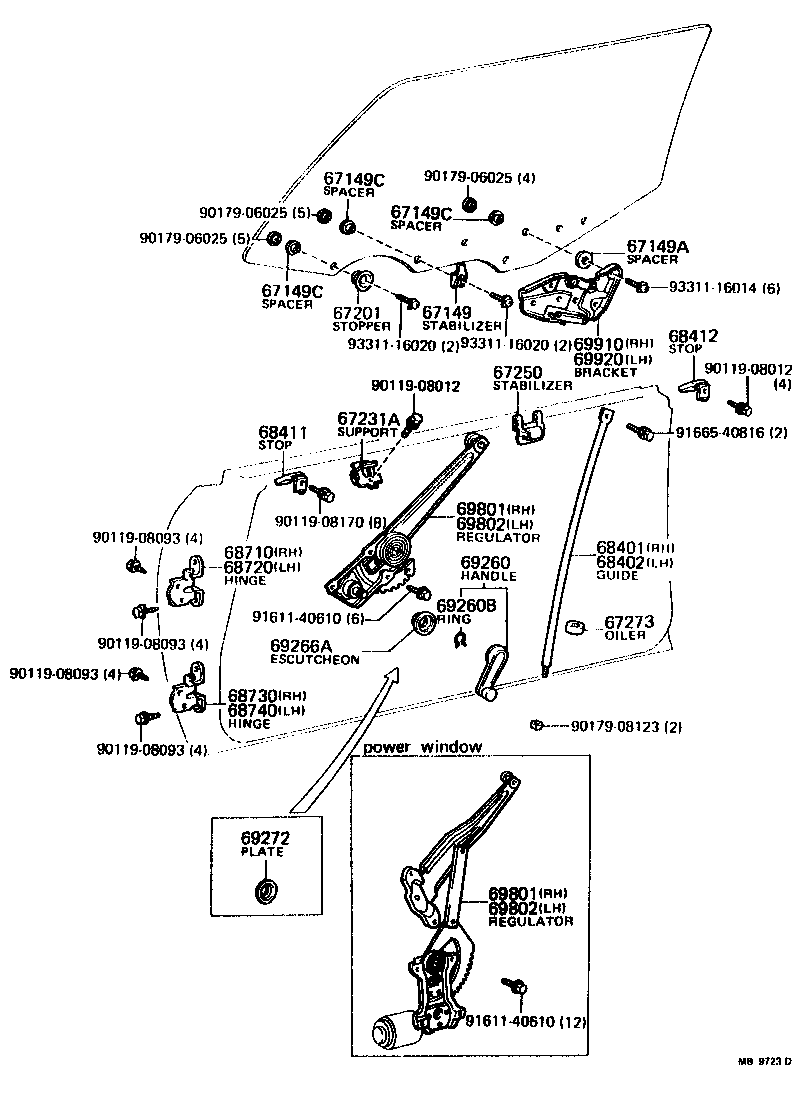

Click highlighted areas on diagram

diagram 67149 67149A 67149C 67149C 67149C 67201 67231A 67250 67273 68401 68402 68411 68412 68710 68720 68730 68740 69260 69260B 69266A 69272 69801 69801 69802 69802 69910 69920 9011908012 9011908012 9011908093 9011908093 9011908093 9011908093 9011908170 9017906025 9017906025 9017906025 9017908123 9161140610 9161140610 9166540816 9331116014 9331116020 9331116020
Part # Description Qty Price
67149 - STABILIZER, FRONT DOOR GLASS
68149-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 4
67149A - SPACER, FRONT DOOR GLASS, NO.1
90202-08002

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 14
67149C - SPACER, FRONT DOOR GLASS, NO.2
90209-08003

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 14
67149C - SPACER, FRONT DOOR GLASS, NO.2
90209-08003

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 14
67149C - SPACER, FRONT DOOR GLASS, NO.2
90209-08003

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 14
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
68147-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

 4
67231-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 4
67250 - STABILIZER ASSY, FRONT DOOR GLASS
67255-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 4
67273 - OILER, FRONT DOOR WINDOW BAR
67271-95800

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
68401 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, RH
67401-14060

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
68402 - GUIDE SUB-ASSY, FRONT DOOR WINDOW, LH
67402-14070

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
68411 - STOPPER, DOOR WINDOW GLASS, UPPER FRONT
67211-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
68412 - STOPPER, DOOR WINDOW GLASS, UPPER REAR
67211-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-22030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-22020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-22030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-22030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1201004

RA42..3FC..LT

BLUE,BLUE

 2
69260-1201016

RA42..3FC..LT

LIGHT BROWN,BROWN

 2
69260-2202004

RA42..3FC..LT

BLUE,BLUE

 2
69260-1201011

RA42..3FC..LT

BLACK,BLACK

 2
69260-2202001

RA42..3FC..LT

BLACK,BLACK

 2
69260-2202001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 2
69260-2202004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 2
69260-2202006

RA42..3FC..LT

LIGHT BROWN,BROWN

 2
69260-2202005

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 2
69260-2202005

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

RA42..3FC..LT

 2
90520-01274

RA42..3FC..LT

 2
90520-01002

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69266-2201004

RA42..3FC..LT

BLUE,BLUE

 2
69266-2201001

RA42..3FC..LT

BLACK,BLACK

 2
69266-2201016

RA42..3FC..LT

LIGHT BROWN,BROWN

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69272-30010

RA42..3FC..LT

 2
69272-30010

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69910 - BRACKET ASSY, FRONT DOOR GLASS, RH
69910-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69920 - BRACKET ASSY, FRONT DOOR GLASS, LH
69920-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90119-08012
90119-08093
90119-08170
90179-06025
90179-08123
91611-40610
91665-40816
93311-16014
93311-16020
