RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

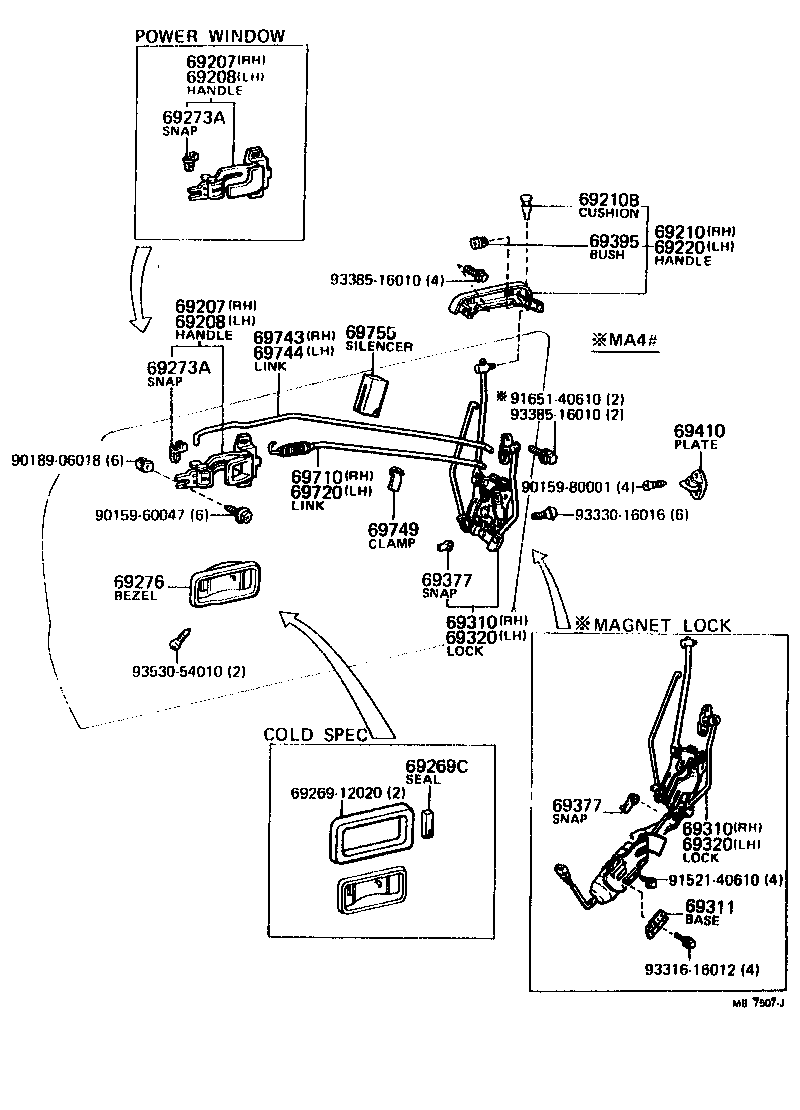

Click highlighted areas on diagram

diagram 69207 69207 69208 69208 69210 69210B 69220 6926912020 69269C 69273A 69273A 69276 69310 69310 69311 69320 69320 69377 69377 69395 69410 69710 69720 69743 69744 69749 69755 9015960047 9015980001 9018906018 9152140610 9165140610 9331616012 9333016016 9338516010 9338516010 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1401006

RA42..3FC..LT

L-BROWN,BROWN

 1
69205-1401004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
69205-1401005

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 1
69205-1401001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
69205-1403005

MA46,RA42..(3FC,5F)..(LT,SPR)

W/*PW,BEIGE,BEIGE

 1
69205-1401005

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 1
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1401006

RA42..3FC..LT

L-BROWN,BROWN

 1
69205-1401004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
69205-1401005

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 1
69205-1401001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
69205-1403005

MA46,RA42..(3FC,5F)..(LT,SPR)

W/*PW,BEIGE,BEIGE

 1
69205-1401005

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1401004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
69206-1401006

RA42..3FC..LT

L-BROWN,BROWN

 1
69206-1401005

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 1
69206-1401001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
69206-1403005

MA46,RA42..(3FC,5F)..(LT,SPR)

W/*PW,BEIGE,BEIGE

 1
69206-1401005

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1401004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
69206-1401006

RA42..3FC..LT

L-BROWN,BROWN

 1
69206-1401005

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 1
69206-1401001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
69206-1403005

MA46,RA42..(3FC,5F)..(LT,SPR)

W/*PW,BEIGE,BEIGE

 1
69206-1401005

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-14030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-14030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69289-12010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69273-10010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69273-10010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1401005

MA46,RA42..(3FC,5F)..(LT,SPR)

W/*PW,BEIGE,BEIGE

 2
69276-2001104

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 2
69276-2001105

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 2
69276-2001116

RA42..3FC..LT

L-BROWN,BROWN

 2
69276-2001105

MA46,RA42..(3FC,5F)..(LT,SPR)

BEIGE,BEIGE

 2
69276-2001101

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69320-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69320-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
90386-06030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-14030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69710-14040

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69720-14040

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69733-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69734-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 4
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-12011

RA42..3FC..LT

 2
69759-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
Common parts
69269-12020
90159-60047
90159-80001
90189-06018
91521-40610
91651-40610
93316-16012
93330-16016
93385-16010
93530-54010
