RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )CP

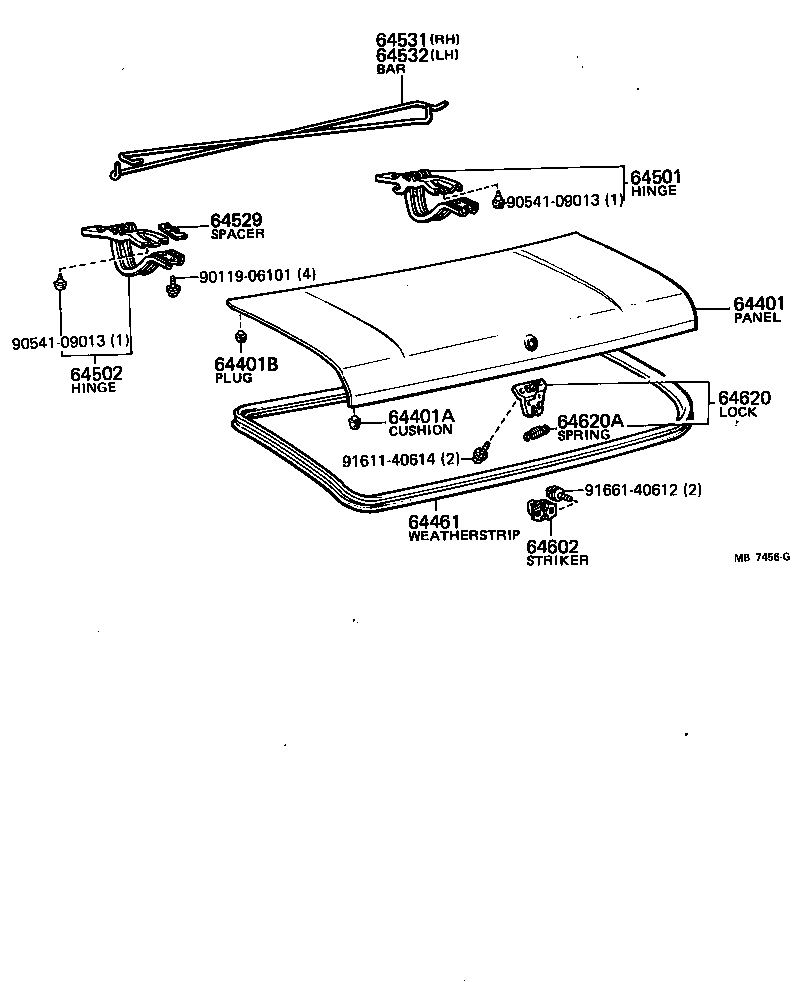

Click highlighted areas on diagram

diagram 64401 64401A 64401B 64461 64501 64502 64529 64531 64532 64602 64620 64620A 9011906101 9054109013 9054109013 9161140614 9166140612
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-14330

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09041

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90950-01065

RA42..3FC..LT

OD=7

 2
90541-07022

MA46,RA42..(3FC,5F)..(LT,SPR)

OD=7

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-14110

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-14060

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-14060

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-14060

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-14060

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-22030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-95800

RA42..3FC..LT

 1
64610-95801

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-08107

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90119-06101
90541-09013
91611-40614
91661-40612
