RA42L-BCHDSA (1977)
Toyota Celica
(7711- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

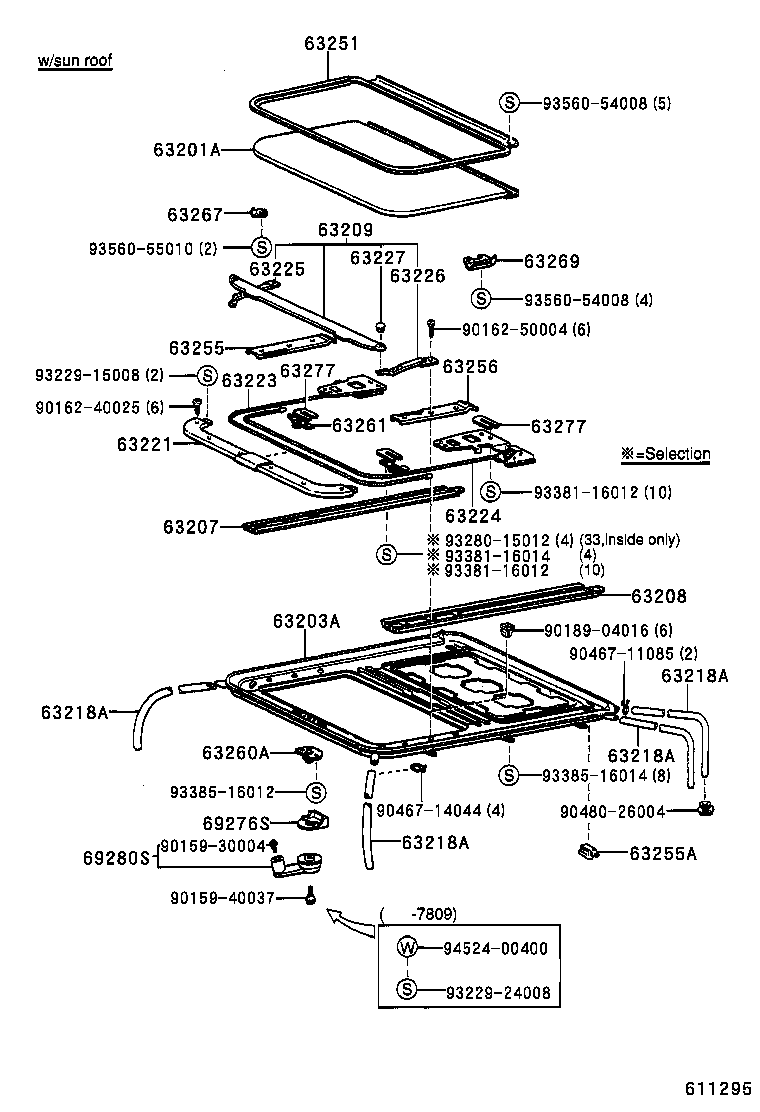

| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-14010 |
RA42..3FC..LT |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-14010 |
RA42..3FC..LT |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-14010 |
RA42..3FC..LT |
1 | ||
| 63255A - HOLDER, SLIDING ROOF GUIDE RAIL | ||||
| 63257-14010 |
RA42..3FC..LT |
2 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-14010 |
RA42..3FC..LT |
2 | ||
| 69276S - BEZEL, SLIDING ROOF REGULATOR HANDLE | ||||
| 69276-1401003 |
MA46,RA42..(3FC,5F)..(LT,SPR) GRAY,GRAY |
1 | ||
| 69276-1401008 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY,IVORY |
1 | ||
| 69280S - HANDLE ASSY, SLIDING ROOF REGULATOR | ||||
| 69280-1401008 |
MA46,RA42..(3FC,5F)..(LT,SPR) OLYMPIC,IVORY,IVORY |
1 | ||
| 69280-1401006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 69280-1401003 |
MA46,RA42..(3FC,5F)..(LT,SPR) GRAY,GRAY |
1 | ||
| 69280-1401004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 69280-1401103 |
MA46,RA42..(3FC,5F)..(LT,SPR) GRAY,GRAY |
1 | ||
| Common parts | ||||
| 90159-30004 | ||||
| 90159-40037 | ||||
| 90162-40025 | ||||
| 90162-50004 | ||||
| 90189-04016 | ||||
| 90467-11085 | ||||
| 90467-14044 | ||||
| 90480-26004 | ||||
| 93229-15008 | ||||
| 93229-24008 | ||||
| 93280-15012 | ||||
| 93381-16012 | ||||
| 93381-16014 | ||||
| 93385-16012 | ||||
| 93385-16014 | ||||
| 93560-54008 | ||||
| 93560-55010 | ||||
| 94524-00400 | ||||
(7708- )CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

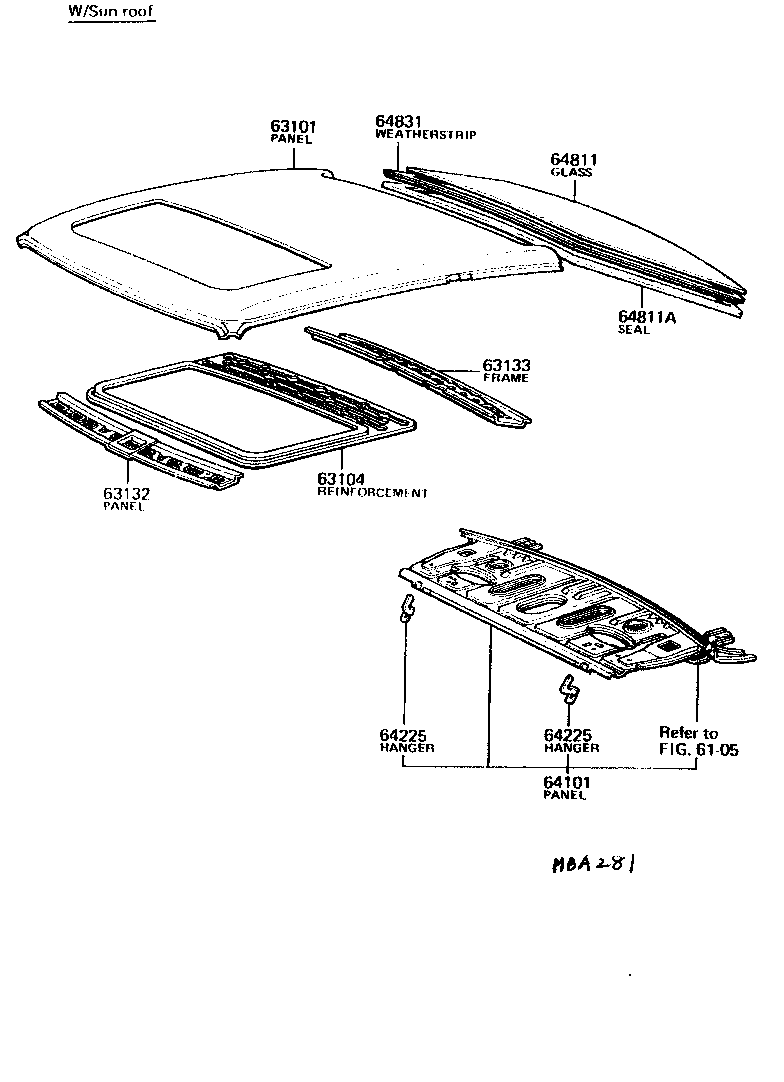

| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-14060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 63111-14070 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-14050 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-14050 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63105-14020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 63133-14060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-14100 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH |
1 | ||
| 64226-14020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH |
1 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH |
1 | ||
| 64226-14020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-14320 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *TT,T=4.0,W/HEAVY *DEF |
1 | ||
| 64811-14290 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *TT,T=4.0,W/O *DEF |
1 | ||
| 64801-14160 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *TT,T=4.0,W/*DEF |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) HANGING CLOTH LINING |
1 | ||
| 64812-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 91521-40610 | ||||
| Linked diagrams | ||||
| 6105 | ||||

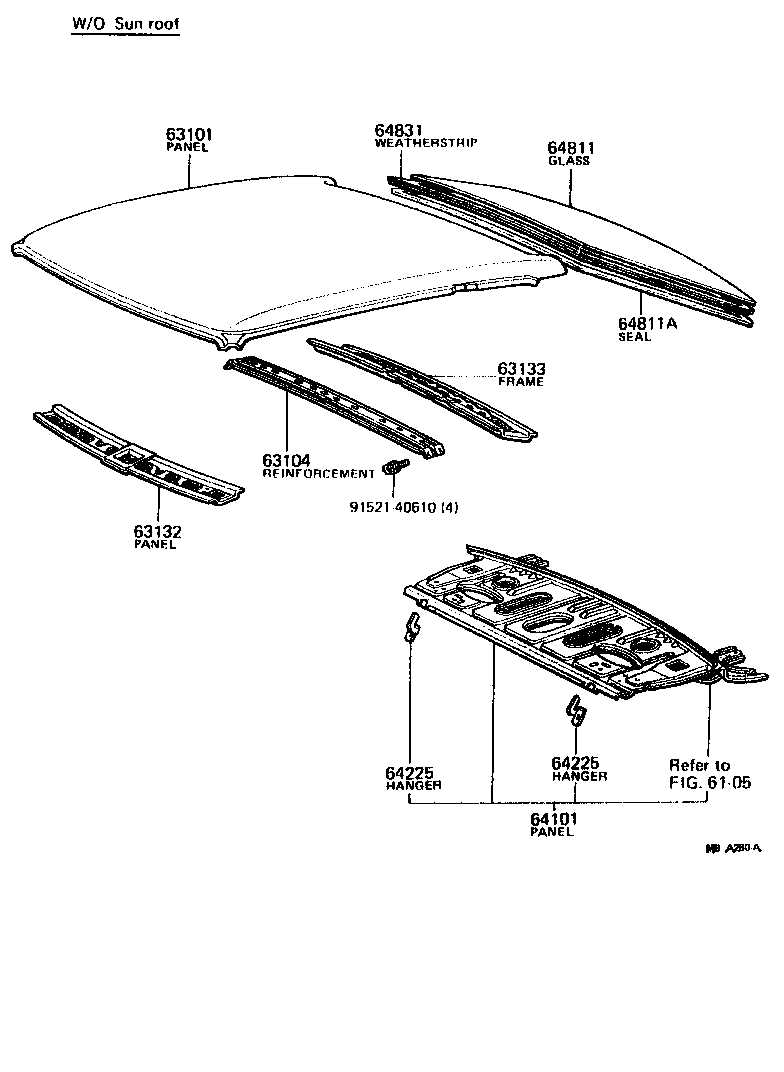

(7711- )CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-14060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 63111-14070 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-14050 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-14050 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-14100 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH |
1 | ||
| 64226-14020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH |
1 | ||
| 64225 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) RH |
1 | ||
| 64226-14020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LH |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-14320 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *TT,T=4.0,W/HEAVY *DEF |
1 | ||
| 64811-14290 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *TT,T=4.0,W/O *DEF |
1 | ||
| 64801-14160 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *TT,T=4.0,W/*DEF |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) HANGING CLOTH LINING |
1 | ||
| 64812-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Linked diagrams | ||||
| 6105 | ||||
