RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )CP

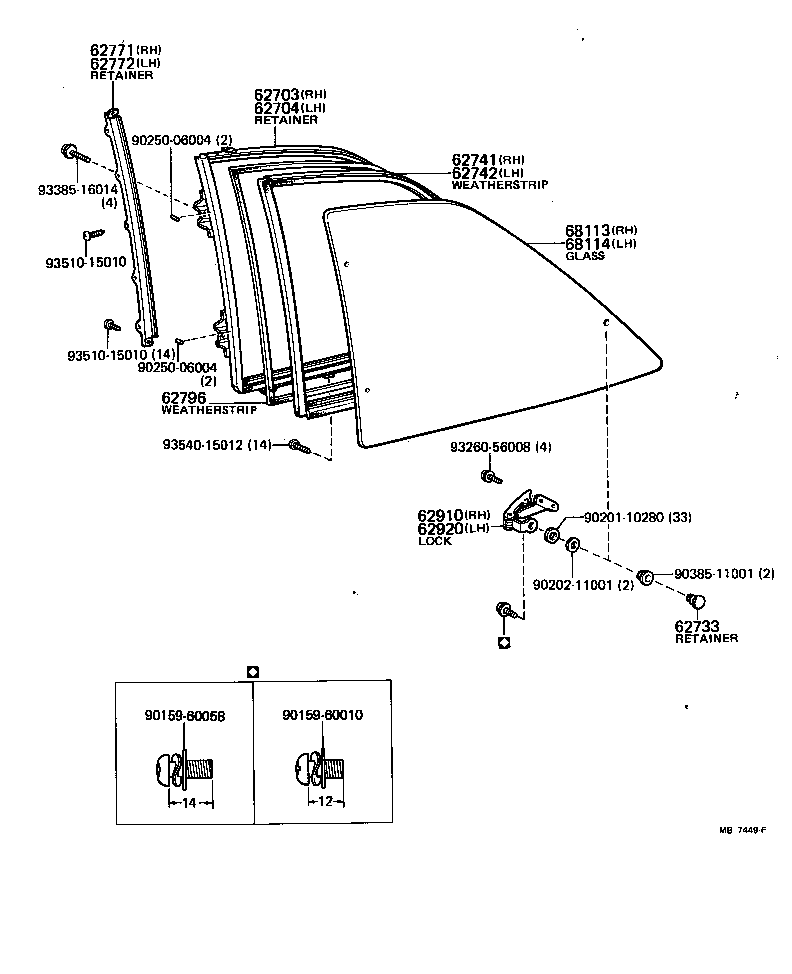

Click highlighted areas on diagram

diagram 62703 62704 62733 62741 62742 62771 62772 62796 62910 62920 68113 68114 9015960010 9015960058 9020110280 9020211001 9025006004 9025006004 9038511001 9326056008 9338516014 9351015010 9351015010 9354015012
Part # Description Qty Price
62703 - RETAINER SUB-ASSY, QUARTER WINDOW GLASS, RH
62703-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62703-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62704 - RETAINER SUB-ASSY, QUARTER WINDOW GLASS, LH
62704-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62704-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE
62735-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-14040

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62741-14050

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-14050

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62742-14040

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62771 - RETAINER, QUARTER WINDOW GLASS, FRONT INNER RH
62771-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62772 - RETAINER, QUARTER WINDOW GLASS, FRONT INNER LH
62772-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62796 - WEATHERSTRIP, QUARTER WINDOW RETAINER
62796-14030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
62796-14040

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-14030

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
62920 - LOCK ASSY, QUARTER WINDOW, LH
62920-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
68113 - GLASS, QUARTER WINDOW, RH
62711-14050

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

*TT,T=4.0

 1
62711-14070

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

*TT,T=4.0

 1
68114 - GLASS, QUARTER WINDOW, LH
62712-14070

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

*TT,T=4.0

 1
62712-14050

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

*TT,T=4.0

 1
Common parts
90159-60010
90159-60058
90201-10280
90202-11001
90250-06004
90385-11001
93260-56008
93385-16014
93510-15010
93540-15012
