RA42L-BCHDSA (1977)
Toyota Celica
Production
Aug 1977
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7708- )

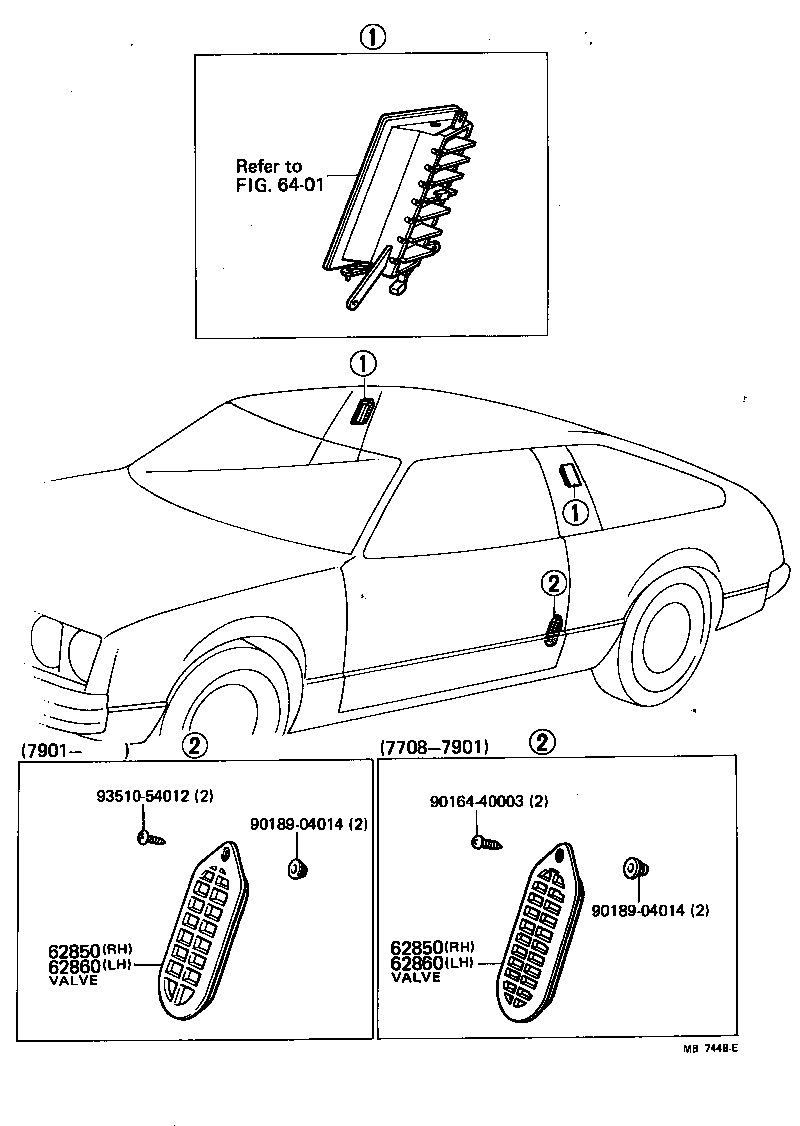

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH | ||||
| 62850-14020 |
RA42..3FC..LT |
1 | ||
| 62850-14021 |
RA42..3FC..LT |
1 | ||
| 62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH | ||||
| 62850-14020 |
RA42..3FC..LT |
1 | ||
| 62850-14021 |
RA42..3FC..LT |
1 | ||
| 62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH | ||||
| 62860-14010 |
RA42..3FC..LT |
1 | ||
| 62860-14011 |
RA42..3FC..LT |
1 | ||
| 62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH | ||||
| 62860-14010 |
RA42..3FC..LT |
1 | ||
| 62860-14011 |
RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 90164-40003 | ||||
| 90189-04014 | ||||
| 93510-54012 | ||||
| Linked diagrams | ||||
| 6401 | ||||
