RA42L-BCHDSA (1977)
Toyota Celica

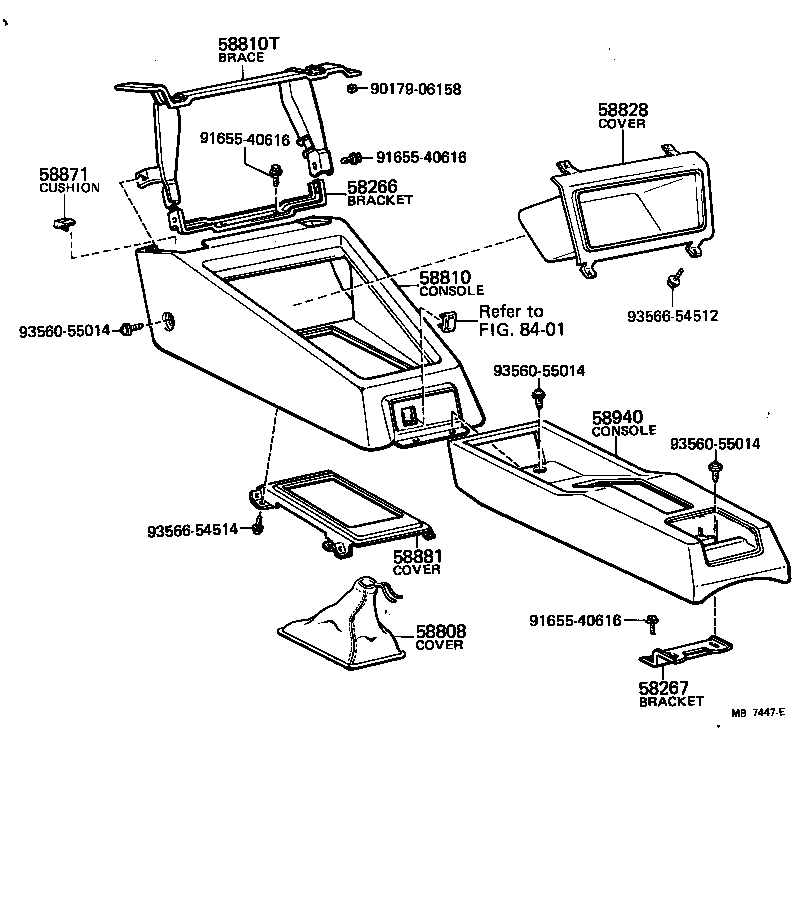

(7708-7908)RA42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT | ||||
| 55349-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 58267 - BRACKET, CONSOLE BOX SUPPORT, CENTER | ||||
| 58991-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 58997-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1407001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58808-1407004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58808-1407016 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58808-1407012 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-1411004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58802-1402004 |
RA42..3FC..LT BLUE,BLUE |
1 | ||
| 58811-1411006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58802-1401006 |
MA46,RA42..(3FC,5F)..(LT,SPR) WOOD GRAIN,LIGHT BROWN,BROWN |
1 | ||
| 58802-1402001 |
RA42..3FC..LT BLACK,BLACK |
1 | ||
| 58811-1413002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 58811-1413004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58802-1402106 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58802-1401004 |
MA46,RA42..(3FC,5F)..(LT,SPR) WOOD GRAIN,BLUE,BLUE |
1 | ||
| 58811-1413006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58802-1402104 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58811-1413001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58802-1401001 |
MA46,RA42..(3FC,5F)..(LT,SPR) WOOD GRAIN,BLACK,BLACK |
1 | ||
| 58811-1411001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58802-1402006 |
RA42..3FC..LT LIGHT BROWN,BROWN |
1 | ||
| 58802-1402101 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58810T - BRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR | ||||
| 55309-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 58828 - COVER, OK MONITOR OPENING | ||||
| 55529-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 55529-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) AUTO DRIVE |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 58871-14070 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 58881 - COVER, SHIFTING HOLE | ||||
| 58881-1409001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58884-1401001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58884-1401004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58881-1409004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58881-1409016 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58884-1401016 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58884-1401002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 58881-1409002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58951-1402001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58951-1402004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58901-1401001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58901-1401004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58951-1402006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58901-1401006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58901-1401012 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 91655-40616 | ||||
| 93560-55014 | ||||
| 93566-54512 | ||||
| 93566-54514 | ||||
| Linked diagrams | ||||
| 8401 | ||||

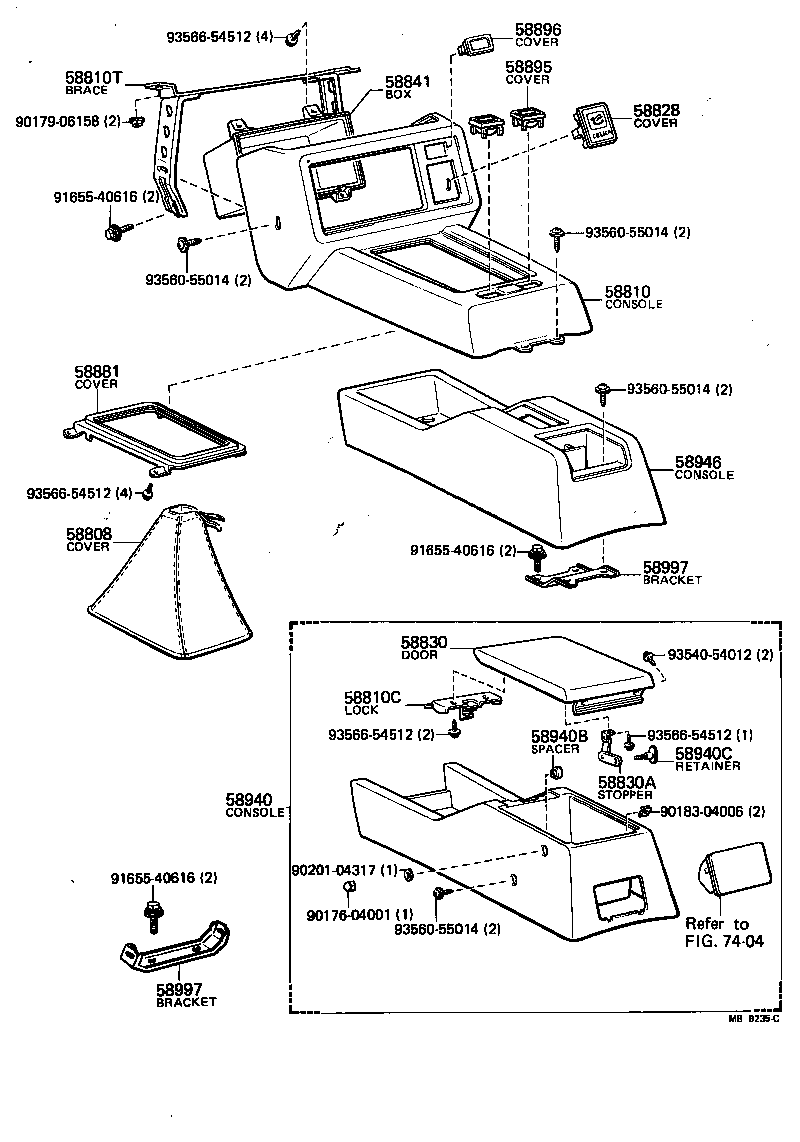

(7908- )RA4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1407001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58808-1407004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58808-1407016 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58808-1407012 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-1411004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58802-1402004 |
RA42..3FC..LT BLUE,BLUE |
1 | ||
| 58811-1411006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58802-1401006 |
MA46,RA42..(3FC,5F)..(LT,SPR) WOOD GRAIN,LIGHT BROWN,BROWN |
1 | ||
| 58802-1402001 |
RA42..3FC..LT BLACK,BLACK |
1 | ||
| 58811-1413002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 58811-1413004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58802-1402106 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58802-1401004 |
MA46,RA42..(3FC,5F)..(LT,SPR) WOOD GRAIN,BLUE,BLUE |
1 | ||
| 58811-1413006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58802-1402104 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58811-1413001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58802-1401001 |
MA46,RA42..(3FC,5F)..(LT,SPR) WOOD GRAIN,BLACK,BLACK |
1 | ||
| 58811-1411001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58802-1402006 |
RA42..3FC..LT LIGHT BROWN,BROWN |
1 | ||
| 58802-1402101 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58810T - BRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR | ||||
| 55309-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 58828 - COVER, OK MONITOR OPENING | ||||
| 55529-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 55529-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) AUTO DRIVE |
1 | ||
| 58881 - COVER, SHIFTING HOLE | ||||
| 58881-1409001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58884-1401001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58884-1401004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58881-1409004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58881-1409016 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58884-1401016 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58884-1401002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 58881-1409002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58951-1402001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58951-1402004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58901-1401001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 58901-1401004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 58951-1402006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58901-1401006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 58901-1401012 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 58940B - SPACER,CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 58940C - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90176-04001 | ||||
| 90179-06158 | ||||
| 90183-04006 | ||||
| 90201-04317 | ||||
| 91655-40616 | ||||
| 93540-54012 | ||||
| 93560-55014 | ||||
| 93566-54512 | ||||
| Linked diagrams | ||||
| 7404 | ||||
