RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

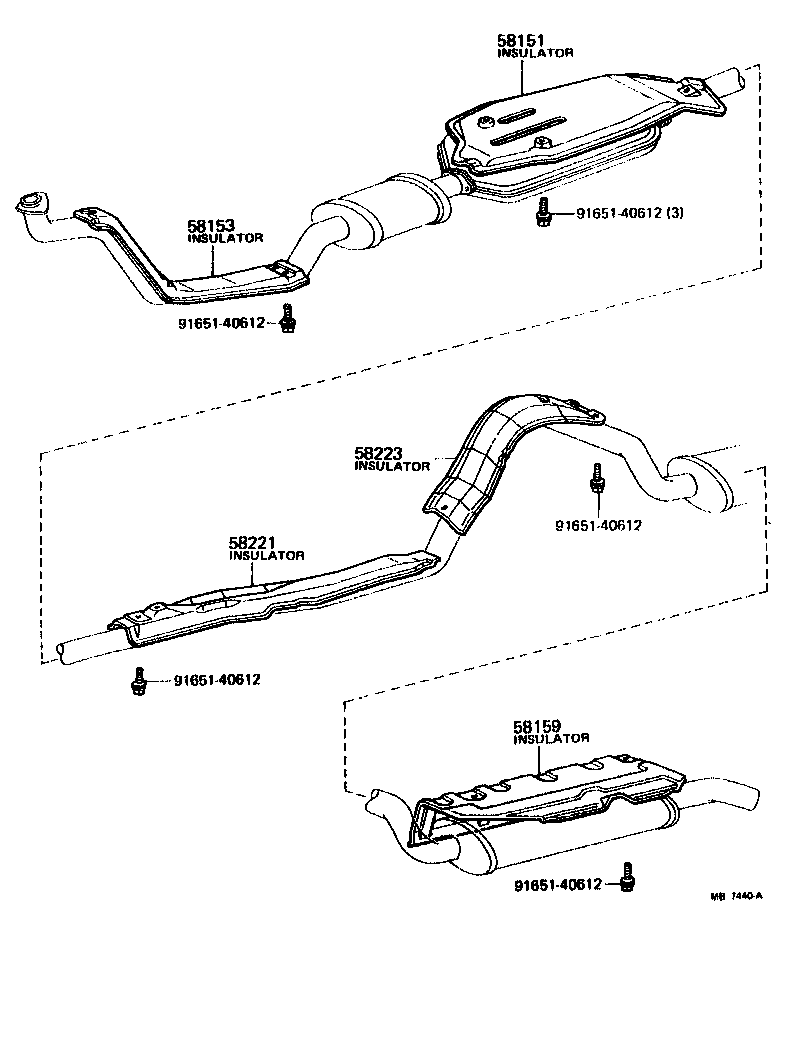

diagram 58151 58153 58159 58221 58223 9165140612 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-14020

RA42..3FC..LT

*CAL & HA

 1
58041-14030

RA42..3FC..LT

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-14011

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-14020

RA42..3FC..LT

*CAL & HA

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-14030

RA42..3FC..LT

*CAL & HA

 1
Common parts
91651-40612
