RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

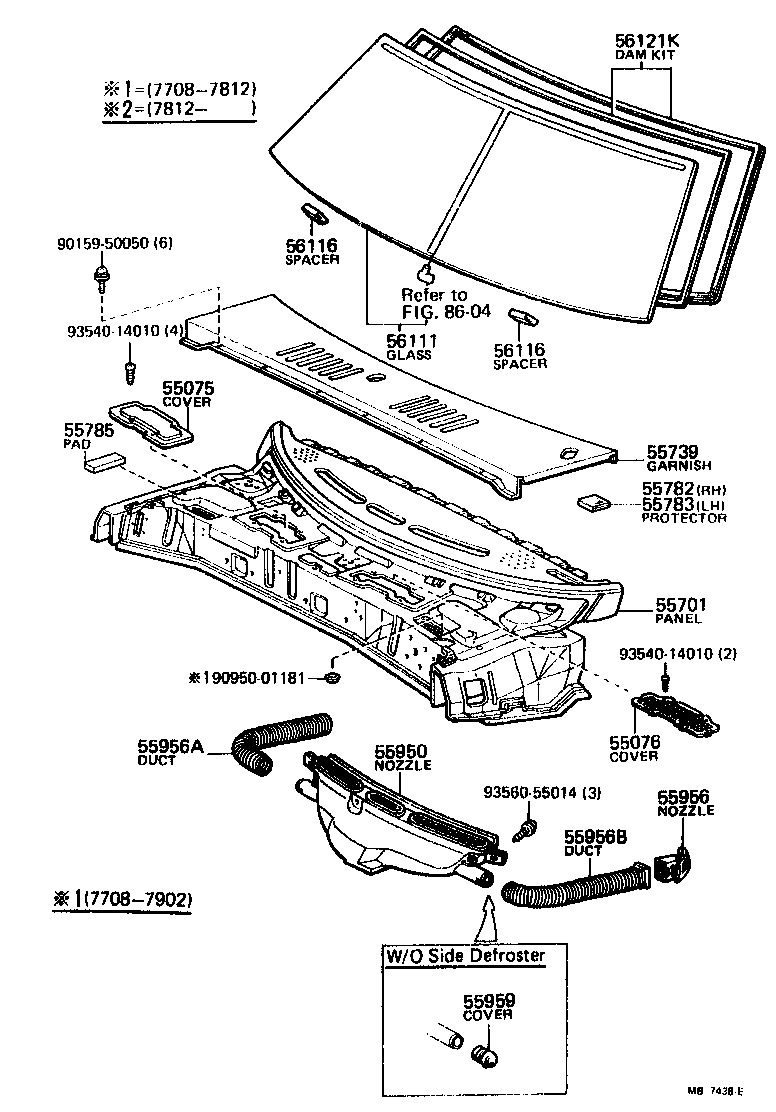

Click highlighted areas on diagram

diagram 55075 55076 55701 55739 55782 55783 55785 55950 55956 55956A 55956B 55959 56111 56116 56116 56121K 8604 9015950050 9095001181 9354014010 9354014010 9356055014
Part # Description Qty Price
55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE
55077-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55701 - PANEL SUB-ASSY, COWL
55700-14230

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55700-14312

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55700-14311

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55700-14310

RA42..3FC..LT

 1
55739 - GARNISH, COWL VENTILATOR
55781-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55782 - PROTECTOR, COWL TOP VENTILATOR LOUVER, RH
55788-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55783 - PROTECTOR, COWL TOP VENTILATOR LOUVER, LH
55788-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55785 - PAD, COWL OUTER PANEL, NO.2
55785-14020

RA42..3FC..LT

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-14080

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55956 - NOZZLE, SIDE DEFROSTER
55961-1402006

MA46,RA42..(3FC,5F)..(LT,SPR)

LIGHT BROWN,BROWN

 1
55961-1402004

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
55961-1402001

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1
55959-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
56111 - GLASS, WINDSHIELD
56111-14250

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

*TL,T=5.7,W/ANTENNA CORD

 1
56116 - SPACER, WINDSHIELD GLASS
56116-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
56116 - SPACER, WINDSHIELD GLASS
56116-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
56121K - DAM KIT, WINDSHIELD GLASS
04562-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90159-50050
90950-01181
93540-14010
93560-55014
Linked diagrams
8604
