RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

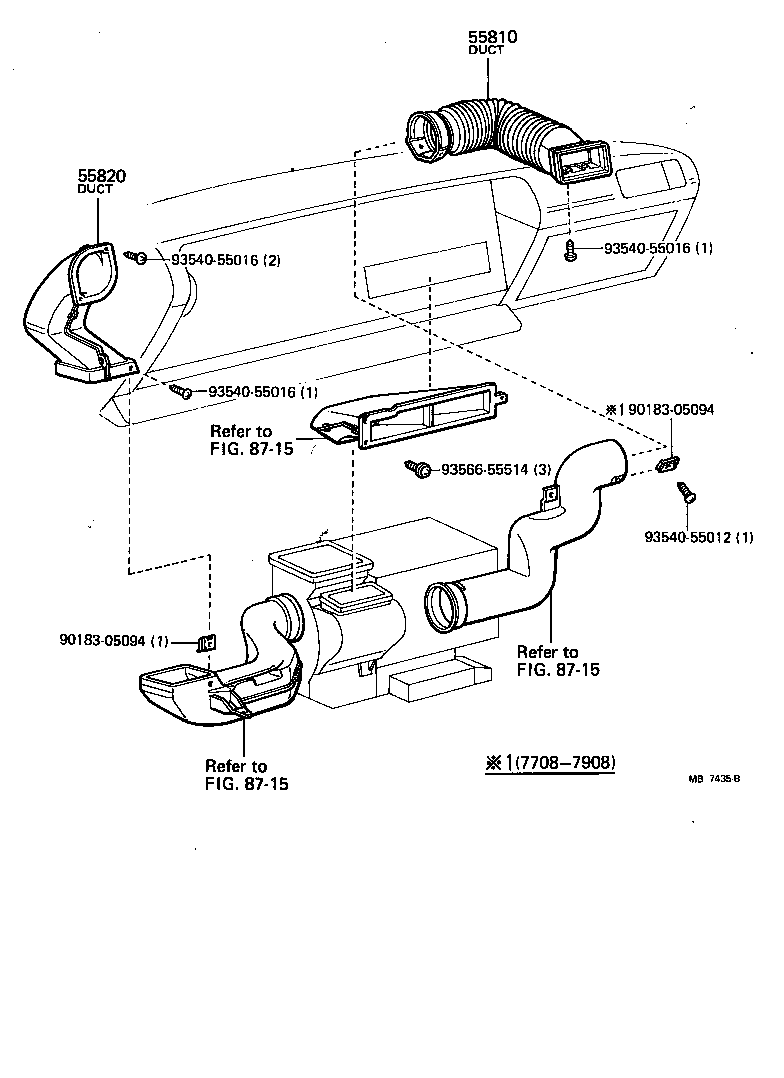

Click highlighted areas on diagram

diagram 55810 55820 8715 8715 8715 9018305094 9018305094 9354055012 9354055016 9354055016 9354055016 9356655514
Part # Description Qty Price
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55086-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55084-14080

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90183-05094
93540-55012
93540-55016
93566-55514
Linked diagrams
8715
