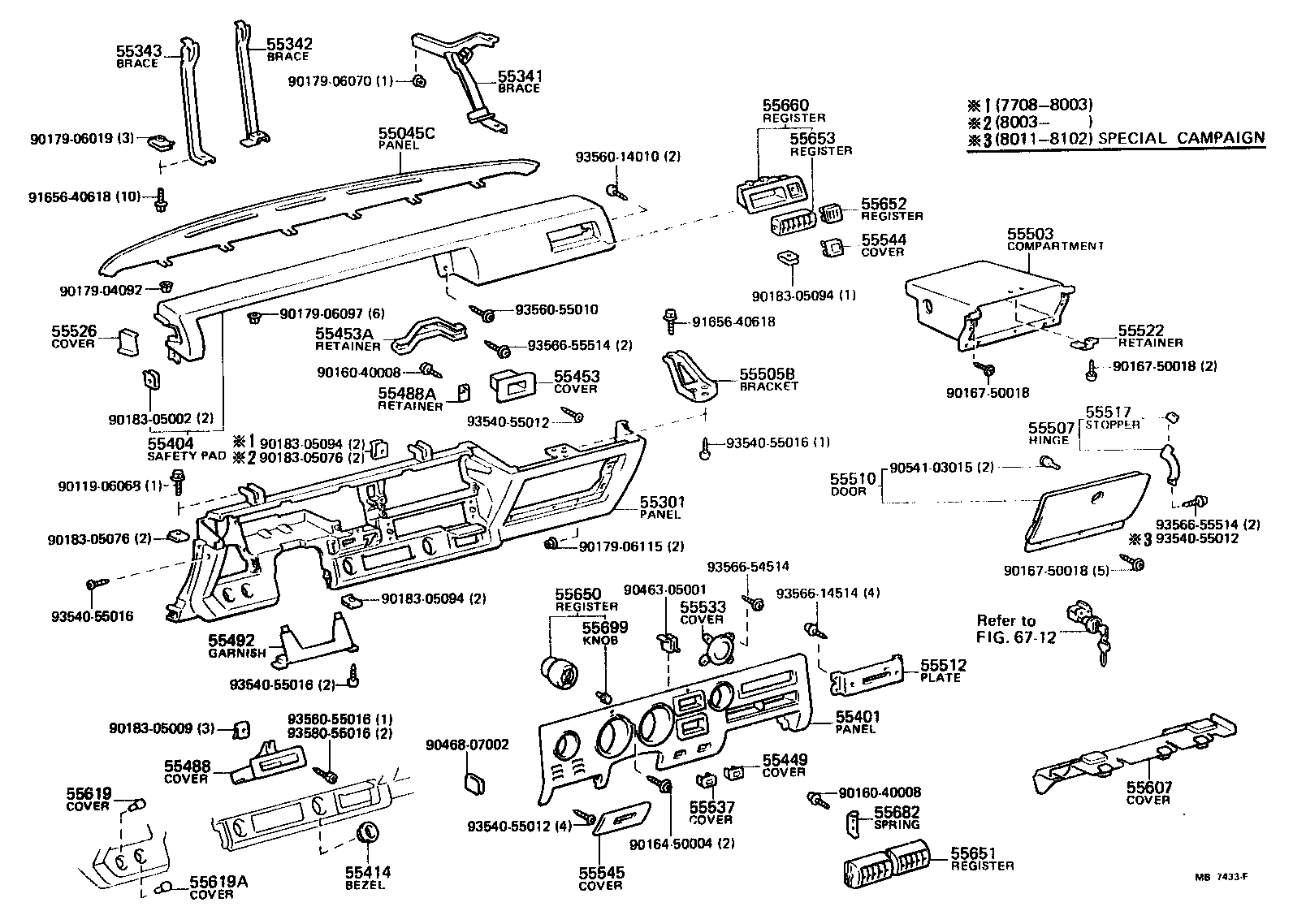

RA42L-BCHDSA (1977)
Toyota Celica
(7708- )RA4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045C - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55044-1402001 |
MA46,RA42 BLACK,BLACK |
1 | ||
| 55044-1402006 |
MA46,RA42 LIGHT BROWN,BROWN |
1 | ||
| 55044-1402004 |
MA46,RA42 BLUE,BLUE |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55312-1404001 |
MA46,RA42 BLACK,BLACK |
1 | ||
| 55312-1404016 |
MA46,RA42 LIGHT BROWN,BROWN |
1 | ||
| 55312-1404006 |
MA46,RA42 LIGHT BROWN,BROWN |
1 | ||
| 55312-1404004 |
MA46,RA42 BLUE,BLUE |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-14020 |
MA4#,RA4# |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-14060 |
MA4#,RA4# |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55342-14030 |
MA4#,RA4# |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-14390 |
RA42..LT |
1 | ||
| 55404-14230 |
RA42..LT |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1430001 |
RA4# BLACK,BLACK |
1 | ||
| 55401-1430006 |
RA42 LIGHT BROWN,BROWN |
1 | ||
| 55401-1430004 |
RA4# BLUE,BLUE |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-14040 |
MA4#,RA4# |
1 | ||
| 55449 - COVER, COOLER SWITCH HOLE | ||||
| 55538-14010 |
MA4#,RA4# |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-14030 |
RA42 |
1 | ||
| 55453A - RETAINER, RADIO TUNER OPENING, NO.1 | ||||
| 55417-14020 |
RA4# |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-14030 |
MA4#,RA4# |
1 | ||
| 55488A - RETAINER, STEREO OPENING, NO.1 | ||||
| 55475-87101 |
RA4# |
2 | ||
| 55492 - GARNISH OR SAFETY PAD, LOWER, RH | ||||
| 55432-1407006 |
RA42 LIGHT BROWN,BROWN |
1 | ||
| 55432-1407001 |
RA42 BLACK,BLACK |
1 | ||
| 55432-1407004 |
RA42 BLUE,BLUE |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-14150 |
MA4#,RA4# |
1 | ||
| 55505B - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-14040 |
MA4#,RA4# |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55556-14060 |
RA4# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1409001 |
RA4# BLACK,BLACK |
1 | ||
| 55550-1409004 |
RA4# BLUE,BLUE |
1 | ||
| 55550-1409006 |
RA42 LIGHT BROWN,BROWN |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
MA4#,RA4# |
1 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-14050 |
MA4#,RA4# |
1 | ||
| 55526 - COVER, INSTRUMENT PANEL REGISTER OPENING | ||||
| 55526-1403004 |
MA4#,RA4# BLUE,BLUE |
1 | ||
| 55526-1403001 |
MA4#,RA4# BLACK,BLACK |
1 | ||
| 55526-1403006 |
MA4#,RA4# LIGHT BROWN,BROWN |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-14040 |
RA42..LT |
1 | ||
| 55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE | ||||
| 55538-14010 |
RA4# |
1 | ||
| 55544 - COVER, INSTRUMENT PANEL REGISTER HOLE | ||||
| 55548-1401006 |
MA46,RA42 LIGHT BROWN,BROWN |
1 | ||
| 55548-1401001 |
MA4#,RA4# BLACK,BLACK |
1 | ||
| 55548-1401004 |
MA4#,RA4# BLUE,BLUE |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-14080 |
RA42..LT *DEF=20A |
1 | ||
| 55540-14080 |
RA42..LT |
1 | ||
| 55545-14081 |
RA42..LT *DEF=30A |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55619-14010 |
MA46,RA42 W/O RHEOSTAT OR OVER DRIVE |
1 | ||
| 55619A - COVER, SWITCH HOLE, NO.2 | ||||
| 55619-14010 |
MA4#,RA4# W/O RR WIPER |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-14060 |
MA4#,RA4# |
1 | ||
| 55651 - REGISTER, INSTRUMENT PANEL, NO.1 | ||||
| 55670-14020 |
RA4# |
2 | ||
| 55652 - REGISTER, INSTRUMENT PANEL, NO.2 | ||||
| 55652-1403001 |
MA4#,RA4# BLACK,BLACK |
1 | ||
| 55652-1403004 |
MA4#,RA4# BLUE,BLUE |
1 | ||
| 55652-1403006 |
MA46,RA42 LIGHT BROWN,BROWN |
1 | ||
| 55653 - REGISTER, INSTRUMENT PANEL, NO.3 | ||||
| 55061-20010 |
MA46,RA42 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-1404006 |
MA46,RA42 LIGHT BROWN,BROWN |
1 | ||
| 55660-1404001 |
MA46,RA42 BLACK,BLACK |
1 | ||
| 55660-1404004 |
MA46,RA42 BLUE,BLUE |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 58914-20010 |
MA4#,RA4# |
1 | ||
| 55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55699-22020 |
MA4#,RA4# |
1 | ||
| Common parts | ||||
| 90119-06068 | ||||
| 90160-40008 | ||||
| 90164-50004 | ||||
| 90167-50018 | ||||
| 90179-04092 | ||||
| 90179-06019 | ||||
| 90179-06070 | ||||
| 90179-06097 | ||||
| 90179-06115 | ||||
| 90183-05002 | ||||
| 90183-05009 | ||||
| 90183-05076 | ||||
| 90183-05094 | ||||
| 90463-05001 | ||||
| 90468-07002 | ||||
| 90541-03015 | ||||
| 91656-40618 | ||||
| 93540-55012 | ||||
| 93540-55016 | ||||
| 93560-14010 | ||||
| 93560-55010 | ||||
| 93560-55016 | ||||
| 93566-14514 | ||||
| 93566-54514 | ||||
| 93566-55514 | ||||
| 93580-55016 | ||||
| Linked diagrams | ||||
| 6712 | ||||
