RA42L-BCHDSA (1977)
Toyota Celica

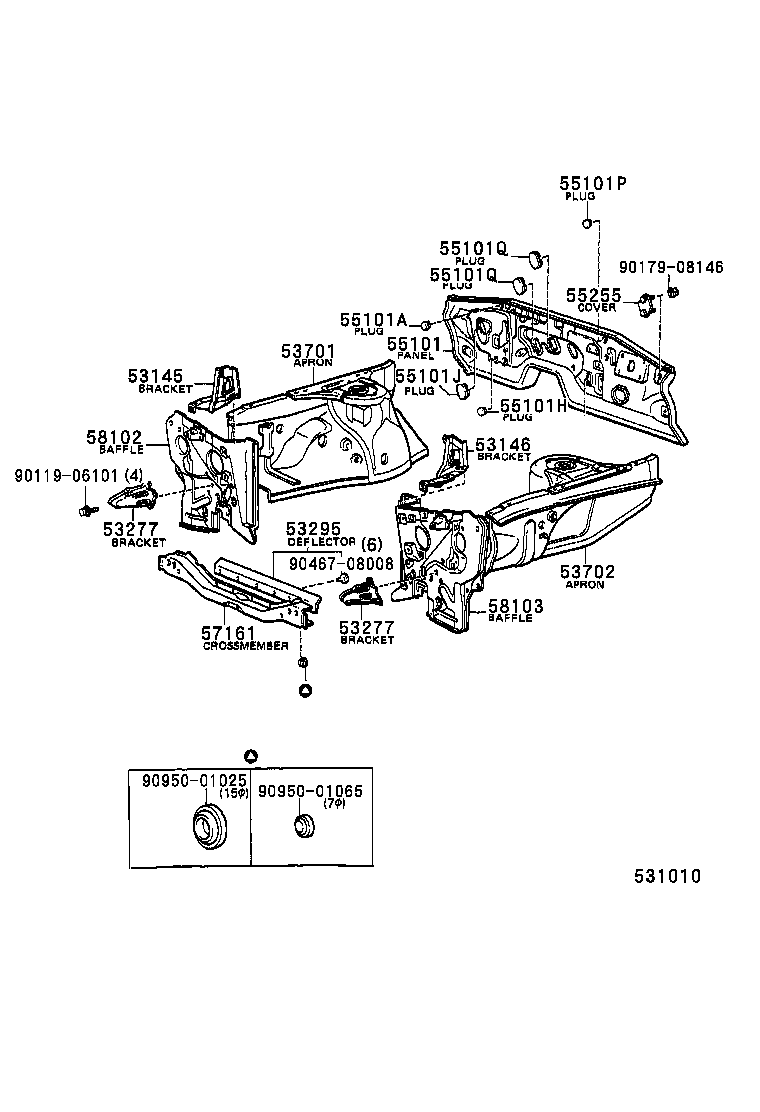

(7908- )RA4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53145 - BRACKET,RADIATOR GRILLE MOUNTING, RH | ||||
| 53251-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53146 - BRACKET, RADIATOR GRILLE MOUNTING, LH | ||||
| 53252-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53295 - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-14021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-14210 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-14210 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-14180 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 55101-14250 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90950-01133 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O COOLER,OD=13 |
1 | ||
| 55101H - PLUG, HOLE, NO.2(FOR DASH PANEL) | ||||
| 90950-01060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) COOLER DRAIN,OD=25 |
1 | ||
| 55101J - PLUG, HOLE, NO.3(FOR DASH PANEL) | ||||
| 90950-01189 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O COOLER,OD=34X74 |
1 | ||
| 55255 - COVER, CLUTCH MASTER CYLINDER HOLE | ||||
| 55255-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57161-14903 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 58102 - BAFFLE SUB-ASSY, RADIATOR SIDE, RH | ||||
| 53202-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 58103 - BAFFLE SUB-ASSY,RADIATOR SIDE, LH | ||||
| 53203-14140 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90119-06101 | ||||
| 90179-08146 | ||||
| 90467-08008 | ||||
| 90950-01025 | ||||
| 90950-01065 | ||||

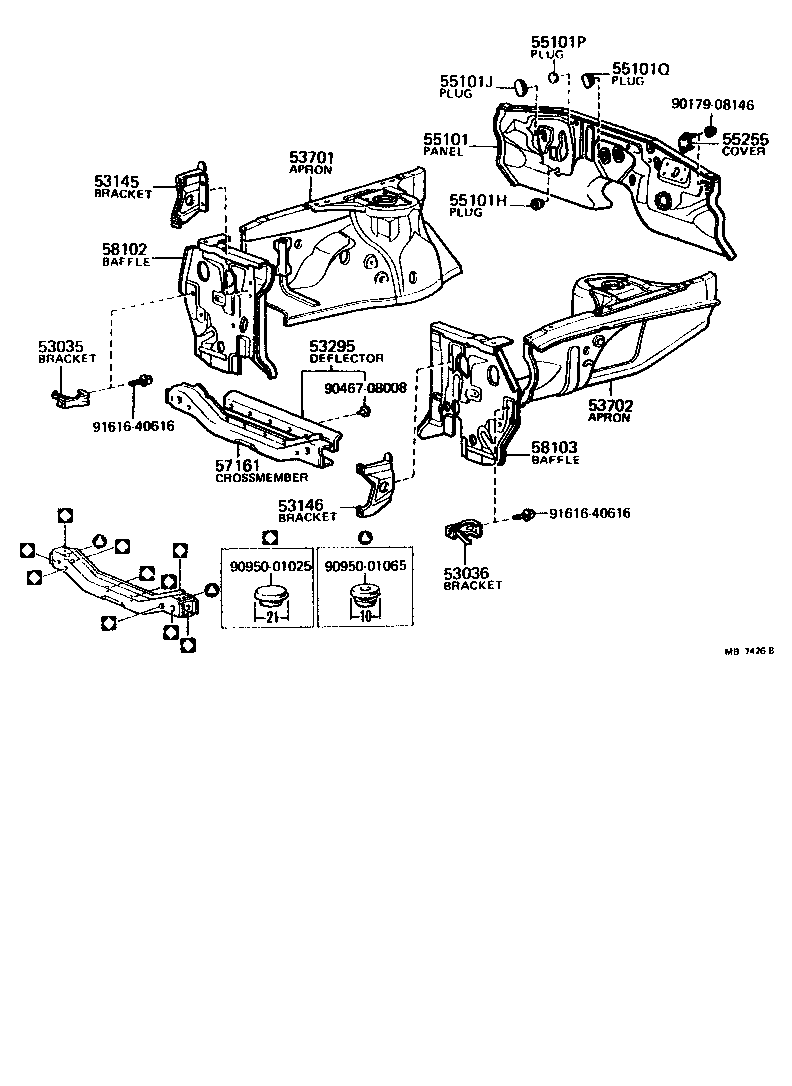

(7708-7908)RA42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53035 - BRACKET SUB-ASSY, HEADLAMP, OUTER RH | ||||
| 53245-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53036 - BRACKET SUB-ASSY, HEADLAMP, OUTER LH | ||||
| 53245-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53145 - BRACKET,RADIATOR GRILLE MOUNTING, RH | ||||
| 53251-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53146 - BRACKET, RADIATOR GRILLE MOUNTING, LH | ||||
| 53252-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53295 - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-14021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-14210 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-14210 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-14180 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 55101-14250 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 55101H - PLUG, HOLE, NO.2(FOR DASH PANEL) | ||||
| 90950-01060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) COOLER DRAIN,OD=25 |
1 | ||
| 55101J - PLUG, HOLE, NO.3(FOR DASH PANEL) | ||||
| 90950-01189 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) W/O COOLER,OD=34X74 |
1 | ||
| 55255 - COVER, CLUTCH MASTER CYLINDER HOLE | ||||
| 55255-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57161-14903 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 58102 - BAFFLE SUB-ASSY, RADIATOR SIDE, RH | ||||
| 53202-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 58103 - BAFFLE SUB-ASSY,RADIATOR SIDE, LH | ||||
| 53203-14140 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90467-08008 | ||||
| 90950-01025 | ||||
| 90950-01065 | ||||
| 91616-40616 | ||||
