RA42L-BCHDSA (1977)
Toyota Celica

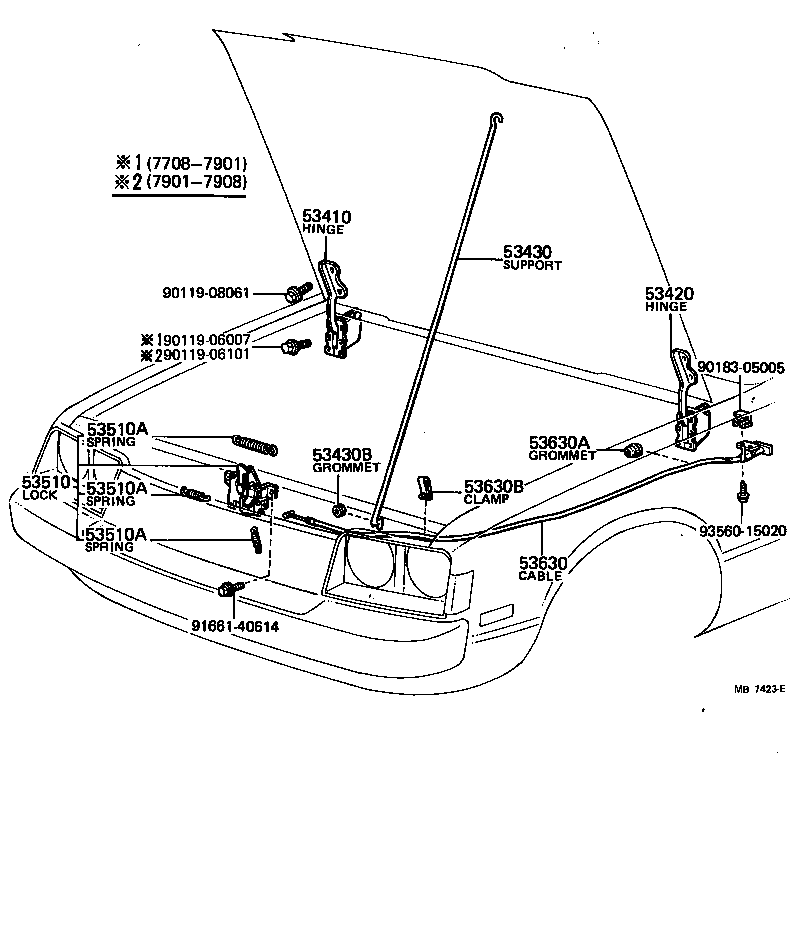

(7708-7908)RA42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53410-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53451-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53430B - GROMMET(FOR HOOD SUPPORT) | ||||
| 90480-15002 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-14100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-23004 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=2.3 |
1 | ||
| 90506-10487 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=1.0 |
1 | ||
| 90506-08107 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=0.8 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-23004 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=2.3 |
1 | ||
| 90506-10487 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=1.0 |
1 | ||
| 90506-08107 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=0.8 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-23004 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=2.3 |
1 | ||
| 90506-10487 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=1.0 |
1 | ||
| 90506-08107 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=0.8 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-14100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53630-14101 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90480-15001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90463-10338 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90119-06007 | ||||
| 90119-06101 | ||||
| 90119-08061 | ||||
| 90183-05005 | ||||
| 91661-40614 | ||||
| 93560-15020 | ||||

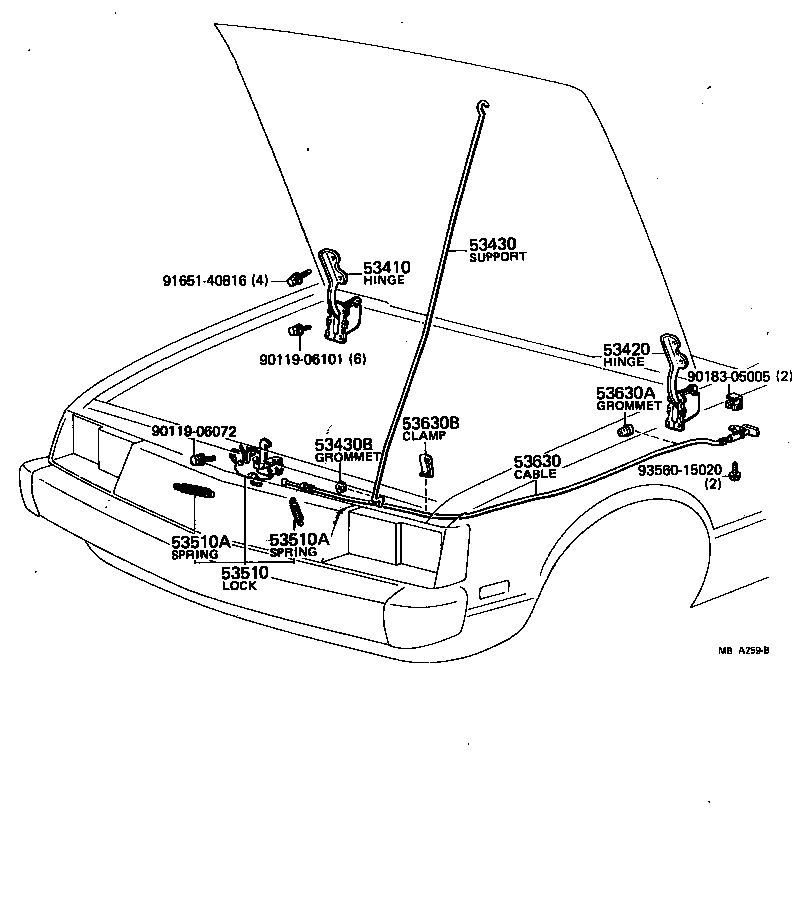

(7908- )RA4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53410-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53451-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53430B - GROMMET(FOR HOOD SUPPORT) | ||||
| 90480-15002 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-14100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-23004 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=2.3 |
1 | ||
| 90506-10487 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=1.0 |
1 | ||
| 90506-08107 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=0.8 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-23004 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=2.3 |
1 | ||
| 90506-10487 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=1.0 |
1 | ||
| 90506-08107 |
MA46,RA42..(3FC,5F)..(LT,SPR) WD=0.8 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-14100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53630-14101 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90480-15001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90463-10338 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90119-06101 | ||||
| 90183-05005 | ||||
| 91651-40816 | ||||
| 93560-15020 | ||||
