RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

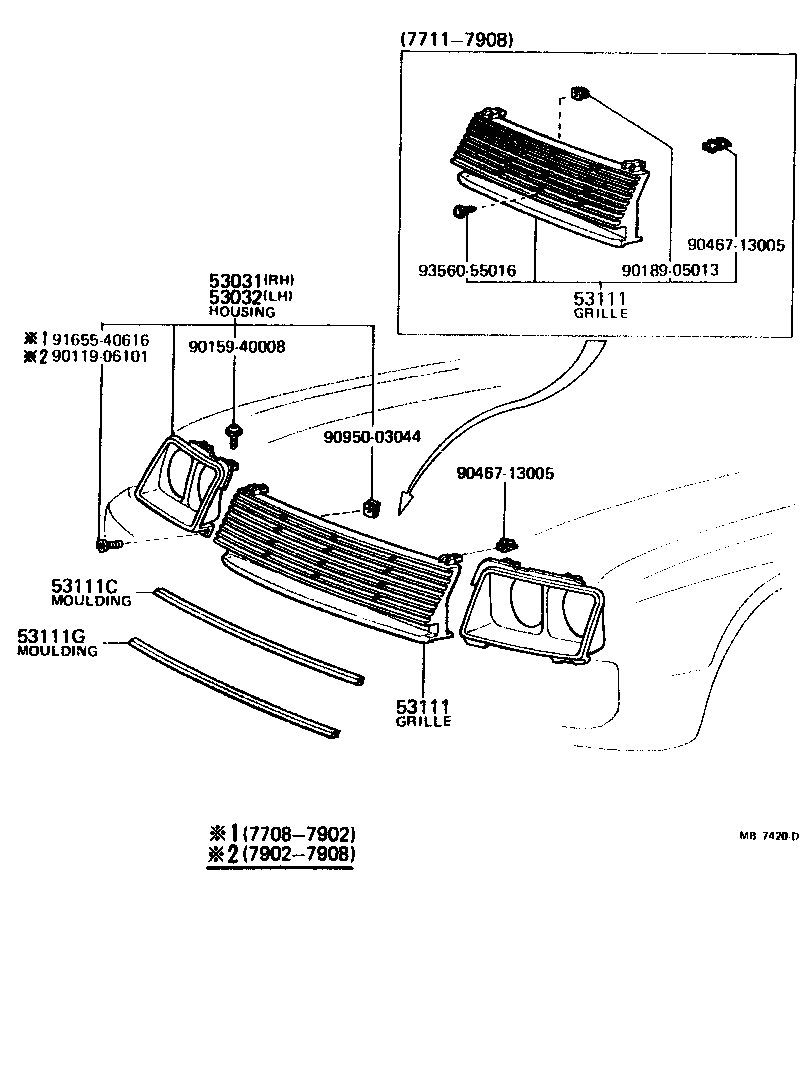

(7708-7908)RA42

Click highlighted areas on diagram

diagram 53031 53032 53111 53111 53111C 53111G 9011906101 9015940008 9018905013 9046713005 9046713005 9095003044 9165540616 9356055016
Part # Description Qty Price
53031 - HOUSING, HEADLAMP, RH
53131-19295

RA42..3FC..LT

 1
53131-19296

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53032 - HOUSING, HEADLAMP, LH
53132-19295

RA42..3FC..LT

 1
53132-19296

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53111 - GRILLE, RADIATOR
53111-14170

RA42..3FC..LT

 1
53111-19275

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53111-19266

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 1
53111 - GRILLE, RADIATOR
53111-14170

RA42..3FC..LT

 1
53111-19275

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53111-19266

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 1
53111C - MOULDING, RADIATOR GRILLE, UPPER
53121-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53111G - MOULDING, RADIATOR GRILLE, LOWER
53121-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90119-06101
90159-40008
90189-05013
90467-13005
90950-03044
91655-40616
93560-55016

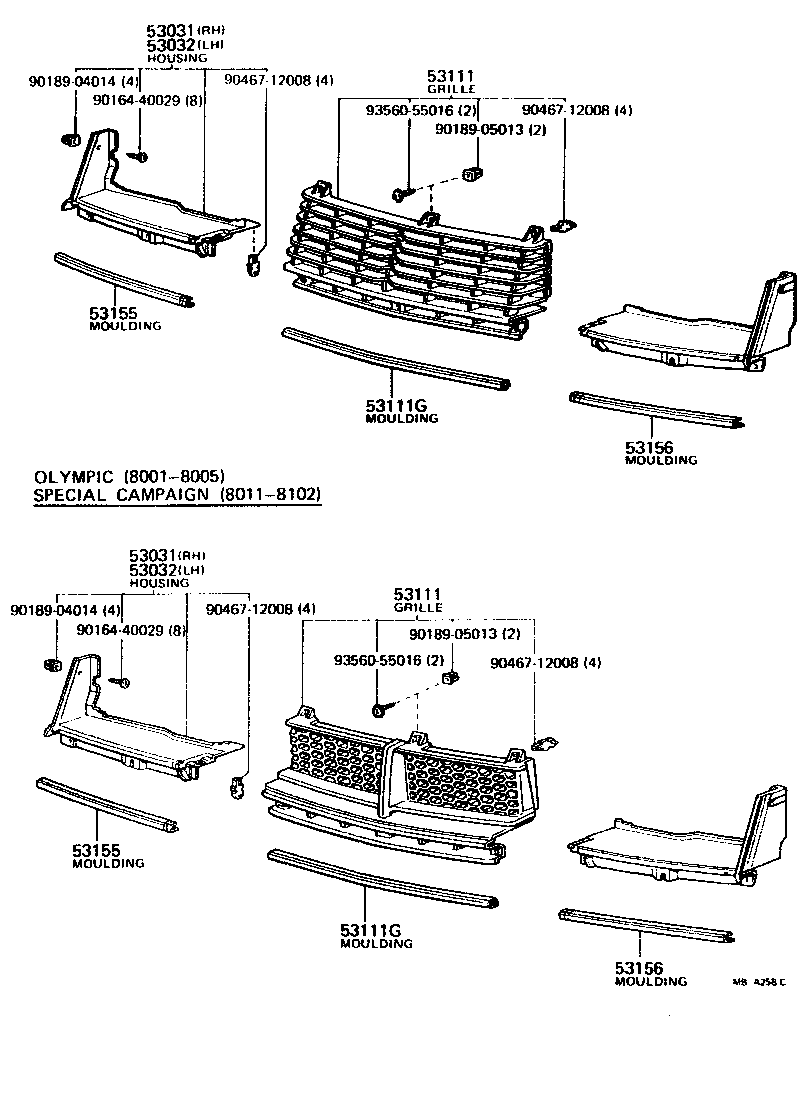

(7908- )RA4#

Click highlighted areas on diagram

diagram 53031 53031 53032 53032 53111 53111 53111G 53111G 53155 53155 53156 53156 9016440029 9016440029 9018904014 9018904014 9018905013 9018905013 9046712008 9046712008 9046712008 9046712008 9356055016 9356055016
Part # Description Qty Price
53031 - HOUSING, HEADLAMP, RH
53131-19295

RA42..3FC..LT

 1
53131-19296

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53031 - HOUSING, HEADLAMP, RH
53131-19295

RA42..3FC..LT

 1
53131-19296

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53032 - HOUSING, HEADLAMP, LH
53132-19295

RA42..3FC..LT

 1
53132-19296

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53032 - HOUSING, HEADLAMP, LH
53132-19295

RA42..3FC..LT

 1
53132-19296

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53111 - GRILLE, RADIATOR
53111-14170

RA42..3FC..LT

 1
53111-19275

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53111-19266

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 1
53111 - GRILLE, RADIATOR
53111-14170

RA42..3FC..LT

 1
53111-19275

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53111-19266

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 1
53111G - MOULDING, RADIATOR GRILLE, LOWER
53121-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
53111G - MOULDING, RADIATOR GRILLE, LOWER
53121-14080

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90164-40029
90189-04014
90189-05013
90467-12008
93560-55016
