RA42L-BCHDSA (1977)
Toyota Celica
Production
Aug 1977
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7908- )

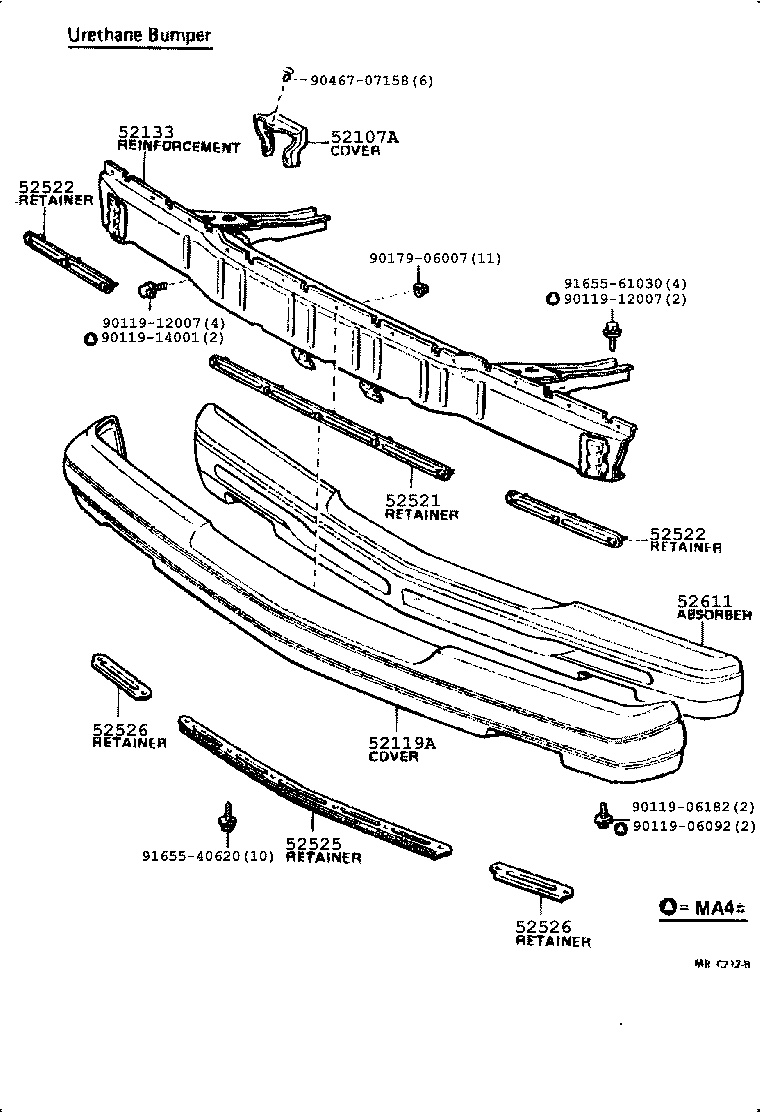

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-14020 |
RA42 |
1 | ||
| 52133 - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-14020 |
RA42 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-14020 |
MA4#,RA4# |
1 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-14010 |
RA4# |
2 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-14010 |
RA4# |
2 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-14010 |
RA42 |
1 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-14010 |
MA4#,RA4# |
2 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-14010 |
MA4#,RA4# |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-14010 |
RA42 |
1 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 90119-06182 | ||||
| 90119-12007 | ||||
| 90119-14001 | ||||
| 90179-06007 | ||||
| 90467-07158 | ||||
| 91655-40620 | ||||
| 91655-61030 | ||||
(7708-7908)

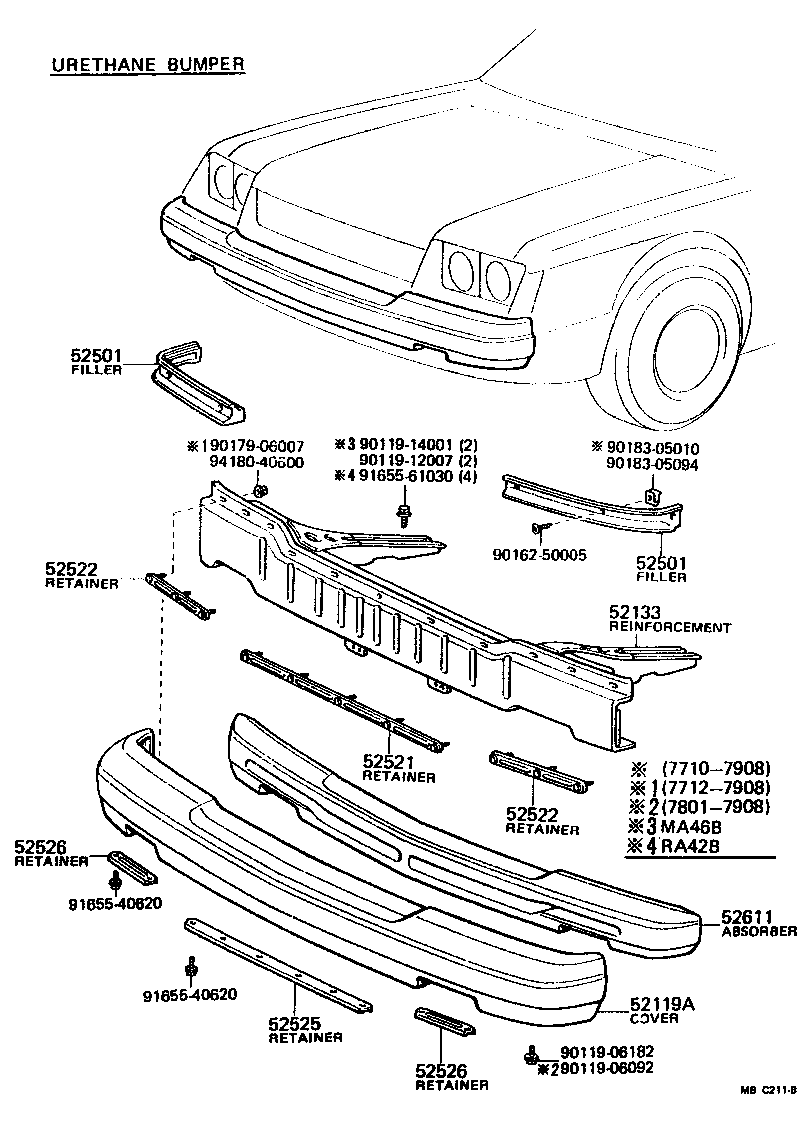

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-14020 |
RA42 |
1 | ||
| 52133 - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-14020 |
RA42 |
1 | ||
| 52501 - FILLER SUB-ASSY, FRONT BUMPER | ||||
| 52502-14010 |
MA46,RA42 RH |
1 | ||
| 52503-14010 |
MA46,RA42 LH |
1 | ||
| 52501 - FILLER SUB-ASSY, FRONT BUMPER | ||||
| 52502-14010 |
MA46,RA42 RH |
1 | ||
| 52503-14010 |
MA46,RA42 LH |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-14020 |
MA4#,RA4# |
1 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-14010 |
RA4# |
2 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-14010 |
RA4# |
2 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-14010 |
RA42 |
1 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-14010 |
MA4#,RA4# |
2 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-14010 |
MA4#,RA4# |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-14010 |
RA42 |
1 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 90119-06182 | ||||
| 90119-12007 | ||||
| 90119-14001 | ||||
| 90162-50005 | ||||
| 90179-06007 | ||||
| 90183-05010 | ||||
| 90183-05094 | ||||
| 91655-40620 | ||||
| 91655-61030 | ||||
| 94180-40600 | ||||
