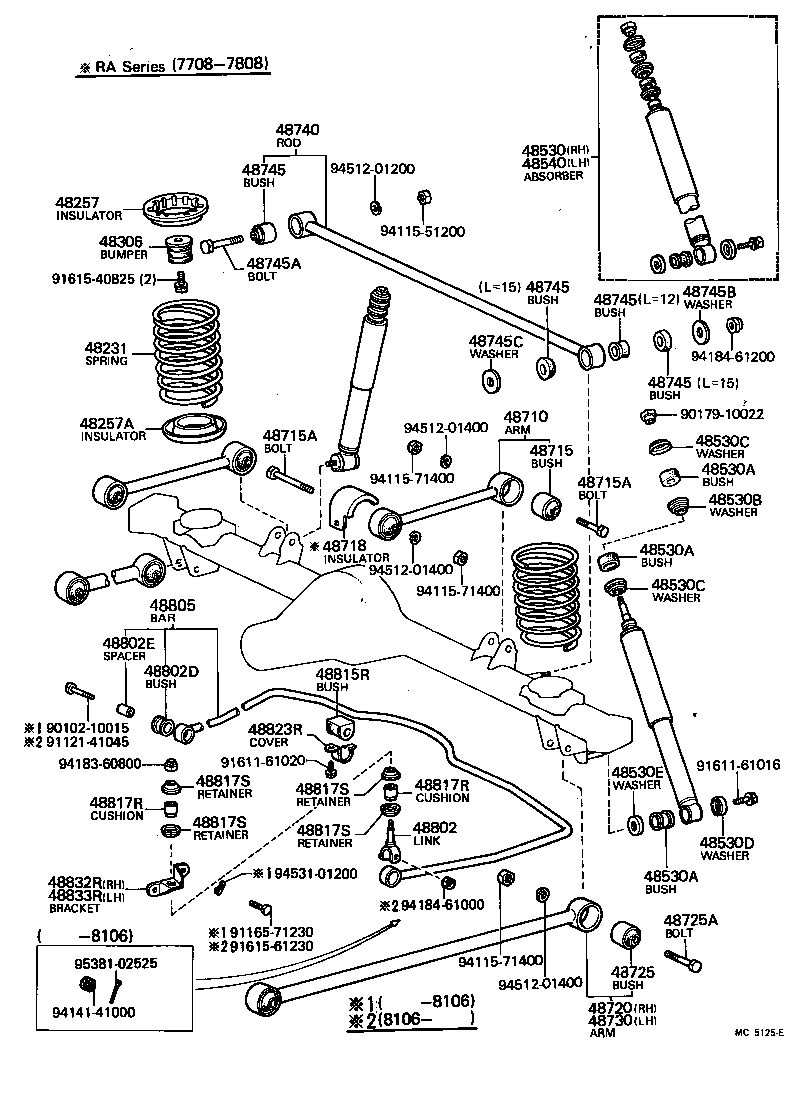

RA42L-BCHDSA (1977)
Toyota Celica
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-20070 |
RA42..CP |
2 | ||
| 48231-14450 |
RA42..CP |
1 | ||
| 48231-20010 |
RA42..CP |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-14020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19435 |
RA42..3FC..LT |
1 | ||
| 48531-19565 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48531-29685 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48531-19465 |
RA42..3FC..LT |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90540-10005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) OD=30,ID=10&14,UPR |
2 | ||
| 90540-10004 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=30,ID=10,UPR |
2 | ||
| 90385-16060 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90540-10005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) OD=30,ID=10&14,UPR |
2 | ||
| 90540-10004 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=30,ID=10,UPR |
2 | ||
| 90385-16060 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90540-10005 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) OD=30,ID=10&14,UPR |
2 | ||
| 90540-10004 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=30,ID=10,UPR |
2 | ||
| 90385-16060 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02045 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) UPR |
2 | ||
| 90948-02002 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LWR |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02045 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) UPR |
2 | ||
| 90948-02002 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) LWR |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19435 |
RA42..3FC..LT |
1 | ||
| 48531-19565 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48531-19465 |
RA42..3FC..LT |
1 | ||
| 48531-29685 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48715 - BUSH, UPPER CONTROL ARM | ||||
| 48702-22060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90101-14007 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *14-1.5PX76-21 |
2 | ||
| 90101-14002 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *14-1.5PX141-23 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90101-14007 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *14-1.5PX76-21 |
2 | ||
| 90101-14002 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *14-1.5PX141-23 |
2 | ||
| 48718 - INSULATOR, UPPER CONTROL ARM BUSH HEAT | ||||
| 48719-14010 |
RA42..3FC..LT |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48702-14020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90101-14007 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *14-1.5PX76-21 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-14040 |
RA42..3FC..LT OD=19.0 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 48706-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BODY SIDE |
1 | ||
| 90385-20001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L=15,HOUSING SIDE |
2 | ||
| 90386-20001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L=12,HOUSING SIDE |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 48706-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BODY SIDE |
1 | ||
| 90385-20001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L=15,HOUSING SIDE |
2 | ||
| 90386-20001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L=12,HOUSING SIDE |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 48706-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BODY SIDE |
1 | ||
| 90385-20001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L=15,HOUSING SIDE |
2 | ||
| 90386-20001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L=12,HOUSING SIDE |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 48706-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) BODY SIDE |
1 | ||
| 90385-20001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L=15,HOUSING SIDE |
2 | ||
| 90386-20001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) L=12,HOUSING SIDE |
1 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90101-12032 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-12010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48745C - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 94612-12000 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48802-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-11021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 90385-11021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 90560-10275 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=15 |
1 | ||
| 48805-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13 |
1 | ||
| 48805-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=11 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48815-22020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48815-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 48817-30010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 48817-30010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.2 |
4 | ||
| 90948-02015 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.2 |
4 | ||
| 90948-02032 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.6 |
4 | ||
| 90948-02032 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.6 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.2 |
4 | ||
| 90948-02015 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.2 |
4 | ||
| 90948-02032 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.6 |
4 | ||
| 90948-02032 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.6 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.2 |
4 | ||
| 90948-02015 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.2 |
4 | ||
| 90948-02032 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.6 |
4 | ||
| 90948-02032 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.6 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.2 |
4 | ||
| 90948-02015 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.2 |
4 | ||
| 90948-02032 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.6 |
4 | ||
| 90948-02032 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.6 |
4 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48832-22020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48832-22020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48832-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48833-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 48833-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90102-10015 | ||||
| 90179-10022 | ||||
| 91121-41045 | ||||
| 91165-71230 | ||||
| 91611-61016 | ||||
| 91611-61020 | ||||
| 91615-40825 | ||||
| 91615-61230 | ||||
| 94115-51200 | ||||
| 94115-71400 | ||||
| 94141-41000 | ||||
| 94183-60800 | ||||
| 94184-61000 | ||||
| 94184-61200 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 94531-01200 | ||||
| 95381-02525 | ||||
