RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

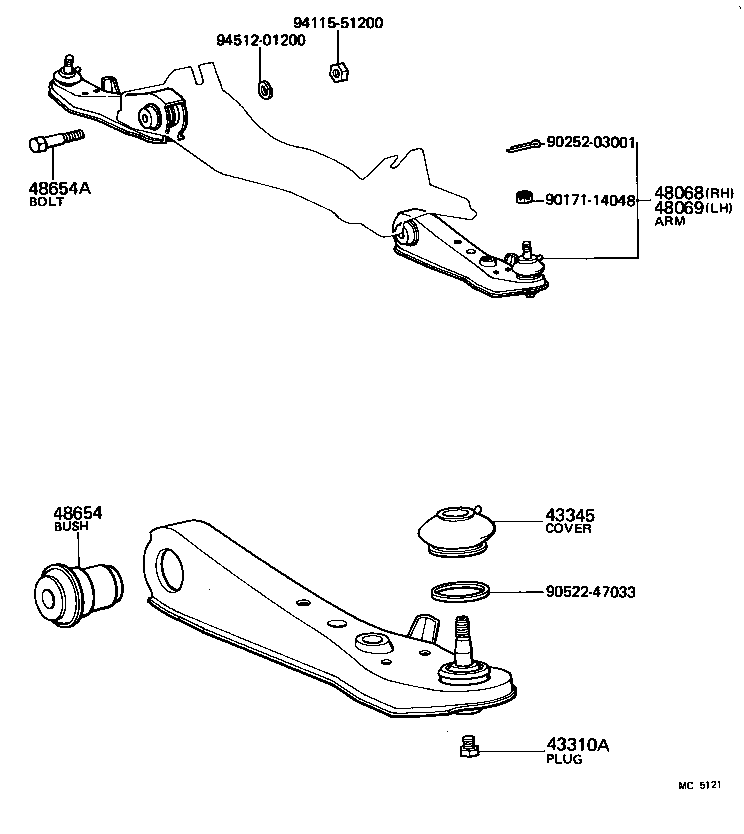

diagram 43310A 43345 48068 48069 48654 48654A 9017114048 9025203001 9052247033 9411551200 9451201200
Part # Description Qty Price
43310A - PLUG (FOR BALL JOINT)
90345-06014

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
43345 - COVER, LOWER BALL JOINT DUST
43345-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-19036

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-19036

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
48654 - BUSH, LOWER ARM
48654-12010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
48654A - BOLT, HEXAGON(FOR LOWER ARM)
90101-12291

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
Common parts
90171-14048
90252-03001
90522-47033
94115-51200
94512-01200
