RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

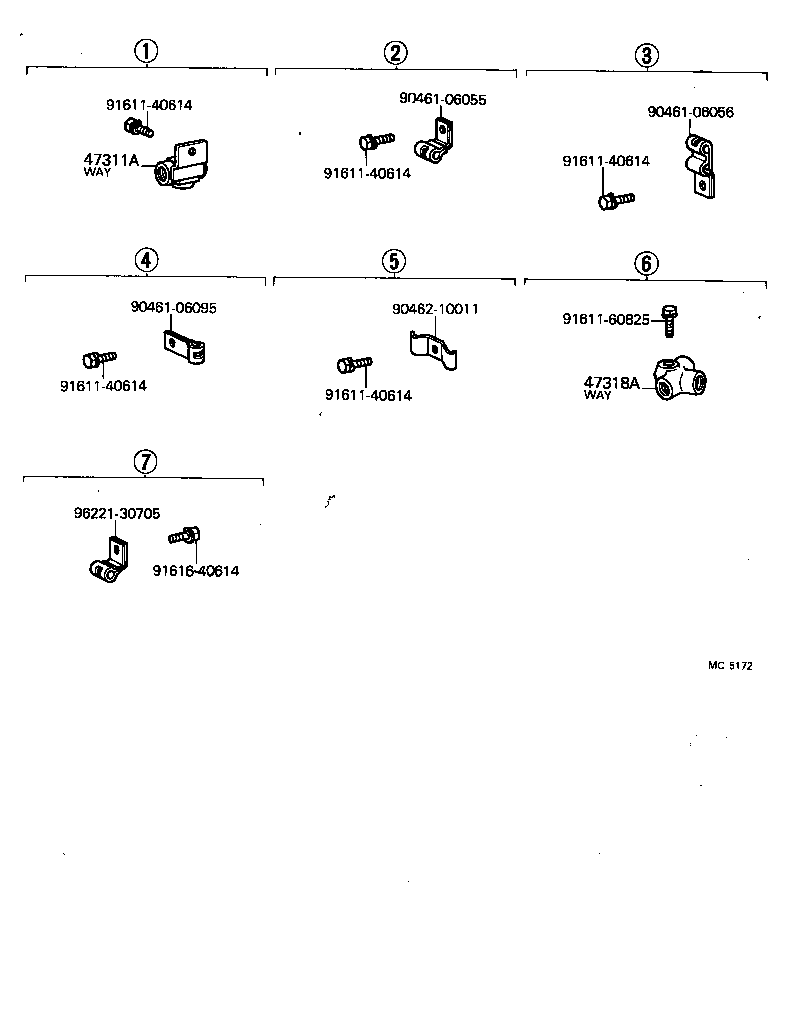

diagram 47311A 47318A 9046106055 9046106056 9046106095 9046210011 9161140614 9161140614 9161140614 9161140614 9161140614 9161160825 9161640614 9622130705
Part # Description Qty Price
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10098

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90461-06055
90461-06056
90461-06095
90462-10011
91611-40614
91611-60825
91616-40614
96221-30705

(7708- )RA4#

Click highlighted areas on diagram

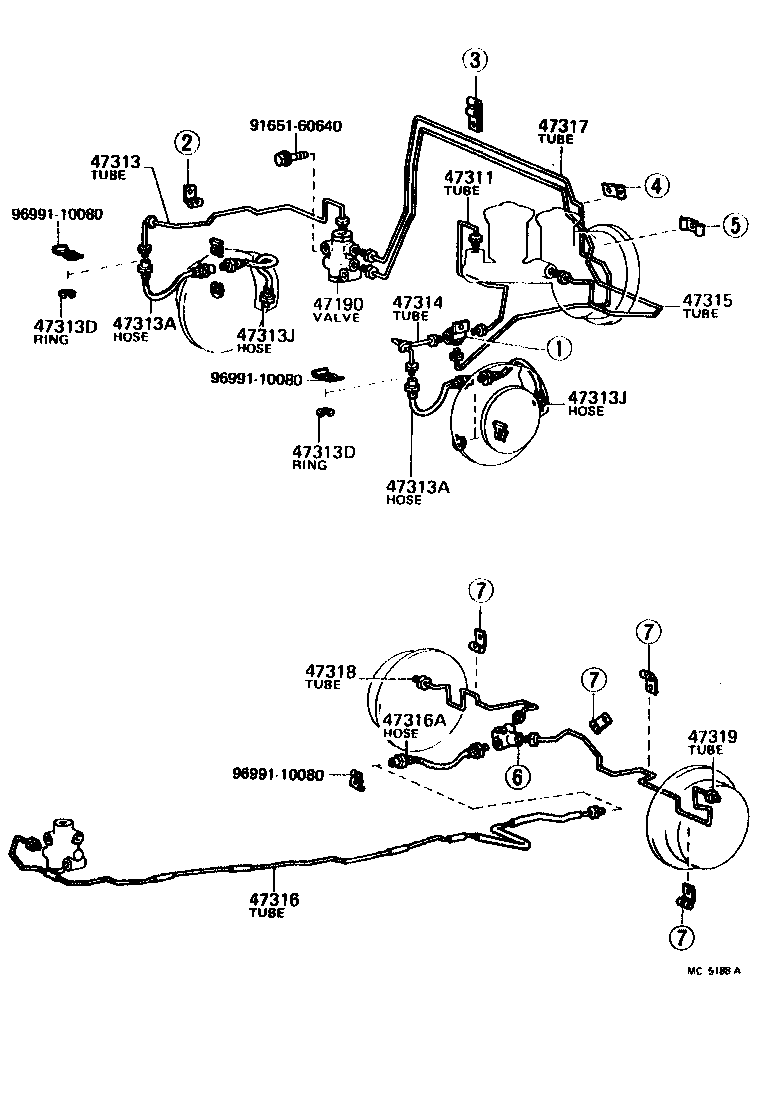

diagram 47190 47311 47313 47313A 47313A 47313D 47313D 47313J 47313J 47314 47315 47316 47316A 47317 47318 47319 9165160640 9699110080 9699110080 9699110080
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14130

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47312-14070

RA42..3FC..LT

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02259

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02259

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 4
47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING)
96160-01200

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 4
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02260

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02260

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-14022

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47321-14020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47322-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-30285

RA42..3FC..LT

 1
90947-02395

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47317 - TUBE, FRONT BRAKE, NO.7
47314-14070

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47323-14040

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47319 - TUBE, FRONT BRAKE, NO.9
47324-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47324-14070

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
91651-60640
96991-10080
