RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )RA4#

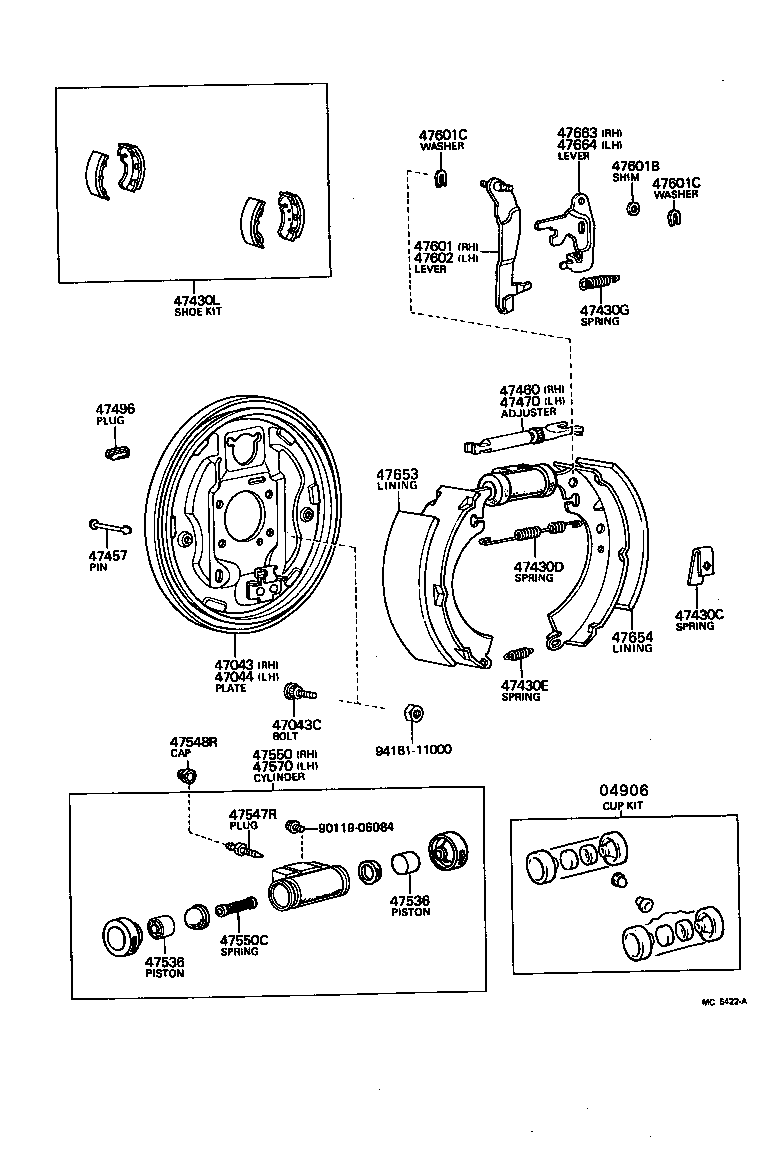

Click highlighted areas on diagram

diagram 04906 47043 47043C 47044 47430C 47430D 47430E 47430G 47430L 47457 47460 47470 47496 47536 47536 47547R 47548R 47550 47550C 47570 47601 47601B 47601C 47601C 47602 47653 47654 47663 47664 9011906084 9418111000
Part # Description Qty Price
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-12040

RA42

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-20050

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-22011

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

*10-1.25PX37-15

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-20050

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47446-10010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23375

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23346

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12310

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47430L - SHOE KIT, REAR BRAKE
04495-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-11010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 4
47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47061-14021

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47062-14021

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-22040

MA46,RA42..(3FC,5F)..(LT,SPR)

 4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-22040

MA46,RA42..(3FC,5F)..(LT,SPR)

 4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-29115

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47509-12020

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-29115

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47601B - SHIM, REAR PARKING BRAKE SHOE LEVER
90564-08151

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

T=0.6,T=0.6

 2
90564-08150

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

T=0.3,T=0.3

 2
90564-08172

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

T=0.2,T=0.2

 2
90564-08152

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

T=0.9,T=0.9

 2
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

T=1.2

 4
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

T=1.2

 4
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47602-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47655-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
47655-14010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 2
47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47643-14021

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47644-14021

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90119-06084
94181-11000
