RA42L-BCHDSA (1977)
Toyota Celica

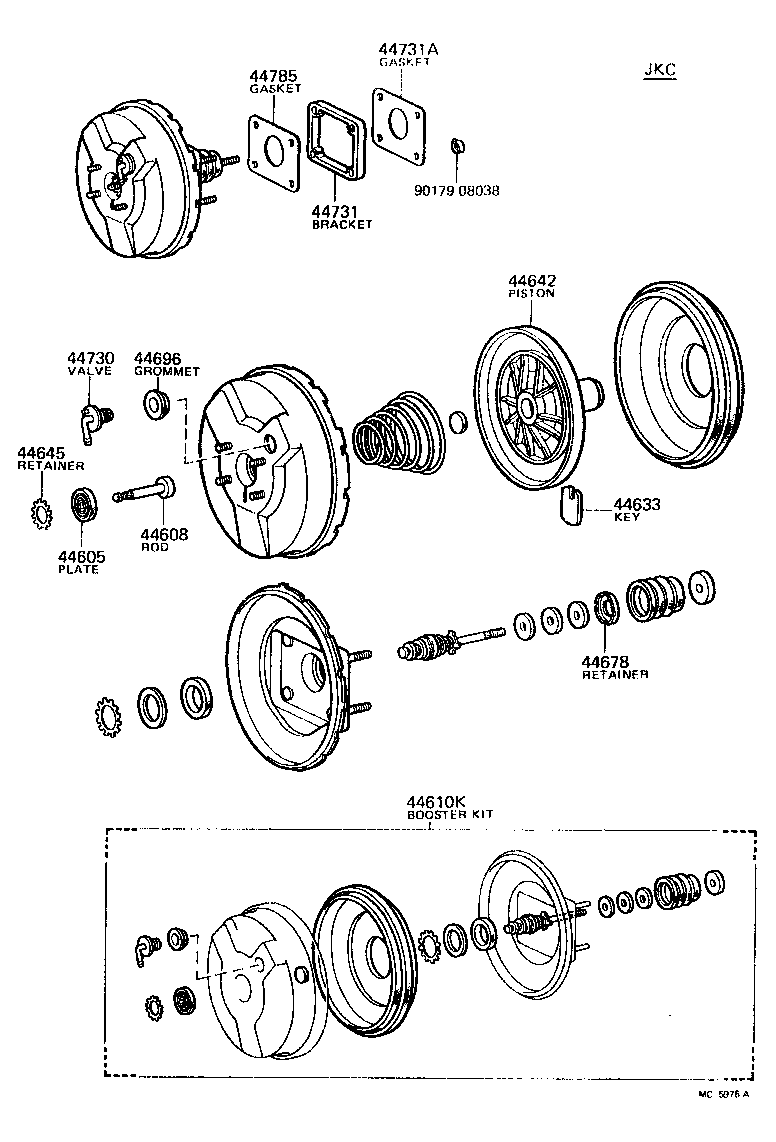

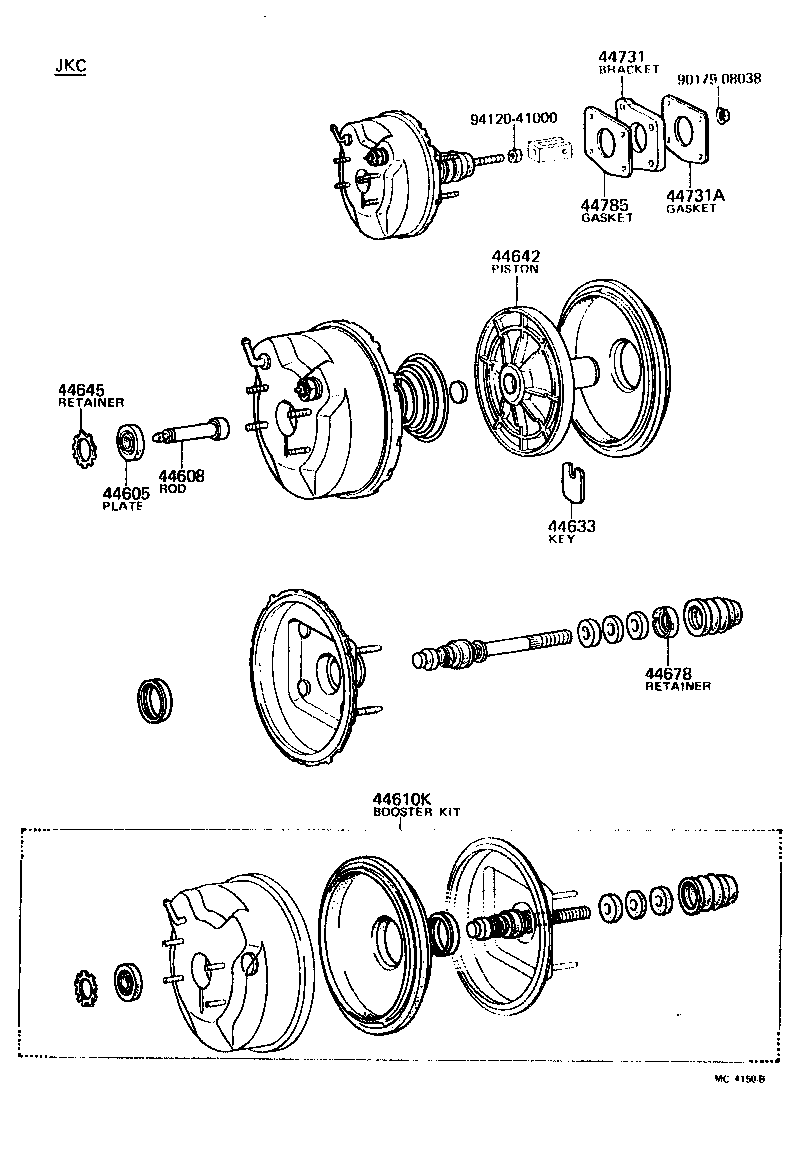

(7708-7908)RA42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-22090 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44606-30050 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44608-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-14280 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 04443-14220 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 04443-14310 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-35080 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44642-30030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44642-14520 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44628-60010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
RA42..3FC..LT |
1 | ||
| 44785-22010 |
RA42..3FC..LT |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
RA42..3FC..LT |
1 | ||
| 44785-22010 |
RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 94120-41000 | ||||

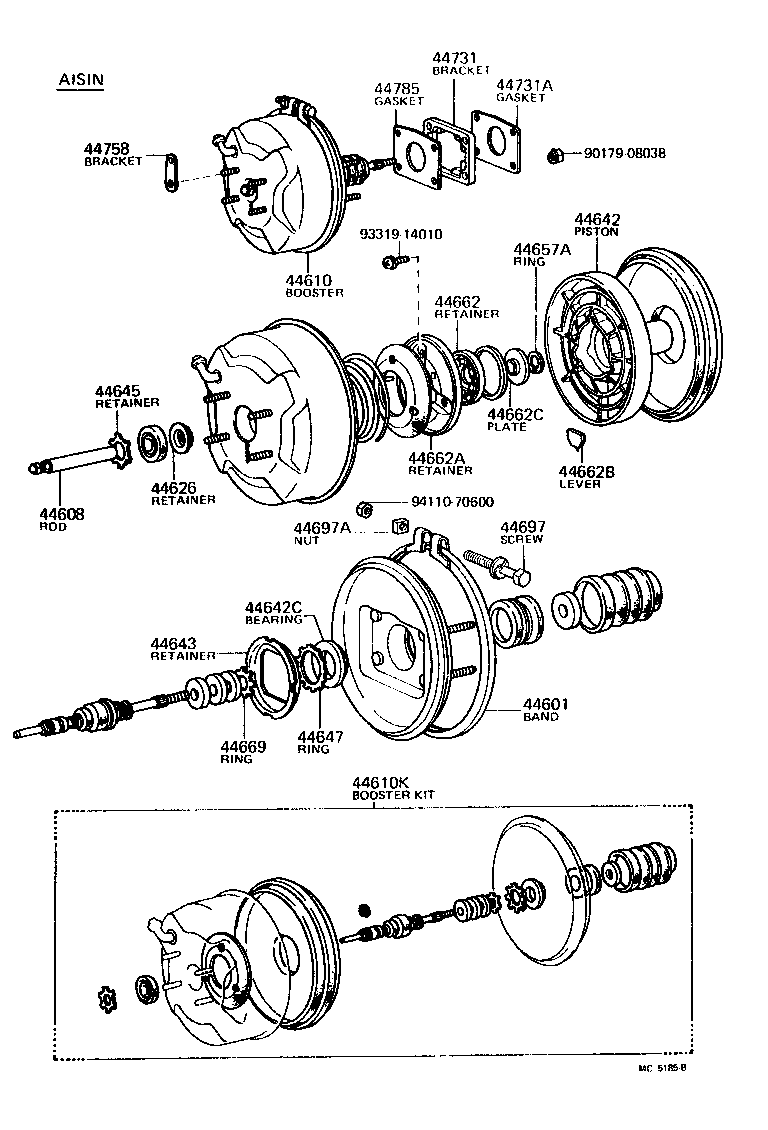

(7708-7908)RA42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-30030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-22090 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44606-30050 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44608-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14351 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-14280 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 04443-14220 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 04443-14310 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-35080 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44642-30030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44642-14520 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44642C - BEARING, BOOSTER PISTON | ||||
| 44623-30150 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44628-60010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-60010 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44662A - RETAINER, REACTION, NO.2 | ||||
| 44663-35060 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-60010 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44661-35100 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44653-20150 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-30170 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
RA42..3FC..LT |
1 | ||
| 44785-22010 |
RA42..3FC..LT |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
RA42..3FC..LT |
1 | ||
| 44785-22010 |
RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14010 | ||||
| 94110-70600 | ||||

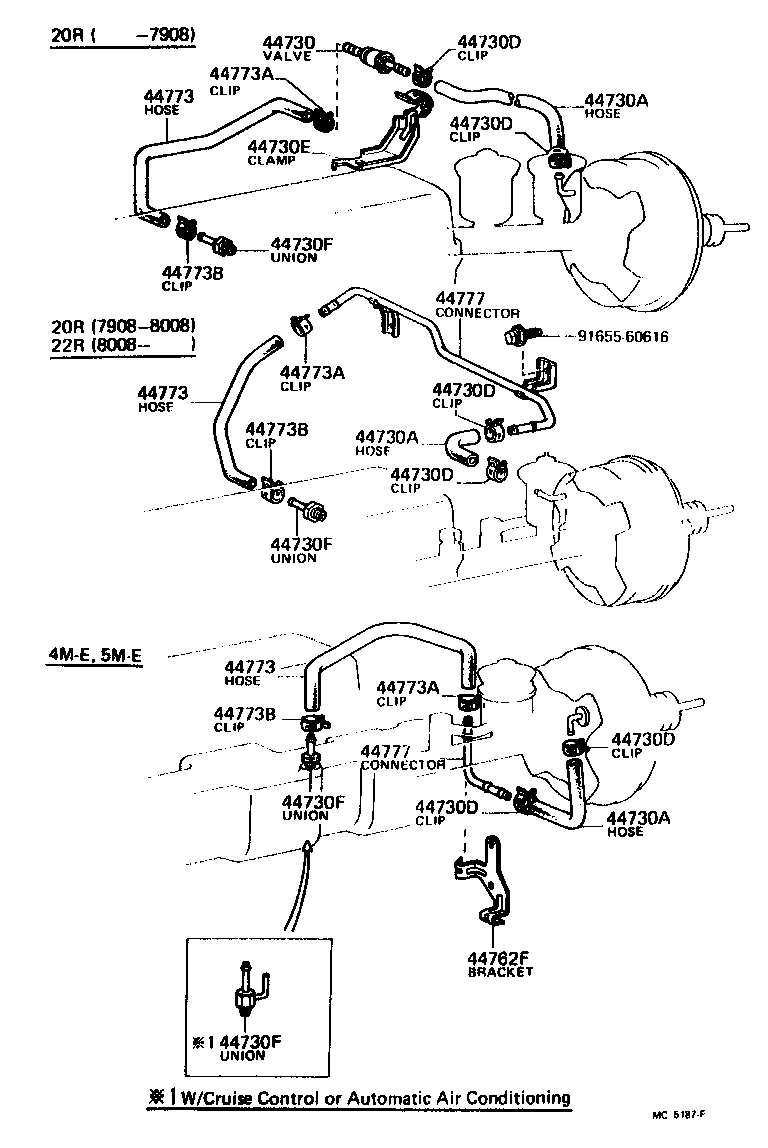

(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44730-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44730-20010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-14090 |
RA42..3FC..LT |
1 | ||
| 44772-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-14090 |
RA42..3FC..LT |
1 | ||
| 44772-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-14090 |
RA42..3FC..LT |
1 | ||
| 44772-20100 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 44730E - CLAMP, VACUUM CHECK VALVE | ||||
| 44758-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44779-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773-20220 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44779-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773-20220 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44779-14020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773-20220 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 91655-60616 | ||||

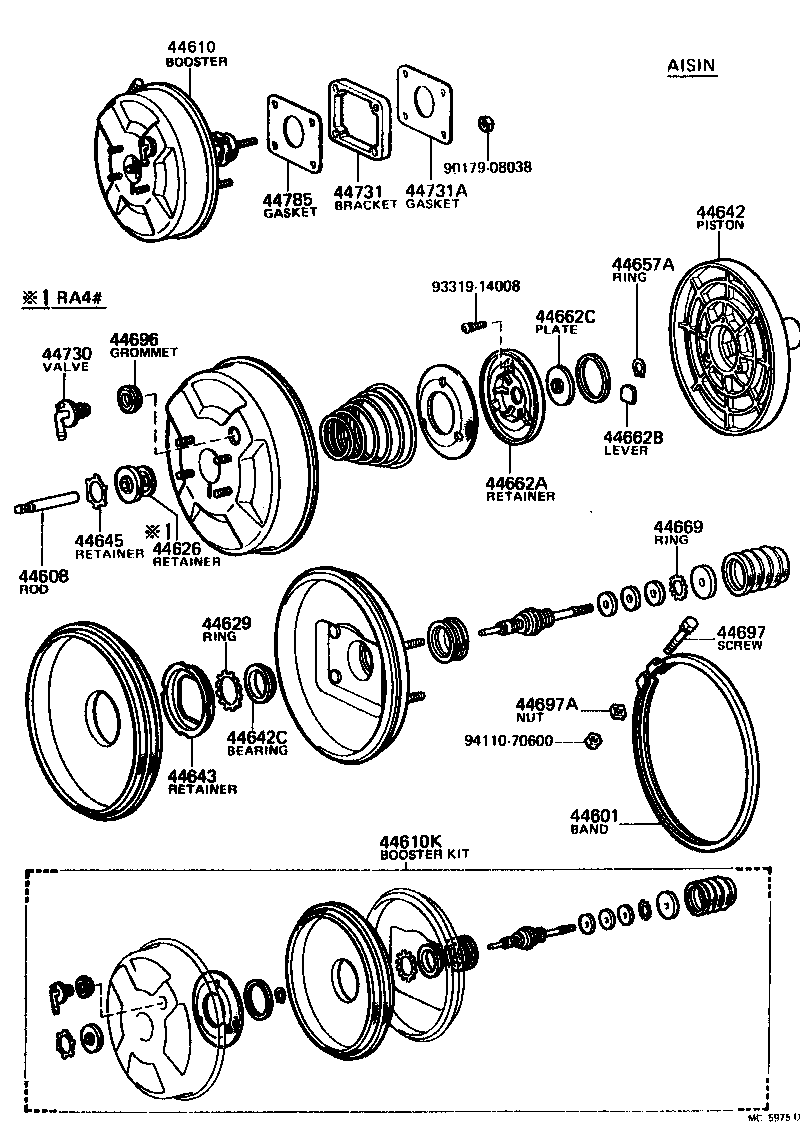

(7901- )MA4# ; (7908- )RA4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-30030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-22090 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44606-30050 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44608-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14351 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-14280 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 04443-14220 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 04443-14310 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44629-30090 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-35080 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44642-30030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44642-14520 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44642C - BEARING, BOOSTER PISTON | ||||
| 44623-30150 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44628-60010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44662A - RETAINER, REACTION, NO.2 | ||||
| 44663-35060 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-60010 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44661-35100 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44653-20150 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 90480-24517 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-30170 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44730-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44730-20010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
RA42..3FC..LT |
1 | ||
| 44785-22010 |
RA42..3FC..LT |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
RA42..3FC..LT |
1 | ||
| 44785-22010 |
RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
| 94110-70600 | ||||
(7901-8008)MA46 ; (7908- )RA42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-22090 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44606-30050 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44608-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-14280 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 04443-14220 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 04443-14310 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-35080 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44642-30030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44642-14520 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44628-60010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 90480-24517 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
MA46,RA42..(3FC,5F)..(LT,SPR) JKC |
1 | ||
| 44730-20060 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN |
1 | ||
| 44730-20010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
RA42..3FC..LT |
1 | ||
| 44785-22010 |
RA42..3FC..LT |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
RA42..3FC..LT |
1 | ||
| 44785-22010 |
RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
