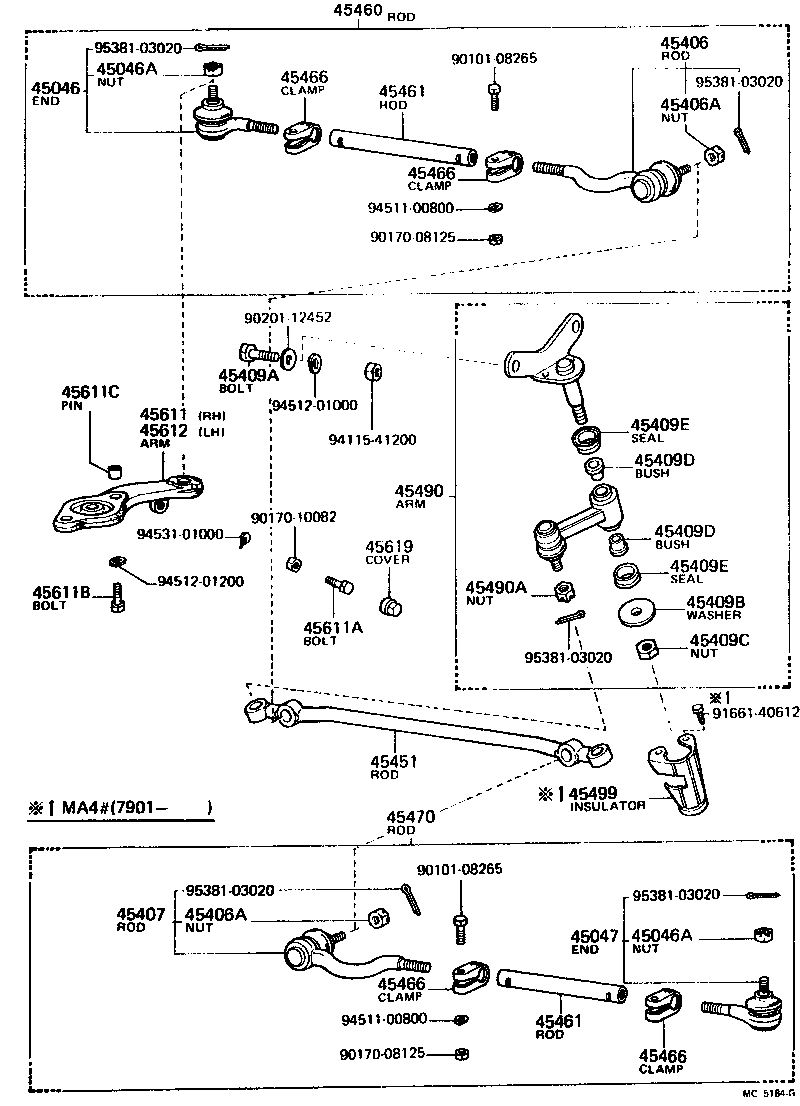

RA42L-BCHDSA (1977)
Toyota Celica
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29075 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29075 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-19016 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12028 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-19016 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90101-12033 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) *12-1.25PX87.5-32.5 |
2 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-16102 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/POWER STEERING |
1 | ||
| 90201-14519 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 90179-16053 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/POWER STEERING |
1 | ||
| 94182-11400 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-14021 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45451-15020 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/POWER STEERING |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19056 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-14010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19056 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-29305 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/POWER STEERING |
1 | ||
| 45490-29295 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/O POWER STEERING |
1 | ||
| 45490-19175 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/O POWER STEERING |
1 | ||
| 45490-19165 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/POWER STEERING |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14011 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10002 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12295 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-14011 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14010 |
RA42..3FC..LT |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 90201-12452 | ||||
| 91661-40612 | ||||
| 94115-41200 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
