RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)LT ; (8001-8005)LB..5F..GT ; (8011-8102)CP..4FC..GT

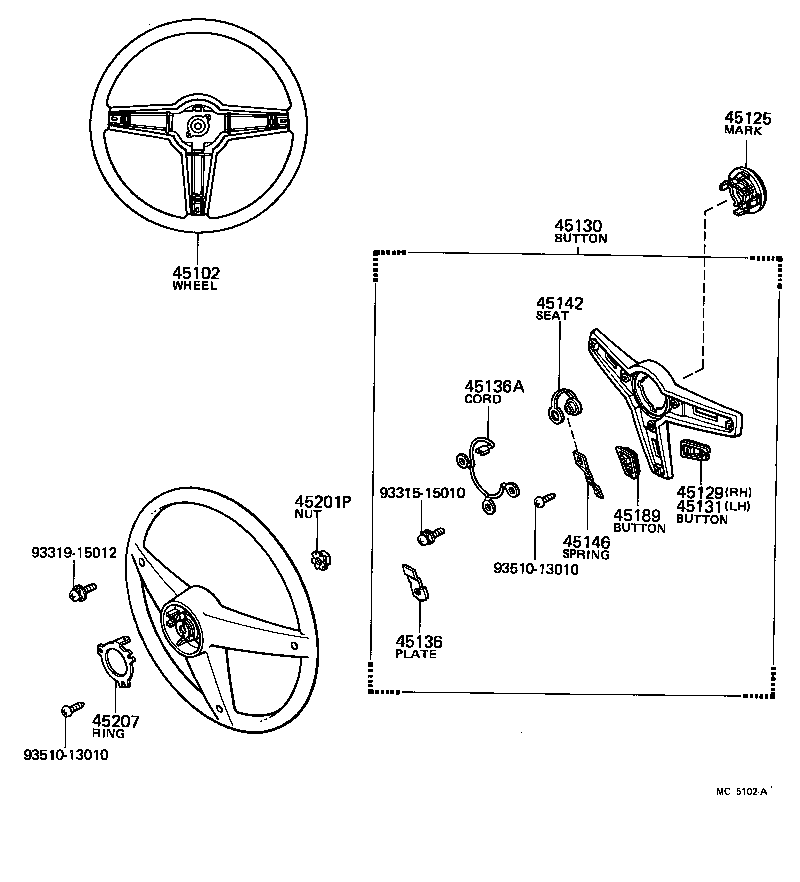

Click highlighted areas on diagram

diagram 45102 45125 45129 45130 45131 45136 45136A 45142 45146 45189 45201P 45207 9331515010 9331915012 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-1404101

MA46,RA42..(3FC,5F)..(LT,SPR)

4-SPOKE,BLACK,BLACK

 1
45102-1402104

MA46,RA42..(3FC,5F)..(LT,SPR)

3-SPOKE,WOODEN GRAIN,BLUE,BLUE

 1
45102-1402101

MA46,RA42..(3FC,5F)..(LT,SPR)

3-SPOKE,WOODEN GRAIN,BLACK,BLACK

 1
45102-1404104

MA46,RA42..(3FC,5F)..(LT,SPR)

4-SPOKE,BLUE,BLUE

 1
45100-1425006

MA46,RA42..(3FC,5F)..(LT,SPR)

LIGHT BROWN,BROWN

 1
45102-1402116

MA46,RA42..(3FC,5F)..(LT,SPR)

3-SPOKE,WOODEN GRAIN,BROWN,BROWN

 1
45102-1408016

MA46,RA42..(3FC,5F)..(LT,SPR)

3-SPOKE,LIGHT BROWN,BROWN

 1
45102-1404116

MA46,RA42..(3FC,5F)..(LT,SPR)

4-SPOKE,BROWN,BROWN

 1
45100-1425001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
45102-1408001

MA46,RA42..(3FC,5F)..(LT,SPR)

3-SPOKE,BLACK,BLACK

 1
45102-1412001

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC,BLACK

 1
45102-1408004

MA46,RA42..(3FC,5F)..(LT,SPR)

3-SPOKE,BLUE,BLUE

 1
45102-1408006

MA46,RA42..(3FC,5F)..(LT,SPR)

3-SPOKE,BROWN,BROWN

 1
45100-1425004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
45125 - MARK, STEERING WHEEL PAD
45125-14051

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45125-1419004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
45125-1419001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
45125-1417001

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC,BLACK

 1
45125-14170

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45125-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45125-1419006

MA46,RA42..(3FC,5F)..(LT,SPR)

LIGHT BROWN,BROWN

 1
45129 - BUTTON, HORN, NO.2
45131-14011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45131-1402101

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 2
45131-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 1
45131-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45129-14020

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
45130 - BUTTON ASSY, HORN
45130-1404001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
45130-1404006

MA46,RA42..(3FC,5F)..(LT,SPR)

LIGHT BROWN,BROWN

 1
45130-1404016

MA46,RA42..(3FC,5F)..(LT,SPR)

LIGHT BROWN,BROWN

 1
45130-1404004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
45130-1404001

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC,BLACK

 1
45130-1402001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 1
45130-1402004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 1
45130-1402016

MA46,RA42..(3FC,5F)..(LT,SPR)

LIGHT BROWN,BROWN

 1
45131 - BUTTON, HORN, NO.1
45131-14011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45131-1407004

MA46,RA42..(3FC,5F)..(LT,SPR)

BLUE,BLUE

 2
45129-1401001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 2
45131-1407001

MA46,RA42..(3FC,5F)..(LT,SPR)

BLACK,BLACK

 2
45131-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 1
45131-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45131-1407006

MA46,RA42..(3FC,5F)..(LT,SPR)

LIGHT BROWN,BROWN

 2
45136 - PLATE, HORN BUTTON CONTACT
45136-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 3
45136-14040

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 3
45136-14040

MA46,RA42..(3FC,5F)..(LT,SPR)

 3
45136A - CORD(FOR HORN CONTACT RING)
90945-02016

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90945-02046

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90945-02006

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90945-02046

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 3
45142-14030

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 3
45142-14030

MA46,RA42..(3FC,5F)..(LT,SPR)

 3
45146 - SPRING, HORN BUTTON CONTACT
45146-14040

MA46,RA42..(3FC,5F)..(LT,SPR)

 3
45146-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 3
45146-14040

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 3
45189 - BUTTON, HORN, NO.3
45131-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45131-14011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45131-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45207 - RING, HORN CONTACT
45176-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45176-20030

MA46,RA42..(3FC,5F)..(LT,SPR)

OLYMPIC

 1
45176-20030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
45176-14030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
93315-15010
93319-15012
93510-13010
