RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7808)

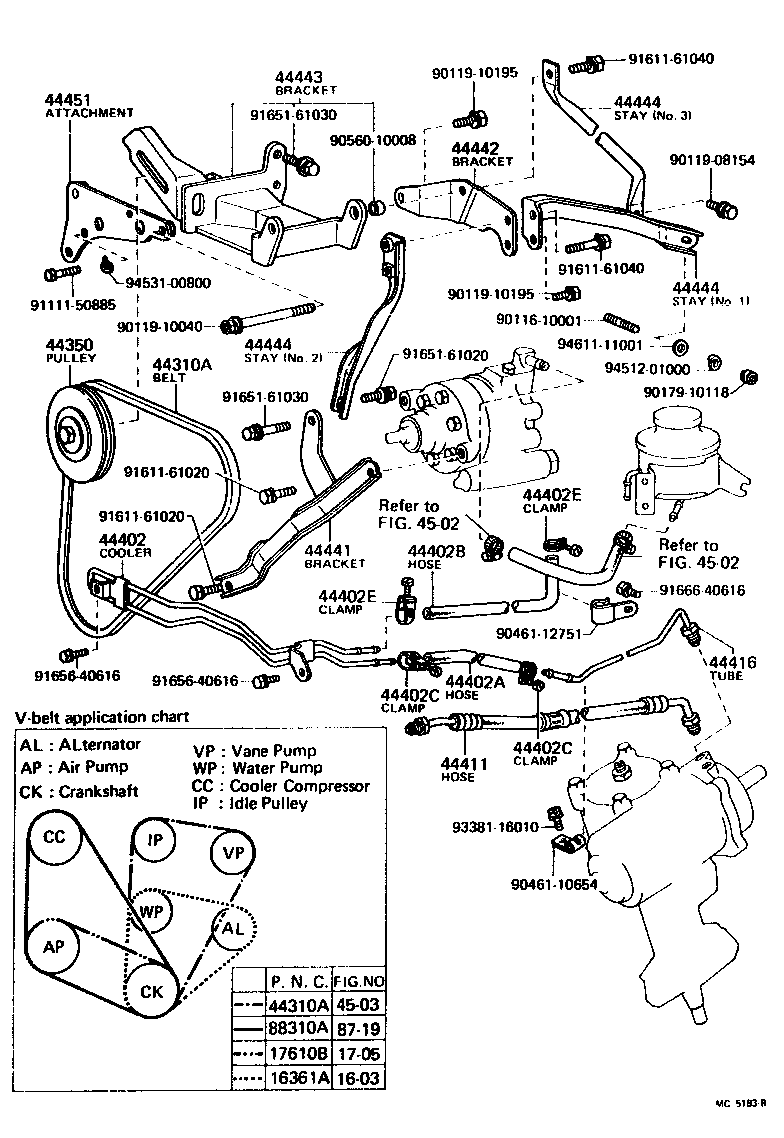

Click highlighted areas on diagram

diagram 1603 16361A 1705 17610B 44310A 44310A 44350 44402 44402A 44402B 44402C 44402C 44402E 44402E 44411 44416 44441 44442 44443 44444 44444 44444 44451 4502 4502 4503 8719 88310A 9011610001 9011908154 9011910040 9011910195 9011910195 9017910118 9046110654 9046112751 9056010008 9111150885 9161161020 9161161020 9161161040 9161161040 9165161020 9165161030 9165161030 9165640616 9165640616 9166640616 9338116010 9451201000 9453100800 9461111001
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

20R..RA42

L=880

 1
99331-00870

20R..RA42

L=870

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10830

20R..RA42..3FC..LT

L=830

 1
99332-00865

20R..RA42..3FC..LT

L=865

 1
44310A - BELT, V(FOR VANE PUMP)
99332-51300

RA42..3FC..LT

 1
99332-51135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
99332-11135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90916-02083

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44310A - BELT, V(FOR VANE PUMP)
99332-51300

RA42..3FC..LT

 1
99332-51135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
99332-11135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90916-02083

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44350-20020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44350-20010

RA42..3FC..LT

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-14011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44402-14010

RA42..3FC..LT

 1
44402-14030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18034

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90445-18081

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90445-18072

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90445-18033

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
44411 - HOSE, PRESSURE FEED
44411-20030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44411-14011

RA42..3FC..LT

 1
44411-14031

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44411-14010

RA42..3FC..LT

 1
44411-20030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44416-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44416-14030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44441 - BRACKET, PUMP, FRONT
44441-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44441-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44453-20010

RA42..3FC..LT

 1
44442 - BRACKET, PUMP, REAR
44442-20010

RA42..3FC..LT

 1
44443 - BRACKET, PUMP
44443-20020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44443-20020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44443-30050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44443-20010

RA42..3FC..LT

 1
44444 - STAY, PUMP, REAR
44454-20011

RA42..3FC..LT

NO.2

 1
44444-20010

RA42..3FC..LT

NO.1

 1
44455-20010

RA42..3FC..LT

NO.3

 1
44444 - STAY, PUMP, REAR
44454-20011

RA42..3FC..LT

NO.2

 1
44444-20010

RA42..3FC..LT

NO.1

 1
44455-20010

RA42..3FC..LT

NO.3

 1
44444 - STAY, PUMP, REAR
44454-20011

RA42..3FC..LT

NO.2

 1
44444-20010

RA42..3FC..LT

NO.1

 1
44455-20010

RA42..3FC..LT

NO.3

 1
44451 - ATTACHMENT, TIMING CHAIN COVER
44451-20010

RA42..3FC..LT

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-00970

MA46,RA42..(3FC,5F)..(LT,SPR)

L=970,L=970

 1
99332-01140

MA46,RA42..(3FC,5F)..(LT,SPR)

L=1140

 1
99332-01160

RA42..3FC..LT

L=1160

 1
Common parts
90116-10001
90119-08154
90119-10040
90119-10195
90179-10118
90461-10654
90461-12751
90560-10008
91111-50885
91611-61020
91611-61040
91651-61020
91651-61030
91656-40616
91666-40616
93381-16010
94512-01000
94531-00800
94611-11001
Linked diagrams
1603
1705
4502
4503
8719

(7808- )RA4#

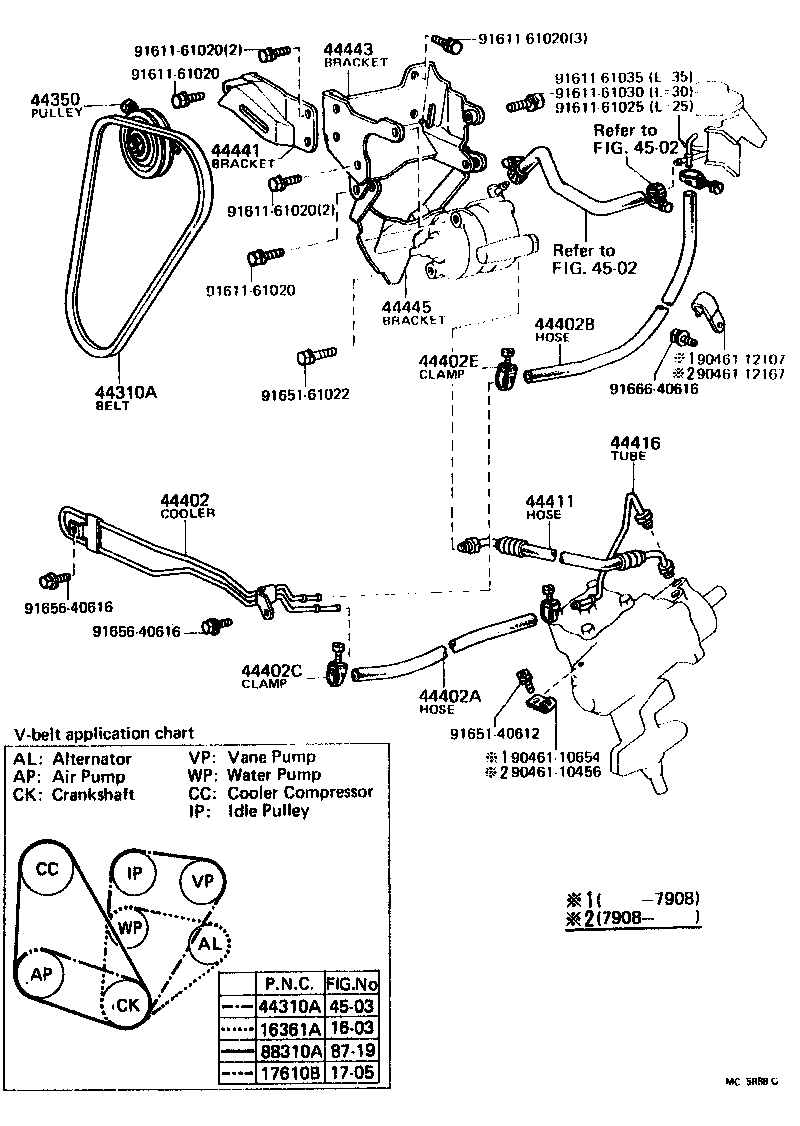

Click highlighted areas on diagram

diagram 1603 16361A 1705 17610B 44310A 44310A 44350 44402 44402A 44402B 44402C 44402E 44411 44416 44441 44443 44445 4502 4502 4503 8719 88310A 9046110456 9046110654 9046112107 9046112167 9161161020 9161161020 9161161020 9161161020 9161161020 9161161025 9161161030 9161161035 9165140612 9165161022 9165640616 9165640616 9166640616
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

20R..RA42

L=880

 1
99331-00870

20R..RA42

L=870

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10830

20R..RA42..3FC..LT

L=830

 1
99332-00865

20R..RA42..3FC..LT

L=865

 1
44310A - BELT, V(FOR VANE PUMP)
99332-51300

RA42..3FC..LT

 1
99332-51135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
99332-11135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90916-02083

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44310A - BELT, V(FOR VANE PUMP)
99332-51300

RA42..3FC..LT

 1
99332-51135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
99332-11135

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90916-02083

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44350-20020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44350-20010

RA42..3FC..LT

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-14011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44402-14010

RA42..3FC..LT

 1
44402-14030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18034

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90445-18081

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90445-18072

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
90445-18033

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
90460-01001

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
44411 - HOSE, PRESSURE FEED
44411-20030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44411-14011

RA42..3FC..LT

 1
44411-14031

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44411-14010

RA42..3FC..LT

 1
44411-20030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-14050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44416-14010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44416-14030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44441 - BRACKET, PUMP, FRONT
44441-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44441-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44453-20010

RA42..3FC..LT

 1
44443 - BRACKET, PUMP
44443-20020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44443-20020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44443-30050

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44443-20010

RA42..3FC..LT

 1
44445 - BRACKET, PUMP, LOWER
44445-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
44445-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-00970

MA46,RA42..(3FC,5F)..(LT,SPR)

L=970,L=970

 1
99332-01140

MA46,RA42..(3FC,5F)..(LT,SPR)

L=1140

 1
99332-01160

RA42..3FC..LT

L=1160

 1
Common parts
90461-10456
90461-10654
90461-12107
90461-12167
91611-61020
91611-61025
91611-61030
91611-61035
91651-40612
91651-61022
91656-40616
91666-40616
Linked diagrams
1603
1705
4502
4503
8719
