RA42L-BCHDSA (1977)
Toyota Celica
(7708- )

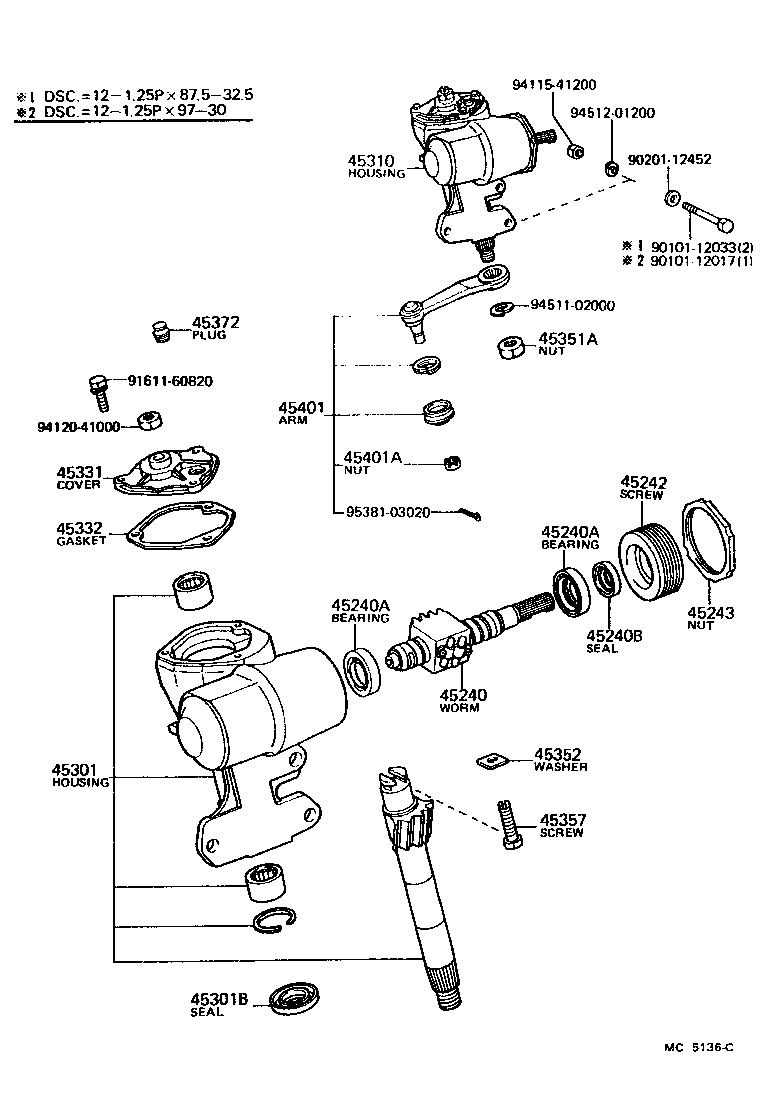

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-30050 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-30060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-14080 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-14100 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-12030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=2.08 |
1 | ||
| 45352-12010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=2.00 |
1 | ||
| 45352-12050 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=2.16 |
1 | ||
| 45352-12060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=2.20 |
1 | ||
| 45352-12040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=2.12 |
1 | ||
| 45352-12020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=2.04 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19125 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90101-12017 | ||||
| 90101-12033 | ||||
| 90201-12452 | ||||
| 91611-60820 | ||||
| 94115-41200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||

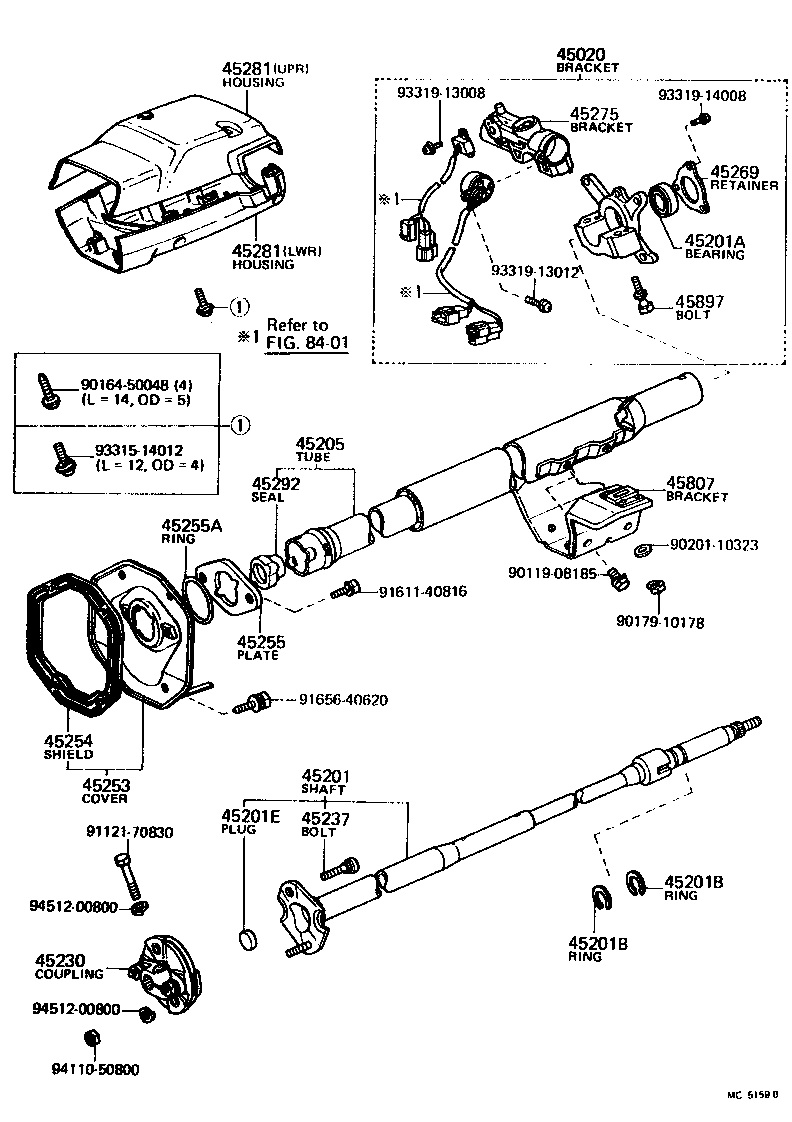

(7708- )RA4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH | ||||
| 45020-12120 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45201-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45201-14090 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/POWER STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR |
1 | ||
| 90363-18001 |
MA46,RA42..(3FC,5F)..(LT,SPR) UPR |
1 | ||
| 90363-18038 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=1.20,T=1.2 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-14070 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/POWER STEERING |
1 | ||
| 45870-14070 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/POWER STEERING |
1 | ||
| 45870-14060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45870-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45237 - BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT) | ||||
| 90114-08027 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/POWER STEERING |
1 | ||
| 45025-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/POWER STEERING |
1 | ||
| 45025-14070 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-20010 |
RA42..3FC..LT |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-12050 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45280-22190 |
MA46,RA42..(3FC,5F)..(LT,SPR) W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1408004 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,BLUE,BLUE |
1 | ||
| 45287-1408006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,BROWN,BROWN |
1 | ||
| 45286-1413001 |
MA46,RA42..(3FC,5F)..(LT,SPR) UPR,BLACK,BLACK |
1 | ||
| 45286-1411006 |
MA46,RA42..(3FC,5F)..(LT,SPR) UPR,BROWN,BROWN |
1 | ||
| 45287-1408001 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,BLACK,BLACK |
1 | ||
| 45286-1411001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) UPR,BLACK,BLACK |
1 | ||
| 45287-1410006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,L-BROWN,BROWN |
1 | ||
| 45287-1410001 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,BLACK,BLACK |
1 | ||
| 45286-1413004 |
MA46,RA42..(3FC,5F)..(LT,SPR) UPR,BLUE,BLUE |
1 | ||
| 45286-1413006 |
MA46,RA42..(3FC,5F)..(LT,SPR) UPR,L-BROWN,BROWN |
1 | ||
| 45287-1410004 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,BLUE,BLUE |
1 | ||
| 45286-1411004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) UPR,BLUE,BLUE |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1408004 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,BLUE,BLUE |
1 | ||
| 45287-1408006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,BROWN,BROWN |
1 | ||
| 45286-1413001 |
MA46,RA42..(3FC,5F)..(LT,SPR) UPR,BLACK,BLACK |
1 | ||
| 45286-1411006 |
MA46,RA42..(3FC,5F)..(LT,SPR) UPR,BROWN,BROWN |
1 | ||
| 45287-1408001 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,BLACK,BLACK |
1 | ||
| 45286-1411001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) UPR,BLACK,BLACK |
1 | ||
| 45287-1410006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,L-BROWN,BROWN |
1 | ||
| 45287-1410001 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,BLACK,BLACK |
1 | ||
| 45286-1413004 |
MA46,RA42..(3FC,5F)..(LT,SPR) UPR,BLUE,BLUE |
1 | ||
| 45286-1413006 |
MA46,RA42..(3FC,5F)..(LT,SPR) UPR,L-BROWN,BROWN |
1 | ||
| 45287-1410004 |
MA46,RA42..(3FC,5F)..(LT,SPR) LWR,BLUE,BLUE |
1 | ||
| 45286-1411004 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) UPR,BLUE,BLUE |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-14030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-14060 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45082-14010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-13012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

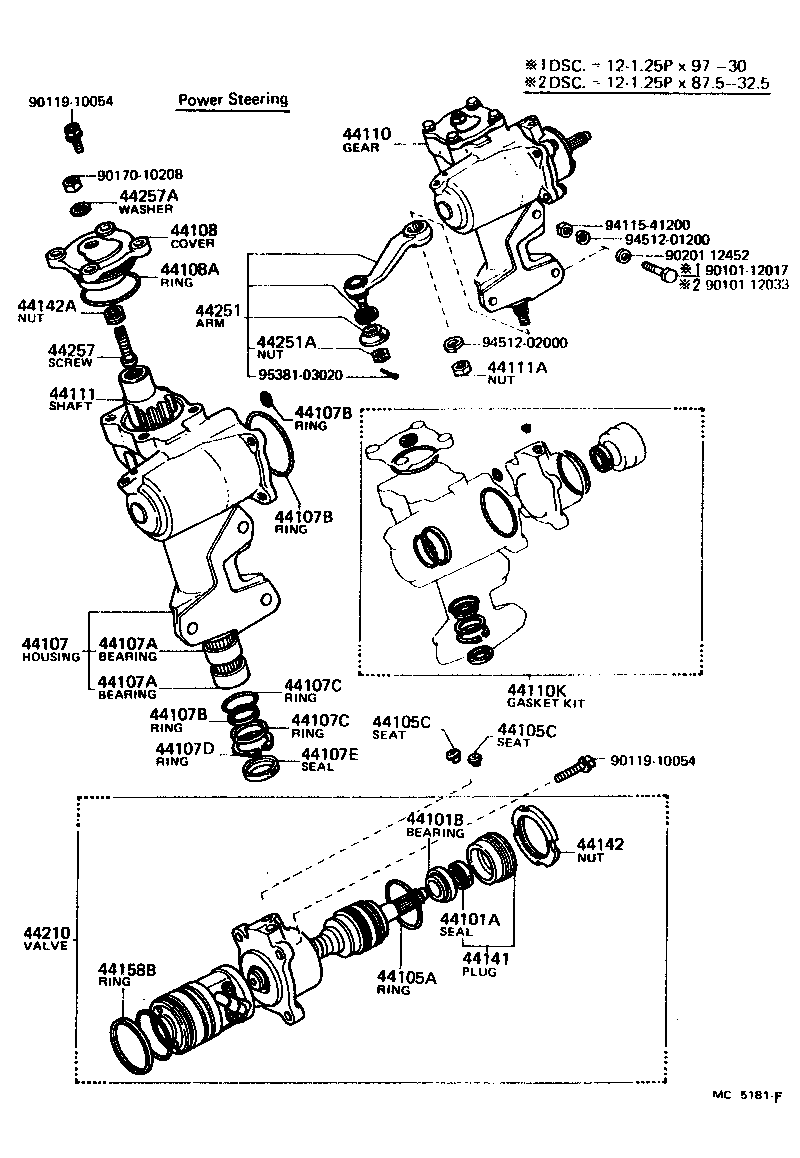

(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90311-19002 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 90311-19002 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44101B - BEARING(FOR STEERING WORM) | ||||
| 90369-22001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 90369-22001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-51001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 90301-51001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-05035 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=11.8 |
1 | ||
| 90410-06030 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13 |
1 | ||
| 90410-06030 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13 |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-05035 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=11.8 |
1 | ||
| 90410-06030 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13 |
1 | ||
| 90410-06030 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-22040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44107-22040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 90364-30002 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 90364-30002 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-62002 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 90301-32001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 96710-01010 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13,T=1.9 |
1 | ||
| 90301-32001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 96710-01010 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13,T=1.9 |
1 | ||
| 90301-62002 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-62002 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 90301-32001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 96710-01010 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13,T=1.9 |
1 | ||
| 90301-32001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 96710-01010 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13,T=1.9 |
1 | ||
| 90301-62002 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-62002 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 90301-32001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 96710-01010 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13,T=1.9 |
1 | ||
| 90301-32001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 96710-01010 |
MA46,RA42..(3FC,5F)..(LT,SPR) OD=13,T=1.9 |
1 | ||
| 90301-62002 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-29001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=29.9,OD=32.3,OD=32.3,T=4.0 |
1 | ||
| 90562-30001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=30.1,OD=38.0,OD=38,T=3.0 |
1 | ||
| 90562-30001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=30.1,OD=38.0,OD=38,T=3.0 |
1 | ||
| 90562-29001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=29.9,OD=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-29001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=29.9,OD=32.3,OD=32.3,T=4.0 |
1 | ||
| 90562-30001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=30.1,OD=38.0,OD=38,T=3.0 |
1 | ||
| 90562-30001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=30.1,OD=38.0,OD=38,T=3.0 |
1 | ||
| 90562-29001 |
MA46,RA42..(3FC,5F)..(LT,SPR) ID=29.9,OD=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-41001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 90521-41001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-30001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 90312-30001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-22020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44108-22020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-58154 |
RA42..3FC..LT |
1 | ||
| 90301-58001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 90301-58001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-22051 |
RA42..3FC..LT |
1 | ||
| 44110-14020 |
RA42..3FC..LT |
1 | ||
| 44110-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44110-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44110-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-22021 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 04445-22020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44111-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 90170-20147 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44104-22011 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44142-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44142-22020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44158B - RING(FOR POWER PISTON END PLUG) | ||||
| 90562-58001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 90562-58001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-14020 |
RA42..3FC..LT |
1 | ||
| 44120-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44120-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44120-22051 |
RA42..3FC..LT |
1 | ||
| 44120-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-19135 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45401-19135 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 45357-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 90210-10001 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90101-12017 | ||||
| 90101-12033 | ||||
| 90119-10054 | ||||
| 90170-10208 | ||||
| 90201-12452 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 94512-02000 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
