RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )ATM

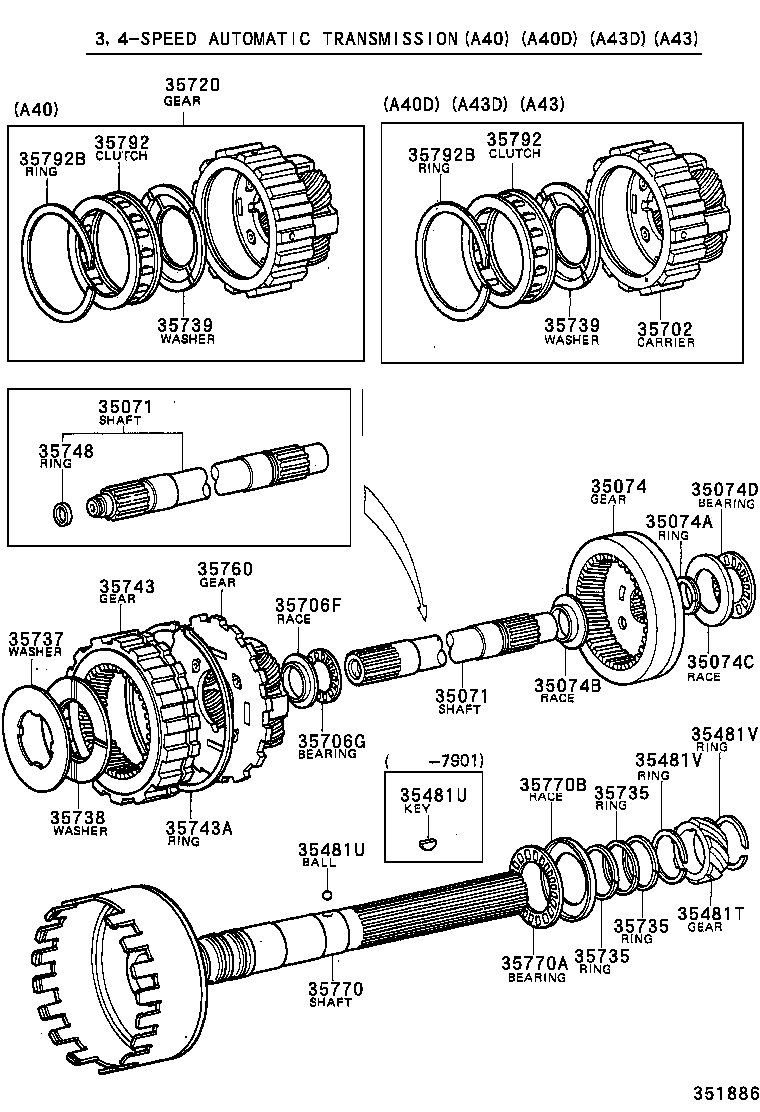

Click highlighted areas on diagram

diagram 35071 35071 35074 35074A 35074B 35074C 35074D 35481T 35481U 35481U 35481V 35481V 35702 35706F 35706G 35720 35735 35735 35735 35737 35738 35739 35739 35743 35743A 35748 35760 35770 35770A 35770B 35792 35792 35792B 35792B
Part # Description Qty Price
35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE
35708-30020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35708-22011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE
35708-30020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35708-22011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-22010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-22050

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35481T - GEAR, SPEEDMETER DRIVE (ATM)
33481-20030

RA42..3FC

 1
33481-26010

MA46,RA42..ATM

N=6,MARK 6X18-20

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90280-03005

RA42..3FC

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90280-03005

RA42..3FC

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

MA4#,RA4#..ATM

T=1.50,OD=33.8

 2
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

MA4#,RA4#..ATM

T=1.50,OD=33.8

 2
35706F - RACE, THRUST BEARING (FOR SUN GEAR REAR)
35789-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35706G - BEARING, THRUST (FOR SUN GEAR REAR)
90374-23012

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-22011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 3
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 3
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 3
35737 - WASHER, PLANETARY CARRIER THRUST
35737-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-22011

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-22011

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35743 - GEAR, FRONT PLANETARY RING
35743-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-30020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35760-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35770 - SHAFT ASSY, OUTPUT
35770-22011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35770-22010

RA42..3FC..LT

 1
35770-30021

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35770-30022

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-22020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35792-22030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-22020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35792-22030

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
