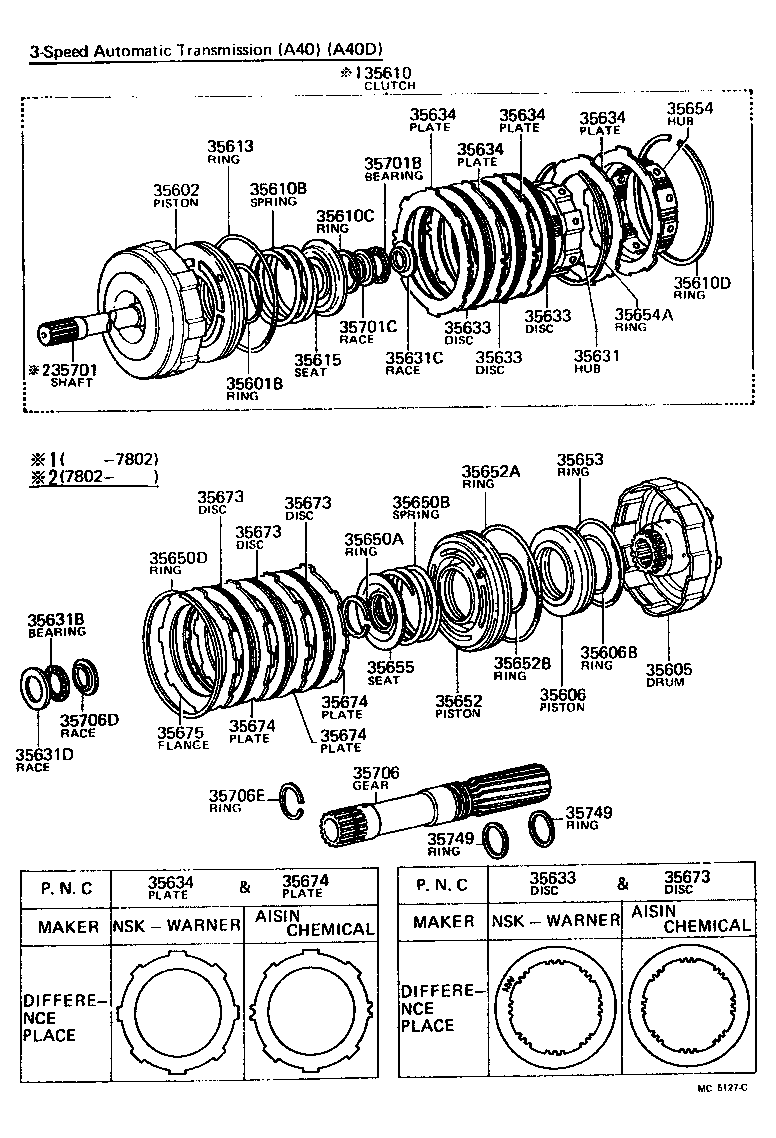

RA42L-BCHDSA (1977)
Toyota Celica
(7708-8008)3FC ; (7904-8008)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35601B - RING, O (FOR FRONT CLUTCH DRUM) | ||||
| 90301-57188 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35607-20010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35602-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35605 - DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR | ||||
| 35605-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35606 - PISTON SUB-ASSY, REAR CLUTCH | ||||
| 35606-30020 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35606-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35606B - RING (FOR REAR CLUTCH PISTON INNER) | ||||
| 90301-57188 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35610 - CLUTCH ASSY, FRONT MULTIPLE DISC | ||||
| 35610-22010 |
RA42..3FC..LT |
1 | ||
| 35610B - SPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN) | ||||
| 90501-60672 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35610C - RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING | ||||
| 90520-39261 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35610D - RING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH) | ||||
| 90521-99139 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35613 - RING, CLUTCH PISTON OIL SEAL, OUTER | ||||
| 90301-99192 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35615 - SEAT, CLUTCH PISTON RETURN SPRING | ||||
| 35615-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35631B - BEARING, THRUST(FOR FRONT CLUTCH HUB) | ||||
| 90374-28014 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35631C - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT) | ||||
| 35789-22050 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35631D - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR) | ||||
| 35789-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
4 | ||
| 35677-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
4 | ||
| 35677-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
4 | ||
| 35677-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
4 | ||
| 35677-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22070 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.8,AISIN CHEMICAL |
4 | ||
| 35634-22040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=1.8,NSK-WARNER |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22070 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.8,AISIN CHEMICAL |
4 | ||
| 35634-22040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=1.8,NSK-WARNER |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22070 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.8,AISIN CHEMICAL |
4 | ||
| 35634-22040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=1.8,NSK-WARNER |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22070 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.8,AISIN CHEMICAL |
4 | ||
| 35634-22040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=1.8,NSK-WARNER |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22070 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=1.8,AISIN CHEMICAL |
4 | ||
| 35634-22040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) T=1.8,NSK-WARNER |
4 | ||
| 35650A - RING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING) | ||||
| 90520-39261 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35650B - SPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN) | ||||
| 90501-60672 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 90501-11007 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
18 | ||
| 90501-60672 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35650D - RING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH) | ||||
| 90521-99139 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35652 - PISTON, REAR CLUTCH, NO.2 | ||||
| 35607-20010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35607-20010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35652A - RING (FOR REAR CLUTCH OUTER) | ||||
| 90301-99192 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35652B - RING (FOR REAR CLUTCH PISTON INNER) | ||||
| 90301-57188 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35653 - RING, REAR CLUTCH OIL SEAL, OUTER | ||||
| 90301-84184 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35654 - HUB, REAR CLUTCH | ||||
| 35654-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35654A - RING, HOLE SNAP (FOR REAR CLUTCH HUB) | ||||
| 90521-99146 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35655 - SEAT, REAR CLUTCH PISTON RETURN SPRING | ||||
| 35615-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35615-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35615-30010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35677-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
3 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35677-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
3 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35677-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
3 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35677-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-22040 |
MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
3 | ||
| 35634-22070 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-22040 |
MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
3 | ||
| 35634-22070 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-22040 |
MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
3 | ||
| 35634-22070 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-22040 |
MA46,RA42..(3FC,5F)..(LT,SPR) NSK-WARNER |
3 | ||
| 35634-22070 |
MA46,RA42..(3FC,5F)..(LT,SPR) AISIN CHEMICAL |
3 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=4.0,T=4.0 |
1 | ||
| 35675-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) T=4.0,T=4.0 |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-22010 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35701-30030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-23012 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35706 - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-20011 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35706-30030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35706D - RACE, THRUST BEARING (FOR SUN GEAR FRONT) | ||||
| 35789-22030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35706E - RING, SHAFT SNAP (FOR SUN GEAR FRONT) | ||||
| 90520-34260 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35749 - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 35749 - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
