RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )ATM

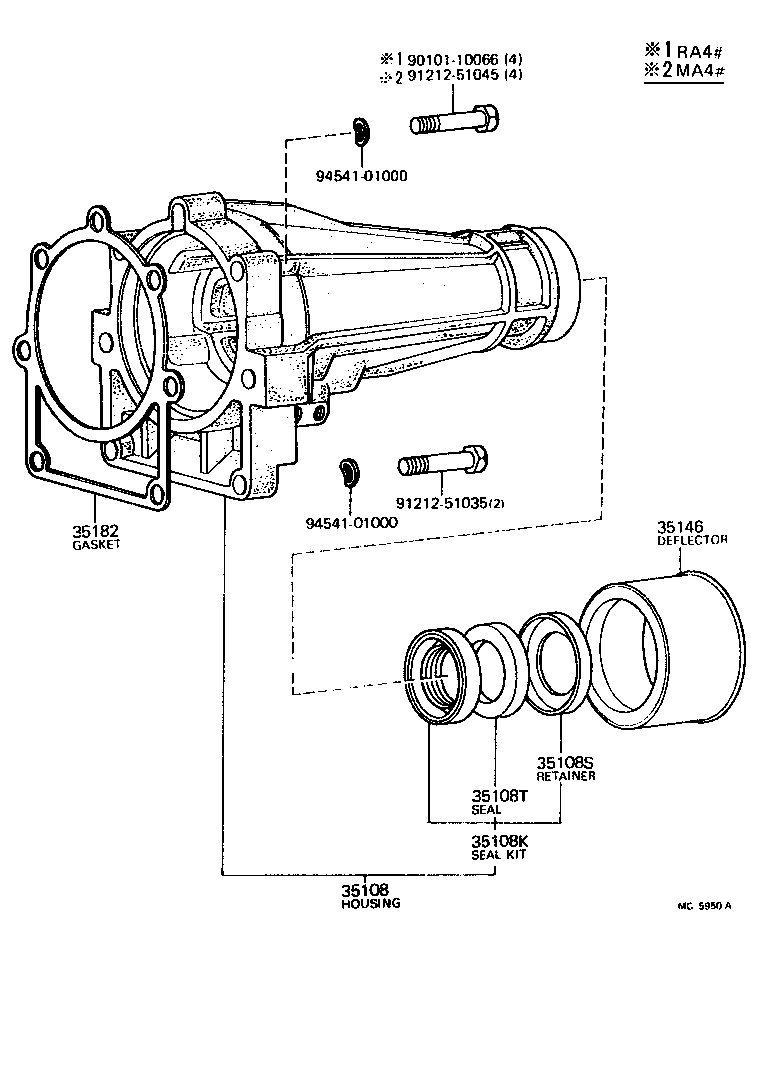

Click highlighted areas on diagram

diagram 35108 35108K 35108S 35108T 35146 35182 9010110066 9121251035 9121251045 9454101000 9454101000
Part # Description Qty Price
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-22030

RA42..3FC..LT

 1
35108K - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)
04332-30020

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM)
33145-30010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN
90303-38010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM)
33146-30010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90101-10066
91212-51035
91212-51045
94541-01000
