RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)3FC ; (7708-8008)MA46..5F

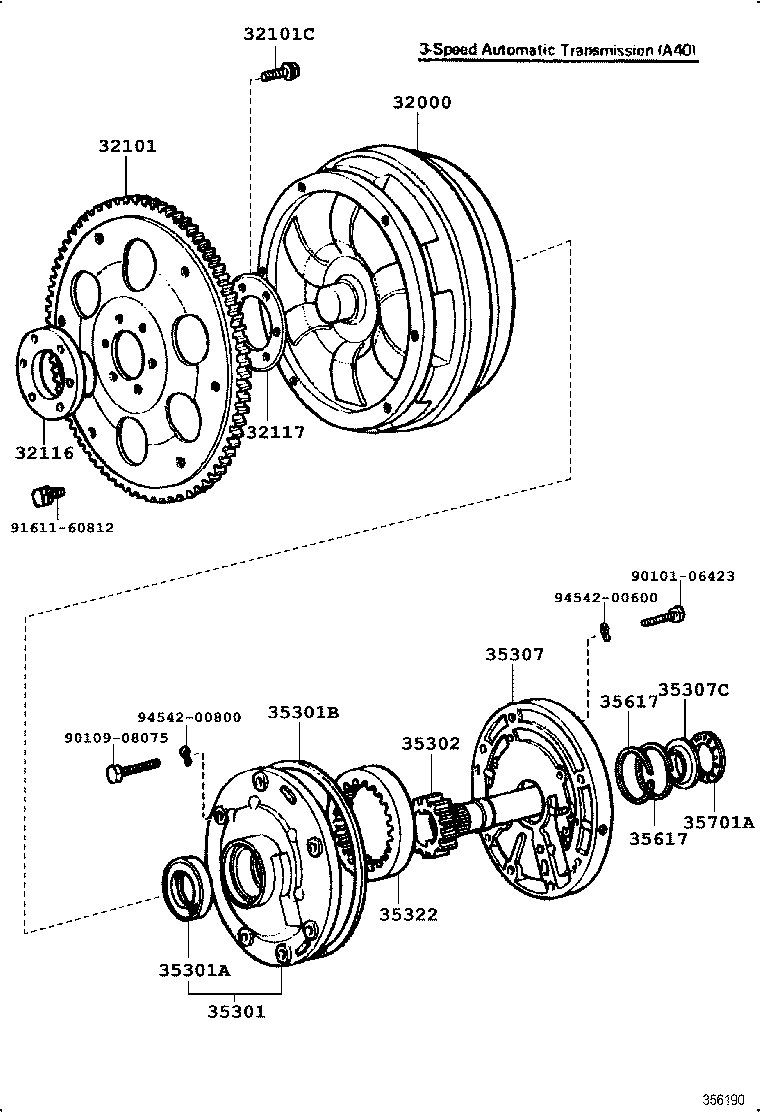

Click highlighted areas on diagram

diagram 32000 32101 32101C 32116 32117 35301 35301A 35301B 35302 35307 35307C 35322 35617 35617 35701A 9010106423 9010908075 9161160812 9454200600 9454200800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-14060

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-20050

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90913-01011

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

*17-1.25PX26-18

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-20010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-20020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-22011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35301-30020

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35301-22012

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38129

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
35147-22010

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35321-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35307 - SHAFT SUB-ASSY, STATOR
35307-22011

MA46,RA42..(3FC,5F)..(LT,SPR)

 1
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

T=4.3

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

T=15.286-15.235

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22010

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22010

MA46,RA42..(3FC,5F)..(LT,SPR)

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-23012

RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)

 1
Common parts
90101-06423
90109-08075
91611-60812
94542-00600
94542-00800
