RA42L-BCHDSA (1977)
Toyota Celica
(7708- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

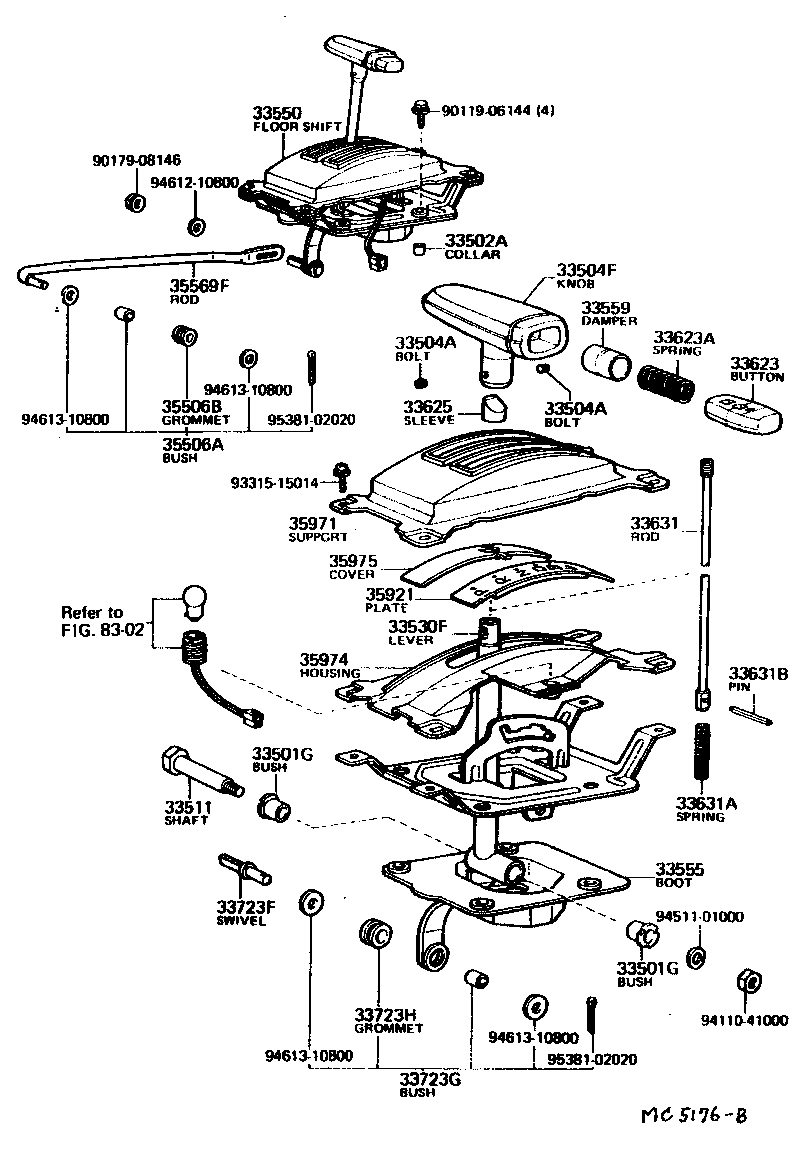

| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) OD=8.8 |
1 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-22130 |
RA42..3FC..LT |
1 | ||
| 33504-2206201 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,BLACK,BLACK |
1 | ||
| 33504-22120 |
MA46,RA42..(3FC,5F)..(LT,SPR) WOODEN GRAIN |
1 | ||
| 33504-22130 |
MA46,RA42..(3FC,5F)..(LT,SPR) WOODEN GRAIN |
1 | ||
| 33504-2210001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 33542-22120 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33542-3012005 |
MA46,RA42..(3FC,5F)..(LT,SPR) BEIGE,BEIGE |
1 | ||
| 33542-3012004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 33542-3012001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 33504-2210004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 33504-2206206 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,BROWN,BROWN |
1 | ||
| 33504-2006201 |
MA46,RA42..(3FC,5F)..(LT,SPR) URETHANE,BLACK,BLACK |
1 | ||
| 33504-2006205 |
MA46,RA42..(3FC,5F)..(LT,SPR) URETHANE,BEIGE,BEIGE |
1 | ||
| 33504-2210005 |
MA46,RA42..(3FC,5F)..(LT,SPR) BEIGE,BEIGE |
1 | ||
| 33504-2206204 |
MA46,RA42..(3FC,5F)..(LT,SPR) LEATHER,BLUE,BLUE |
1 | ||
| 33542-3012001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 33504-2006204 |
MA46,RA42..(3FC,5F)..(LT,SPR) URETHANE,BLUE,BLUE |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22100 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-14060 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33530-14190 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33530-14111 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33503-14080 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33530-20141 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33530-20162 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-1413004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 33550-14110 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33550-1410001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 33550-1417001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 33550-1413001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 33550-1417006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 33550-1417004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 33550-1413002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 33550-1413006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-31011 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33555-22030 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1401004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 33623-2202001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 33623-22030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33623-2202001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 33623-1401006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-09009 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-14020 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90254-04017 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90999-99017 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90480-17177 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT) | ||||
| 33675-14050 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33675-14040 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33675-14030 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 33675-14022 |
MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-14070 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35971-1406002 |
MA46,RA42..(3FC,5F)..(LT,SPR) DARK WINE,RED/MAROON |
1 | ||
| 35971-1406001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 35971-1406001 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLACK,BLACK |
1 | ||
| 35971-1406004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 35971-1406016 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 35971-1406006 |
MA46,RA42..(3FC,5F)..(LT,SPR) LIGHT BROWN,BROWN |
1 | ||
| 35971-1406004 |
MA46,RA42..(3FC,5F)..(LT,SPR) BLUE,BLUE |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-14070 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-14040 |
RA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR) |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-08146 | ||||
| 93315-15014 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| Linked diagrams | ||||
| 8302 | ||||
