Toyota Celica RA42 EXHAUST GAS RECIRCULATION SYSTEM

Manufacturers Home
Toyota
US
CELICA
RA42L-BCHDSA (1977)
2501 - EXHAUST GAS RECIRCULATION SYSTEM

RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980

Engine 20R

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

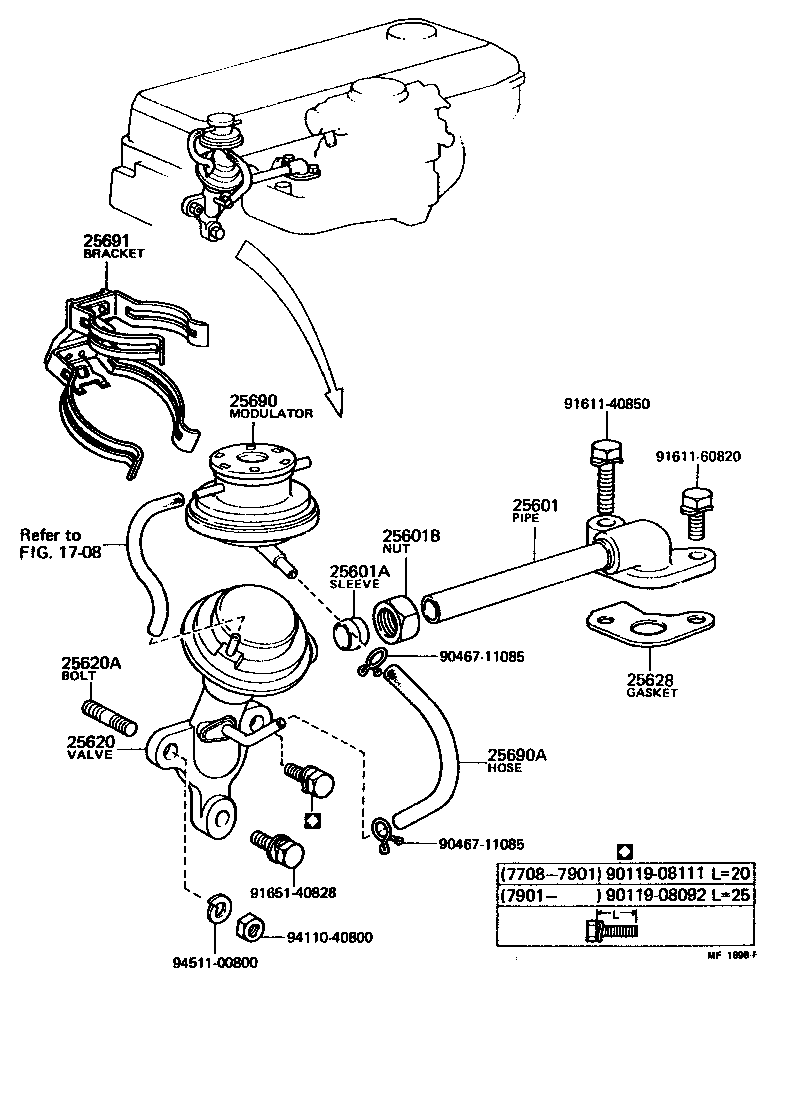

(7708-7908)20R

Click highlighted areas on diagram

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-38010	20R..RA42..3FC..LT;22R..RA43..CP..5F..GT	08/1977 - 07/1981	1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044	20R..RA42..3FC..LT;22R..RA43..CP..5F..GT	08/1977 - 07/1981	1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081	20R..RA42..3FC..LT;22R..RA43..CP..5F..GT	08/1977 - 07/1981	1
25620 - VALVE ASSY, EGR
25620-38210	20R..RA42..3FC..LT FEDERAL SPEC;USA SPEC	08/1978 - 08/1979	1
25620-38090	20R..RA42..3FC	08/1977 - 08/1978	1
25620-38190	20R..RA42..3FC..LT CALIFORNIA SPEC	08/1978 - 08/1979	1
25620-38220	20R..RA42..3FC..LT CANADA SPEC	08/1978 - 08/1979	1
25620-45131	20R..RA42..3FC..LT	01/1979 - 08/1979	1
25620-38191	20R..RA42..3FC..LT USA SPEC	08/1979 - 08/1980	1
25620-38180	20R..RA42..3FC HIGH ALTITUDE SPEC	08/1977 - 08/1978	1
25620-38150	20R..RA42 CALIFORNIA SPEC	08/1977 - 08/1978	1
25620-45140	20R..RA42..3FC..LT	08/1979 - 08/1980	1
25620-38211	20R..RA42..3FC..LT USA SPEC	08/1979 - 08/1980	1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08207	20R..RA42..3FC..LT;22R..RA43..CP..5F..GT	08/1977 - 07/1981	1
25628 - GASKET, EGR INLET
25628-38010	20R..RA42..3FC..LT;22R..RA43..CP..5F..GT	08/1977 - 07/1981	1
25690 - MODULATOR ASSY, EGR VACUUM
25690-38010	20R..RA42..3FC CALIFORNIA SPEC;HIGH ALTITUDE SPEC	08/1977 - 08/1978	1
25870-38010	20R..RA42..3FC..LT FEDERAL SPEC	08/1979 - 10/1979	1
25690-38020	20R..RA42..3FC..LT USA SPEC	08/1978 - 08/1979	1
25690-38010	20R..RA42..3FC..LT CANADA SPEC	08/1978 - 08/1979	1
25690-45020	20R..RA42..3FC..LT	01/1979 - 08/1979	1
25870-38010	20R..RA42..3FC..LT FEDERAL SPEC	10/1979 - 08/1980	1
25870-38020	20R..RA42..3FC..LT CALIFORNIA SPEC	08/1979 - 08/1980	1
25690-45030	20R..RA42..3FC..LT	08/1979 - 08/1980	1
25870-38030	20R..RA42..3FC..LT CANADA SPEC	08/1979 - 08/1980	1
25870-38050	20R..RA42..3FC..LT FEDERAL SPEC	10/1979 - 08/1980	1
25690-38020	20R..RA42..3FC	08/1977 - 08/1978	1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90910-05137	20R..RA42..3FC..LT	12/1978 - 08/1979	1
90910-05128	20R..RA42	08/1977 - 12/1978	1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-38040	20R..RA42..3FC..LT	08/1979 - 08/1980	1
25691-38010	20R..RA42	08/1977 - 08/1978	1
25691-38020	20R..RA42	08/1978 - 12/1978	1
25691-38030	20R..RA42..3FC..LT	12/1978 - 08/1979	1
Common parts
90119-08092
90119-08111
90467-11085
91611-40850
91611-60820
91651-40828
94110-40800
94511-00800
Linked diagrams
1708

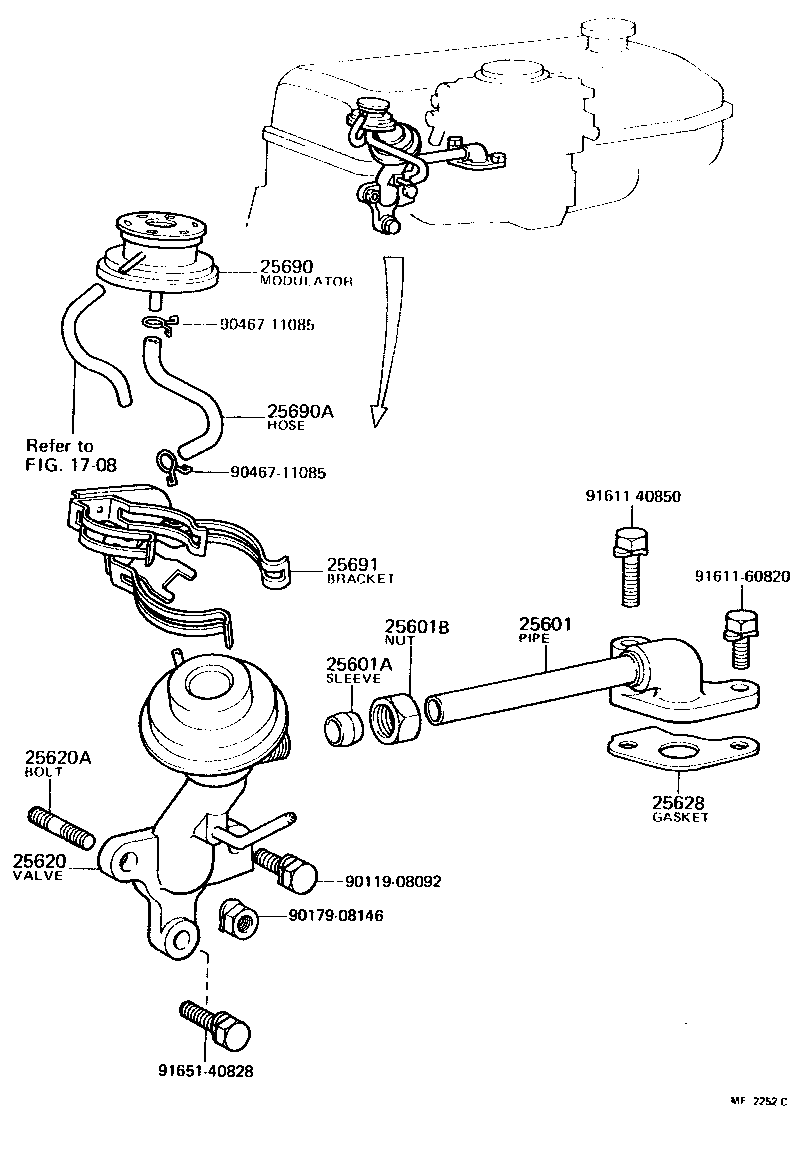

(7908- )20R,22R

Click highlighted areas on diagram

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-38010	20R..RA42..3FC..LT;22R..RA43..CP..5F..GT	08/1977 - 07/1981	1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044	20R..RA42..3FC..LT;22R..RA43..CP..5F..GT	08/1977 - 07/1981	1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081	20R..RA42..3FC..LT;22R..RA43..CP..5F..GT	08/1977 - 07/1981	1
25620 - VALVE ASSY, EGR
25620-38210	20R..RA42..3FC..LT FEDERAL SPEC;USA SPEC	08/1978 - 08/1979	1
25620-38090	20R..RA42..3FC	08/1977 - 08/1978	1
25620-38190	20R..RA42..3FC..LT CALIFORNIA SPEC	08/1978 - 08/1979	1
25620-38220	20R..RA42..3FC..LT CANADA SPEC	08/1978 - 08/1979	1
25620-45131	20R..RA42..3FC..LT	01/1979 - 08/1979	1
25620-38191	20R..RA42..3FC..LT USA SPEC	08/1979 - 08/1980	1
25620-38180	20R..RA42..3FC HIGH ALTITUDE SPEC	08/1977 - 08/1978	1
25620-38150	20R..RA42 CALIFORNIA SPEC	08/1977 - 08/1978	1
25620-45140	20R..RA42..3FC..LT	08/1979 - 08/1980	1
25620-38211	20R..RA42..3FC..LT USA SPEC	08/1979 - 08/1980	1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08207	20R..RA42..3FC..LT;22R..RA43..CP..5F..GT	08/1977 - 07/1981	1
25628 - GASKET, EGR INLET
25628-38010	20R..RA42..3FC..LT;22R..RA43..CP..5F..GT	08/1977 - 07/1981	1
25690 - MODULATOR ASSY, EGR VACUUM
25690-38010	20R..RA42..3FC CALIFORNIA SPEC;HIGH ALTITUDE SPEC	08/1977 - 08/1978	1
25870-38010	20R..RA42..3FC..LT FEDERAL SPEC	08/1979 - 10/1979	1
25690-38020	20R..RA42..3FC..LT USA SPEC	08/1978 - 08/1979	1
25690-38010	20R..RA42..3FC..LT CANADA SPEC	08/1978 - 08/1979	1
25690-45020	20R..RA42..3FC..LT	01/1979 - 08/1979	1
25870-38010	20R..RA42..3FC..LT FEDERAL SPEC	10/1979 - 08/1980	1
25870-38020	20R..RA42..3FC..LT CALIFORNIA SPEC	08/1979 - 08/1980	1
25690-45030	20R..RA42..3FC..LT	08/1979 - 08/1980	1
25870-38030	20R..RA42..3FC..LT CANADA SPEC	08/1979 - 08/1980	1
25870-38050	20R..RA42..3FC..LT FEDERAL SPEC	10/1979 - 08/1980	1
25690-38020	20R..RA42..3FC	08/1977 - 08/1978	1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90910-05137	20R..RA42..3FC..LT	12/1978 - 08/1979	1
90910-05128	20R..RA42	08/1977 - 12/1978	1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-38040	20R..RA42..3FC..LT	08/1979 - 08/1980	1
25691-38010	20R..RA42	08/1977 - 08/1978	1
25691-38020	20R..RA42	08/1978 - 12/1978	1
25691-38030	20R..RA42..3FC..LT	12/1978 - 08/1979	1
Common parts
90119-08092
90179-08146
90467-11085
91611-40850
91611-60820
91651-40828
Linked diagrams
1708

RA42L-BCHDSA (1977)

(7708-7908)20R

(7908- )20R,22R
