RA42L-BCHDSA (1977)
Toyota Celica
Production
Aug 1977
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

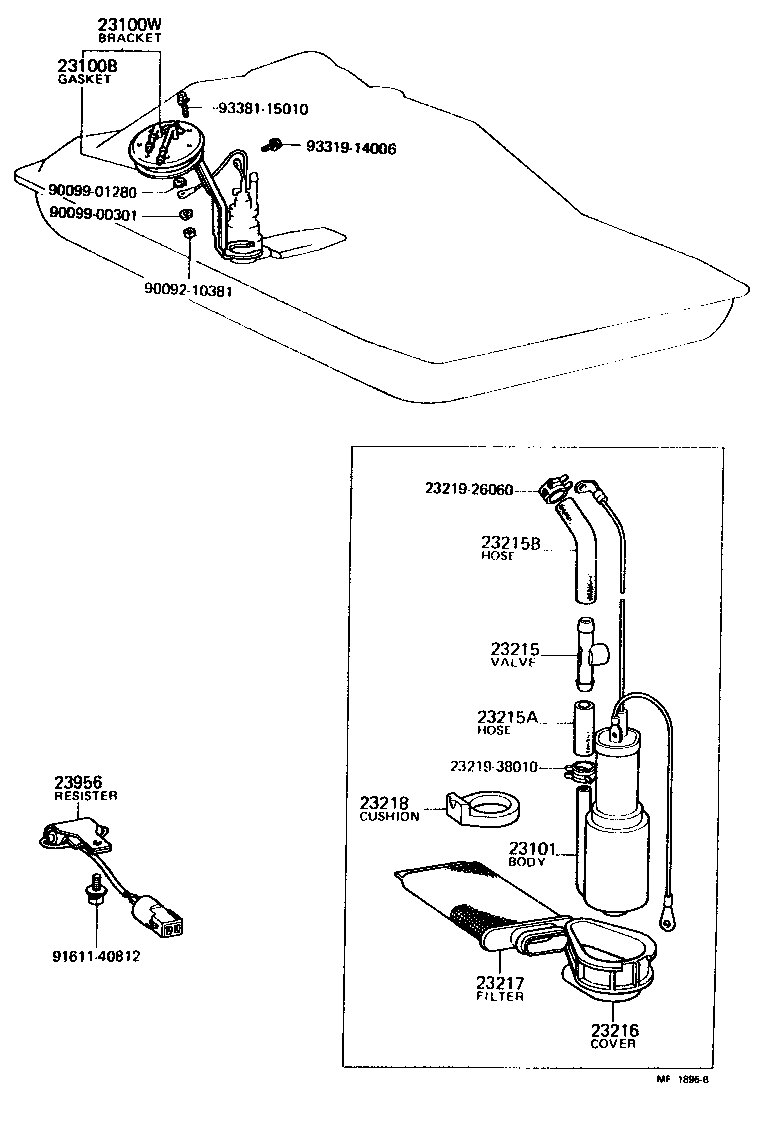

(7708-7908)20R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100B - GASKET, FUEL PUMP | ||||
| 83361-14010 |
20R..RA42..3FC..LT |
1 | ||
| 23100W - BRACKET(FOR FUEL PUMP & FUEL SENDER GAGE) | ||||
| 85681-19015 |
20R..RA42..3FC..LT |
1 | ||
| 23101 - BODY SUB-ASSY, FUEL PUMP | ||||
| 23101-38010 |
20R..RA42..3FC..LT |
1 | ||
| 23215 - VALVE, RELIEF | ||||
| 85675-21010 |
20R..RA42..3FC..LT |
1 | ||
| 23215-38011 |
20R..RA42 |
1 | ||
| 23215A - HOSE, FUEL PUMP, NO.1 | ||||
| 90099-19101 |
20R..RA42..3FC..LT |
1 | ||
| 23215B - HOSE, FUEL PUMP, NO.2 | ||||
| 90099-19104 |
20R..RA42..3FC..LT |
1 | ||
| 23216 - COVER, FUEL PUMP | ||||
| 85676-14010 |
20R..RA42..3FC..LT |
1 | ||
| 23217 - FILTER, FUEL PUMP | ||||
| 85677-14010 |
20R..RA42..3FC..LT |
1 | ||
| 23218 - CUSHION, RUBBER | ||||
| 23218-38010 |
20R..RA42..3FC..LT |
1 | ||
| 23956 - RESISTOR, FUEL PUMP | ||||
| 85671-20011 |
20R..RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 23219-26060 | ||||
| 23219-38010 | ||||
| 90092-10381 | ||||
| 90099-00301 | ||||
| 90099-01280 | ||||
| 91611-40812 | ||||
| 93319-14006 | ||||
| 93381-15010 | ||||

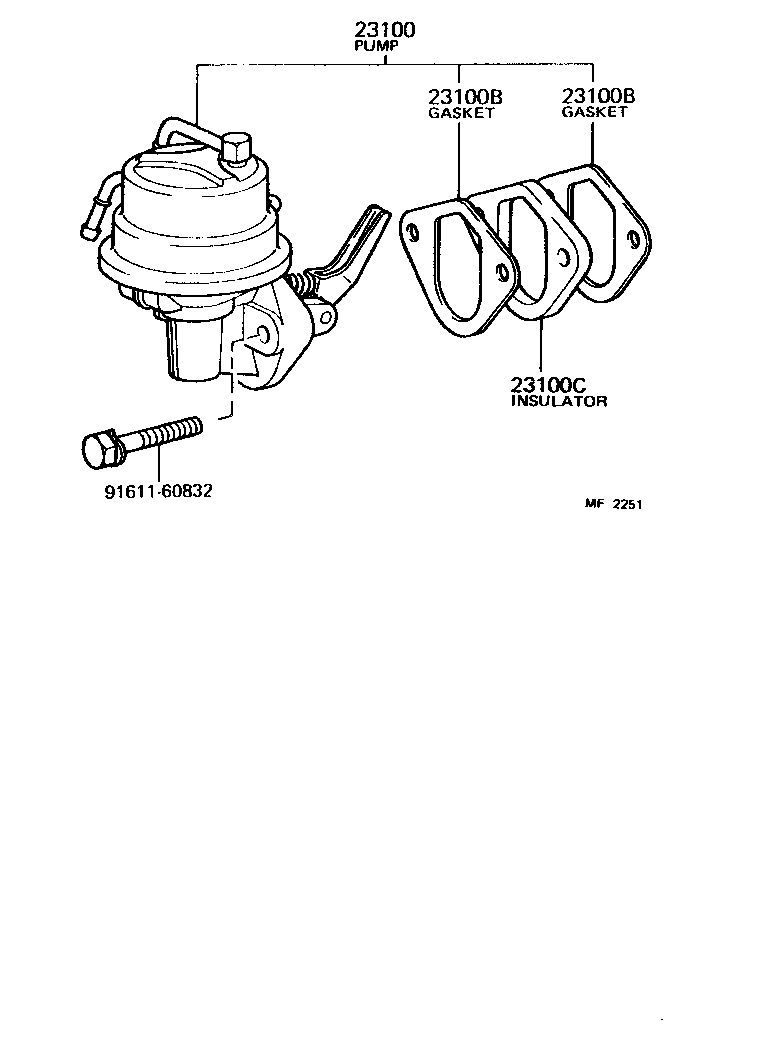

(7908- )20R,22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-39315 |
20R..RA42..3FC..LT |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 83361-14010 |
20R..RA42..3FC..LT |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 83361-14010 |
20R..RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 91611-60832 | ||||
