RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )20R,22R

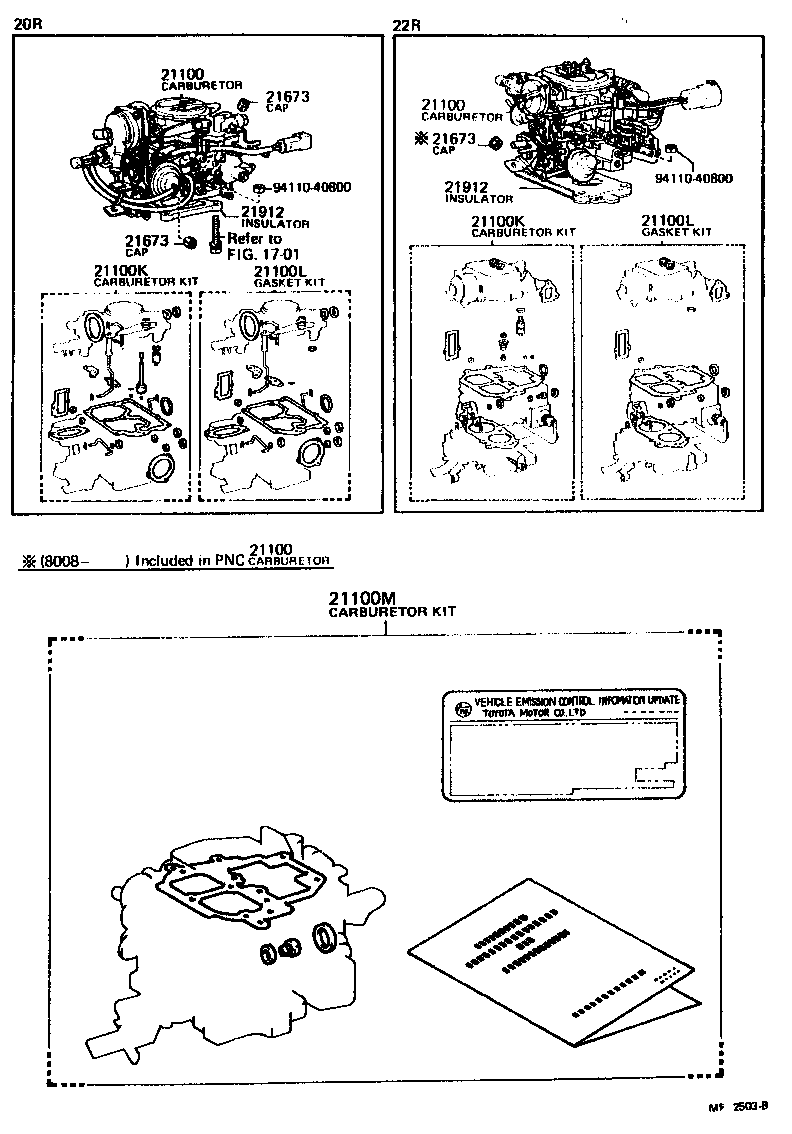

Click highlighted areas on diagram

diagram 1701 21100 21100 21100K 21100K 21100L 21100L 21100M 21673 21673 21673 21912 21912 9411040800 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-38210

20R..RA42..3FC

 1
21100-38230

20R..RA42..3FC

CALIFORNIA SPEC

 1
21100-38211

20R..RA42..3FC

 1
21100-38270

20R..RA42..3FC

CANADA SPEC

 1
21100-38330

20R..RA42..3FC..LT

CALIFORNIA SPEC

 1
21100-38310

20R..RA42..3FC..LT

FEDERAL SPEC

 1
21100-38320

20R..RA42..3FC..LT

FEDERAL SPEC

 1
21100-38250

20R..RA42..3FC

HIGH ALTITUDE SPEC

 1
21100-38271

20R..RA42..3FC

CANADA SPEC

 1
21100-38340

20R..RA42..3FC..LT

CALIFORNIA SPEC

 1
21100-38331

20R..RA42..3FC..LT

CALIFORNIA SPEC

 1
21100-38311

20R..RA42..3FC..LT

FEDERAL SPEC

 1
21100-38350

20R..RA42..3FC..LT

CANADA SPEC

 1
21100-38231

20R..RA42..3FC

CALIFORNIA SPEC

 1
21100-38361

20R..RA42..3FC..LT

CANADA SPEC

 1
21100-38351

20R..RA42..3FC..LT

CANADA SPEC

 1
21100-38440

20R..RA42..3FC..LT

USA SPEC

 1
21100 - CARBURETOR ASSY
21100-38210

20R..RA42..3FC

 1
21100-38230

20R..RA42..3FC

CALIFORNIA SPEC

 1
21100-38211

20R..RA42..3FC

 1
21100-38270

20R..RA42..3FC

CANADA SPEC

 1
21100-38330

20R..RA42..3FC..LT

CALIFORNIA SPEC

 1
21100-38310

20R..RA42..3FC..LT

FEDERAL SPEC

 1
21100-38320

20R..RA42..3FC..LT

FEDERAL SPEC

 1
21100-38250

20R..RA42..3FC

HIGH ALTITUDE SPEC

 1
21100-38271

20R..RA42..3FC

CANADA SPEC

 1
21100-38340

20R..RA42..3FC..LT

CALIFORNIA SPEC

 1
21100-38331

20R..RA42..3FC..LT

CALIFORNIA SPEC

 1
21100-38311

20R..RA42..3FC..LT

FEDERAL SPEC

 1
21100-38350

20R..RA42..3FC..LT

CANADA SPEC

 1
21100-38231

20R..RA42..3FC

CALIFORNIA SPEC

 1
21100-38361

20R..RA42..3FC..LT

CANADA SPEC

 1
21100-38351

20R..RA42..3FC..LT

CANADA SPEC

 1
21100-38440

20R..RA42..3FC..LT

USA SPEC

 1
21100K - CARBURETOR KIT
04211-38014

20R..RA42

HIGH ALTITUDE SPEC

 1
04211-38015

20R..RA42

EXCL/HIGH ALTITUDE SPEC

 1
04211-38014

20R..RA42..3FC..LT

 1
04211-38015

20R..RA42..3FC..LT

CALIFORNIA SPEC

 1
21100K - CARBURETOR KIT
04211-38014

20R..RA42

HIGH ALTITUDE SPEC

 1
04211-38015

20R..RA42

EXCL/HIGH ALTITUDE SPEC

 1
04211-38014

20R..RA42..3FC..LT

 1
04211-38015

20R..RA42..3FC..LT

CALIFORNIA SPEC

 1
21100L - GASKET KIT, CARBURETOR
04212-38013

20R..RA42

 1
04212-38020

20R..RA42..3FC..LT

 1
04212-38012

20R..RA42..3FC..LT

 1
04212-38014

20R..RA42..3FC..LT

CALIFORNIA SPEC

 1
21100L - GASKET KIT, CARBURETOR
04212-38013

20R..RA42

 1
04212-38020

20R..RA42..3FC..LT

 1
04212-38012

20R..RA42..3FC..LT

 1
04212-38014

20R..RA42..3FC..LT

CALIFORNIA SPEC

 1
21673 - CAP, IDLE LIMIT
21673-38020

20R..RA42

CALIFORNIA SPEC

 2
21673-38020

20R..RA42

HIGH ALTITUDE SPEC

 2
21673 - CAP, IDLE LIMIT
21673-38020

20R..RA42

CALIFORNIA SPEC

 2
21673-38020

20R..RA42

HIGH ALTITUDE SPEC

 2
21673 - CAP, IDLE LIMIT
21673-38020

20R..RA42

CALIFORNIA SPEC

 2
21673-38020

20R..RA42

HIGH ALTITUDE SPEC

 2
21912 - INSULATOR, CARBURETOR HEAT
21912-38030

20R..RA42..3FC..LT

 1
21912-38020

20R..RA42

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-38030

20R..RA42..3FC..LT

 1
21912-38020

20R..RA42

 1
Common parts
94110-40800
Linked diagrams
1701
