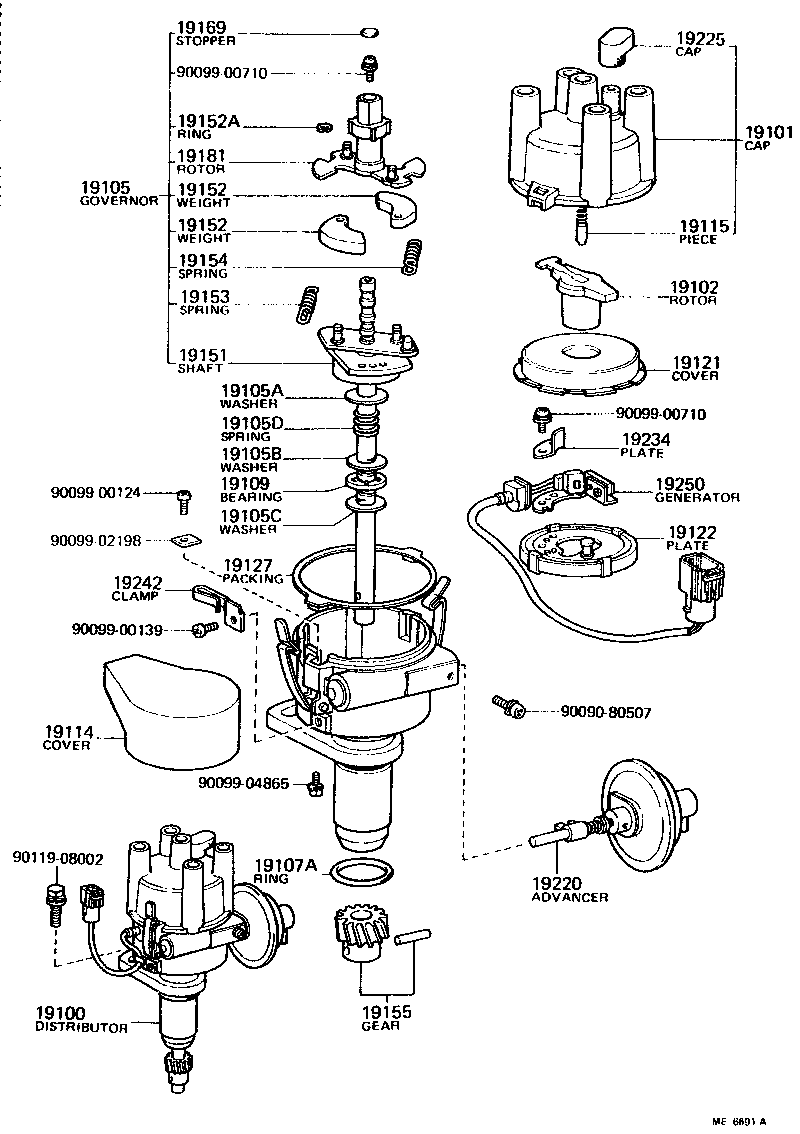

RA42L-BCHDSA (1977)
Toyota Celica
(7708-7808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-38140 |
20R..RA42 HIGH ALTITUDE SPEC |
1 | ||
| 19100-38080 |
20R..RA42 |
1 | ||
| 19100-38091 |
20R..RA42..3FC..LT CALIFORNIA SPEC;USA SPEC |
1 | ||
| 19100-38081 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 19100-38210 |
20R..RA42..3FC..LT FEDERAL SPEC;CANADA OR COLD SPEC |
1 | ||
| 19100-38090 |
20R..RA42 CALIFORNIA SPEC |
1 | ||
| 19100-38190 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 19100-38160 |
20R..RA42 CANADA SPEC |
1 | ||
| 19100-38220 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 19100-45190 |
20R..RA42..3FC..LT |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-38011 |
20R..RA42 |
1 | ||
| 19101-38150 |
20R..RA42..3FC..LT |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-26150 |
20R..RA42 |
1 | ||
| 19102-38160 |
20R..RA42 CANADA SPEC |
1 | ||
| 19102-38160 |
20R..RA42..3FC..LT |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-38040 |
20R..RA42..3FC..LT |
1 | ||
| 19105-38210 |
20R..RA42..3FC..LT |
1 | ||
| 19105-45190 |
20R..RA42..3FC..LT |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01417 |
20R..RA42..3FC..LT |
1 | ||
| 19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01426 |
20R..RA42..3FC..LT |
1 | ||
| 19105C - WASHER, NO.3(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01427 |
20R..RA42..3FC..LT |
1 | ||
| 19105D - SPRING, NO.1(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-17113 |
20R..RA42..3FC..LT |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19109 - BEARING, THRUST | ||||
| 19109-38010 |
20R..RA42..3FC..LT |
1 | ||
| 19114 - COVER, WATER PROOF(FOR DISTRIBUTOR) | ||||
| 19114-38012 |
20R..RA42 HIGH ALTITUDE & COLD SPEC |
1 | ||
| 19114-38150 |
20R..RA42..3FC..LT CANADA OR COLD SPEC |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38040 |
20R..RA42 |
1 | ||
| 19121-27020 |
20R..RA42..3FC..LT |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-45070 |
20R..RA42 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
20R..RA42 |
1 | ||
| 19127-88251 |
20R..RA42 |
1 | ||
| 19127-38150 |
20R..RA42..3FC..LT |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-38011 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07104 |
20R..RA42..3FC..LT |
2 | ||
| 90099-07011 |
20R..RA42 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-38040 |
20R..RA42..3FC..LT |
1 | ||
| 19153-45190 |
20R..RA42..3FC..LT |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-38040 |
20R..RA42..3FC..LT |
1 | ||
| 19154-45190 |
20R..RA42..3FC..LT |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-38010 |
20R..RA42 |
1 | ||
| 19195-38150 |
20R..RA42..3FC..LT |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-26280 |
20R..RA42..3FC..LT |
1 | ||
| 19181-38210 |
20R..RA42..3FC..LT |
1 | ||
| 19181-45190 |
20R..RA42..3FC..LT |
1 | ||
| 19181-38040 |
20R..RA42 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-38150 |
20R..RA42 CANADA SPEC |
1 | ||
| 19220-38050 |
20R..RA42 |
1 | ||
| 19220-38070 |
20R..RA42 HIGH ALTITUDE SPEC |
1 | ||
| 19220-38220 |
20R..RA42..3FC CALIFORNIA SPEC |
1 | ||
| 19220-38060 |
20R..RA42 CALIFORNIA SPEC |
1 | ||
| 19220-38180 |
20R..RA42..3FC USA SPEC |
1 | ||
| 19220-38210 |
20R..RA42 CANADA OR COLD SPEC |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-38011 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19234 - PLATE, INSULATION | ||||
| 19234-38040 |
20R..RA42 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-26250 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-38150 |
20R..RA42..3FC..LT |
1 | ||
| 19250-38050 |
20R..RA42 |
1 | ||
| 19250-38190 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 19250-38160 |
20R..RA42 CANADA SPEC |
1 | ||
| Common parts | ||||
| 90090-80507 | ||||
| 90099-00124 | ||||
| 90099-00139 | ||||
| 90099-00710 | ||||
| 90099-02198 | ||||
| 90099-04865 | ||||
| 90119-08002 | ||||

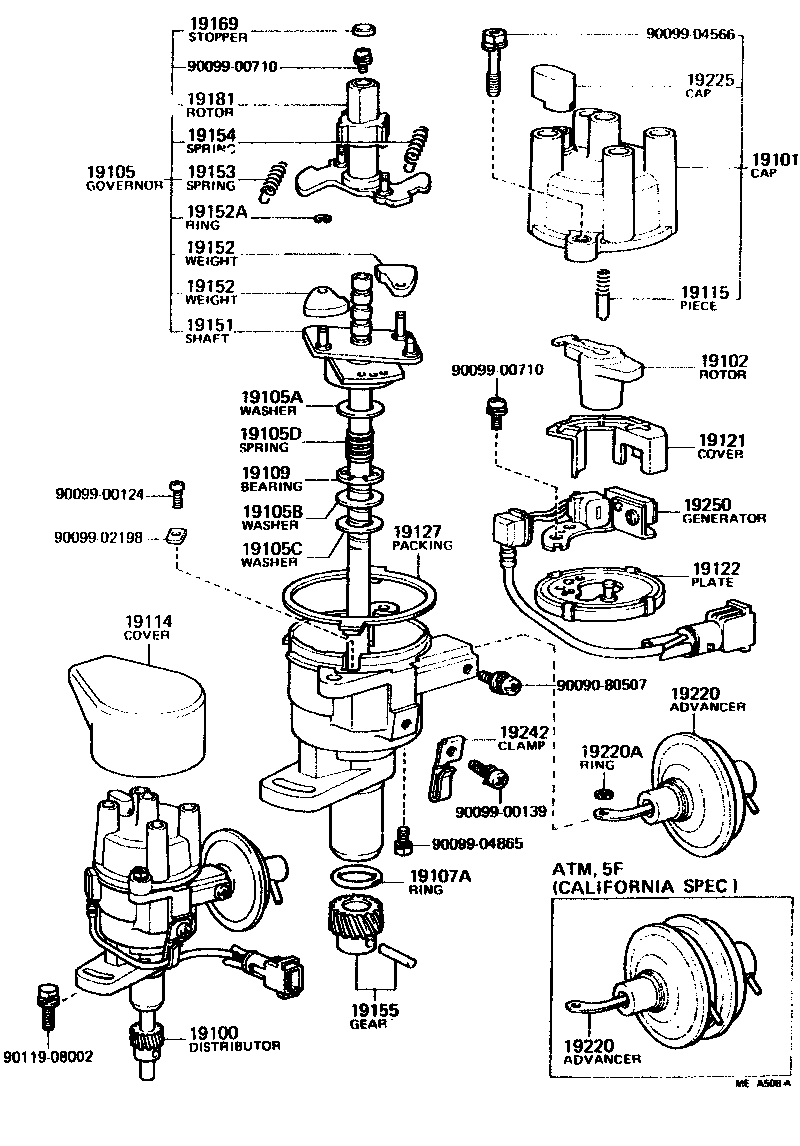

(7808-8008)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-38140 |
20R..RA42 HIGH ALTITUDE SPEC |
1 | ||
| 19100-38080 |
20R..RA42 |
1 | ||
| 19100-38091 |
20R..RA42..3FC..LT CALIFORNIA SPEC;USA SPEC |
1 | ||
| 19100-38081 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 19100-38210 |
20R..RA42..3FC..LT FEDERAL SPEC;CANADA OR COLD SPEC |
1 | ||
| 19100-38090 |
20R..RA42 CALIFORNIA SPEC |
1 | ||
| 19100-38190 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 19100-38160 |
20R..RA42 CANADA SPEC |
1 | ||
| 19100-38220 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 19100-45190 |
20R..RA42..3FC..LT |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-38011 |
20R..RA42 |
1 | ||
| 19101-38150 |
20R..RA42..3FC..LT |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-26150 |
20R..RA42 |
1 | ||
| 19102-38160 |
20R..RA42 CANADA SPEC |
1 | ||
| 19102-38160 |
20R..RA42..3FC..LT |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-38040 |
20R..RA42..3FC..LT |
1 | ||
| 19105-38210 |
20R..RA42..3FC..LT |
1 | ||
| 19105-45190 |
20R..RA42..3FC..LT |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01417 |
20R..RA42..3FC..LT |
1 | ||
| 19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01426 |
20R..RA42..3FC..LT |
1 | ||
| 19105C - WASHER, NO.3(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01427 |
20R..RA42..3FC..LT |
1 | ||
| 19105D - SPRING, NO.1(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-17113 |
20R..RA42..3FC..LT |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19109 - BEARING, THRUST | ||||
| 19109-38010 |
20R..RA42..3FC..LT |
1 | ||
| 19114 - COVER, WATER PROOF(FOR DISTRIBUTOR) | ||||
| 19114-38012 |
20R..RA42 HIGH ALTITUDE & COLD SPEC |
1 | ||
| 19114-38150 |
20R..RA42..3FC..LT CANADA OR COLD SPEC |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38040 |
20R..RA42 |
1 | ||
| 19121-27020 |
20R..RA42..3FC..LT |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-45070 |
20R..RA42 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
20R..RA42 |
1 | ||
| 19127-88251 |
20R..RA42 |
1 | ||
| 19127-38150 |
20R..RA42..3FC..LT |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-38011 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-45060 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07104 |
20R..RA42..3FC..LT |
2 | ||
| 90099-07011 |
20R..RA42 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-38040 |
20R..RA42..3FC..LT |
1 | ||
| 19153-45190 |
20R..RA42..3FC..LT |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-38040 |
20R..RA42..3FC..LT |
1 | ||
| 19154-45190 |
20R..RA42..3FC..LT |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-38010 |
20R..RA42 |
1 | ||
| 19195-38150 |
20R..RA42..3FC..LT |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-26280 |
20R..RA42..3FC..LT |
1 | ||
| 19181-38210 |
20R..RA42..3FC..LT |
1 | ||
| 19181-45190 |
20R..RA42..3FC..LT |
1 | ||
| 19181-38040 |
20R..RA42 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-38150 |
20R..RA42 CANADA SPEC |
1 | ||
| 19220-38050 |
20R..RA42 |
1 | ||
| 19220-38070 |
20R..RA42 HIGH ALTITUDE SPEC |
1 | ||
| 19220-38220 |
20R..RA42..3FC CALIFORNIA SPEC |
1 | ||
| 19220-38060 |
20R..RA42 CALIFORNIA SPEC |
1 | ||
| 19220-38180 |
20R..RA42..3FC USA SPEC |
1 | ||
| 19220-38210 |
20R..RA42 CANADA OR COLD SPEC |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-38150 |
20R..RA42 CANADA SPEC |
1 | ||
| 19220-38050 |
20R..RA42 |
1 | ||
| 19220-38070 |
20R..RA42 HIGH ALTITUDE SPEC |
1 | ||
| 19220-38220 |
20R..RA42..3FC CALIFORNIA SPEC |
1 | ||
| 19220-38060 |
20R..RA42 CALIFORNIA SPEC |
1 | ||
| 19220-38180 |
20R..RA42..3FC USA SPEC |
1 | ||
| 19220-38210 |
20R..RA42 CANADA OR COLD SPEC |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-38011 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-26250 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-38150 |
20R..RA42..3FC..LT |
1 | ||
| 19250-38050 |
20R..RA42 |
1 | ||
| 19250-38190 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 19250-38160 |
20R..RA42 CANADA SPEC |
1 | ||
| Common parts | ||||
| 90090-80507 | ||||
| 90099-00124 | ||||
| 90099-00139 | ||||
| 90099-00710 | ||||
| 90099-02198 | ||||
| 90099-04566 | ||||
| 90099-04865 | ||||
| 90119-08002 | ||||
