RA42L-BCHDSA (1977)
Toyota Celica
(7708-8008)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01051 |
20R..RA42 W16EPR OR W16EXR-U,W16EPR |
4 | ||
| 90919-01064 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT W16EXR-U,W16EXR-U |
4 | ||
| 19100P - PLUG, SPARK | ||||
| 90919-01051 |
20R..RA42 W16EPR OR W16EXR-U,W16EPR |
4 | ||
| 90919-01064 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT W16EXR-U,W16EXR-U |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02113 |
20R..RA42..3FC..LT |
1 | ||
| 90919-02083 |
20R..RA42..3FC..LT |
1 | ||
| 90919-02117 |
20R..RA42..3FC..LT CANADA & CALIFORNIA SPEC |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02113 |
20R..RA42..3FC..LT |
1 | ||
| 90919-02083 |
20R..RA42..3FC..LT |
1 | ||
| 90919-02117 |
20R..RA42..3FC..LT CANADA & CALIFORNIA SPEC |
1 | ||
| 19519 - COVER, IGNITION COIL | ||||
| 19519-38030 |
20R..RA42..3FC..LT COLD SPEC |
1 | ||
| 19519-38030 |
20R..RA42..3FC..LT CANADA & COLD SPEC |
1 | ||
| 19519 - COVER, IGNITION COIL | ||||
| 19519-38030 |
20R..RA42..3FC..LT COLD SPEC |
1 | ||
| 19519-38030 |
20R..RA42..3FC..LT CANADA & COLD SPEC |
1 | ||
| 19730 - RESISTOR, IGNITION COIL | ||||
| 90919-04029 |
20R..RA42..3FC..LT |
1 | ||
| 90919-04029 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90999-99063 |
20R..RA42..3FC..LT |
1 | ||
| 90999-99041 |
20R..RA42 |
1 | ||
| 90919-21201 |
20R..RA42..3FC..LT |
1 | ||
| 90999-99048 |
20R..RA42..3FC..LT |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90999-99063 |
20R..RA42..3FC..LT |
1 | ||
| 90999-99041 |
20R..RA42 |
1 | ||
| 90919-21201 |
20R..RA42..3FC..LT |
1 | ||
| 90999-99048 |
20R..RA42..3FC..LT |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13138 |
20R..RA42..3FC..LT |
1 | ||
| 90919-13098 |
20R..RA42..3FC..LT |
1 | ||
| 90919-13075 |
20R..RA42 |
1 | ||
| 90919-13111 |
20R..RA42..3FC..LT |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13138 |
20R..RA42..3FC..LT |
1 | ||
| 90919-13098 |
20R..RA42..3FC..LT |
1 | ||
| 90919-13075 |
20R..RA42 |
1 | ||
| 90919-13111 |
20R..RA42..3FC..LT |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12192 |
20R..RA42 |
1 | ||
| 90919-12230 |
20R..RA42..3FC..LT |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12192 |
20R..RA42 |
1 | ||
| 90919-12230 |
20R..RA42..3FC..LT |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12231 |
20R..RA42..3FC..LT |
1 | ||
| 90919-12193 |
20R..RA42 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12231 |
20R..RA42..3FC..LT |
1 | ||
| 90919-12193 |
20R..RA42 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12194 |
20R..RA42 |
1 | ||
| 90919-12232 |
20R..RA42..3FC..LT |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12194 |
20R..RA42 |
1 | ||
| 90919-12232 |
20R..RA42..3FC..LT |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12195 |
20R..RA42 |
1 | ||
| 90919-12233 |
20R..RA42..3FC..LT |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12195 |
20R..RA42 |
1 | ||
| 90919-12233 |
20R..RA42..3FC..LT |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90464-00045 |
20R..RA42 |
1 | ||
| 90464-00214 |
20R..RA42..3FC..LT |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90464-00045 |
20R..RA42 |
1 | ||
| 90464-00214 |
20R..RA42..3FC..LT |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00061 |
20R..RA42..3FC..LT |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00061 |
20R..RA42..3FC..LT |
1 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-38010 |
20R..RA42..3FC..LT |
2 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-38010 |
20R..RA42..3FC..LT |
2 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-38010 |
20R..RA42..3FC..LT |
2 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-38010 |
20R..RA42..3FC..LT |
2 | ||
| 19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2 | ||||
| 19944-38010 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2 | ||||
| 19944-38010 |
20R..RA42..3FC..LT;22R..RA43..CP..5F..GT |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00144 |
20R..RA42..3FC..LT RR |
1 | ||
| 90464-00060 |
20R..RA42..3FC..LT FR |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00144 |
20R..RA42..3FC..LT RR |
1 | ||
| 90464-00060 |
20R..RA42..3FC..LT FR |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00144 |
20R..RA42..3FC..LT RR |
1 | ||
| 90464-00060 |
20R..RA42..3FC..LT FR |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00144 |
20R..RA42..3FC..LT RR |
1 | ||
| 90464-00060 |
20R..RA42..3FC..LT FR |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90464-00059 |
20R..RA42..3FC..LT |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90464-00059 |
20R..RA42..3FC..LT |
1 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03065 |
20R..RA42..3FC..LT CANADA OR COLD SPEC |
1 | ||
| 90919-03066 |
20R..RA42 |
1 | ||
| 90919-03073 |
20R..RA42..3FC..LT |
1 | ||
| 90919-03074 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90919-03073 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 90919-03067 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90919-03076 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03065 |
20R..RA42..3FC..LT CANADA OR COLD SPEC |
1 | ||
| 90919-03066 |
20R..RA42 |
1 | ||
| 90919-03073 |
20R..RA42..3FC..LT |
1 | ||
| 90919-03074 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90919-03073 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 90919-03067 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90919-03076 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 19966 - BAND, IGNITION COIL, NO.2 | ||||
| 90919-03072 |
20R..RA42..3FC..LT |
1 | ||
| 90919-03072 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08157 | ||||
| 90464-00154 | ||||
| 90468-08002 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||

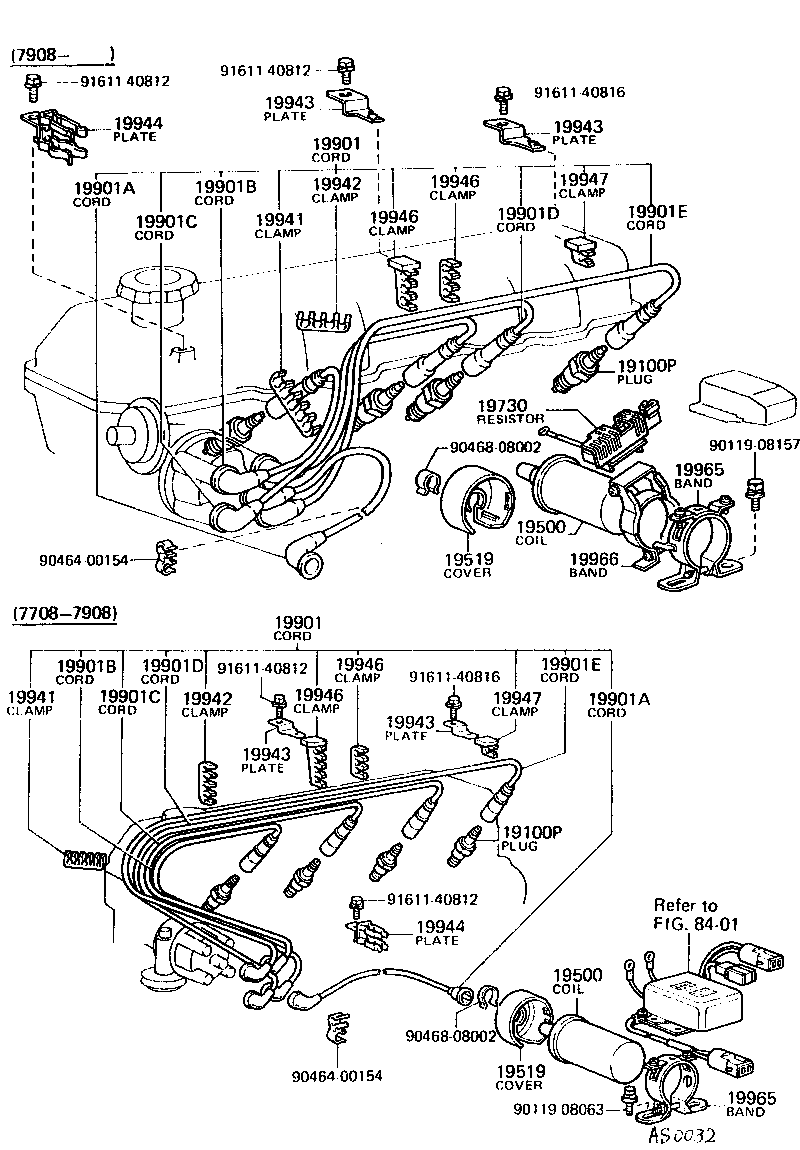

| Linked diagrams | ||||
| 8401 | ||||
