RA42L-BCHDSA (1977)
Toyota Celica
(7708-7808)

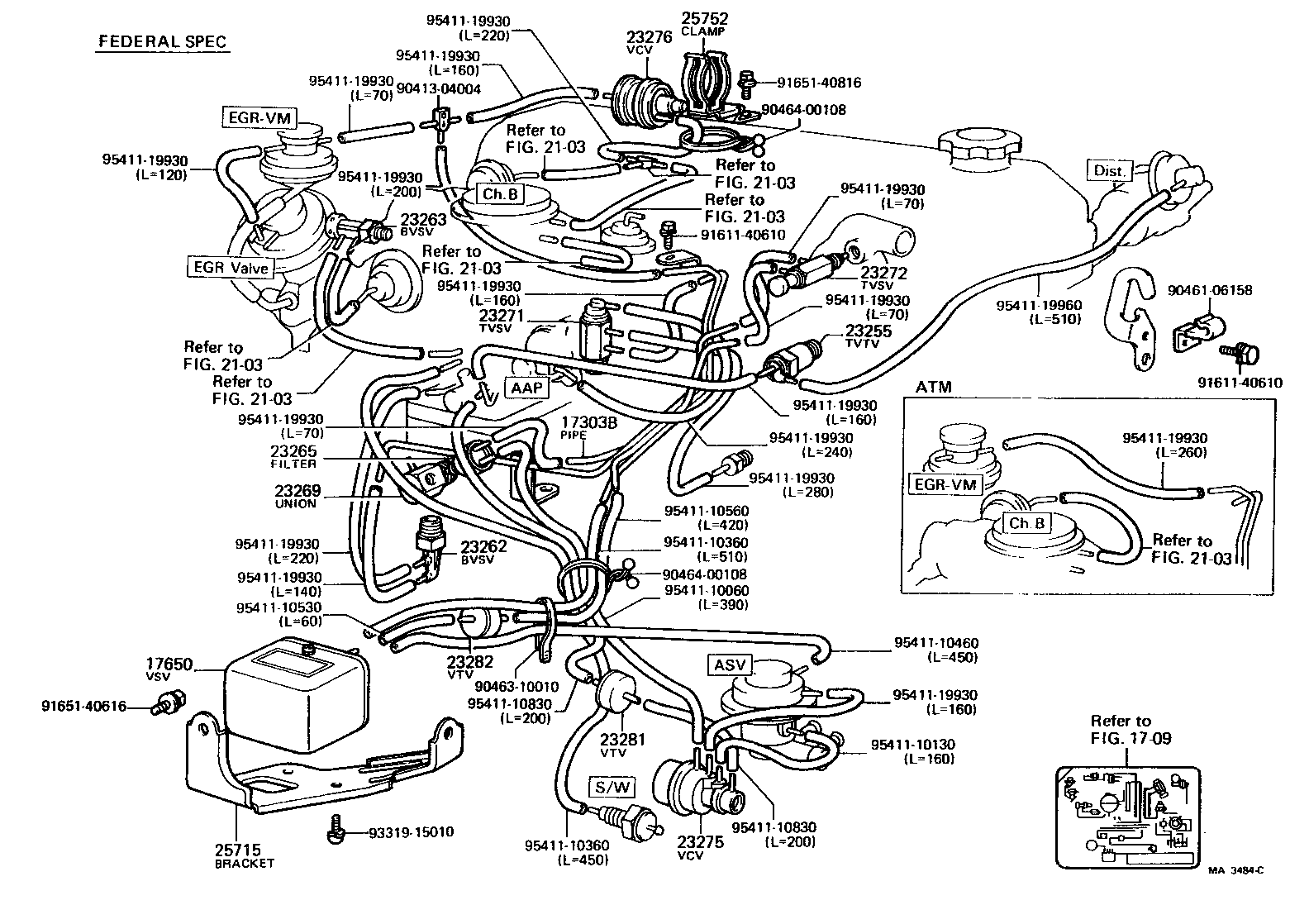

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT |
1 | ||
| 90925-05035 |
20R..RA42..3FC..LT |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
20R..RA42 |
1 | ||
| 90917-11003 |
20R..RA42 |
1 | ||
| 90917-11025 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11023 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11024 |
20R..RA42..3FC..LT |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54010 |
20R..RA42..3FC..LT |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90404-54014 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02047 |
20R..RA42 |
1 | ||
| 90925-02051 |
20R..RA42..3FC..LT |
1 | ||
| 90925-02060 |
20R..RA42..3FC..LT |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03069 |
20R..RA42..3FC..LT |
1 | ||
| 90925-03091 |
20R..RA42..3FC..LT |
1 | ||
| 90925-03052 |
20R..RA42 |
1 | ||
| 90925-03077 |
20R..RA42..3FC..LT |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03053 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-03092 |
20R..RA42..3FC..LT |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01031 |
20R..RA42..3FC..LT |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-38010 |
20R..RA42 |
1 | ||
| 25751-45030 |
20R..RA42..3FC..LT |
1 | ||
| 25751-45020 |
20R..RA42..3FC..LT |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25751-37010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90464-00108 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 95411-10060 | ||||
| 95411-10330 | ||||
| 95411-10930 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2103 | ||||

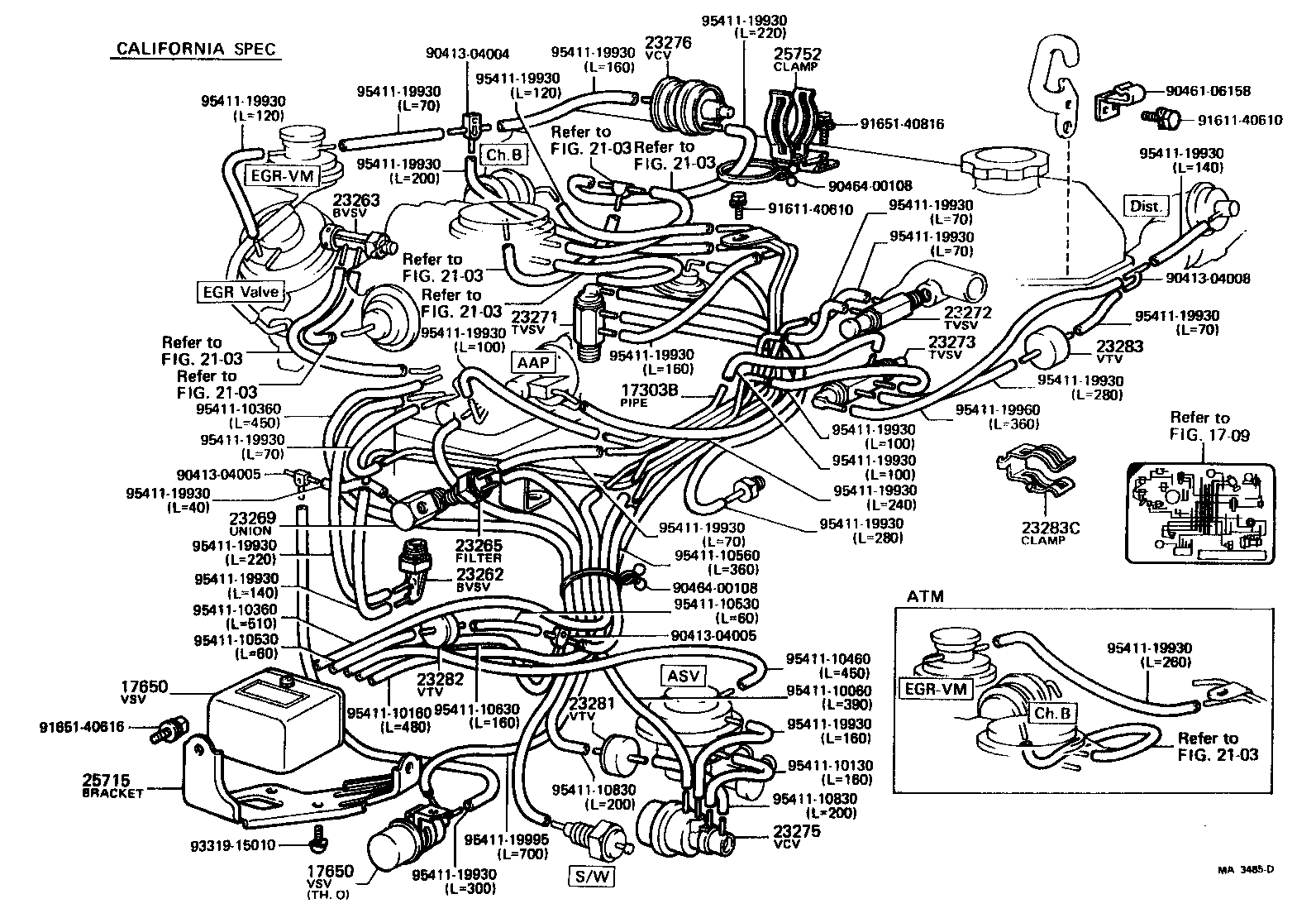

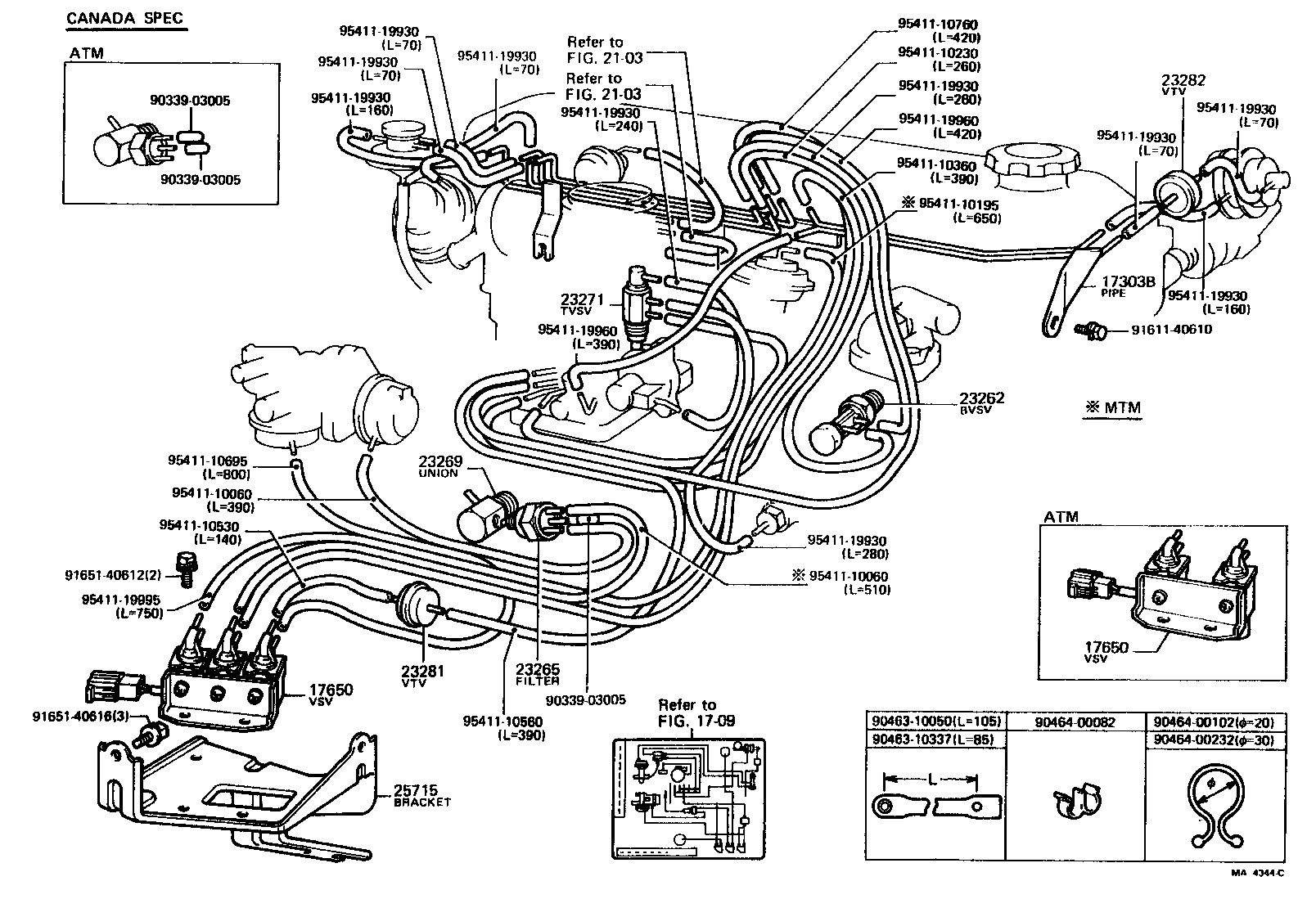

(7708-7808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-38021 |
20R..RA42 |
1 | ||
| 17303-38030 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 17303-38050 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17303-38040 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 17303-38020 |
20R..RA42 |
1 | ||
| 17303-38060 |
20R..RA42..3FC..LT |
1 | ||
| 17303-45030 |
20R..RA42..3FC..LT |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-05037 |
20R..RA42 |
1 | ||
| 23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2 | ||||
| 90925-02049 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-02035 |
20R..RA42 |
1 | ||
| 90925-02056 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23273 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.3 | ||||
| 90925-02045 |
20R..RA42 |
1 | ||
| 90925-02046 |
20R..RA42 |
1 | ||
| 90925-02053 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-02046 |
20R..RA42 CALIFORNIA SPEC;HIGH ALTITUDE SPEC |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01014 |
20R..RA42..3FC..LT CALIFORNIA SPEC;FEDERAL & CANADA SPEC |
1 | ||
| 90925-01032 |
20R..RA42..3FC..LT |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01027 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01027 |
20R..RA42 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10038 |
20R..RA42 |
1 | ||

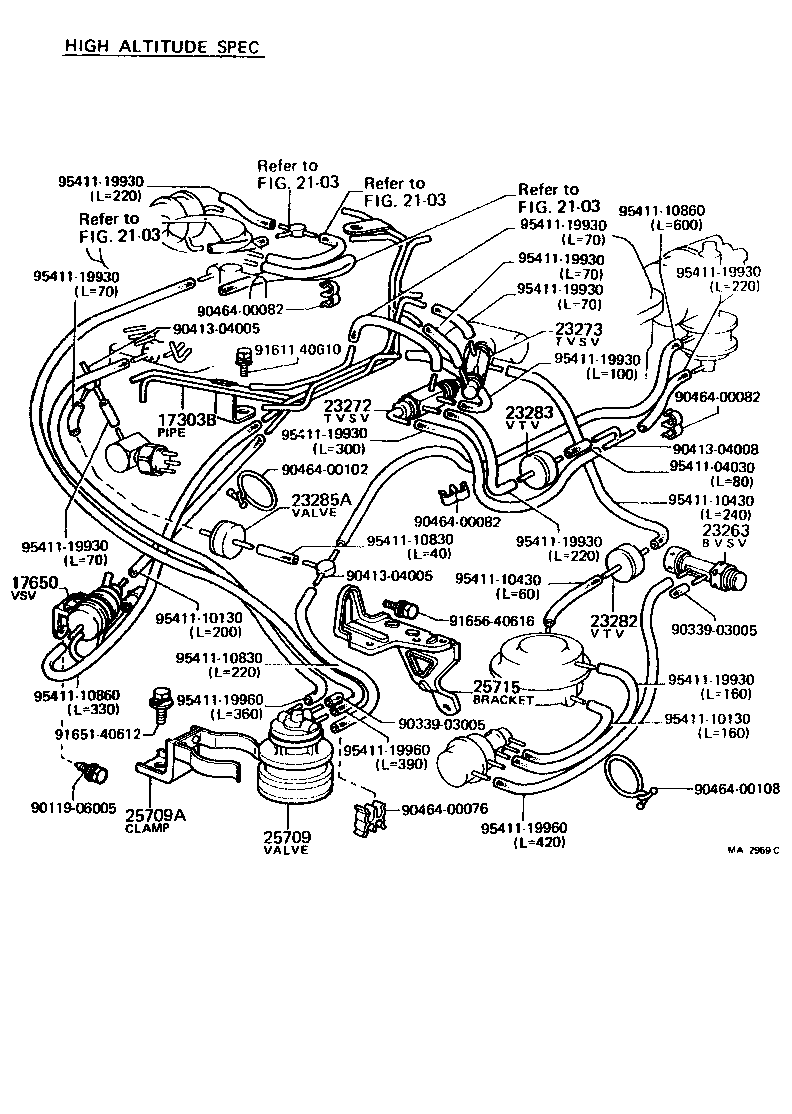

| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-38010 |
20R..RA42 |
1 | ||
| 25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE) | ||||
| 90461-10178 |
20R..RA42 |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-38022 |
20R..RA42 |
1 | ||
| 25715-38041 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 25715-38040 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00108 | ||||
| 91611-40610 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 95411-04030 | ||||
| 95411-10130 | ||||
| 95411-10430 | ||||
| 95411-10830 | ||||
| 95411-10860 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||

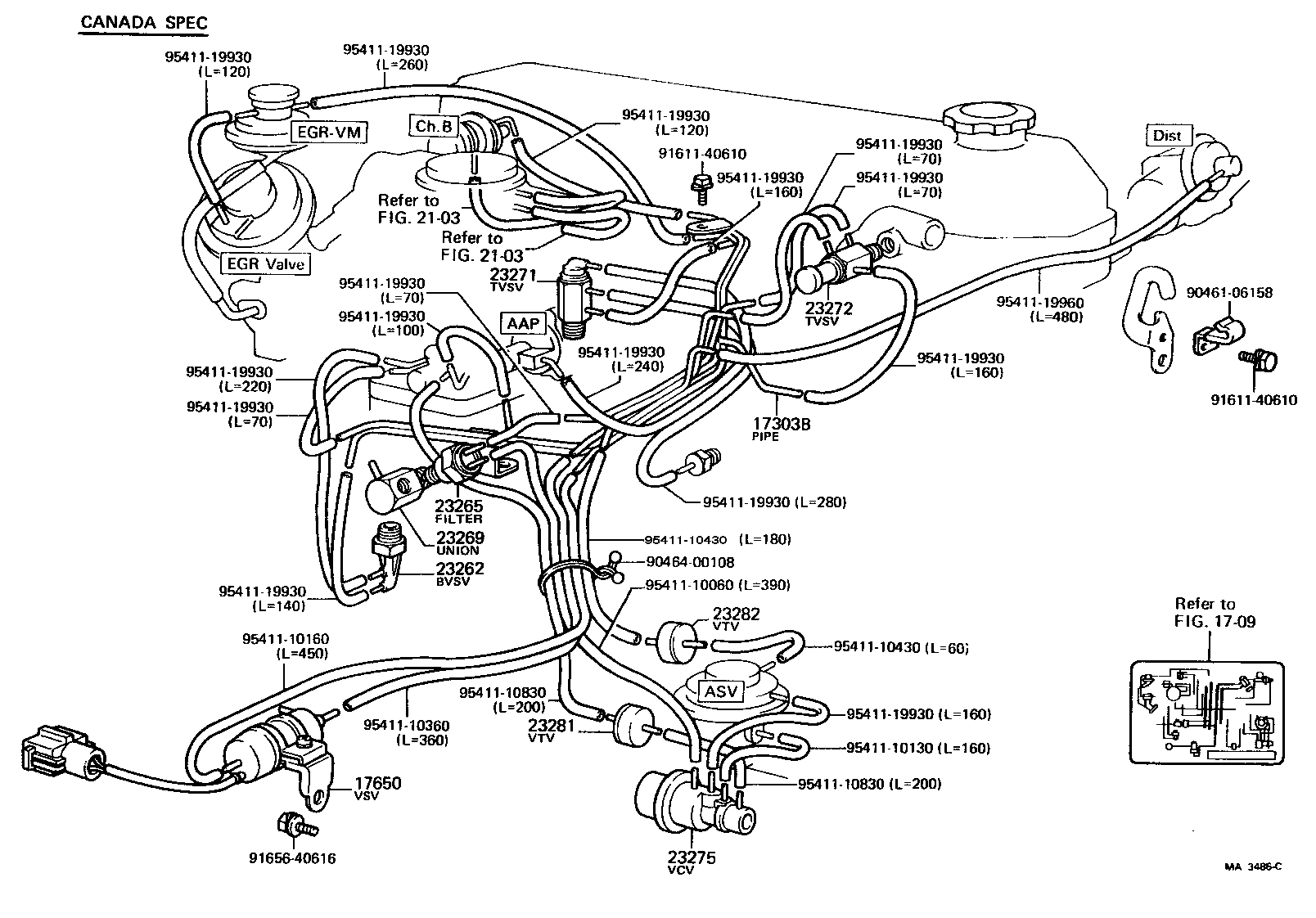

(7808-7908)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-38021 |
20R..RA42 |
1 | ||
| 17303-38030 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 17303-38050 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17303-38040 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 17303-38020 |
20R..RA42 |
1 | ||
| 17303-38060 |
20R..RA42..3FC..LT |
1 | ||
| 17303-45030 |
20R..RA42..3FC..LT |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01061 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT |
1 | ||
| 90925-05035 |
20R..RA42..3FC..LT |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-05037 |
20R..RA42 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
20R..RA42 |
1 | ||
| 90917-11003 |
20R..RA42 |
1 | ||
| 90917-11025 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11023 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11024 |
20R..RA42..3FC..LT |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54010 |
20R..RA42..3FC..LT |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90404-54014 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02047 |
20R..RA42 |
1 | ||
| 90925-02051 |
20R..RA42..3FC..LT |
1 | ||
| 90925-02060 |
20R..RA42..3FC..LT |
1 | ||
| 23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2 | ||||
| 90925-02049 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-02035 |
20R..RA42 |
1 | ||
| 90925-02056 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03069 |
20R..RA42..3FC..LT |
1 | ||
| 90925-03091 |
20R..RA42..3FC..LT |
1 | ||
| 90925-03052 |
20R..RA42 |
1 | ||
| 90925-03077 |
20R..RA42..3FC..LT |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03053 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-03092 |
20R..RA42..3FC..LT |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01031 |
20R..RA42..3FC..LT |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01014 |
20R..RA42..3FC..LT CALIFORNIA SPEC;FEDERAL & CANADA SPEC |
1 | ||
| 90925-01032 |
20R..RA42..3FC..LT |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-38022 |
20R..RA42 |
1 | ||
| 25715-38041 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 25715-38040 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25751-37010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| Common parts | ||||
| 90413-04004 | ||||
| 90461-06158 | ||||
| 90463-10010 | ||||
| 90464-00108 | ||||
| 91611-40610 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93319-15010 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10360 | ||||
| 95411-10460 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10830 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2103 | ||||

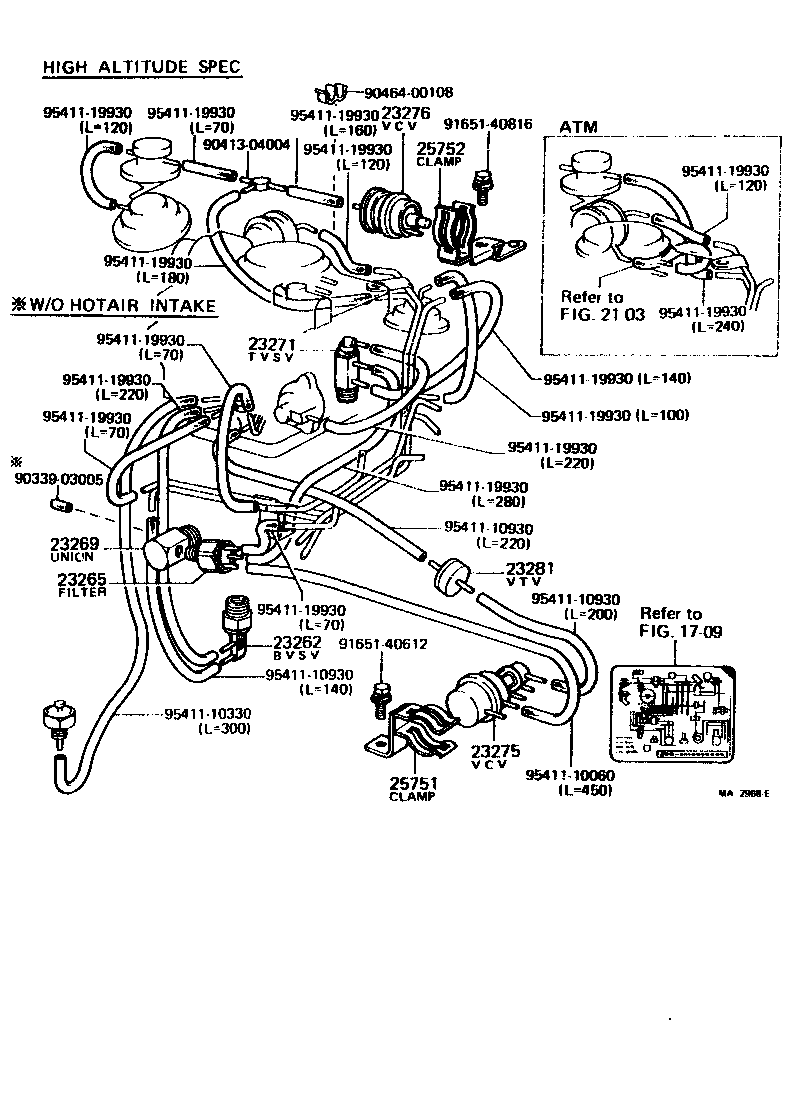

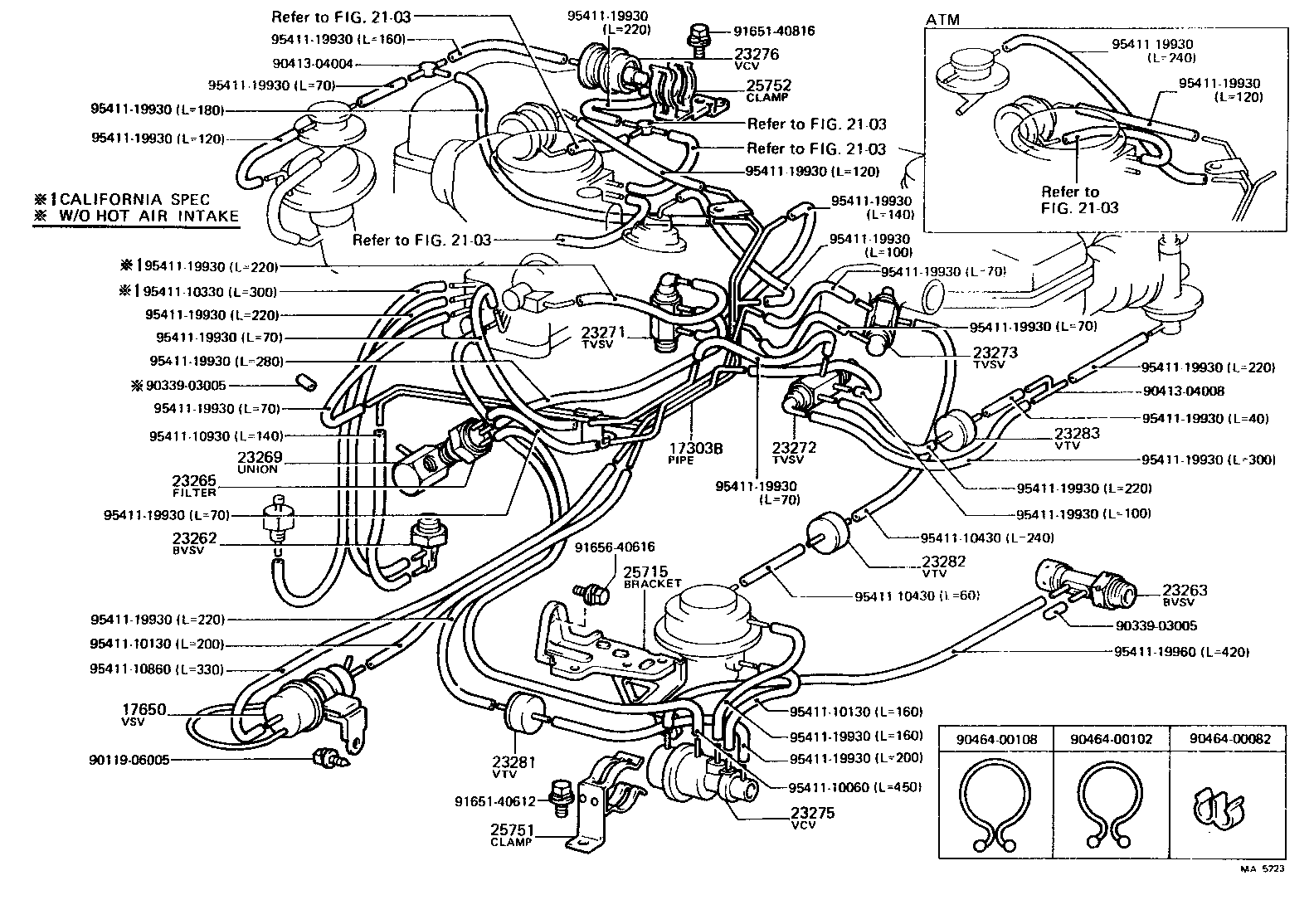

(7808-7908)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-38021 |
20R..RA42 |
1 | ||
| 17303-38030 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 17303-38050 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17303-38040 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 17303-38020 |
20R..RA42 |
1 | ||
| 17303-38060 |
20R..RA42..3FC..LT |
1 | ||
| 17303-45030 |
20R..RA42..3FC..LT |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT |
1 | ||
| 90925-05035 |
20R..RA42..3FC..LT |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-05037 |
20R..RA42 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
20R..RA42 |
1 | ||
| 90917-11003 |
20R..RA42 |
1 | ||
| 90917-11025 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11023 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11024 |
20R..RA42..3FC..LT |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54010 |
20R..RA42..3FC..LT |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90404-54014 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02047 |
20R..RA42 |
1 | ||
| 90925-02051 |
20R..RA42..3FC..LT |
1 | ||
| 90925-02060 |
20R..RA42..3FC..LT |
1 | ||
| 23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2 | ||||
| 90925-02049 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-02035 |
20R..RA42 |
1 | ||
| 90925-02056 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23273 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.3 | ||||
| 90925-02045 |
20R..RA42 |
1 | ||
| 90925-02046 |
20R..RA42 |
1 | ||
| 90925-02053 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-02046 |
20R..RA42 CALIFORNIA SPEC;HIGH ALTITUDE SPEC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03069 |
20R..RA42..3FC..LT |
1 | ||
| 90925-03091 |
20R..RA42..3FC..LT |
1 | ||
| 90925-03052 |
20R..RA42 |
1 | ||
| 90925-03077 |
20R..RA42..3FC..LT |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03053 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-03092 |
20R..RA42..3FC..LT |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01031 |
20R..RA42..3FC..LT |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01014 |
20R..RA42..3FC..LT CALIFORNIA SPEC;FEDERAL & CANADA SPEC |
1 | ||
| 90925-01032 |
20R..RA42..3FC..LT |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01027 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01027 |
20R..RA42 |
1 | ||
| 23283C - CLAMP, VACUUM TRANSMITTING VALVE | ||||
| 90461-06140 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-38022 |
20R..RA42 |
1 | ||
| 25715-38041 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 25715-38040 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25751-37010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| Common parts | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90461-06158 | ||||
| 90464-00108 | ||||
| 91611-40610 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93319-15010 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-10360 | ||||
| 95411-10460 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10630 | ||||
| 95411-10830 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2103 | ||||
(7808-7908)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-38021 |
20R..RA42 |
1 | ||
| 17303-38030 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 17303-38050 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17303-38040 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 17303-38020 |
20R..RA42 |
1 | ||
| 17303-38060 |
20R..RA42..3FC..LT |
1 | ||
| 17303-45030 |
20R..RA42..3FC..LT |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT |
1 | ||
| 90925-05035 |
20R..RA42..3FC..LT |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
20R..RA42 |
1 | ||
| 90917-11003 |
20R..RA42 |
1 | ||
| 90917-11025 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11023 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11024 |
20R..RA42..3FC..LT |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54010 |
20R..RA42..3FC..LT |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90404-54014 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02047 |
20R..RA42 |
1 | ||
| 90925-02051 |
20R..RA42..3FC..LT |
1 | ||
| 90925-02060 |
20R..RA42..3FC..LT |
1 | ||
| 23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2 | ||||
| 90925-02049 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-02035 |
20R..RA42 |
1 | ||
| 90925-02056 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03069 |
20R..RA42..3FC..LT |
1 | ||
| 90925-03091 |
20R..RA42..3FC..LT |
1 | ||
| 90925-03052 |
20R..RA42 |
1 | ||
| 90925-03077 |
20R..RA42..3FC..LT |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01031 |
20R..RA42..3FC..LT |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01014 |
20R..RA42..3FC..LT CALIFORNIA SPEC;FEDERAL & CANADA SPEC |
1 | ||
| 90925-01032 |
20R..RA42..3FC..LT |
1 | ||
| Common parts | ||||
| 90461-06158 | ||||
| 90464-00108 | ||||
| 91611-40610 | ||||
| 91656-40616 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-10360 | ||||
| 95411-10430 | ||||
| 95411-10830 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2103 | ||||
(7908-8008)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-38021 |
20R..RA42 |
1 | ||
| 17303-38030 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 17303-38050 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17303-38040 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 17303-38020 |
20R..RA42 |
1 | ||
| 17303-38060 |
20R..RA42..3FC..LT |
1 | ||
| 17303-45030 |
20R..RA42..3FC..LT |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17680 - VALVE ASSY, MIXTURE CONTROL | ||||
| 17680-38011 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 17680B - HOSE(FOR MIXTURE CONTROL VALVE) | ||||
| 17346-38011 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 17680C - CLAMP OR CLIP(FOR MIXTURE CONTROL VALVE HOSE) | ||||
| 90461-08479 |
20R..RA42..3FC..LT |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT |
1 | ||
| 90925-05035 |
20R..RA42..3FC..LT |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
20R..RA42 |
1 | ||
| 90917-11003 |
20R..RA42 |
1 | ||
| 90917-11025 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11023 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11024 |
20R..RA42..3FC..LT |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54010 |
20R..RA42..3FC..LT |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90404-54014 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54010 |
20R..RA42..3FC..LT |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90404-54014 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02047 |
20R..RA42 |
1 | ||
| 90925-02051 |
20R..RA42..3FC..LT |
1 | ||
| 90925-02060 |
20R..RA42..3FC..LT |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01031 |
20R..RA42..3FC..LT |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01014 |
20R..RA42..3FC..LT CALIFORNIA SPEC;FEDERAL & CANADA SPEC |
1 | ||
| 90925-01032 |
20R..RA42..3FC..LT |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-38022 |
20R..RA42 |
1 | ||
| 25715-38041 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 25715-38040 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90463-10050 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00232 | ||||
| 91611-40610 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 95411-10060 | ||||
| 95411-10195 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10360 | ||||
| 95411-10460 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10695 | ||||
| 95411-10760 | ||||
| 95411-10860 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2103 | ||||
(7908-8008)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-38021 |
20R..RA42 |
1 | ||
| 17303-38030 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 17303-38050 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17303-38040 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 17303-38020 |
20R..RA42 |
1 | ||
| 17303-38060 |
20R..RA42..3FC..LT |
1 | ||
| 17303-45030 |
20R..RA42..3FC..LT |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17680 - VALVE ASSY, MIXTURE CONTROL | ||||
| 17680-38011 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 17680B - HOSE(FOR MIXTURE CONTROL VALVE) | ||||
| 17346-38011 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 17680C - CLAMP OR CLIP(FOR MIXTURE CONTROL VALVE HOSE) | ||||
| 90461-08479 |
20R..RA42..3FC..LT |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 17810-38010 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 17810B - CLAMP(FOR AIR FILTER) | ||||
| 90461-08473 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT |
1 | ||
| 90925-05035 |
20R..RA42..3FC..LT |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
20R..RA42 |
1 | ||
| 90917-11003 |
20R..RA42 |
1 | ||
| 90917-11025 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11023 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11024 |
20R..RA42..3FC..LT |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54010 |
20R..RA42..3FC..LT |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90404-54014 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54010 |
20R..RA42..3FC..LT |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90404-54014 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02047 |
20R..RA42 |
1 | ||
| 90925-02051 |
20R..RA42..3FC..LT |
1 | ||
| 90925-02060 |
20R..RA42..3FC..LT |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01031 |
20R..RA42..3FC..LT |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01014 |
20R..RA42..3FC..LT CALIFORNIA SPEC;FEDERAL & CANADA SPEC |
1 | ||
| 90925-01032 |
20R..RA42..3FC..LT |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-38022 |
20R..RA42 |
1 | ||
| 25715-38041 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 25715-38040 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90463-10050 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00232 | ||||
| 91511-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 95411-10060 | ||||
| 95411-10195 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10460 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10695 | ||||
| 95411-10760 | ||||
| 95411-10860 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2103 | ||||
(7908-8008)20R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-38021 |
20R..RA42 |
1 | ||
| 17303-38030 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 17303-38050 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17303-38040 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 17303-38020 |
20R..RA42 |
1 | ||
| 17303-38060 |
20R..RA42..3FC..LT |
1 | ||
| 17303-45030 |
20R..RA42..3FC..LT |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT |
1 | ||
| 90925-05035 |
20R..RA42..3FC..LT |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
20R..RA42 |
1 | ||
| 90917-11003 |
20R..RA42 |
1 | ||
| 90917-11025 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11023 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11024 |
20R..RA42..3FC..LT |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54010 |
20R..RA42..3FC..LT |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90404-54014 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02047 |
20R..RA42 |
1 | ||
| 90925-02051 |
20R..RA42..3FC..LT |
1 | ||
| 90925-02060 |
20R..RA42..3FC..LT |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01031 |
20R..RA42..3FC..LT |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01014 |
20R..RA42..3FC..LT CALIFORNIA SPEC;FEDERAL & CANADA SPEC |
1 | ||
| 90925-01032 |
20R..RA42..3FC..LT |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-38022 |
20R..RA42 |
1 | ||
| 25715-38041 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 25715-38040 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90463-10050 | ||||
| 90463-10337 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00232 | ||||
| 91611-40610 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 95411-10060 | ||||
| 95411-10195 | ||||
| 95411-10230 | ||||
| 95411-10360 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10695 | ||||
| 95411-10760 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2103 | ||||
(7708-7808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-38021 |
20R..RA42 |
1 | ||
| 17303-38030 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 17303-38050 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 17303-38040 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 17303-38020 |
20R..RA42 |
1 | ||
| 17303-38060 |
20R..RA42..3FC..LT |
1 | ||
| 17303-45030 |
20R..RA42..3FC..LT |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20110 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-14090 |
20R..RA42..3FC..LT EGR,CALIFORNIA SPEC |
1 | ||
| 89570-14080 |
20R..RA42..3FC..LT AI,TP & EVAPO,USA SPEC;CANADA SPEC |
1 | ||
| 89570-20030 |
20R..RA42 |
1 | ||
| 89570-20100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 89570-20120 |
20R..RA42..3FC..LT *THO,CALIFORNIA SPEC |
1 | ||
| 89570-35070 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 89570-20040 |
20R..RA42..3FC..LT FEDERAL SPEC |
1 | ||
| 89570-14100 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT |
1 | ||
| 90925-05035 |
20R..RA42..3FC..LT |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05042 |
20R..RA42..3FC..LT |
1 | ||
| 25820-13010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-05037 |
20R..RA42 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
20R..RA42 |
1 | ||
| 90917-11003 |
20R..RA42 |
1 | ||
| 90917-11025 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11023 |
20R..RA42..3FC..LT |
1 | ||
| 90917-11024 |
20R..RA42..3FC..LT |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54010 |
20R..RA42..3FC..LT |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 90404-54014 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90404-54010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02047 |
20R..RA42 |
1 | ||
| 90925-02051 |
20R..RA42..3FC..LT |
1 | ||
| 90925-02060 |
20R..RA42..3FC..LT |
1 | ||
| 23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2 | ||||
| 90925-02049 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-02035 |
20R..RA42 |
1 | ||
| 90925-02056 |
20R..RA42..3FC..LT CANADA SPEC |
1 | ||
| 23273 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.3 | ||||
| 90925-02045 |
20R..RA42 |
1 | ||
| 90925-02046 |
20R..RA42 |
1 | ||
| 90925-02053 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-02046 |
20R..RA42 CALIFORNIA SPEC;HIGH ALTITUDE SPEC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03069 |
20R..RA42..3FC..LT |
1 | ||
| 90925-03091 |
20R..RA42..3FC..LT |
1 | ||
| 90925-03052 |
20R..RA42 |
1 | ||
| 90925-03077 |
20R..RA42..3FC..LT |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03053 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 90925-03092 |
20R..RA42..3FC..LT |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01031 |
20R..RA42..3FC..LT |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01014 |
20R..RA42..3FC..LT CALIFORNIA SPEC;FEDERAL & CANADA SPEC |
1 | ||
| 90925-01032 |
20R..RA42..3FC..LT |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01027 |
20R..RA42..3FC..LT CALIFORNIA SPEC |
1 | ||
| 90925-01027 |
20R..RA42 |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-38022 |
20R..RA42 |
1 | ||
| 25715-38041 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 25715-38040 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-38010 |
20R..RA42 |
1 | ||
| 25751-45030 |
20R..RA42..3FC..LT |
1 | ||
| 25751-45020 |
20R..RA42..3FC..LT |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25751-37010 |
20R..RA42..3FC..LT USA SPEC |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04008 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00108 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10860 | ||||
| 95411-10930 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(7708- )20R,22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01009 | ||||
| 90925-01015 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01023 | ||||
| 90925-01024 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01031 | ||||
| 90925-01032 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
