RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )20R,22R

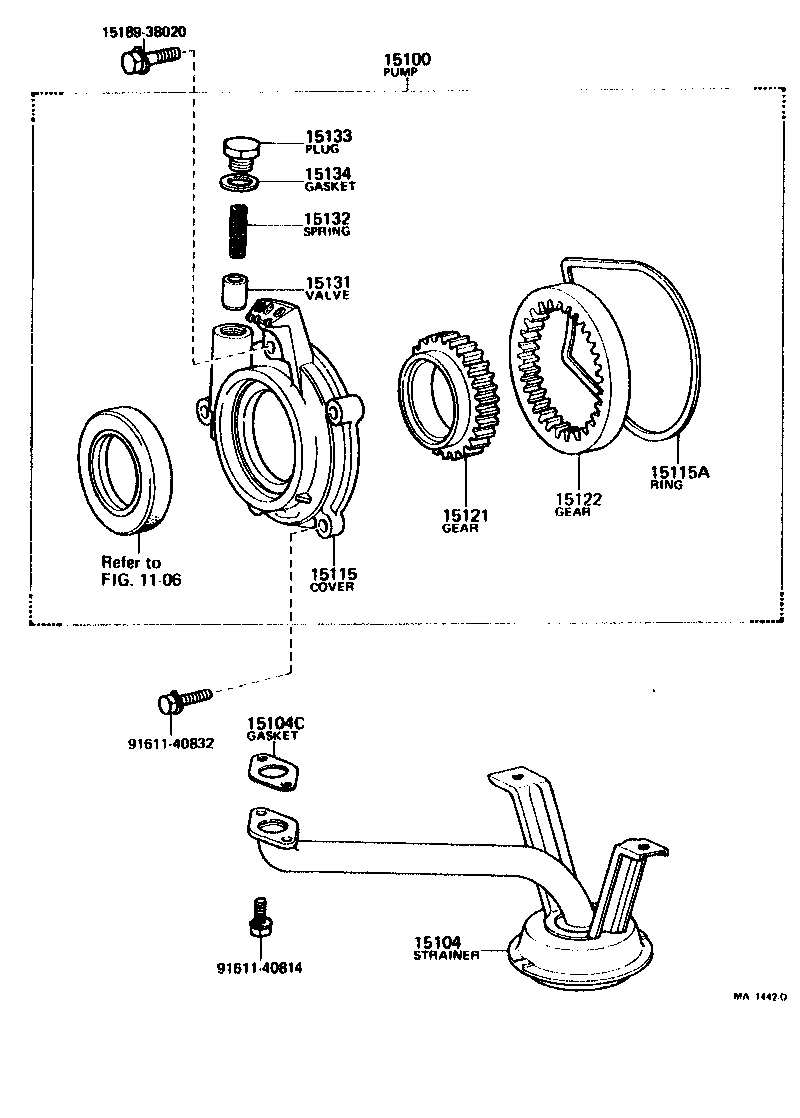

Click highlighted areas on diagram

diagram 1106 15100 15104 15104C 15115 15115A 15121 15122 15131 15132 15133 15134 1518938020 9161140814 9161140832
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-38020

20R..RA42

 1
15104 - STRAINER SUB-ASSY, OIL
15104-38030

20R..RA42

 1
15104C - GASKET(FOR OIL STRAINER)
15147-38020

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 1
15115 - COVER, OIL PUMP
15115-38021

20R..RA42

 1
15115A - RING, O(FOR OIL PUMP COVER)
15188-38020

20R..RA42

 1
15121 - GEAR, OIL PUMP DRIVE
15121-38020

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-38020

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

20R..RA42

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46010

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 1
Common parts
15189-38020
91611-40814
91611-40832
Linked diagrams
1106
