RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )20R,22R

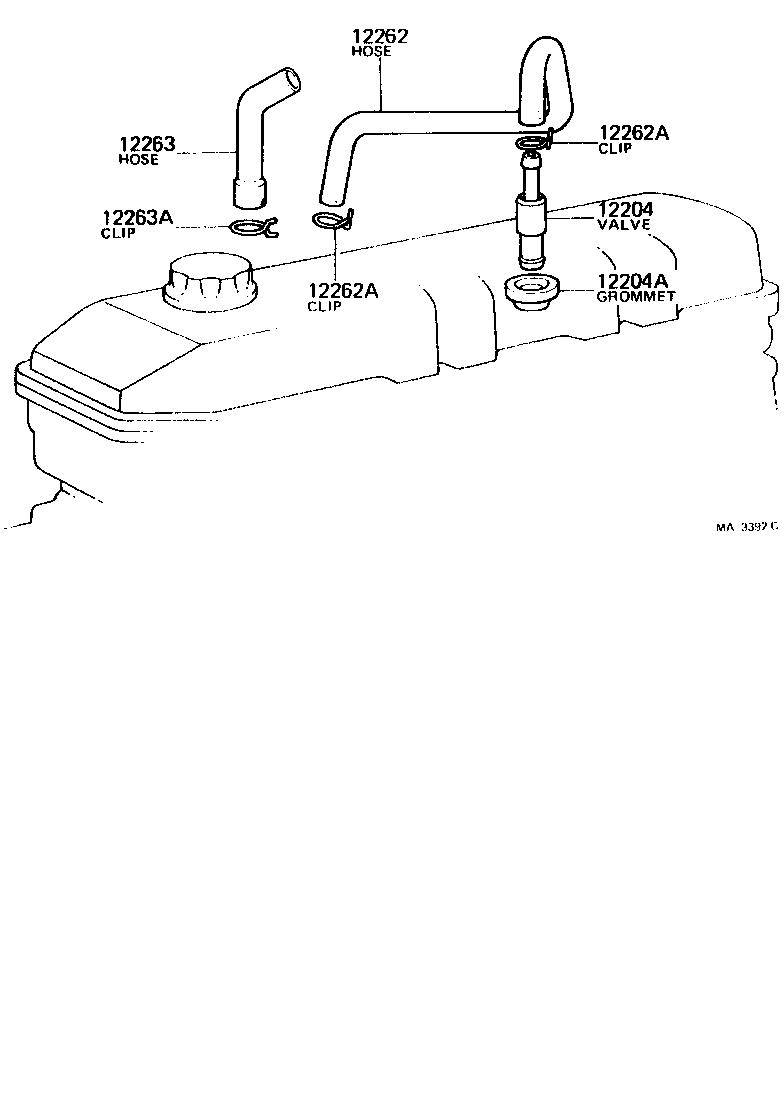

Click highlighted areas on diagram

diagram 12204 12204A 12262 12262A 12262A 12263 12263A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-45010

20R..RA42..3FC..LT

 1
12204-31020

20R..RA42..3FC..LT

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 1
12262 - HOSE, VENTILATION, NO.2
12262-41050

20R..RA42..3FC..LT

 1
12261-38011

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 2
12263 - HOSE, VENTILATION, NO.3
12263-45020

20R..RA42..3FC..LT

 1
12262-38010

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

20R..RA42..3FC..LT;22R..RA43..CP..5F..GT

 1
