RA42L-BCHDSA (1977)

Toyota Celica

Production Aug 1977 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

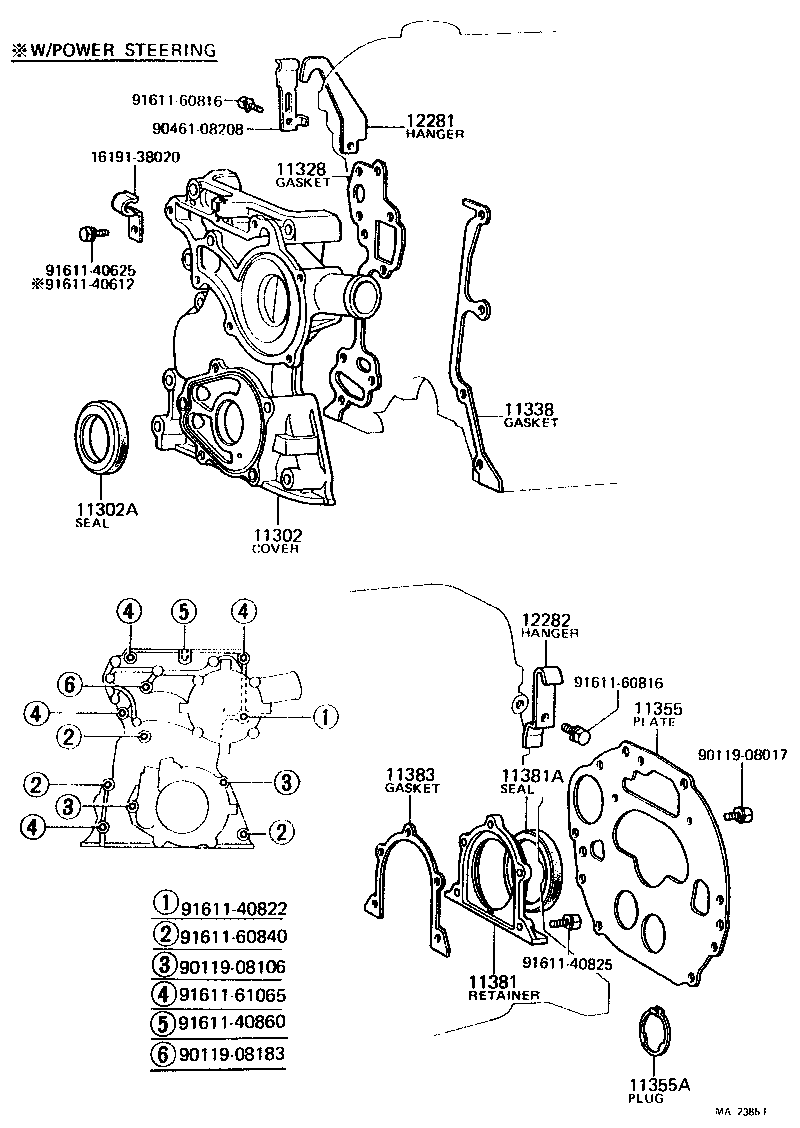

(7708-7808)

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11355A 11381 11381A 11383 12281 12282 1619138020 9011908017 9011908106 9011908183 9046108208 9161140612 9161140625 9161140822 9161140825 9161140860 9161160816 9161160816 9161160840 9161161065
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-38020

20R..RA42

 1
11321-38030

20R..RA42

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

20R..RA42

TC3 45 68 12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38020

20R,22R..RA4#

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-38020

20R..RA42

 1
11355 - PLATE, REAR END
11355-38021

20R,22R..RA4#..ATM

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01128

20R,22R..RA4#..ATM

 2
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-33010

20R..RA42

 1
11381A - SEAL, ENGINE REAR OIL
90311-80068

20R..RA42

TC80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-33010

20R,22R..RA4#

 1
12281 - HANGER, ENGINE, NO.1
12281-38010

20R..RA42

 1
12282 - HANGER, ENGINE, NO.2
12282-38010

20R..RA42

 1
Common parts
16191-38020
90119-08017
90119-08106
90119-08183
90461-08208
91611-40612
91611-40625
91611-40822
91611-40825
91611-40860
91611-60816
91611-60840
91611-61065

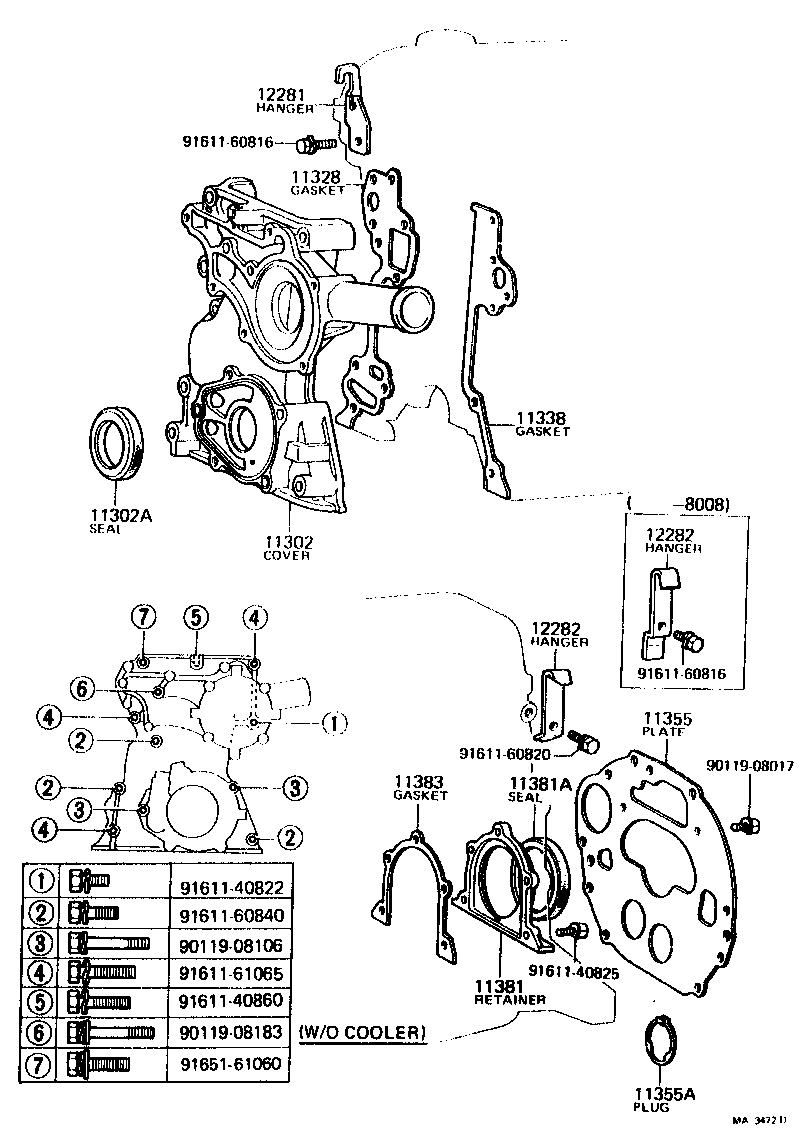

(7808- )20R,22R

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11355A 11381 11381A 11383 12281 12282 12282 9011908017 9011908106 9011908183 9161140822 9161140825 9161140860 9161160816 9161160816 9161160820 9161160840 9161161065 9165161060
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-38020

20R..RA42

 1
11321-38030

20R..RA42

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

20R..RA42

TC3 45 68 12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38020

20R,22R..RA4#

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-38020

20R..RA42

 1
11355 - PLATE, REAR END
11355-38021

20R,22R..RA4#..ATM

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01128

20R,22R..RA4#..ATM

 2
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-33010

20R..RA42

 1
11381A - SEAL, ENGINE REAR OIL
90311-80068

20R..RA42

TC80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-33010

20R,22R..RA4#

 1
12281 - HANGER, ENGINE, NO.1
12281-38010

20R..RA42

 1
12282 - HANGER, ENGINE, NO.2
12282-38010

20R..RA42

 1
12282 - HANGER, ENGINE, NO.2
12282-38010

20R..RA42

 1
Common parts
90119-08017
90119-08106
90119-08183
91611-40822
91611-40825
91611-40860
91611-60816
91611-60820
91611-60840
91611-61065
91651-61060
