MA61L-BLPQFK (1981)
Toyota Celica
Production
Aug 1981
-
Dec 1985
Engine
5MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

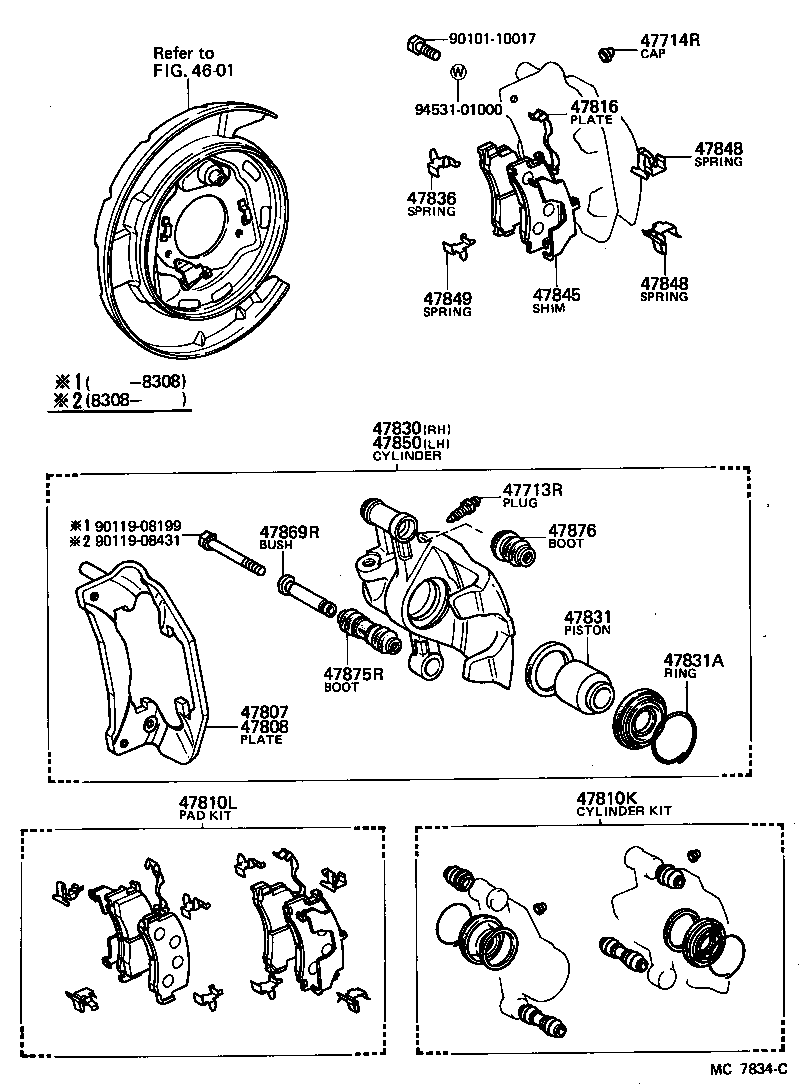

ILLUST NO. 1 OF 2(8108-8308)MA61 ; (8308- )MA61,RA65
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MA61 |
2 | ||
| 47547-20010 |
MA61,RA65 |
2 | ||
| 47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MA61,RA65 |
2 | ||
| 31478-30010 |
MA61 |
2 | ||
| 47807 - PLATE SUB-ASSY, DISC BRAKE TORQUE, RH | ||||
| 47707-14020 |
MA61,RA65 |
1 | ||
| 47707-14020 |
MA61 |
1 | ||
| 47808 - PLATE SUB-ASSY, DISC BRAKE TORQUE, LH | ||||
| 47708-14020 |
MA61,RA65 |
1 | ||
| 47708-14020 |
MA61 |
1 | ||
| 47810K - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-14080 |
MA61 |
1 | ||
| 04479-14080 |
MA61,RA65 |
1 | ||
| 47810L - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-14061 |
MA61 |
1 | ||
| 04492-14060 |
MA61 |
1 | ||
| 04492-14061 |
MA61,RA65 |
1 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-14090 |
MA61,RA65 |
2 | ||
| 47716-14090 |
MA61 |
2 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47730-14130 |
MA61,RA65 |
1 | ||
| 47730-14130 |
MA61 |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47731-14080 |
MA61,RA65 |
2 | ||
| 47731-14080 |
MA61 |
2 | ||
| 47831A - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-49001 |
MA61,RA65 |
2 | ||
| 90522-49001 |
MA61 |
2 | ||
| 47836 - PLATE, DISC BRAKE PAD GUIDE | ||||
| 47736-14020 |
MA61,RA65 |
2 | ||
| 47736-14020 |
MA61 |
2 | ||
| 47845 - SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47744-14060 |
MA61 |
2 | ||
| 47744-14090 |
MA61,RA65 |
2 | ||
| 47848 - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47743-14040 |
MA61,RA65 UPR |
2 | ||
| 47743-14040 |
MA61 UPR |
2 | ||
| 47748-14050 |
MA61,RA65 LWR |
2 | ||
| 47748-14050 |
MA61 LWR |
2 | ||
| 47848 - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47743-14040 |
MA61,RA65 UPR |
2 | ||
| 47743-14040 |
MA61 UPR |
2 | ||
| 47748-14050 |
MA61,RA65 LWR |
2 | ||
| 47748-14050 |
MA61 LWR |
2 | ||
| 47849 - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-14040 |
MA61,RA65 RH |
1 | ||
| 47718-14080 |
MA61 LH |
1 | ||
| 47717-14040 |
MA61 RH |
1 | ||
| 47718-14080 |
MA61,RA65 LH |
1 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-14140 |
MA61,RA65 |
1 | ||
| 47750-14140 |
MA61 |
1 | ||
| 47869R - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-14010 |
MA61 |
2 | ||
| 47769-28010 |
MA61,RA65 |
2 | ||
| 47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-14010 |
MA61,RA65 |
2 | ||
| 47775-14010 |
MA61 |
2 | ||
| 47876 - BOOT, MAIN PIN(FOR REAR DISC BRAKE) | ||||
| 47776-14010 |
MA61,RA65 |
2 | ||
| 47776-14010 |
MA61 |
2 | ||
| Common parts | ||||
| 90101-10017 | ||||
| 90119-08199 | ||||
| 90119-08431 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 4601 | ||||
ILLUST NO. 2 OF 2(8108-8308)MA61 ; (8308- )MA61,RA65
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-14060 |
MA61,RA65 |
1 | ||
| 04466-14060 |
MA61 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-14050 |
MA61 |
1 | ||
| 04946-14050 |
MA61,RA65 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-14050 |
MA61,RA65 |
1 | ||
| 04948-14050 |
MA61 |
1 | ||
