MA61L-BLPQFA (1981)
Toyota Celica
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
MA61,RA6#..EFI |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
MA61,RA6# |
1 | ||
| 77310-16010 |
MA61,RA6# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
MA61,RA6# |
1 | ||
| 77316-12050 |
MA61,RA6# |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-14010 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 77037-24010 |
MA61,RA64 |
1 | ||
| 77037-24010 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-14130 |
MA61,RA6#..LB |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19105 |
MA61,RA65 |
1 | ||
| 77001-19107 |
MA61,RA65 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
MA61,RA6# |
1 | ||
| 90341-20003 |
MA61,RA6# OD=20 |
1 | ||
| 90341-24036 |
MA61,RA64 OD=24 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
MA61,RA64 ID=24 |
1 | ||
| 90430-20006 |
MA61,RA6# ID=20.3 |
1 | ||
| 90430-20007 |
MA61,RA6# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-14230 |
MA61,RA65 |
1 | ||
| 77201-14250 |
MA61,RA65 |
1 | ||
| 77201-14260 |
MA61,RA65 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-14230 |
MA61,RA65 |
1 | ||
| 77201-14250 |
MA61,RA65 |
1 | ||
| 77201-14260 |
MA61,RA65 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-14090 |
MA61,RA6# |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77012-14040 |
MA61,RA65 |
1 | ||
| 77012-14041 |
MA61,RA65 |
1 | ||
| 77202J - GASKET (FOR BREATHER TUBE) | ||||
| 77179-14030 |
MA61,RA6# |
1 | ||
| 77202J - GASKET (FOR BREATHER TUBE) | ||||
| 77179-14030 |
MA61,RA6# |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-24010 |
MA61 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
MA61,RA6#..EFI |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
MA61,RA6#..EFI |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-14100 |
MA61,RA65 |
1 | ||
| 77286A - RETAINER, FUEL FILLER PIPE PROTECTOR | ||||
| 90183-06006 |
MA61,RA6# |
2 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77034-14010 |
MA61,RA6# |
1 | ||
| 77034-14020 |
MA61,RA6# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-14040 |
MA61,RA6# |
1 | ||
| 77350-91D01 |
MA61,RA6#..GT,GTS,SPR |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05009 |
MA61,RA6# |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
MA61,RA6# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-24010 |
MA61,RA6# |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
MA61,RA6# |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-14030 |
MA61,RA65 |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-14030 |
MA61,RA65 |
1 | ||
| 77606D - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-14030 |
MA61,RA65 |
1 | ||
| 77606E - PROTECTOR, FUEL TANK, NO.4 | ||||
| 77641-14080 |
MA61,RA6# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-14030 |
MA61,RA6# LH |
1 | ||
| 77601-14060 |
MA61,RA65 RH |
1 | ||
| 77602-14030 |
MA61,RA65 LH |
1 | ||
| 77601-14060 |
MA61,RA6# RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-14030 |
MA61,RA6# LH |
1 | ||
| 77601-14060 |
MA61,RA65 RH |
1 | ||
| 77602-14030 |
MA61,RA65 LH |
1 | ||
| 77601-14060 |
MA61,RA6# RH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
MA61,RA6# |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77613-14040 |
MA61,RA65 |
1 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77614-14040 |
MA61,RA65 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14080 |
MA61,RA6# |
6 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14080 |
MA61,RA6# |
6 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14080 |
MA61,RA6# |
6 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14080 |
MA61,RA6# |
6 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14080 |
MA61,RA6# |
6 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14080 |
MA61,RA6# |
6 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14080 |
MA61,RA6# |
6 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20010 |
MA61,RA6# 120X120 |
4 | ||
| 77652-14080 |
MA61,RA6# |
6 | ||
| 77652-14060 |
MA61,RA6# 120X70 |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-14090 |
MA61,RA65 |
1 | ||
| Common parts | ||||
| 90119-06150 | ||||
| 90159-50093 | ||||
| 90159-50099 | ||||
| 90159-60055 | ||||
| 90159-60135 | ||||
| 90179-05020 | ||||
| 90179-06039 | ||||
| 90179-10074 | ||||
| 90179-12016 | ||||
| 90183-06065 | ||||
| 90460-62003 | ||||
| 90461-06099 | ||||
| 90461-06177 | ||||
| 90463-12002 | ||||
| 90467-12009 | ||||
| 90468-14004 | ||||
| 91511-40610 | ||||
| 91615-60820 | ||||
| 91655-40620 | ||||
| 91661-40816 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96111-10630 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 6709 | ||||

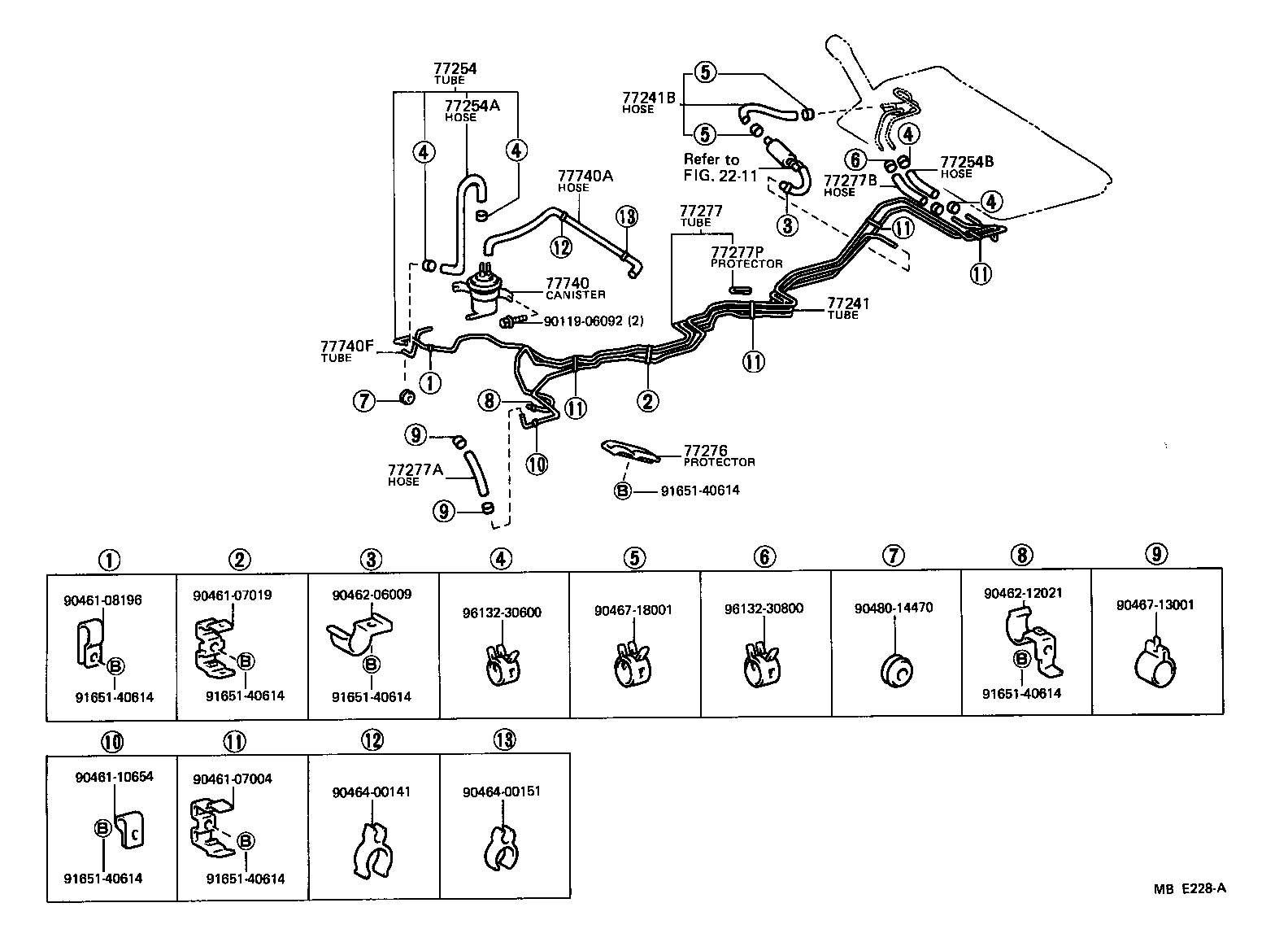

(8108- )MA61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14280 |
MA61 |
1 | ||
| 77251-14350 |
MA61 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 90445-20022 |
MA61,RA65 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-14230 |
MA61 |
1 | ||
| 77261-14180 |
MA61 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06040 |
MA61 *H,L=360 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
MA61,RA65..LB *H,L=140 |
1 | ||
| 95332-06020 |
MA61 *H,L=140 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22010 |
MA61 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-14350 |
MA61 |
1 | ||
| 77255-14280 |
MA61 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-43010 |
MA61 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
MA61 *H,L=140,ID=7.6 |
1 | ||
| 77277P - PROTECTOR(FOR FUEL RETURN HOSE) | ||||
| 32926-30011 |
MA61 |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-14320 |
MA61 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-05005 |
MA61 |
1 | ||
| 95411-19995 |
MA61 *H,L=850,MARK=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-14080 |
MA61 |
1 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 90461-07004 | ||||
| 90461-07019 | ||||
| 90461-08196 | ||||
| 90461-10654 | ||||
| 90462-06009 | ||||
| 90462-12021 | ||||
| 90464-00141 | ||||
| 90464-00151 | ||||
| 90467-13001 | ||||
| 90467-18001 | ||||
| 90480-14470 | ||||
| 91651-40614 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2211 | ||||
