MA61L-BLPQFA (1981)
Toyota Celica

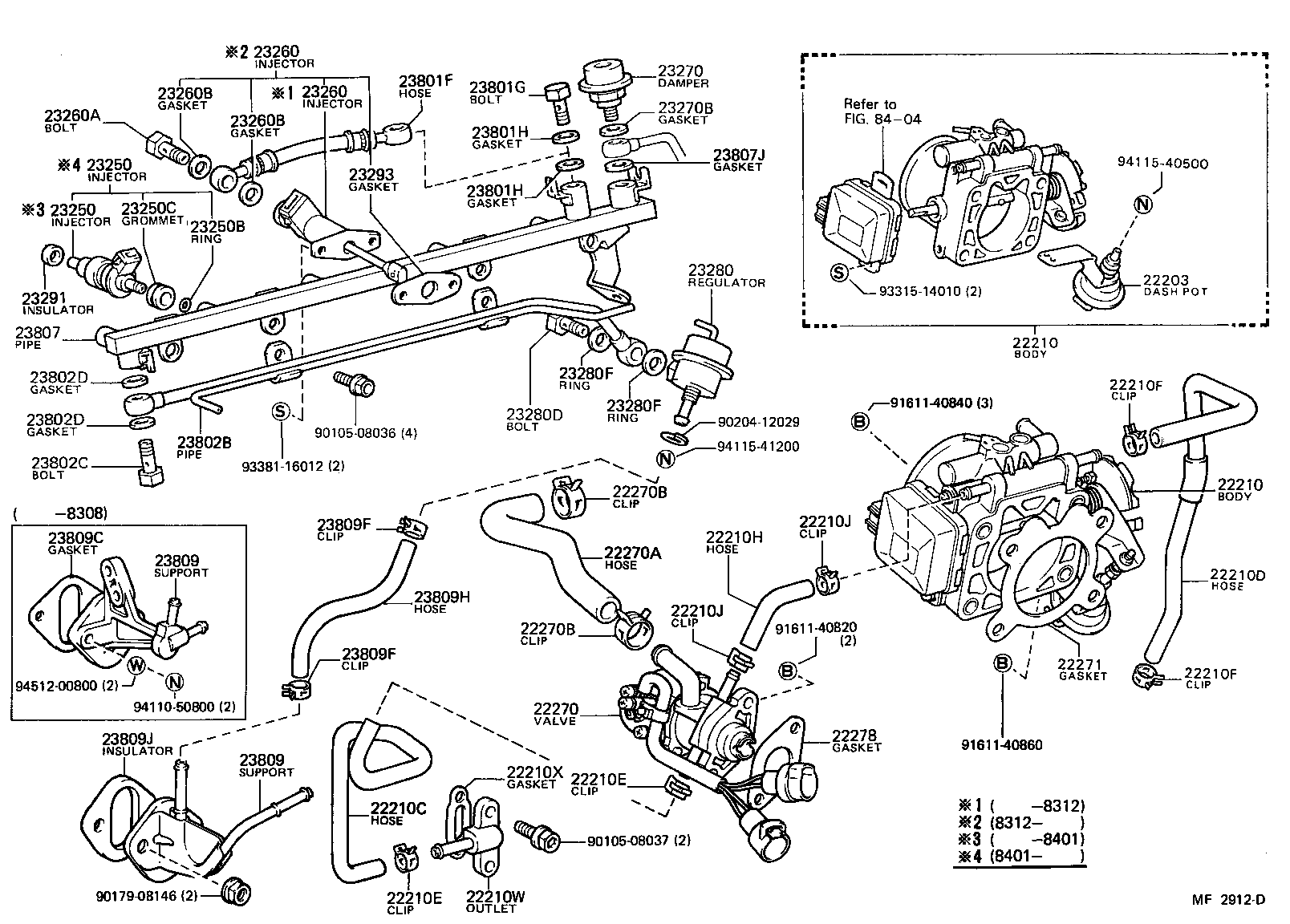

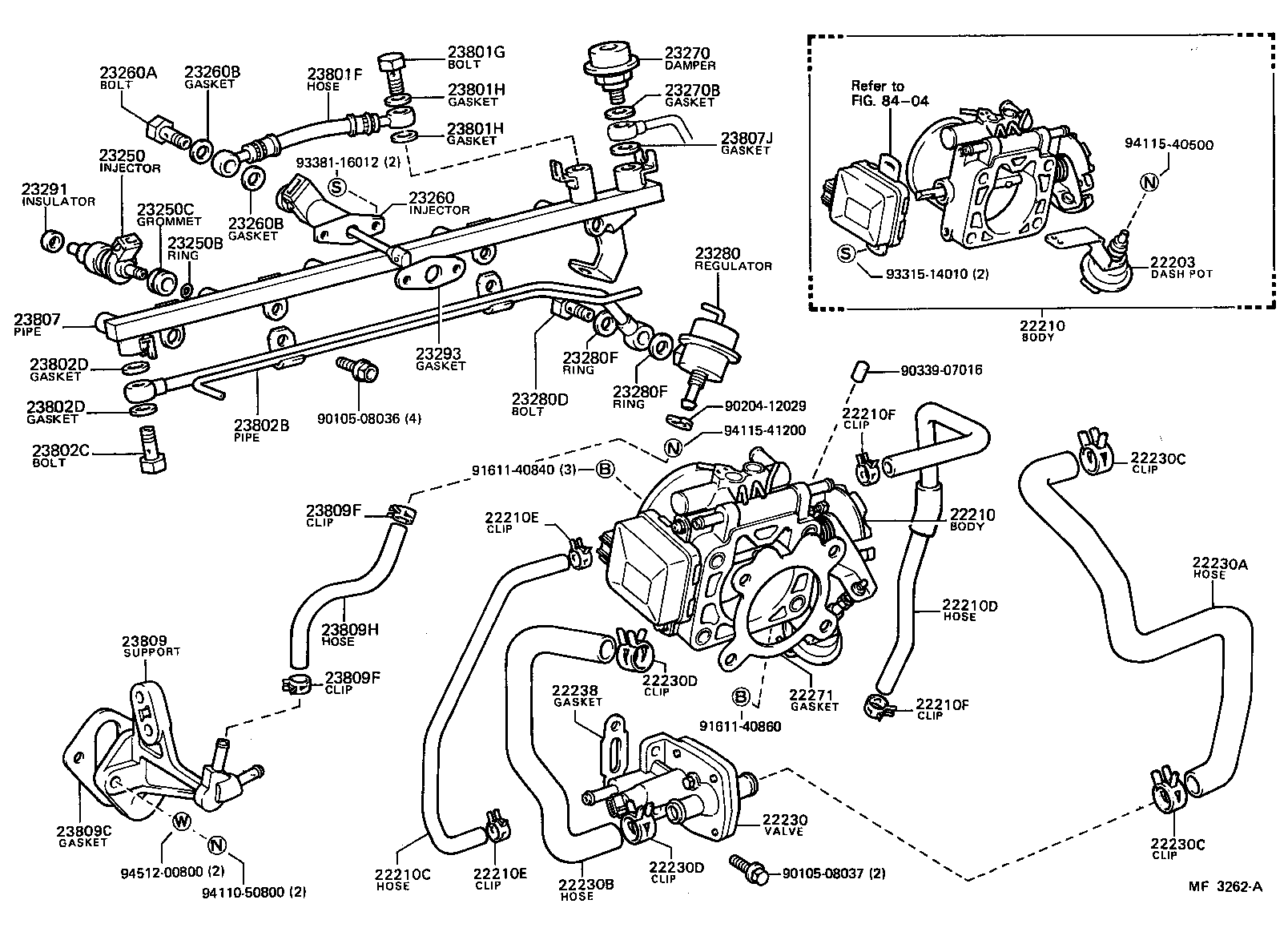

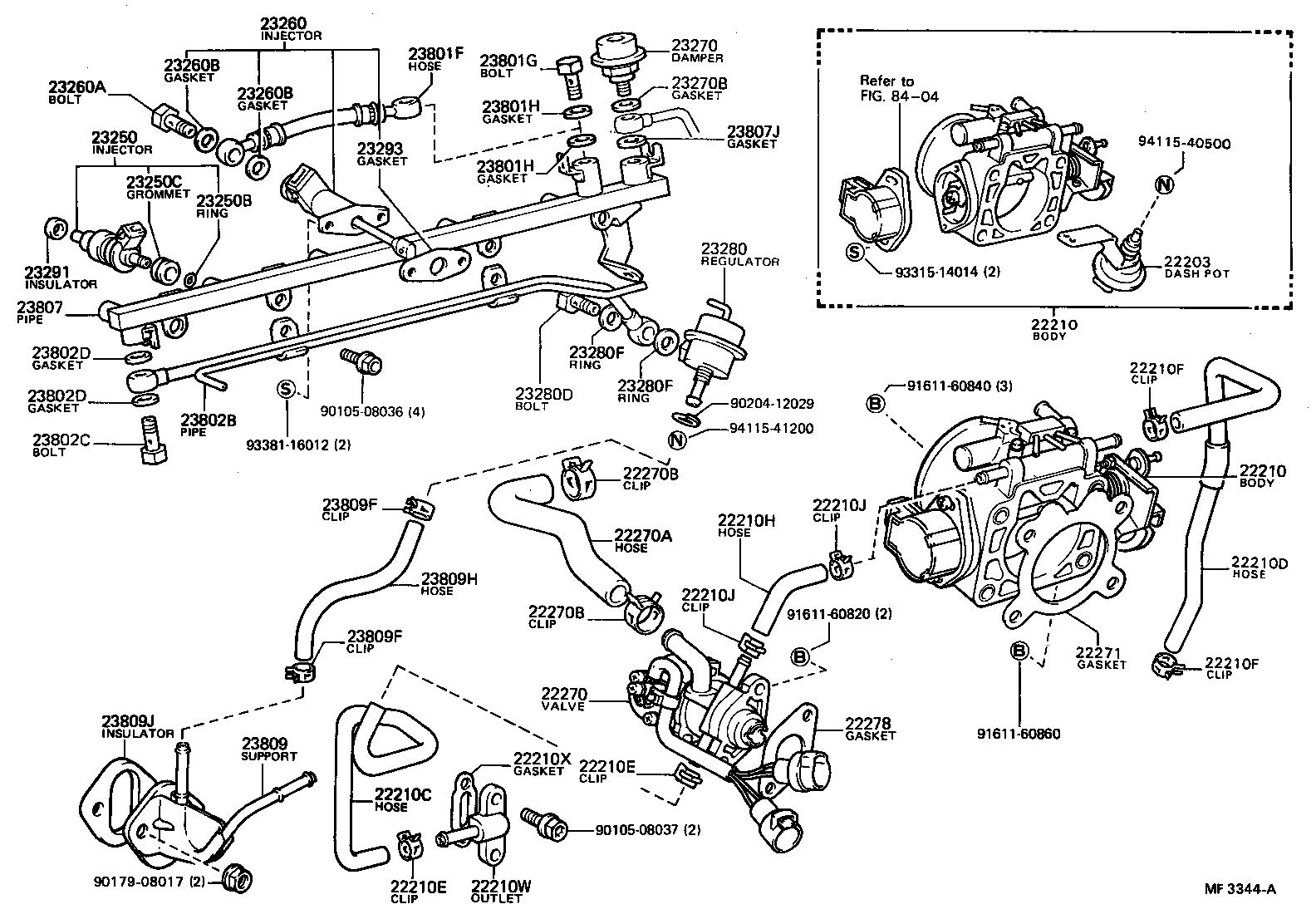

(8208-8408)5MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-43030 |
5MGE..MA61..4FC |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-43110 |
5MGE..MA61..4FC |
1 | ||
| 22210-43170 |
5MGE..MA61..4FC |
1 | ||
| 22210-43111 |
5MGE..MA61..4FC |
1 | ||
| 22210-43330 |
5MGE..MA61..4FC |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-43110 |
5MGE..MA61..4FC |
1 | ||
| 22210-43170 |
5MGE..MA61..4FC |
1 | ||
| 22210-43111 |
5MGE..MA61..4FC |
1 | ||
| 22210-43330 |
5MGE..MA61..4FC |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-43020 |
5MGE..MA61 |
1 | ||
| 16261-43030 |
5MGE..MA61 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-43020 |
5MGE..MA61 |
1 | ||
| 16264-43021 |
5MGE..MA61 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210H - HOSE, WATER BY-PASS, NO.3 | ||||
| 16281-43020 |
5MGE..MA61 |
1 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210W - OUTLET, WATER BY-PASS | ||||
| 16351-43010 |
5MGE..MA61 |
1 | ||
| 22210X - GASKET, WATER OUTLET | ||||
| 22238-43010 |
5MGE..MA61 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-43010 |
5MGE..MA61 |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17347-43010 |
5MGE..MA61 AIR CONNECTER-ISC |
1 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-23003 |
5MGE..MA61 AIR HOSE NO.7 |
2 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-23003 |
5MGE..MA61 AIR HOSE NO.7 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-43010 |
5MGE..MA61 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-43010 |
5MGE..MA61 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-45011 |
5MGE..MA61 |
6 | ||
| 23209-45011 |
5MGE..MA61 |
6 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-45011 |
5MGE..MA61 |
6 | ||
| 23209-45011 |
5MGE..MA61 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5MGE..MA61 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5MGE..MA61 |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-43010 |
5MGE..MA61 |
1 | ||
| 23260-43020 |
5MGE..MA61 |
1 | ||
| 23260-49075 |
5MGE..MA61 |
1 | ||
| 23260-49095 |
5MGE..MA61 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-43010 |
5MGE..MA61 |
1 | ||
| 23260-43020 |
5MGE..MA61 |
1 | ||
| 23260-49075 |
5MGE..MA61 |
1 | ||
| 23260-49095 |
5MGE..MA61 |
1 | ||
| 23260A - BOLT, UNION | ||||
| 90401-10008 |
5MGE..MA61 |
1 | ||
| 23260B - GASKET | ||||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23260B - GASKET | ||||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-43010 |
5MGE..MA61 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-17002 |
5MGE..MA61 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-43020 |
5MGE..MA61 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-12097 |
5MGE..MA61 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5MGE..MA61 |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-43010 |
5MGE..MA61 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01250 |
5MGE..MA61 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-10008 |
5MGE..MA61 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-10204 |
5MGE..MA61 |
2 | ||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-10204 |
5MGE..MA61 |
2 | ||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-43010 |
5MGE..MA61 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12097 |
5MGE..MA61 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-43020 |
5MGE..MA61 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-14002 |
5MGE..MA61 |
1 | ||
| 23809 - SUPPORT SUB-ASSY, FUEL PIPE | ||||
| 23849-41021 |
5MGE..MA61 |
1 | ||
| 23849-41050 |
5MGE..MA61 |
1 | ||
| 23809 - SUPPORT SUB-ASSY, FUEL PIPE | ||||
| 23849-41021 |
5MGE..MA61 |
1 | ||
| 23849-41050 |
5MGE..MA61 |
1 | ||
| 23809C - GASKET, FUEL PIPE SUPPORT | ||||
| 90923-05004 |
5MGE..MA61 |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 23271-43050 |
5MGE..MA61 |
1 | ||
| 23271-43030 |
5MGE..MA61 |
1 | ||
| 23809J - INSULATOR, FUEL PIPE SUPPORT | ||||
| 90923-06007 |
5MGE..MA61 |
1 | ||
| Common parts | ||||
| 90105-08036 | ||||
| 90105-08037 | ||||
| 90179-08146 | ||||
| 90204-12029 | ||||
| 91611-40820 | ||||
| 91611-40840 | ||||
| 91611-40860 | ||||
| 93315-14010 | ||||
| 93381-16012 | ||||
| 94110-50800 | ||||
| 94115-40500 | ||||
| 94115-41200 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8404 | ||||

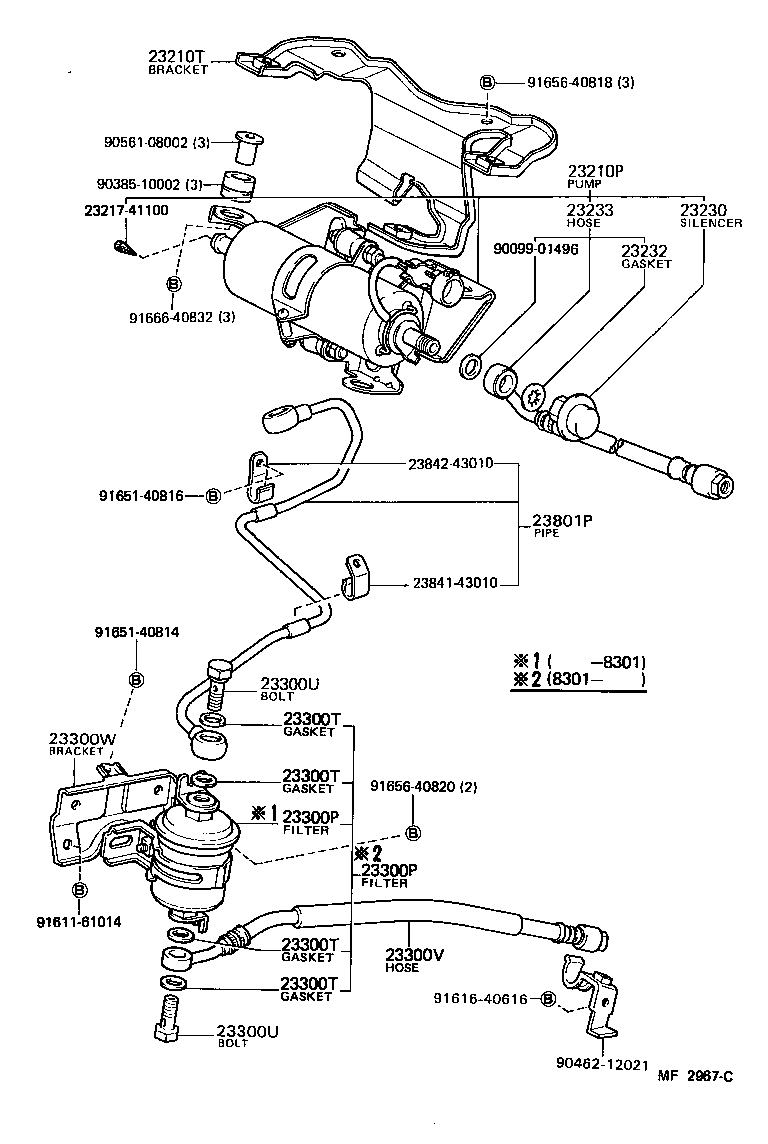

(8108-8308)5MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-43040 |
5MGE..MA61 |
1 | ||
| 23210T - BRACKET, FUEL PUMP | ||||
| 23265-70010 |
5MGE..MA61 |
1 | ||
| 23230 - SILENCER ASSY | ||||
| 23230-26080 |
5MGE..MA61 |
1 | ||
| 23230-74020 |
5MGE..MA61 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
5MGE..MA61 |
1 | ||
| 23232-26080 |
5MGE..MA61 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 90999-99087 |
5MGE..MA61 |
1 | ||
| 23239-16010 |
5MGE..MA61 PUMP TO BRACKET |
1 | ||
| 90999-99113 |
5MGE..MA61 |
1 | ||
| 90923-01289 |
5MGE..MA61 BRACKET TO FUEL PIPE |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-43020 |
5MGE..MA61 |
1 | ||
| 23300-49025 |
5MGE..MA61 |
1 | ||
| 23300-49065 |
5MGE..MA61 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-43020 |
5MGE..MA61 |
1 | ||
| 23300-49025 |
5MGE..MA61 |
1 | ||
| 23300-49065 |
5MGE..MA61 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MGE..MA61 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MGE..MA61 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MGE..MA61 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MGE..MA61 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
5MGE..MA61 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
5MGE..MA61 |
2 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01221 |
5MGE..MA61 |
1 | ||
| 23300W - BRACKET, FUEL FILTER | ||||
| 23264-43010 |
5MGE..MA61 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-43020 |
5MGE..MA61 |
1 | ||
| Common parts | ||||
| 23217-41100 | ||||
| 23841-43010 | ||||
| 23842-43010 | ||||
| 90099-01496 | ||||
| 90385-10002 | ||||
| 90462-12021 | ||||
| 90561-08002 | ||||
| 91611-61014 | ||||
| 91616-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91656-40818 | ||||
| 91656-40820 | ||||
| 91666-40832 | ||||
(8308- )5MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-70060 |
5MGE..MA61 DENSO |
1 | ||
| 23206-70060 |
5MGE..MA61 DENSO |
1 | ||
| 23206-70070 |
5MGE..MA61 |
1 | ||
| 23206-70070 |
5MGE..MA61 |
1 | ||
| 23206-70070 |
5MGE..MA61 AISAN |
1 | ||
| 23206-70070 |
5MGE..MA61 AISAN |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
5MGE..MA61 |
1 | ||
| 77169-14010 |
5MGE..MA61 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16042 |
5MGE..MA61 AISAN |
1 | ||
| 23217-16042 |
5MGE..MA61 AISAN |
1 | ||
| 23217-16030 |
5MGE..MA61 DENSO |
1 | ||
| 23217-16030 |
5MGE..MA61 DENSO |
1 | ||
| 23217-16043 |
5MGE..MA61 AISAN |
1 | ||
| 23217-16043 |
5MGE..MA61 AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16070 |
5MGE..MA61 DENSO |
1 | ||
| 23220-16070 |
5MGE..MA61 DENSO |
1 | ||
| 23220-16080 |
5MGE..MA61 AISAN |
1 | ||
| 23220-16080 |
5MGE..MA61 AISAN |
1 | ||
| 23220-16080 |
5MGE..MA61 |
1 | ||
| 23220-16080 |
5MGE..MA61 |
1 | ||
| 23220-16081 |
5MGE..MA61 |
1 | ||
| 23220-16081 |
5MGE..MA61 |
1 | ||
| 23220-19015 |
5MGE..MA61 DENSO |
1 | ||
| 23220-19015 |
5MGE..MA61 DENSO |
1 | ||
| 23220-16081 |
5MGE..MA61 AISAN |
1 | ||
| 23220-16081 |
5MGE..MA61 AISAN |
1 | ||
| 23220-16082 |
5MGE..MA61 AISAN |
1 | ||
| 23220-16082 |
5MGE..MA61 AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16070 |
5MGE..MA61 DENSO |
1 | ||
| 23220-16070 |
5MGE..MA61 DENSO |
1 | ||
| 23220-16080 |
5MGE..MA61 AISAN |
1 | ||
| 23220-16080 |
5MGE..MA61 AISAN |
1 | ||
| 23220-16080 |
5MGE..MA61 |
1 | ||
| 23220-16080 |
5MGE..MA61 |
1 | ||
| 23220-16081 |
5MGE..MA61 |
1 | ||
| 23220-16081 |
5MGE..MA61 |
1 | ||
| 23220-19015 |
5MGE..MA61 DENSO |
1 | ||
| 23220-19015 |
5MGE..MA61 DENSO |
1 | ||
| 23220-16081 |
5MGE..MA61 AISAN |
1 | ||
| 23220-16081 |
5MGE..MA61 AISAN |
1 | ||
| 23220-16082 |
5MGE..MA61 AISAN |
1 | ||
| 23220-16082 |
5MGE..MA61 AISAN |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
5MGE..MA61 DENSO |
1 | ||
| 23229-16010 |
5MGE..MA61 DENSO |
1 | ||
| 23229-16020 |
5MGE..MA61 AISAN |
1 | ||
| 23229-16020 |
5MGE..MA61 AISAN |
1 | ||
| 23229-16010 |
5MGE..MA61 |
1 | ||
| 23229-16010 |
5MGE..MA61 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 90999-99087 |
5MGE..MA61 |
1 | ||
| 90999-99087 |
5MGE..MA61 |
1 | ||
| 23239-16010 |
5MGE..MA61 PUMP TO BRACKET |
1 | ||
| 23239-16010 |
5MGE..MA61 PUMP TO BRACKET |
1 | ||
| 90999-99113 |
5MGE..MA61 |
1 | ||
| 90999-99113 |
5MGE..MA61 |
1 | ||
| 90923-01289 |
5MGE..MA61 BRACKET TO FUEL PIPE |
1 | ||
| 90923-01289 |
5MGE..MA61 BRACKET TO FUEL PIPE |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 90999-99087 |
5MGE..MA61 |
1 | ||
| 90999-99087 |
5MGE..MA61 |
1 | ||
| 23239-16010 |
5MGE..MA61 PUMP TO BRACKET |
1 | ||
| 23239-16010 |
5MGE..MA61 PUMP TO BRACKET |
1 | ||
| 90999-99113 |
5MGE..MA61 |
1 | ||
| 90999-99113 |
5MGE..MA61 |
1 | ||
| 90923-01289 |
5MGE..MA61 BRACKET TO FUEL PIPE |
1 | ||
| 90923-01289 |
5MGE..MA61 BRACKET TO FUEL PIPE |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-16010 |
5MGE..MA61 AISAN |
1 | ||
| 23249-16010 |
5MGE..MA61 AISAN |
1 | ||
| 23249-16010 |
5MGE..MA61 |
1 | ||
| 23249-16010 |
5MGE..MA61 |
1 | ||
| 23249-43080 |
5MGE..MA61 DENSO |
1 | ||
| 23249-43080 |
5MGE..MA61 DENSO |
1 | ||
| Common parts | ||||
| 90989-01008 | ||||
| 93381-15010 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
(8308- )5MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-43020 |
5MGE..MA61 |
1 | ||
| 23300-49025 |
5MGE..MA61 |
1 | ||
| 23300-49065 |
5MGE..MA61 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MGE..MA61 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MGE..MA61 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MGE..MA61 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MGE..MA61 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
5MGE..MA61 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
5MGE..MA61 |
2 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01221 |
5MGE..MA61 |
1 | ||
| 23300W - BRACKET, FUEL FILTER | ||||
| 23264-43010 |
5MGE..MA61 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-43020 |
5MGE..MA61 |
1 | ||
| Common parts | ||||
| 23841-43010 | ||||
| 23842-43010 | ||||
| 90462-12021 | ||||
| 91611-41014 | ||||
| 91616-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91656-40820 | ||||
(8108-8208)5MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-43030 |
5MGE..MA61..4FC |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-43110 |
5MGE..MA61..4FC |
1 | ||
| 22210-43170 |
5MGE..MA61..4FC |
1 | ||
| 22210-43111 |
5MGE..MA61..4FC |
1 | ||
| 22210-43330 |
5MGE..MA61..4FC |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-43110 |
5MGE..MA61..4FC |
1 | ||
| 22210-43170 |
5MGE..MA61..4FC |
1 | ||
| 22210-43111 |
5MGE..MA61..4FC |
1 | ||
| 22210-43330 |
5MGE..MA61..4FC |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-43020 |
5MGE..MA61 |
1 | ||
| 16261-43030 |
5MGE..MA61 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-43020 |
5MGE..MA61 |
1 | ||
| 16264-43021 |
5MGE..MA61 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-43020 |
5MGE..MA61 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 17341-43030 |
5MGE..MA61 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 17342-43020 |
5MGE..MA61 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-23003 |
5MGE..MA61 ID=23 |
1 | ||
| 90467-21001 |
5MGE..MA61 ID=21 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-23003 |
5MGE..MA61 ID=23 |
1 | ||
| 90467-21001 |
5MGE..MA61 ID=21 |
1 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-23003 |
5MGE..MA61 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-23003 |
5MGE..MA61 |
2 | ||
| 22238 - GASKET, AUXILIARY AIR VALVE | ||||
| 22238-43010 |
5MGE..MA61 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-43010 |
5MGE..MA61 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-45011 |
5MGE..MA61 |
6 | ||
| 23209-45011 |
5MGE..MA61 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5MGE..MA61 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5MGE..MA61 |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-43010 |
5MGE..MA61 |
1 | ||
| 23260-43020 |
5MGE..MA61 |
1 | ||
| 23260-49075 |
5MGE..MA61 |
1 | ||
| 23260-49095 |
5MGE..MA61 |
1 | ||
| 23260A - BOLT, UNION | ||||
| 90401-10008 |
5MGE..MA61 |
1 | ||
| 23260B - GASKET | ||||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23260B - GASKET | ||||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-43010 |
5MGE..MA61 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-17002 |
5MGE..MA61 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-43020 |
5MGE..MA61 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-12097 |
5MGE..MA61 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5MGE..MA61 |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-43010 |
5MGE..MA61 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01250 |
5MGE..MA61 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-10008 |
5MGE..MA61 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-10204 |
5MGE..MA61 |
2 | ||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-10204 |
5MGE..MA61 |
2 | ||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-43010 |
5MGE..MA61 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12097 |
5MGE..MA61 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-43020 |
5MGE..MA61 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-14002 |
5MGE..MA61 |
1 | ||
| 23809 - SUPPORT SUB-ASSY, FUEL PIPE | ||||
| 23849-41021 |
5MGE..MA61 |
1 | ||
| 23849-41050 |
5MGE..MA61 |
1 | ||
| 23809C - GASKET, FUEL PIPE SUPPORT | ||||
| 90923-05004 |
5MGE..MA61 |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 23271-43050 |
5MGE..MA61 |
1 | ||
| 23271-43030 |
5MGE..MA61 |
1 | ||
| Common parts | ||||
| 90105-08036 | ||||
| 90105-08037 | ||||
| 90204-12029 | ||||
| 90339-07016 | ||||
| 91611-40840 | ||||
| 91611-40860 | ||||
| 93315-14010 | ||||
| 93381-16012 | ||||
| 94110-50800 | ||||
| 94115-40500 | ||||
| 94115-41200 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8404 | ||||
(8408- )5MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-43030 |
5MGE..MA61..4FC |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-43110 |
5MGE..MA61..4FC |
1 | ||
| 22210-43170 |
5MGE..MA61..4FC |
1 | ||
| 22210-43111 |
5MGE..MA61..4FC |
1 | ||
| 22210-43330 |
5MGE..MA61..4FC |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-43110 |
5MGE..MA61..4FC |
1 | ||
| 22210-43170 |
5MGE..MA61..4FC |
1 | ||
| 22210-43111 |
5MGE..MA61..4FC |
1 | ||
| 22210-43330 |
5MGE..MA61..4FC |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-43020 |
5MGE..MA61 |
1 | ||
| 16261-43030 |
5MGE..MA61 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-43020 |
5MGE..MA61 |
1 | ||
| 16264-43021 |
5MGE..MA61 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210H - HOSE, WATER BY-PASS, NO.3 | ||||
| 16281-43020 |
5MGE..MA61 |
1 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 22210W - OUTLET, WATER BY-PASS | ||||
| 16351-43010 |
5MGE..MA61 |
1 | ||
| 22210X - GASKET, WATER OUTLET | ||||
| 22238-43010 |
5MGE..MA61 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-43010 |
5MGE..MA61 |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17347-43010 |
5MGE..MA61 AIR CONNECTER-ISC |
1 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-23003 |
5MGE..MA61 AIR HOSE NO.7 |
2 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-23003 |
5MGE..MA61 AIR HOSE NO.7 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-43010 |
5MGE..MA61 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-43010 |
5MGE..MA61 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-45011 |
5MGE..MA61 |
6 | ||
| 23209-45011 |
5MGE..MA61 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5MGE..MA61 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5MGE..MA61 |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-43010 |
5MGE..MA61 |
1 | ||
| 23260-43020 |
5MGE..MA61 |
1 | ||
| 23260-49075 |
5MGE..MA61 |
1 | ||
| 23260-49095 |
5MGE..MA61 |
1 | ||
| 23260A - BOLT, UNION | ||||
| 90401-10008 |
5MGE..MA61 |
1 | ||
| 23260B - GASKET | ||||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23260B - GASKET | ||||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-43010 |
5MGE..MA61 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-17002 |
5MGE..MA61 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-43020 |
5MGE..MA61 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-12097 |
5MGE..MA61 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5MGE..MA61 |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-43010 |
5MGE..MA61 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01250 |
5MGE..MA61 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-10008 |
5MGE..MA61 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-10204 |
5MGE..MA61 |
2 | ||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-10204 |
5MGE..MA61 |
2 | ||
| 90099-01459 |
5MGE..MA61 |
2 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-43010 |
5MGE..MA61 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12097 |
5MGE..MA61 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
5MGE..MA61 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-43020 |
5MGE..MA61 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-14002 |
5MGE..MA61 |
1 | ||
| 23809 - SUPPORT SUB-ASSY, FUEL PIPE | ||||
| 23849-41021 |
5MGE..MA61 |
1 | ||
| 23849-41050 |
5MGE..MA61 |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
5MGE..MA61 |
2 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 23271-43050 |
5MGE..MA61 |
1 | ||
| 23271-43030 |
5MGE..MA61 |
1 | ||
| 23809J - INSULATOR, FUEL PIPE SUPPORT | ||||
| 90923-06007 |
5MGE..MA61 |
1 | ||
| Common parts | ||||
| 90105-08036 | ||||
| 90105-08037 | ||||
| 90179-08017 | ||||
| 90204-12029 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91611-60860 | ||||
| 93315-14014 | ||||
| 93381-16012 | ||||
| 94115-40500 | ||||
| 94115-41200 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
