MA61L-BLPQFA (1981)

Toyota Celica

Production Aug 1981 - Dec 1985
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

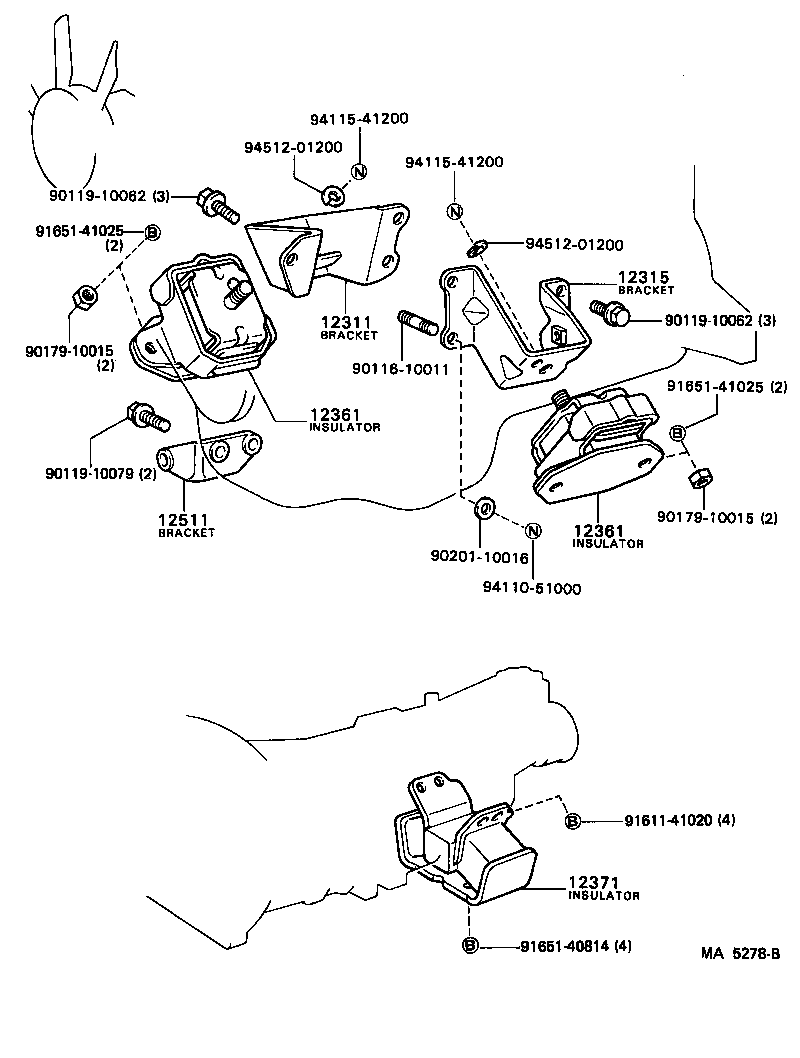

(8108-8408)5MGE

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9011610011 9011910062 9011910062 9011910079 9017910015 9017910015 9020110016 9161141020 9165140814 9165141025 9165141025 9411051000 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41051

5MGE..MA61

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41071

5MGE..MA61

 1
12315-41070

5MGE..MA61

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41082

5MGE..MA61

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41082

5MGE..MA61

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-43020

5MGE..MA61

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-43010

5MGE..MA61

 1
12511-41030

5MGE..MA61

 1
Common parts
90116-10011
90119-10062
90119-10079
90179-10015
90201-10016
91611-41020
91651-40814
91651-41025
94110-51000
94115-41200
94512-01200

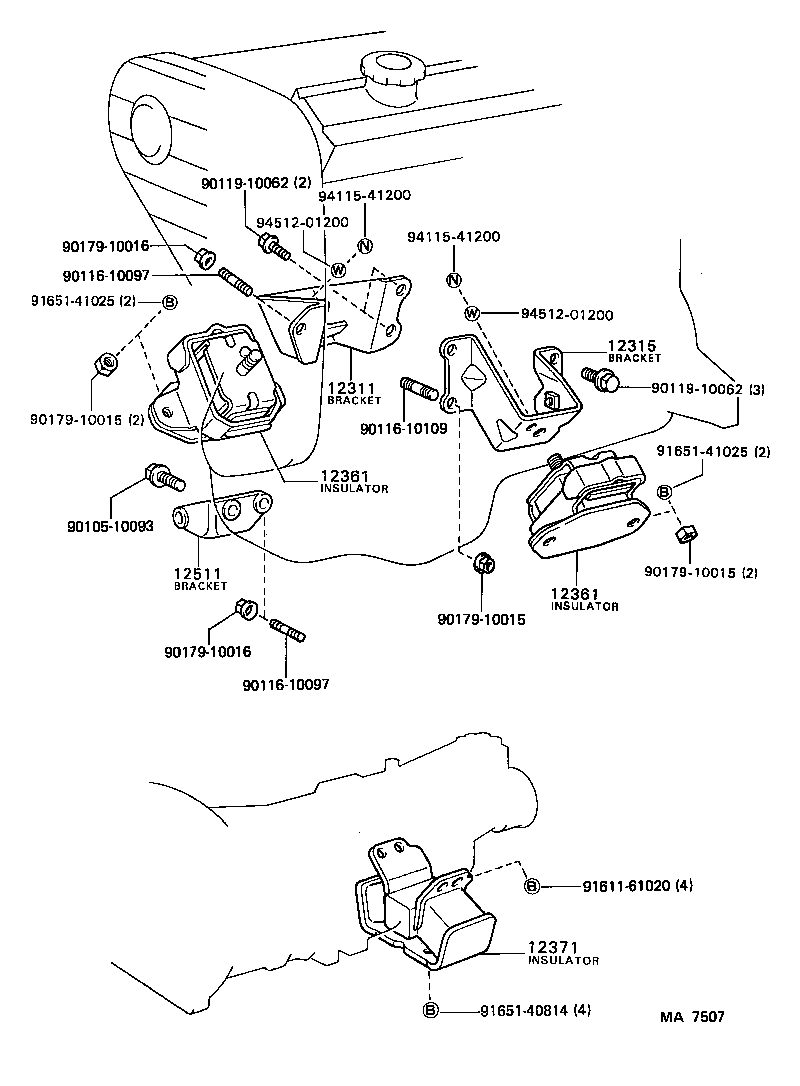

(8408- )5MGE

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9010510093 9011610097 9011610097 9011610109 9011910062 9011910062 9017910015 9017910015 9017910015 9017910016 9017910016 9161161020 9165140814 9165141025 9165141025 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41051

5MGE..MA61

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41071

5MGE..MA61

 1
12315-41070

5MGE..MA61

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41082

5MGE..MA61

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41082

5MGE..MA61

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-43020

5MGE..MA61

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-43010

5MGE..MA61

 1
12511-41030

5MGE..MA61

 1
Common parts
90105-10093
90116-10097
90116-10109
90119-10062
90179-10015
90179-10016
91611-61020
91651-40814
91651-41025
94115-41200
94512-01200
