MA61L-BLMQFK (1981)
Toyota Celica
Production
Aug 1981
-
Dec 1985
Engine
5MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )MA61,RA65

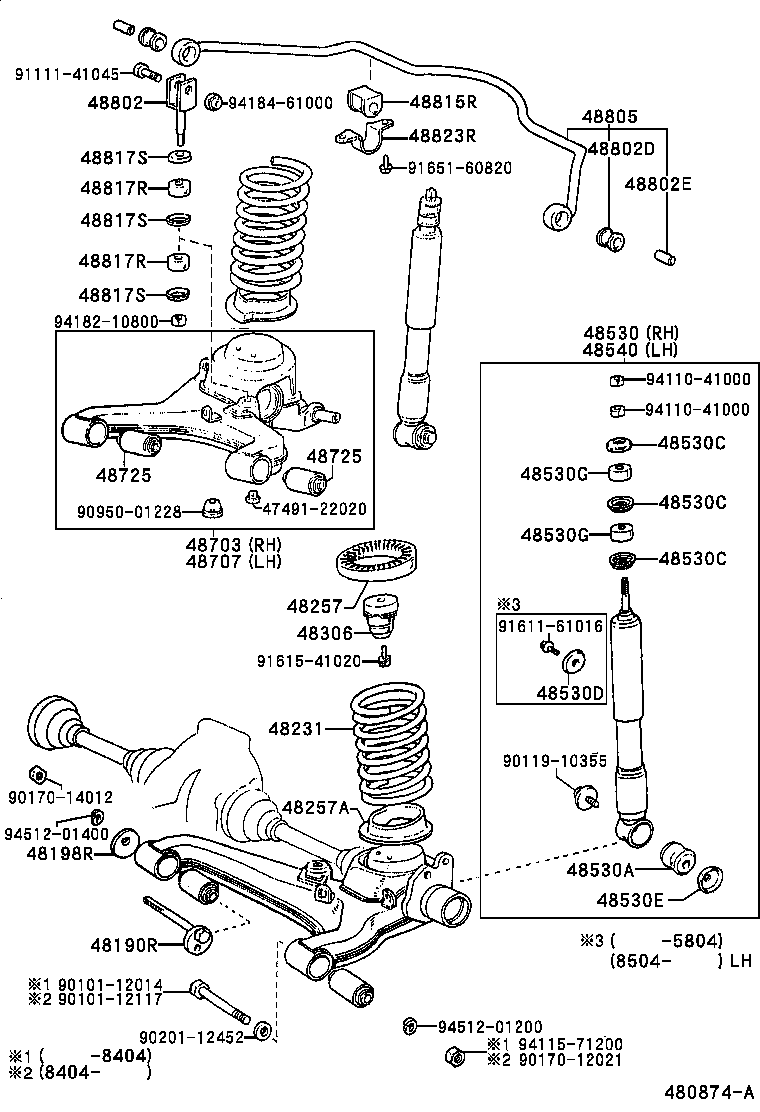

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48190R - CAM ASSY, CAMBER ADJUST | ||||
| 48190-22010 |
MA61,RA65 |
2 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-22010 |
MA61,RA65 |
2 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-14641 |
MA61 |
2 | ||
| 48231-14640 |
MA61 |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-22030 |
MA61,RA65 |
2 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-22050 |
MA61,RA65 LH |
1 | ||
| 48258-22040 |
MA61,RA65 RH |
1 | ||
| 48258-22041 |
MA61,RA65 RH |
1 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-22060 |
MA61,RA65 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19845 |
MA61,RA65 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16001 |
MA61,RA6# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
MA61,RA65 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
MA61,RA65 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
MA61,RA65 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02047 |
MA61,RA6# RH |
1 | ||
| 90948-02085 |
MA61,RA6# RH |
1 | ||
| 90948-03012 |
MA61,RA6# LH |
1 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
MA61,RA6# |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
MA61,RA65 UPR |
2 | ||
| 90948-01019 |
MA61,RA65 LWR |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
MA61,RA65 UPR |
2 | ||
| 90948-01019 |
MA61,RA65 LWR |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19845 |
MA61,RA65 |
1 | ||
| 48703 - ARM SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48703-22900 |
MA61 |
1 | ||
| 48703-22900 |
MA61,RA65 |
1 | ||
| 48703-22906 |
MA61,RA65 |
1 | ||
| 48707 - ARM SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48707-22900 |
MA61,RA65 |
1 | ||
| 48707-22906 |
MA61,RA65 |
1 | ||
| 48707-22900 |
MA61 |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-22040 |
MA61,RA65 INNER |
2 | ||
| 48725-22030 |
MA61,RA65 OUTER |
2 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-22040 |
MA61,RA65 INNER |
2 | ||
| 48725-22030 |
MA61,RA65 OUTER |
2 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-14030 |
MA61,RA65 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-11021 |
MA61,RA6# |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
MA61,RA6# |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-14150 |
MA61 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-14050 |
MA61 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
MA61,RA6# |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
MA61,RA6# |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
MA61,RA6# T=1.2 |
4 | ||
| 90948-02025 |
MA61,RA6# T=1.0 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
MA61,RA6# T=1.2 |
4 | ||
| 90948-02025 |
MA61,RA6# T=1.0 |
2 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02024 |
MA61,RA6# T=1.2 |
4 | ||
| 90948-02025 |
MA61,RA6# T=1.0 |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48832-14020 |
MA61,RA65 |
2 | ||
| Common parts | ||||
| 47491-22020 | ||||
| 90101-12014 | ||||
| 90101-12117 | ||||
| 90119-10355 | ||||
| 90170-12021 | ||||
| 90170-14012 | ||||
| 90201-12452 | ||||
| 90950-01228 | ||||
| 91111-41045 | ||||
| 91611-61016 | ||||
| 91615-41020 | ||||
| 91651-60820 | ||||
| 94110-41000 | ||||
| 94115-71200 | ||||
| 94182-10800 | ||||
| 94184-61000 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
