MA61L-BLMQFA (1981)
Toyota Celica
Production
Aug 1981
-
Dec 1985
Engine
5MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )MA61..5F

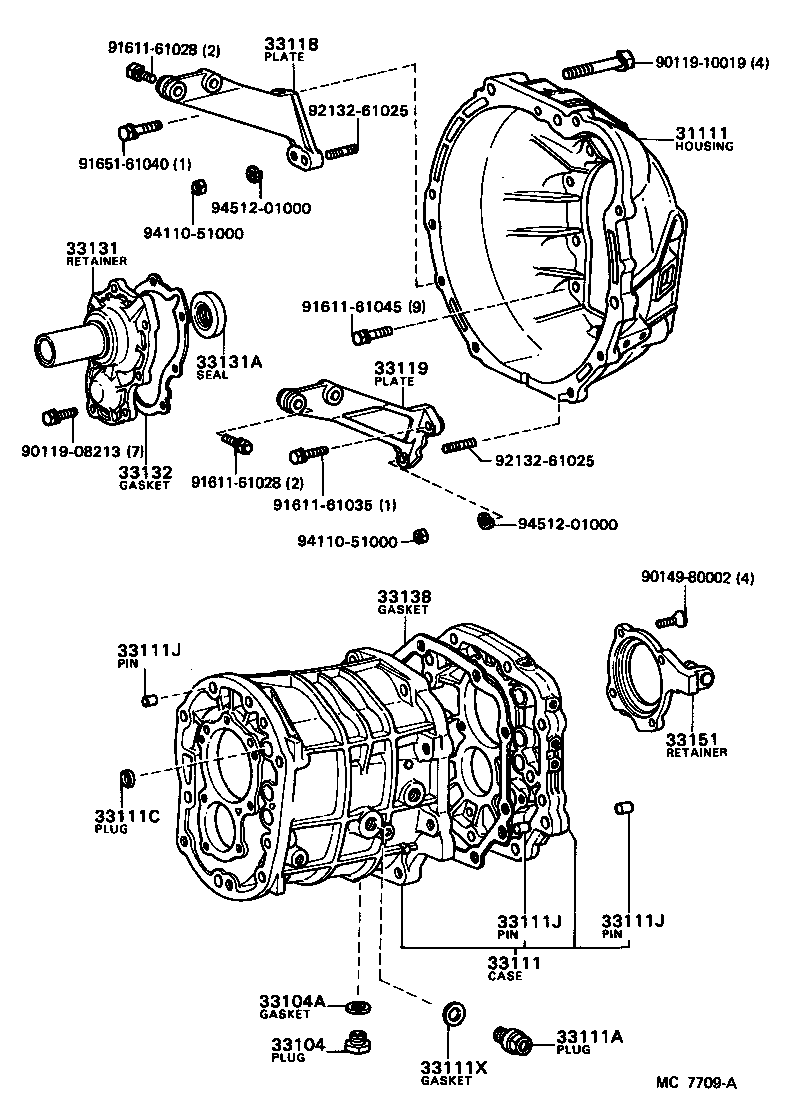

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22091 |
MA61..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
MA61,RA6#..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
MA61,RA6#..5F |
1 | ||
| 90430-18007 |
MA61,RA6#..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-22021 |
MA61,RA6#..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
MA61,RA6#..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
MA61,RA6#..5F OD=14 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
MA61,RA64..5F L=17,OD=12,L=17 |
2 | ||
| 90250-12002 |
MA61,RA6#..5F L=16,OD=12 |
6 | ||
| 90250-12002 |
MA61,RA64..5F L=16,OD=12,L=16 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
MA61,RA64..5F L=17,OD=12,L=17 |
2 | ||
| 90250-12002 |
MA61,RA6#..5F L=16,OD=12 |
6 | ||
| 90250-12002 |
MA61,RA64..5F L=16,OD=12,L=16 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
MA61,RA64..5F L=17,OD=12,L=17 |
2 | ||
| 90250-12002 |
MA61,RA6#..5F L=16,OD=12 |
6 | ||
| 90250-12002 |
MA61,RA64..5F L=16,OD=12,L=16 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
MA61,RA6#..5F |
1 | ||
| 90430-18008 |
MA61,RA6#..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-22040 |
MA61..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-22030 |
MA61..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-22020 |
MA61,RA6#..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
MA61,RA6#..5F |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-22010 |
MA61,RA6#..5F |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33142-22010 |
MA61,RA6#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33107-22010 |
MA61,RA6#..5F |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90119-10019 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91651-61040 | ||||
| 92132-61025 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
