MA61L-BLMQFA (1981)
Toyota Celica

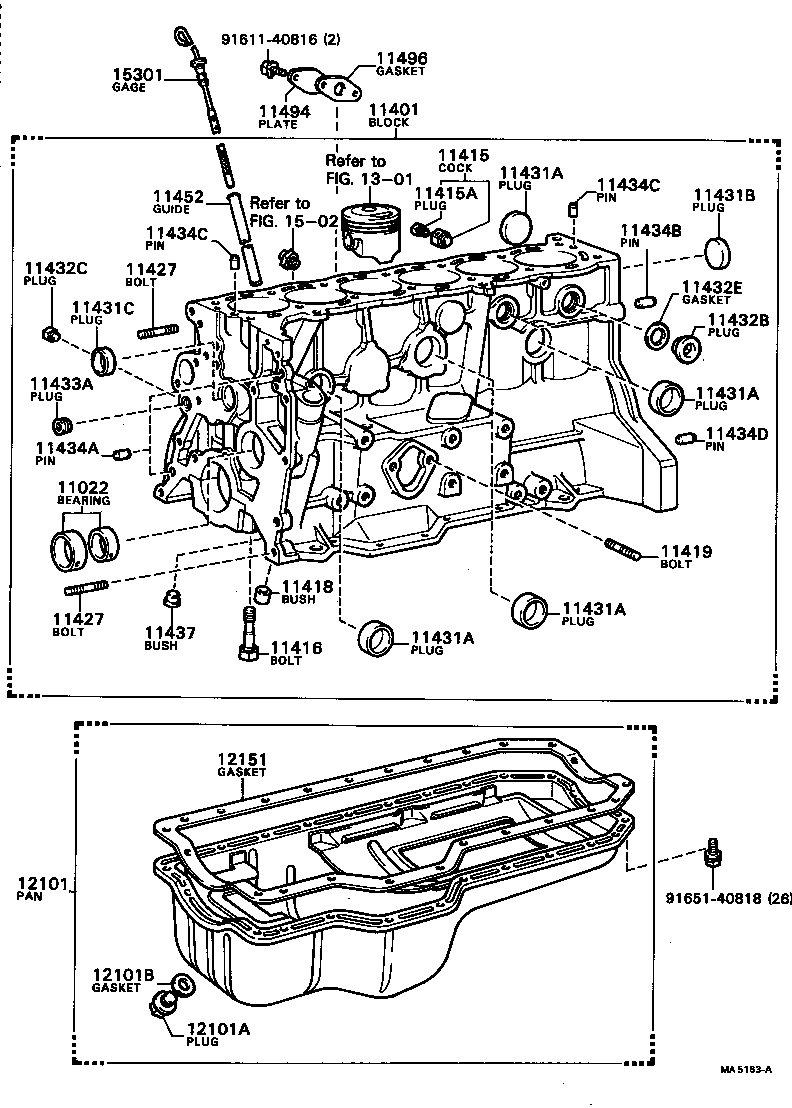

(8108-8408)5MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11022 - BEARING SET, PUMP DRIVE SHAFT | ||||
| 11022-41010 |
5MGE..MA61 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-49315 |
5MGE..MA61 |
1 | ||
| 11401-49316 |
5MGE..MA61 |
1 | ||
| 11401-49315 |
5MGE..MA61 |
1 | ||
| 11401-49425 |
5MGE..MA61 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
5MGE..MA61 |
1 | ||
| 90910-09070 |
5MGE..MA61 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
5MGE..MA61 |
1 | ||
| 90910-09072 |
5MGE..MA61 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02047 |
5MGE..MA61 |
14 | ||
| 11418 - BUSH, SOLID(FOR DISTRIBUTOR) | ||||
| 90999-70056 |
5MGE..MA61 |
1 | ||
| 11419 - BOLT, STUD(FOR FUEL PUMP) | ||||
| 90116-08191 |
5MGE..MA61 |
2 | ||
| 90116-08185 |
5MGE..MA61 L=39,S=25&9 |
2 | ||
| 11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET) | ||||
| 92122-60860 |
5MGE..MA61 L=72,S=18&12 |
1 | ||
| 90116-08147 |
5MGE..MA61 L=68,S=12&24 |
1 | ||
| 11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET) | ||||
| 92122-60860 |
5MGE..MA61 L=72,S=18&12 |
1 | ||
| 90116-08147 |
5MGE..MA61 L=68,S=12&24 |
1 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
5MGE..MA61 OD=40 |
7 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
5MGE..MA61 OD=40 |
7 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
5MGE..MA61 OD=40 |
7 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
5MGE..MA61 OD=40 |
7 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96412-43500 |
5MGE..MA61 OD=35 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
5MGE..MA61 OD=35 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-32070 |
5MGE..MA61 |
2 | ||
| 11432C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90345-51025 |
5MGE..MA61 |
2 | ||
| 90345-51025 |
5MGE..MA61 |
1 | ||
| 90345-51006 |
5MGE..MA61 |
1 | ||
| 11432E - GASKET, W/HEAD TAPER SCREW PLUG | ||||
| 90430-32222 |
5MGE..MA61 |
2 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90344-53015 |
5MGE..MA61 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-10192 |
5MGE..MA61 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10192 |
5MGE..MA61 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08112 |
5MGE..MA61 L=16,OD=8,L=16,OD=8 |
2 | ||
| 90250-08120 |
5MGE..MA61 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08112 |
5MGE..MA61 L=16,OD=8,L=16,OD=8 |
2 | ||
| 90250-08120 |
5MGE..MA61 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-10192 |
5MGE..MA61 L=22,OD=10 |
2 | ||
| 11437 - BUSH, OIL PUMP SHAFT GUIDE | ||||
| 11437-45010 |
5MGE..MA61 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-41030 |
5MGE..MA61 |
1 | ||
| 11494 - PLATE, OIL HOLE COVER | ||||
| 11494-45010 |
5MGE..MA61 |
1 | ||
| 11496 - GASKET, OIL HOLE COVER PLATE | ||||
| 15318-45011 |
5MGE..MA61 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-43040 |
5MGE..MA61 |
1 | ||
| 12101-49295 |
5MGE..MA61 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
5MGE..MA61 |
1 | ||
| 90341-18089 |
5MGE..MA61 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
5MGE..MA61 |
1 | ||
| 90430-18244 |
5MGE..MA61 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-41010 |
5MGE..MA61 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-43020 |
5MGE..MA61 |
1 | ||
| 15301-43010 |
5MGE..MA61 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 91651-40818 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1502 | ||||

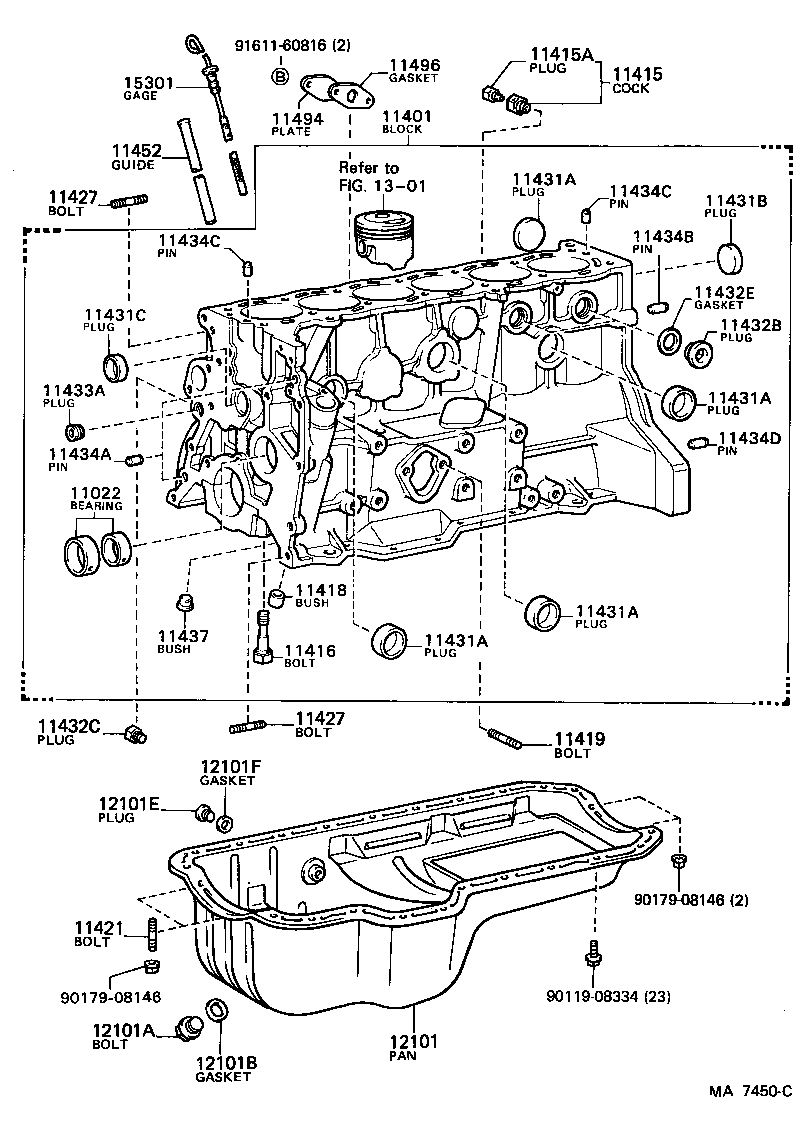

(8408- )5MGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11022 - BEARING SET, PUMP DRIVE SHAFT | ||||
| 11022-41010 |
5MGE..MA61 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-49315 |
5MGE..MA61 |
1 | ||
| 11401-49316 |
5MGE..MA61 |
1 | ||
| 11401-49315 |
5MGE..MA61 |
1 | ||
| 11401-49425 |
5MGE..MA61 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
5MGE..MA61 |
1 | ||
| 90910-09070 |
5MGE..MA61 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
5MGE..MA61 |
1 | ||
| 90910-09072 |
5MGE..MA61 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02047 |
5MGE..MA61 |
14 | ||
| 11418 - BUSH, SOLID(FOR DISTRIBUTOR) | ||||
| 90999-70056 |
5MGE..MA61 |
1 | ||
| 11419 - BOLT, STUD(FOR FUEL PUMP) | ||||
| 90116-08191 |
5MGE..MA61 |
2 | ||
| 90116-08185 |
5MGE..MA61 L=39,S=25&9 |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-08037 |
5MGE..MA61 |
2 | ||
| 11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET) | ||||
| 92122-60860 |
5MGE..MA61 L=72,S=18&12 |
1 | ||
| 90116-08147 |
5MGE..MA61 L=68,S=12&24 |
1 | ||
| 11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET) | ||||
| 92122-60860 |
5MGE..MA61 L=72,S=18&12 |
1 | ||
| 90116-08147 |
5MGE..MA61 L=68,S=12&24 |
1 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
5MGE..MA61 OD=40 |
7 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
5MGE..MA61 OD=40 |
7 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
5MGE..MA61 OD=40 |
7 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
5MGE..MA61 OD=40 |
7 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96412-43500 |
5MGE..MA61 OD=35 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
5MGE..MA61 OD=35 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-32070 |
5MGE..MA61 |
2 | ||
| 11432C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90345-51025 |
5MGE..MA61 |
2 | ||
| 90345-51025 |
5MGE..MA61 |
1 | ||
| 90345-51006 |
5MGE..MA61 |
1 | ||
| 11432E - GASKET, W/HEAD TAPER SCREW PLUG | ||||
| 90430-32222 |
5MGE..MA61 |
2 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90344-53015 |
5MGE..MA61 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-10192 |
5MGE..MA61 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10192 |
5MGE..MA61 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08112 |
5MGE..MA61 L=16,OD=8,L=16,OD=8 |
2 | ||
| 90250-08120 |
5MGE..MA61 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08112 |
5MGE..MA61 L=16,OD=8,L=16,OD=8 |
2 | ||
| 90250-08120 |
5MGE..MA61 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-10192 |
5MGE..MA61 L=22,OD=10 |
2 | ||
| 11437 - BUSH, OIL PUMP SHAFT GUIDE | ||||
| 11437-45010 |
5MGE..MA61 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-41030 |
5MGE..MA61 |
1 | ||
| 11494 - PLATE, OIL HOLE COVER | ||||
| 11494-45010 |
5MGE..MA61 |
1 | ||
| 11496 - GASKET, OIL HOLE COVER PLATE | ||||
| 15318-45011 |
5MGE..MA61 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-43040 |
5MGE..MA61 |
1 | ||
| 12101-49295 |
5MGE..MA61 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
5MGE..MA61 |
1 | ||
| 90341-18089 |
5MGE..MA61 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
5MGE..MA61 |
1 | ||
| 90430-18244 |
5MGE..MA61 |
1 | ||
| 12101E - PLUG, OIL PAN(FOR OIL COOLER) | ||||
| 90341-12004 |
5MGE..MA61 |
1 | ||
| 90341-12012 |
5MGE..MA61 |
1 | ||
| 12101F - GASKET(FOR OIL COOLER) | ||||
| 90430-12009 |
5MGE..MA61 |
1 | ||
| 90430-12018 |
5MGE..MA61 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-43020 |
5MGE..MA61 |
1 | ||
| 15301-43010 |
5MGE..MA61 |
1 | ||
| Common parts | ||||
| 90119-08334 | ||||
| 90179-08146 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1301 | ||||
