MA46L-BLMQEA (1979)

Toyota Celica

Production Jan 1979 - Aug 1980
Engine 4ME
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )MA4#

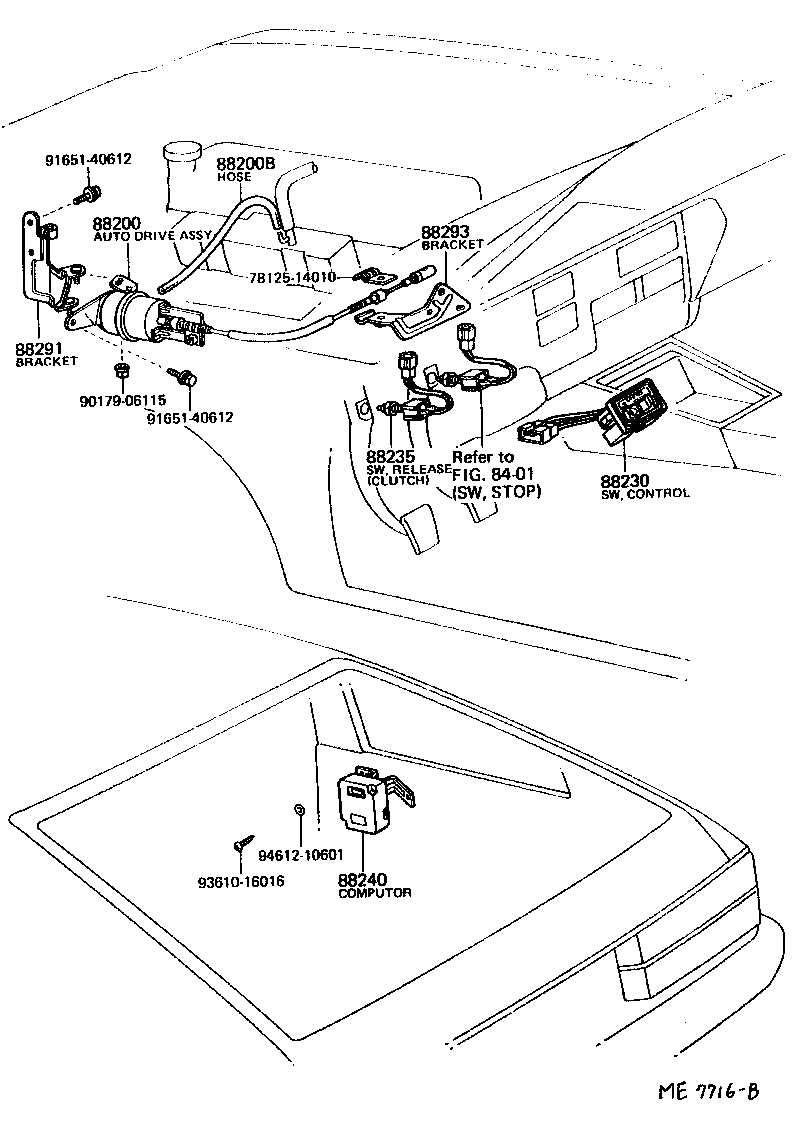

Click highlighted areas on diagram

diagram 7812514010 8401 88200 88200B 88230 88235 88240 88291 88293 9017906115 9165140612 9165140612 9361016016 9461210601
Part # Description Qty Price
88200 - CRUISE CONTROL ASSY
88200-14020

MA46

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19930

MA46

*H,L=140,MARK=#*,*H,L=140

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-14020

MA46

 1
88230-14040

MA46

 1
88235 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE
88280-14010

MA46..5F

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-14020

MA46

 1
88240-14021

MA46

 1
Common parts
78125-14010
90179-06115
91651-40612
93610-16016
94612-10601
Linked diagrams
8401
