MA46L-BLHQEA (1979)
Toyota Celica
Production
Jan 1979
-
Aug 1980
Engine
4ME
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )MA4#

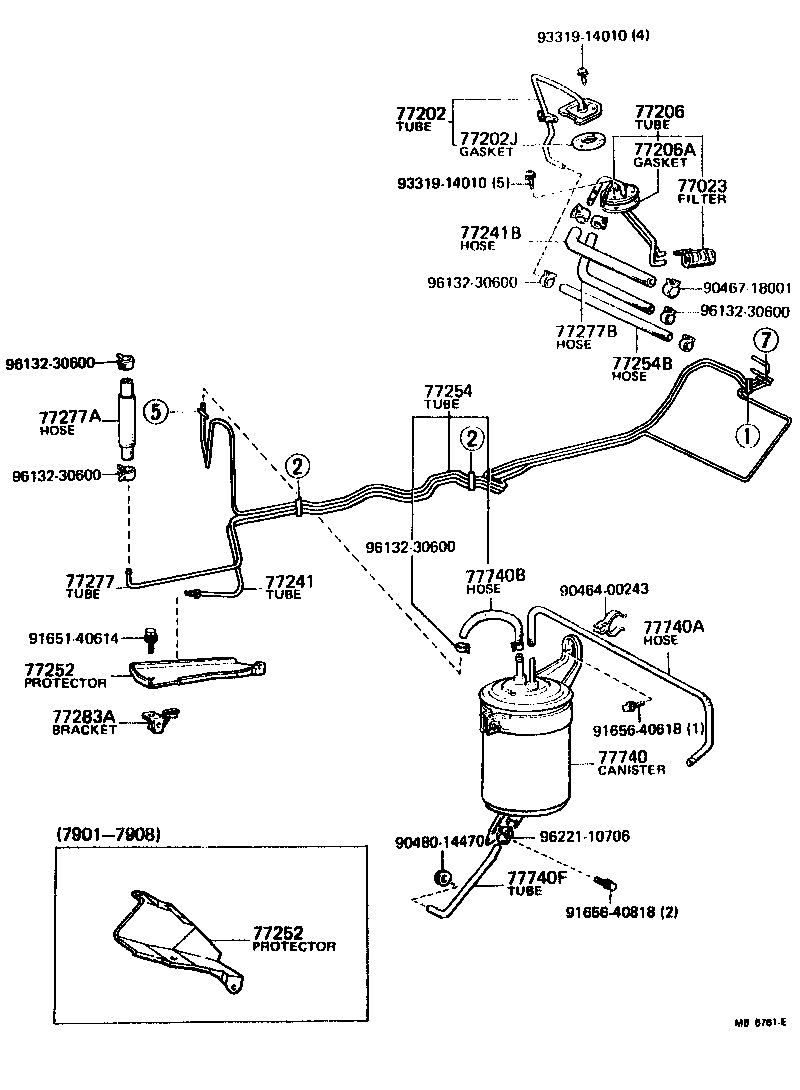

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77012-14030 |
MA46 |
1 | ||
| 77012-14031 |
MA46 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-14070 |
MA46 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14130 |
MA46 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06026 |
MA46,RA42 *H,L=260 |
1 | ||
| 77259-14030 |
MA46 |
1 | ||
| 95332-06030 |
MA46,RA42 *H,L=260 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-14010 |
MA46 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-14010 |
MA46 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06026 |
MA46,RA42 *H,L=260 |
1 | ||
| 95332-06030 |
MA46,RA42 *H,L=260 |
1 | ||
| 95332-06020 |
MA46 *H,L=140 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-14120 |
MA46 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06040 |
MA46 *H,L=400 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 77259-14030 |
MA46 |
1 | ||
| 95332-06030 |
MA46,RA42 *H,L=260 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-14270 |
MA46 |
1 | ||
| Common parts | ||||
| 90464-00243 | ||||
| 90467-18001 | ||||
| 90480-14470 | ||||
| 91651-40614 | ||||
| 91656-40618 | ||||
| 91656-40818 | ||||
| 93319-14010 | ||||
| 96132-30600 | ||||
| 96221-10706 | ||||
