AT200L-BLPSKA (1993)
Toyota Celica

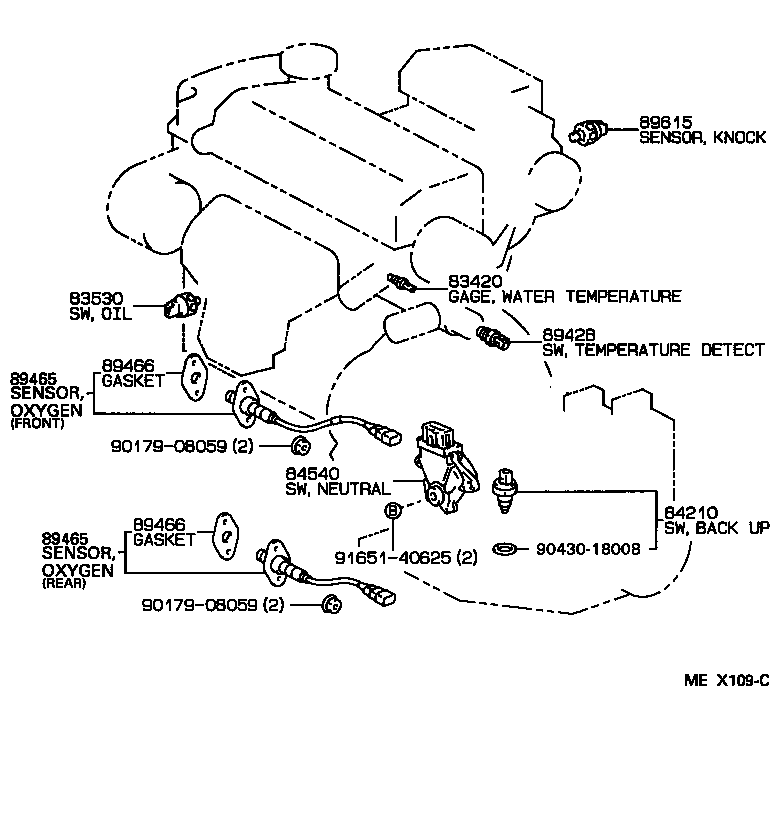

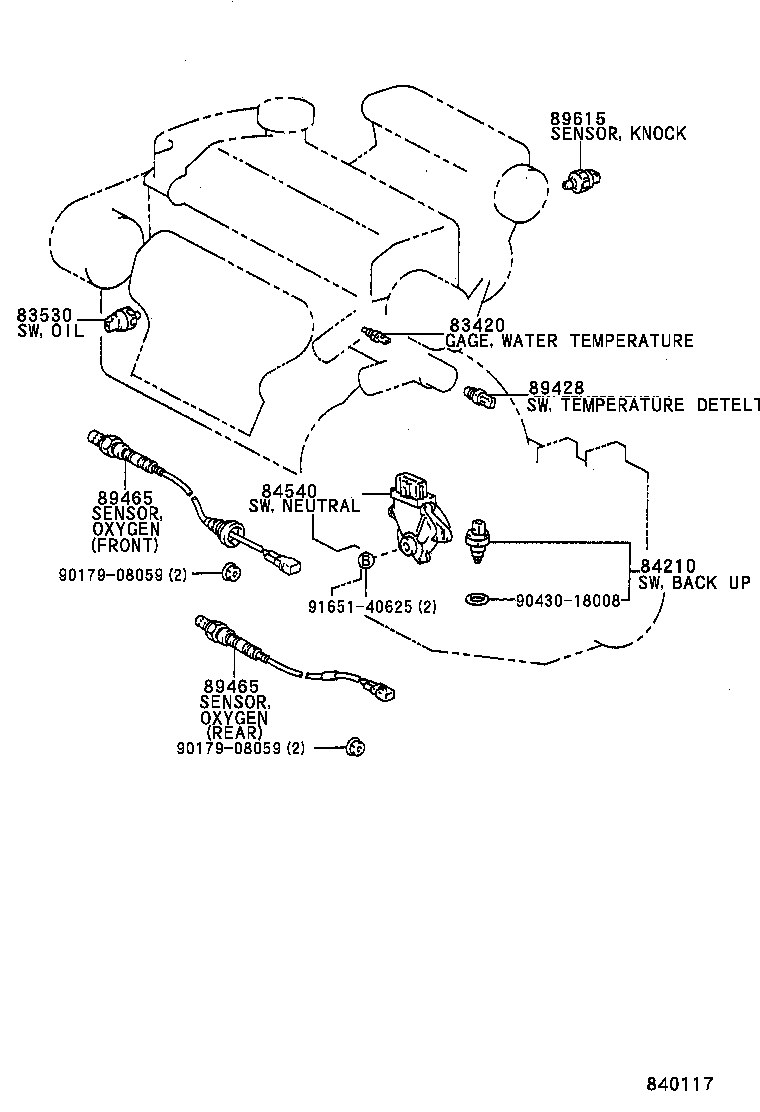

ILLUST NO. 1 OF 6(9508- )GT ; (9508- )AT200
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
AT200,ST204 |
1 | ||
| 83420-20040 |
AT200 |
1 | ||
| 83420-20040 |
AT200,ST204..CP,LB |
1 | ||
| 83420-20040 |
AT200 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
AT200,ST204 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12200 |
AT200..ATM TOKAIRIKA |
1 | ||
| 84540-12210 |
AT200..ATM MATSUSHITA |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AT200 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29745 |
AT200 REAR |
1 | ||
| 89465-29755 |
AT200 FRONT |
1 | ||
| 89465-20510 |
AT200 REAR |
1 | ||
| 89465-20500 |
AT200 FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29745 |
AT200 REAR |
1 | ||
| 89465-29755 |
AT200 FRONT |
1 | ||
| 89465-20510 |
AT200 REAR |
1 | ||
| 89465-20500 |
AT200 FRONT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
AT200 MATSUSHITA |
1 | ||
| 89615-22040 |
AT200 NIPPON DENSO |
1 | ||
| 89615-12030 |
AT200 TOYOTA |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
ILLUST NO. 6 OF 6(9309- )
ROOF,DOOR SEAT,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80295 |
AT200,ST204 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80295 |
AT200,ST204 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32050 |
AT200,ST204 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32050 |
AT200,ST204 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20370 |
AT200,ST204..LB |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20370 |
AT200,ST204..LB |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT200,ST204 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32110 |
AT200,ST204 W(CRUISE CONTOROL) |
1 | ||
| 84340-32090 |
AT200,ST204 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
AT200,ST204 |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-20070 |
AT200,ST204..ATM |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-14110 |
AT200,ST204 NO.1 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20440 |
AT200,ST204 |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-20050A0 |
AT200,ST204..CP,LB IVORY,TRIM0# |
1 | ||
| 84862-20050B0 |
AT200,ST204..CP,LB LI.GRAY,TRIM2# |
1 | ||
| 84862-20050B2 |
AT200,ST204..CP,LB LT.GRAY,TRIM2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20160 |
AT200,ST204..ST |
1 | ||
| 84870-20110 |
AT200,ST204 W(POWER WINDOW) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-14090 |
AT200,ST204 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20180 |
AT200,ST204 LH |
1 | ||
| 84931-20130 |
AT200,ST204 RH |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-20070 |
AT200,ST204..ATM |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20100 |
AT200,ST204..CP,LB |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-20091 |
AT200,ST204..ATM |
1 | ||
| 85933-20090 |
AT200,ST204..ATM |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-14100 |
AT200,ST204..LB |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90119-06601 | ||||
| 90164-40103 | ||||
| 91511-60616 | ||||
| 93269-15008 | ||||
| 93315-14014 | ||||
| 93319-14008 | ||||
| 93319-14010 | ||||
| 93568-15014 | ||||
ILLUST NO. 4 OF 6(9309- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12110 |
AT200,ST204 |
1 | ||
| 81980-12070 |
AT200,ST204 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
AT200,ST204 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
AT200,ST204 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
AT200,ST204 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
AT200,ST204 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
AT200,ST204 30A,MINI FUSE,GRN |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-20120 |
AT200,ST204 |
1 | ||
| 82683-20121 |
AT200,ST204 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AT200,ST204 40A,GREEN |
1 | ||
| 90982-10001 |
AT200,ST204 30A,PINK |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-33041 |
AT200,ST204 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-2B110 |
AT200,ST204 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-20020 |
AT200,ST204 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-20020 |
AT200,ST204 |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-20020 |
AT200,ST204 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT200,ST204 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
AT200,ST204 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
AT200,ST204 |
1 | ||
| 90987-02009 |
AT200,ST204..CP,LB |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AT200,ST204 |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20100 |
AT200,ST204..CP,LB |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
AT200,ST204 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20370 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90176-06022 | ||||
| 90179-06132 | ||||
| Linked diagrams | ||||
| 8202 | ||||

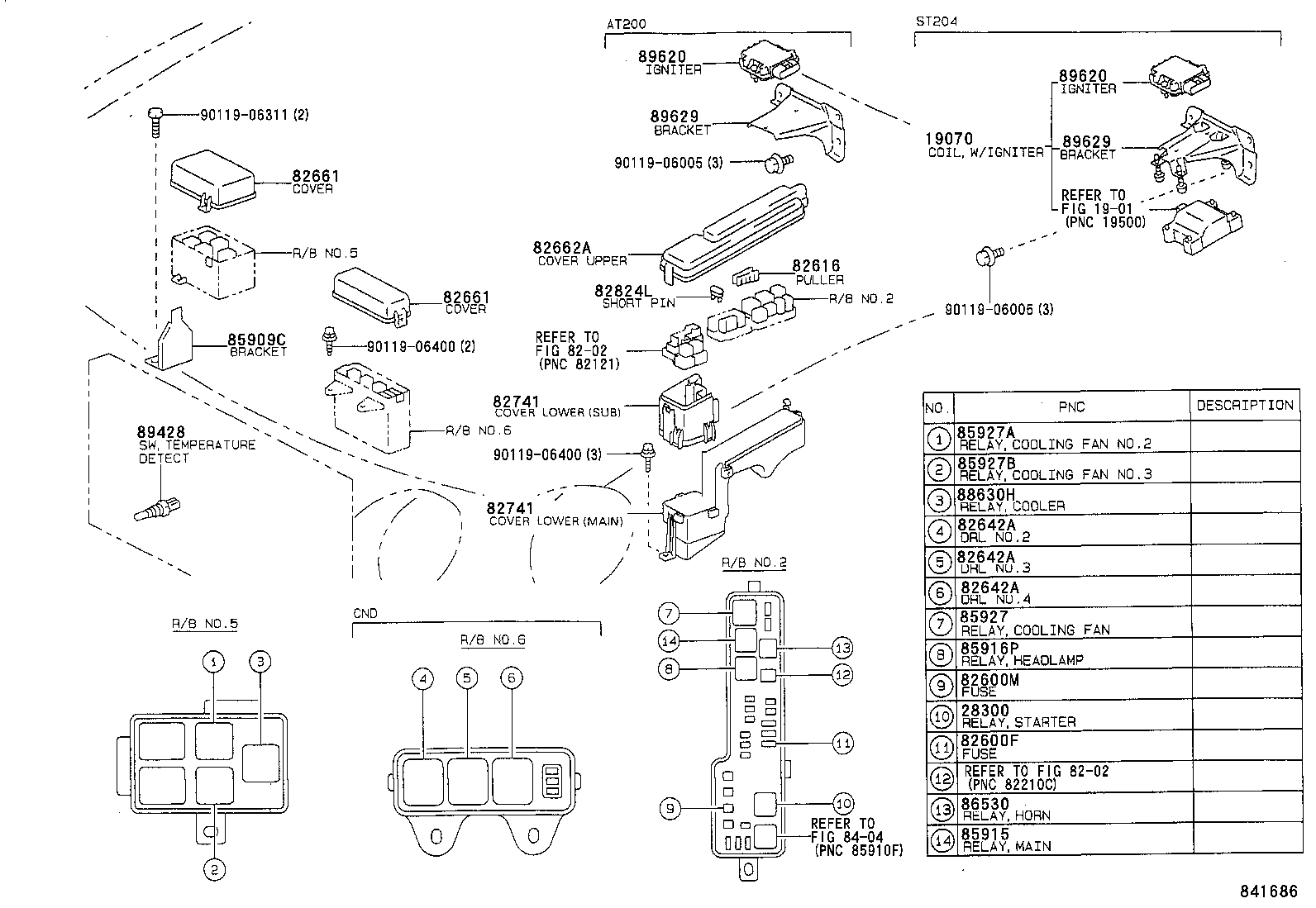

ILLUST NO. 2 OF 6(9309-9508)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
AT200,ST204 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
AT200,ST204 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
AT200,ST204 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
AT200,ST204 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
AT200,ST204 30A,MINI FUSE,GRN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AT200,ST204 40A,GREEN |
1 | ||
| 90982-10001 |
AT200,ST204 30A,PINK |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20160 |
AT200;ST204..(CP,LB)..GT RELAY BLOCK NO.6 |
1 | ||
| 82662-20120 |
AT200;ST204..(CP,LB)..GT RELAY BLOCK NO.5 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20160 |
AT200;ST204..(CP,LB)..GT RELAY BLOCK NO.6 |
1 | ||
| 82662-20120 |
AT200;ST204..(CP,LB)..GT RELAY BLOCK NO.5 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-20150 |
AT200,ST204..USA |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-20010 |
AT200,ST204 MAIN |
1 | ||
| 82741-20020 |
AT200,ST204 SUB |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-20010 |
AT200,ST204 MAIN |
1 | ||
| 82741-20020 |
AT200,ST204 SUB |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
AT200,ST204 |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-20020 |
AT200,ST204 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AT200,ST204 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT200,ST204 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AT200,ST204 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02009 |
AT200,ST204 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04003 |
AT200,ST204 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT200,ST204 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AT200,ST204 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AT200 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12440 |
AT200 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12440 |
AT200 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12440 |
AT200 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20170 |
AT200 |
1 | ||
| 89629-20170 |
AT200;ST204..CVT |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20170 |
AT200 |
1 | ||
| 89629-20170 |
AT200;ST204..CVT |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06311 | ||||
| 90119-06400 | ||||
| 90333-20001 | ||||
| Linked diagrams | ||||
| 1901 | ||||
| 8202 | ||||
| 8404 | ||||

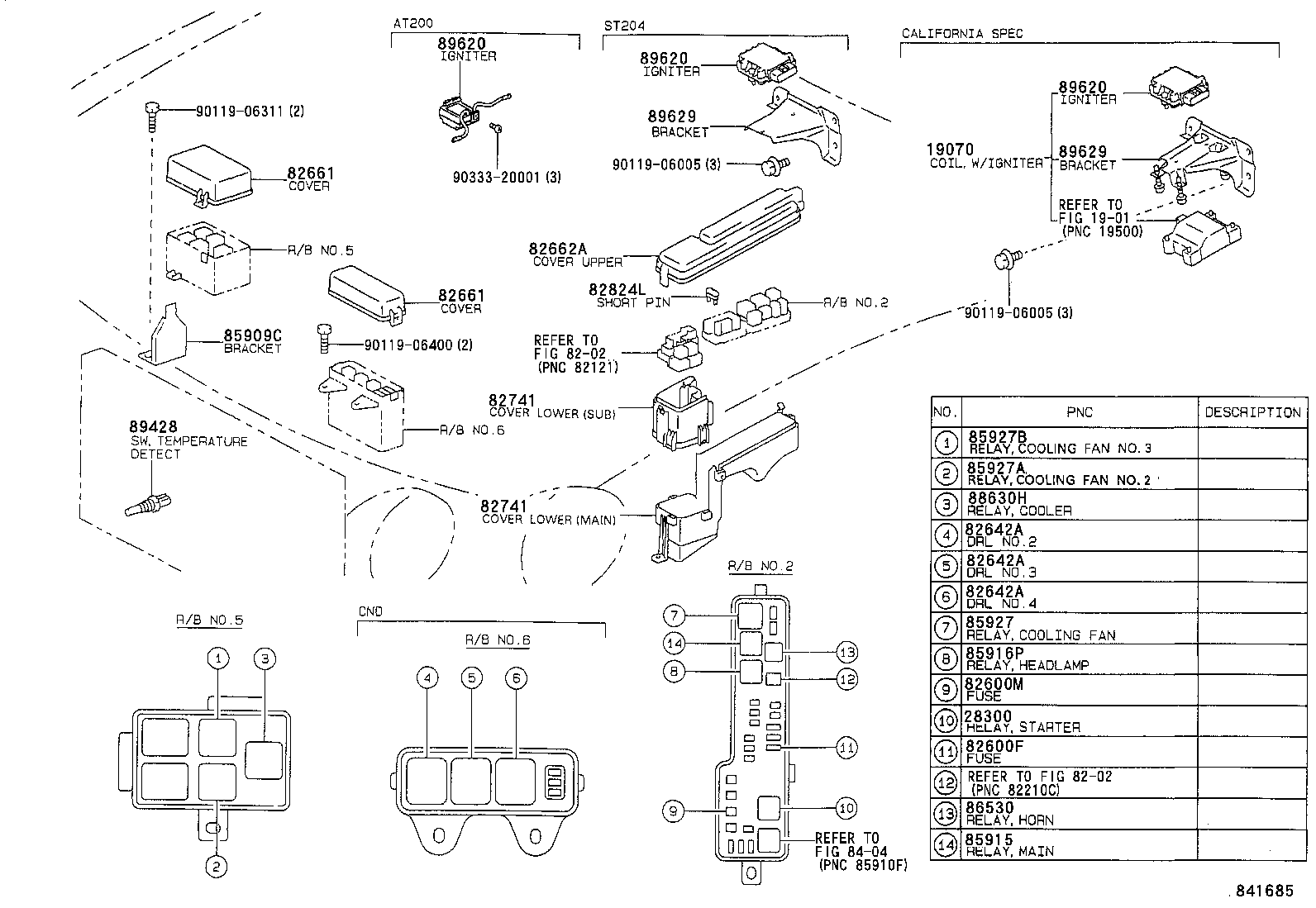

ILLUST NO. 2 OF 6(9508- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
AT200,ST204 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
AT200,ST204 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
AT200,ST204 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
AT200,ST204 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
AT200,ST204 30A,MINI FUSE,GRN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AT200,ST204 40A,GREEN |
1 | ||
| 90982-10001 |
AT200,ST204 30A,PINK |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AT200,ST204 |
1 | ||
| 82616-20010 |
AT200,ST204..CP,LB |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20160 |
AT200;ST204..(CP,LB)..GT RELAY BLOCK NO.6 |
1 | ||
| 82662-20120 |
AT200;ST204..(CP,LB)..GT RELAY BLOCK NO.5 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20160 |
AT200;ST204..(CP,LB)..GT RELAY BLOCK NO.6 |
1 | ||
| 82662-20120 |
AT200;ST204..(CP,LB)..GT RELAY BLOCK NO.5 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-20150 |
AT200,ST204..USA |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-20010 |
AT200,ST204 MAIN |
1 | ||
| 82741-20020 |
AT200,ST204 SUB |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-20010 |
AT200,ST204 MAIN |
1 | ||
| 82741-20020 |
AT200,ST204 SUB |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
AT200,ST204 |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-20020 |
AT200,ST204 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AT200,ST204 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT200,ST204 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AT200,ST204 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02009 |
AT200,ST204 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04003 |
AT200,ST204 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT200,ST204 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AT200,ST204 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AT200 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12440 |
AT200 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12440 |
AT200 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20170 |
AT200 |
1 | ||
| 89629-20170 |
AT200;ST204..CVT |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20170 |
AT200 |
1 | ||
| 89629-20170 |
AT200;ST204..CVT |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06311 | ||||
| 90119-06400 | ||||
| Linked diagrams | ||||
| 1901 | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 3 OF 6(9309- )
INSTRUMENT PANEL & DOOR SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20050 |
AT200,ST204 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20030 |
AT200,ST204 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20250 |
AT200,ST204 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
AT200,ST204 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20340 |
AT200,ST204 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AT200,ST204 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
AT200,ST204 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20350 |
AT200,ST204 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20470 |
AT200..USA |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10700 |
AT200,ST204 14V 0.63W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10660 |
AT200,ST204 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-14110 |
AT200,ST204 NO.1 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-14110 |
AT200,ST204 NO.1 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-20060 |
AT200,ST204..ATM |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
AT200,ST204 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AT200,ST204 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-14010 |
AT200,ST204 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 84999-10250 | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 94120-41000 | ||||
ILLUST NO. 1 OF 6(9309-9508)AT200
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
AT200,ST204 |
1 | ||
| 83420-20040 |
AT200 |
1 | ||
| 83420-20040 |
AT200,ST204..CP,LB |
1 | ||
| 83420-20040 |
AT200 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
AT200,ST204 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12200 |
AT200..ATM TOKAIRIKA |
1 | ||
| 84540-12210 |
AT200..ATM MATSUSHITA |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AT200 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29745 |
AT200 REAR |
1 | ||
| 89465-29755 |
AT200 FRONT |
1 | ||
| 89465-20510 |
AT200 REAR |
1 | ||
| 89465-20500 |
AT200 FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29745 |
AT200 REAR |
1 | ||
| 89465-29755 |
AT200 FRONT |
1 | ||
| 89465-20510 |
AT200 REAR |
1 | ||
| 89465-20500 |
AT200 FRONT |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AT200 |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AT200 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
AT200 MATSUSHITA |
1 | ||
| 89615-22040 |
AT200 NIPPON DENSO |
1 | ||
| 89615-12030 |
AT200 TOYOTA |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
ILLUST NO. 5 OF 6(9309- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26140 |
AT200,ST204 |
1 | ||
| 84140-20520 |
AT200,ST204 |
1 | ||
| 84140-20560 |
AT200,ST204 W(FOG LAMP) |
1 | ||
| 84140-20560 |
AT200,ST204..CP,LB W(FOG LAMP) |
1 | ||
| 84140-26140 |
AT200,ST204..CP,LB |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-07010 |
AT200,ST204 |
1 | ||
| 84306-07010 |
AT200,ST204..CP,LB |
1 | ||
| 84306-20030 |
AT200,ST204..USA |
1 | ||
| 84306-20040 |
AT200,ST204 W(CRUISE CONTOROL) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2L070 |
AT200,ST204..LB..USA W(REAR WIPER) |
1 | ||
| 84310-2L060 |
AT200..USA;ST204..(CP,CVT)..USA |
1 | ||
| 84310-2L490 |
ST204..CP;AT200..USA |
1 | ||
| 84310-2L500 |
AT200,ST204..LB..USA W(REAR WIPER) |
1 | ||
| 84310-2L080 |
AT200..USA;ST204..CP,CVT W(CRUISE CONTOROL) |
1 | ||
| 84310-2L520 |
AT200,ST204..LB..USA W(FOG LAMP) |
1 | ||
| 84310-2L100 |
AT200,ST204..LB W(REAR WINDOW WIPER & CRUISE CONTROL) |
1 | ||
| 84310-2L340 |
AT200,ST204..LB W(CRUISE CONTROL & FOG LAMP) |
1 | ||
| 84310-2L320 |
AT200,ST204..LB W(CRUISE CONTOROL) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G300 |
AT200,ST204..LB W(REAR WIPER) |
1 | ||
| 84652-2G290 |
AT200..USA;ST204..CP,CVT |
1 | ||
| 84652-2G010 |
ST204..CP;AT200..USA |
1 | ||
| 84652-26530 |
AT200,ST204..LB W(REAR WIPER) |
1 | ||
| 84652-2G010 |
AT200..USA;ST204..CP,CVT;ST204..LB..ST |
1 | ||
| Common parts | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
