AT200L-BLPSKA (1993)
Toyota Celica
Production
Sep 1993
-
Dec 1997
Engine
7AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9309- )AT200..ATM

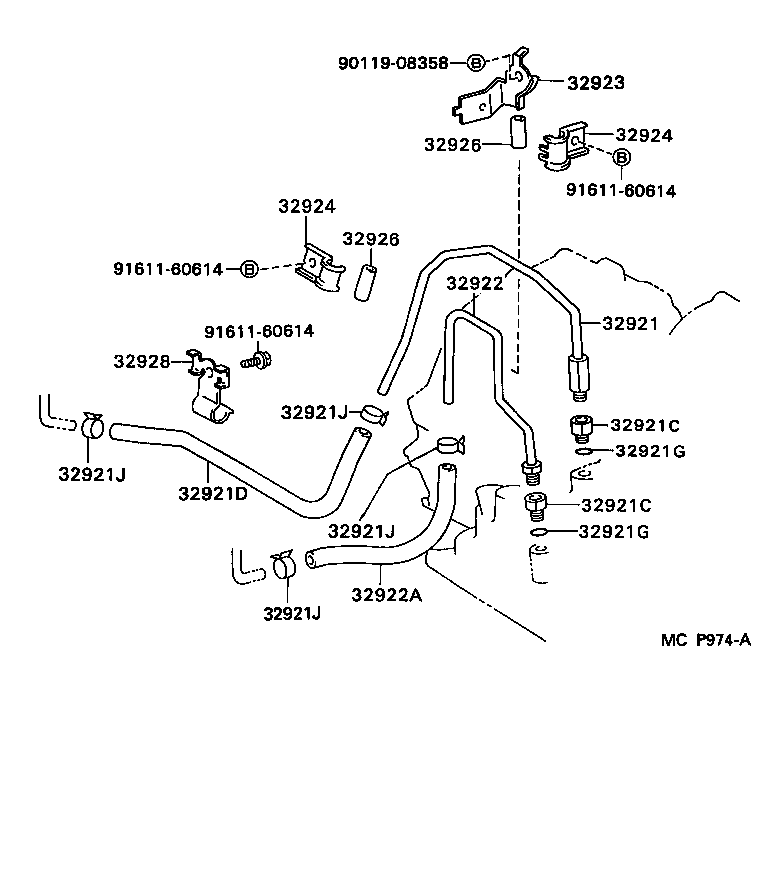

Click highlighted areas on diagram
A246E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-20370 |
AT200..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16032 |
AT200..ATM |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16032 |
AT200..ATM |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32943-20050 |
AT200..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
AT200..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
AT200..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
AT200,ST204..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
AT200,ST204..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
AT200,ST204..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
AT200,ST204..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-20390 |
AT200..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17106 |
AT200,ST204..ATM |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-20160 |
AT200..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-20080 |
AT200,ST204..ATM |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-20080 |
AT200,ST204..ATM |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-20010 |
AT200..ATM L=25,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-20010 |
AT200..ATM L=25,ID=10 |
2 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-20110 |
AT200..ATM |
1 | ||
| Common parts | ||||
| 90119-08358 | ||||
| 91611-60614 | ||||
